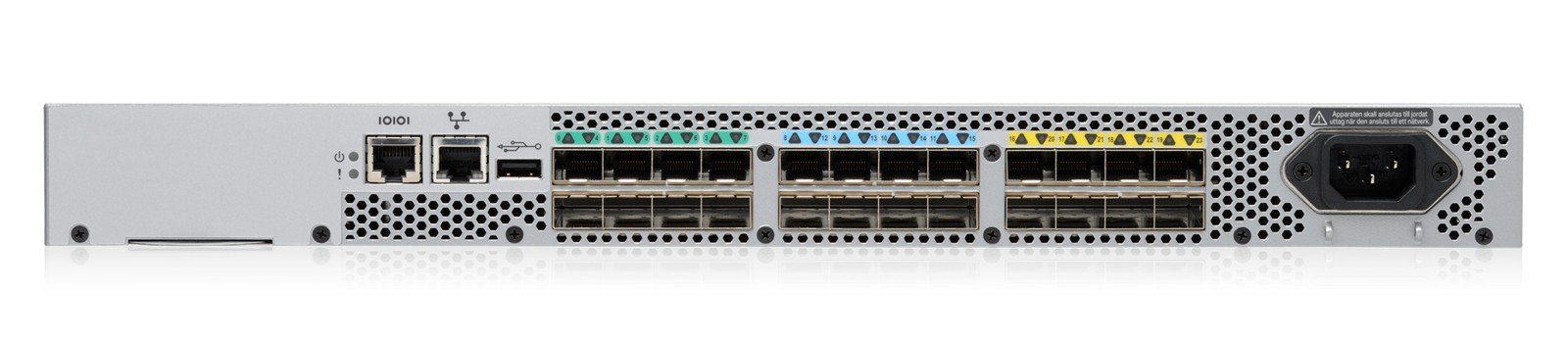

Connectrix DS-6610B 32G FC SAN Switch

Overview

The Connectrix DS-6610B is a 24-port, 32 Gb/s Fibre Channel SAN switch in a 1U form factor, designed to support the SAN requirements of small and medium-sized environments with high performance and economy. All models operate at 4, 8, 16 or 32 Gb/s depending on the installed optic, and the switch is managed by Connectrix B-Series SANnav.

Port Configuration

• Form factor: 1U, installable in a standard 19-inch EIA rack
• Fibre Channel ports: DS-6610B-L: a 24-port switch. The 1U base chassis is pre-populated with eight 16Gb/s or 32Gb/s Fibre Channel SFP+ shortwave optics, and Ports on Demand kits allow expansion in 8-port increments. Enterprise models come fully populated with 24 16Gb/s or 32Gb/s SFPs and include the Enterprise Package
• Ports on Demand: 8 active ports base, scalable to 24 with 8-port Ports on Demand kits in 8-port increments
• Detail: The DS-6610B-L base chassis includes eight active 32Gb/s-capable ports populated with eight 16Gb/s or eight 32Gb/s SFPs. The 8-port Ports on Demand kits allow the switch to support an additional 16 ports, reaching a maximum of 24 ports. The DS-6610B Enterprise models come fully populated with 24 16Gb/s or 32Gb/s SFPs and include the Enterprise Package

Performance

• Fibre Channel performance: 32Gb/s SFPs can operate at 32, 16 or 8Gb/s
  16Gb/s SFPs will operate at 16, 8 and 4Gb/s, with 24 active ports on base models
  or 48 fully populated SFP+ ports on enterprise models
• Aggregate bandwidth: 768 Gb/s
• Frame buffers: 2K dynamically allocated
• Maximum frame size: 2,112-byte payload
• Classes of service: Class 2, Class 3 and Class F (inter-switch frames)
• Port types: F_Port, E_Port, M_Port and D_Port (ClearLink Diagnostics Port) on 24 SFP+ ports, with Access Gateway mode providing F_Port and NPIV-enabled N_Port
• Installation: all models can be installed in a standard, customer-supplied
  19-inch Electronic Industries Alliance (EIA) rack
• Scalability: refer to Dell E-Lab Navigator for the supported fabric
  combinations
• Firmware upgrades: non-disruptive download and activation

Fabric Services

BB Credit Recovery; Brocade Advanced Zoning (Default Zoning, Port/WWN Zoning, Peer Zoning); Congestion Signaling; Dynamic Path Selection (DPS); Extended Fabrics; Fabric Performance Impact Notification (FPIN); Fabric Vision; FDMI; FICON CUP (DS-6620B only); Flow Vision; F_Port Trunking; FSPF; Integrated Routing; ISL Trunking; Management Server; Name Server; NPIV; NTP v3; Port Decommission/Fencing; QoS; Registered State Change Notification (RSCN); Target-Driven Zoning; Traffic Optimizer; Virtual Fabrics (Logical Switch and Logical Fabric); VMID and AppServer

Some fabric services do not apply or are unavailable in Access Gateway mode.

Security

DH-CHAP (between switches and end devices); FCAP switch authentication; HTTPS; IP filtering; LDAP with IPv6; OpenLDAP; Port Binding; RADIUS; TACACS+; user-defined Role-Based Access Control (RBAC); Secure Copy (SCP); Secure RPC; Secure Syslog; SSH v2; SSL; Switch Binding; Trusted Switch; IPsec

Management

• Minimum Fabric OS (FOS): DS-6630B requires FOS 8.0.0 or higher and the
  DS-6630B-V2 requires FOS 9.0.0 or higher; the DS-6610B-L requires FOS 9.0.1 or higher
• Management software: Advanced Web Tools, SSH, auditing, Syslog, NTP v3, CLI
  and SMI-S compliant; REST API, HTTP, SNMP v1/v3 (FE MIB, FC Management MIB)
• SANnav Management: SANnav Management Portal and SANnav Global View provide
  comprehensive visibility into the SAN environment; SANnav supports open systems only and requires
  FOS v7.4 or higher
• Management access: 10/100/1000 Mb/s Ethernet (RJ-45), in-band over Fibre
  Channel, serial port (RJ-45) and one USB port
• Diagnostics: ClearLink optics and cable diagnostics including electrical/optical loopback and link traffic/latency/distance; flow mirroring; built-in flow generator; POST and embedded online/offline diagnostics including environmental monitoring, FC ping and Pathinfo (FC traceroute); frame viewer; non-disruptive daemon restart; optics health monitoring; power monitoring; RAS trace logging; Rolling Reboot Detection (RRD)
• Call home: call home integration with SANnav and Connectrix Manager
  Converged Network Edition

Features and Licensing

• Optional licence-key features: Enterprise Package (Fabric Vision, Extended Fabric and ISL Trunking), Mainframe Licence (ISL Trunking, Fabric Vision and FICON Control Unit Port) and Integrated Routing (ports configured as EX_Ports for FC-FC routing). -EP models include the Enterprise Package
• SAN extension: Not applicable; the DS-6610B does not support SAN extension. Virtual Fabrics (logical switch and logical fabric) requires FOS 9.1.x and higher on this model

Physical Specifications

• Enclosure: Chassis supports rear-to-front (RTF) airflow
• Dimensions: Width 428.80 mm (16.88 in.), height 42.90 mm (1.69 in.), depth 306.60 mm (12.07 in.)
• Weight: 5.75 kg (12.67 lb)

Power and Heat Dissipation

• Power supply: The switch chassis includes one fixed power supply; the embedded power supply/fan is not replaceable and the entire switch is a field replaceable unit, with the SFPs the only FRUs. The DS-6610B-L supports in-service firmware upgrades. Although the switch ships with a single power supply, two power cords are included and only one is required
• AC input: 90 V to 264 V, ~2.2 A
• Power consumption: 77W with all 24 ports populated
• Heat dissipation: 24 ports at 215 BTU/hr
• Input line frequency: 47-63 Hz

Environmental Specifications

• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating temperature: -25°C to 70°C (-13°F to 158°F)
• Humidity: 10% to 85% (non-condensing) operating; 10% to 90% (non-condensing) non-operating
• Altitude: operating up to 3,000 m (9,842 ft); storage up to 12 km (39,370 ft)
• Shock: Operating up to 20G, 6 ms half-sine; non-operating half-sine 33G, 11 ms, 3G axis
• Vibration: Operating: 0.5g sine, 0.4 grms random, 5 Hz to 500 Hz. Non-operating: 2.0g sine, 1.1 grms random, 5 Hz to 500 Hz

Services and Warranty

Dell Technologies Services cover the full lifecycle of a SAN build-out: Consulting Services for design and planning, ProDeploy Enterprise Suite for deployment through planning, configuration and complex integrations, Residency and Managed Services for ongoing operations, and ProSupport Enterprise Suite for expert support backed by proactive and predictive AI tools.

Ordering

Configuration, availability and lead time depend on the required model, port count, optics and delivery destination. Send your requirement to receive a quotation.

Data Note

The aggregated bandwidth published for this model in some reseller summaries (39.6 Tbps) is in fact the ED-DCX7-8B director’s aggregate chassis bandwidth; the Dell specification sheet gives 768 Gb/s for the DS-6610B, which is the value used here.
