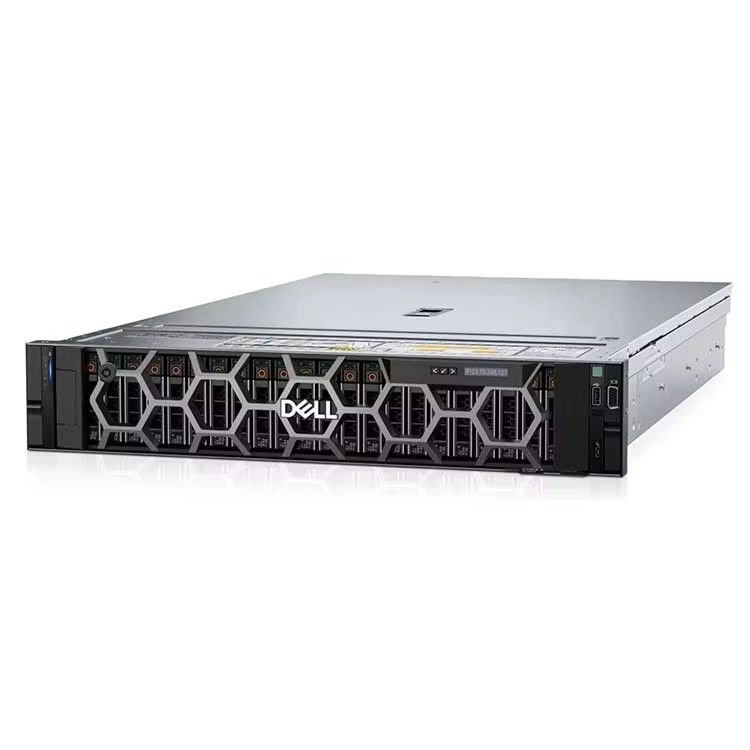

Dell PowerEdge R7725

Dell PowerEdge R7725 Overview

Dell PowerEdge R7725 is designed for buyers planning a configured enterprise infrastructure deployment. Breakthrough performance that scales Designed to be the backbone of your data center, this highly scalable server delivers exceptional performance and flexible configuration options GPULoom supplies quotation-based configurations for data-center, cloud, virtualization and business application projects. Because processor, memory, storage, networking, risers, power supplies, firmware, warranty and condition can vary by unit, the exact bill of materials is confirmed before an order or project commitment.

Dell PowerEdge R7725 Configuration Highlights

• Processor platform: Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor
• Memory: • 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 6400 MT/s • Supports registered ECC DDR5 DIMMs only
• Storage options: Front bays: • 12 x 3.5-inch SAS/SATA • 8 x 2.5-inch Universal / 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA • 16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID • 8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3….
• Expansion: Up to eight PCIe slots (x8 or x16 connector) • Slot 1: 1 x8 Gen5 Full Height • Slot 2: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length • Slot 3: 1 x16 Gen5 Full Height or Low Profile • Slo…
• Accelerator options: Up to 2 x 450W DW*; Up to 6 x 75W SW
• Form factor: 2U rack server

These capabilities describe the platform and its supported configuration range rather than a guaranteed stock configuration. Buyers should provide the expected workload, required capacity, preferred drive layout, network speed, operating environment and redundancy goals. GPULoom will then confirm compatibility and availability for the requested build.

Processor and Memory Planning

For Dell PowerEdge R7725, the available processor information is: Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor. CPU choice should be evaluated against application licensing, core count, clock requirements, virtualization density and power limits. A higher core count is not automatically the best choice for every workload, particularly where software licensing or per-core performance affects total cost.

The documented memory information is: • 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 6400 MT/s • Supports registered ECC DDR5 DIMMs only. Final memory planning should account for capacity, channel population, module type, rank, speed and future expansion. For clustered or virtualized environments, it is also useful to reserve headroom for failover, maintenance and workload growth rather than sizing only for the initial deployment.

Storage, Networking and Expansion

Storage planning for Dell PowerEdge R7725 should start from the required balance of capacity, latency, endurance and serviceability. The current platform data lists: Front bays: • 12 x 3.5-inch SAS/SATA • 8 x 2.5-inch Universal / 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA • 16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID • 8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3.S / 40 x EDSFF E3.S. Drive-bay support does not by itself guarantee that every backplane, controller, cable, boot device or RAID combination is included, so these items are verified as part of the quotation.

Networking and PCIe requirements should be specified alongside storage because adapters, risers and accelerator choices can compete for slots, lanes, power and cooling capacity. Include required Ethernet speeds, port counts, optics or transceivers, host bus adapters, storage controllers and accelerator models in the request. GPULoom will confirm that the proposed combination fits the selected chassis and power envelope.

Workloads and Deployment Fit

The listed workload positioning includes virtualization, business applications, data services and other enterprise infrastructure workloads selected according to the final configuration. Actual suitability depends on the complete configuration, software stack and performance target. Before choosing a server, compare compute density, memory footprint, local storage, network throughput, rack space, acoustic and thermal limits, and the operational model used by the data center.

This product can be considered for new deployments, capacity expansion, standardized server refreshes and compatible replacement projects. For an existing environment, share the current server model, operating system or hypervisor, storage topology, network design and any application constraints. That information helps reduce configuration risk and makes the quotation more useful.

Management, Security and Lifecycle Considerations

Management planning should cover remote access, monitoring, alerting, firmware baselines and integration with existing administration tools. Available platform information includes: • iDRAC10 • iDRAC Direct • iDRAC RESTful API with Redfish • Racadm CLI • Quick Sync 2 wireless module. Licensing and feature availability can differ by configuration, so required management capabilities should be named explicitly.

Security planning should include: • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown • TPM 2….. Buyers should also define requirements for secure boot, trusted platform modules, drive sanitization, firmware versions, account access, asset records and data-at-rest protection. Warranty coverage, service level, included rails, bezels, power cords and other accessories must be confirmed in the final quotation.

Request a Configured Dell PowerEdge R7725 Quote

Use the GPULoom server catalog to compare related systems, or contact GPULoom with the desired processor, memory, storage, networking, accelerator, warranty and delivery destination. Inventory, condition, lead time and included components are confirmed before purchase. For additional platform documentation, consult the official Dell Support portal.

Dell PowerEdge R7725 FAQ

Can GPULoom configure Dell PowerEdge R7725 for my workload?

Yes. Send the workload, operating system or hypervisor, CPU and memory targets, storage layout, network requirements and delivery country. GPULoom will confirm a compatible configuration and current availability.

Are the listed maximum specifications included?

No. Maximum or supported specifications describe platform capability. The installed processor, memory, drives, controllers, adapters, power supplies, licenses and accessories are confirmed in the quotation.

Can I request specific drives, RAID, NICs or accelerators?

Yes, subject to platform compatibility and inventory. Provide exact part numbers when possible, or describe the required capacity, endurance, interface, port speed and workload.

What should I confirm before ordering?

Confirm the complete bill of materials, condition, warranty, firmware, rails and bezel, power cords, licenses, lead time, shipping terms and destination requirements.
