FusionServer 1158H V7

FusionServer 1158H V7

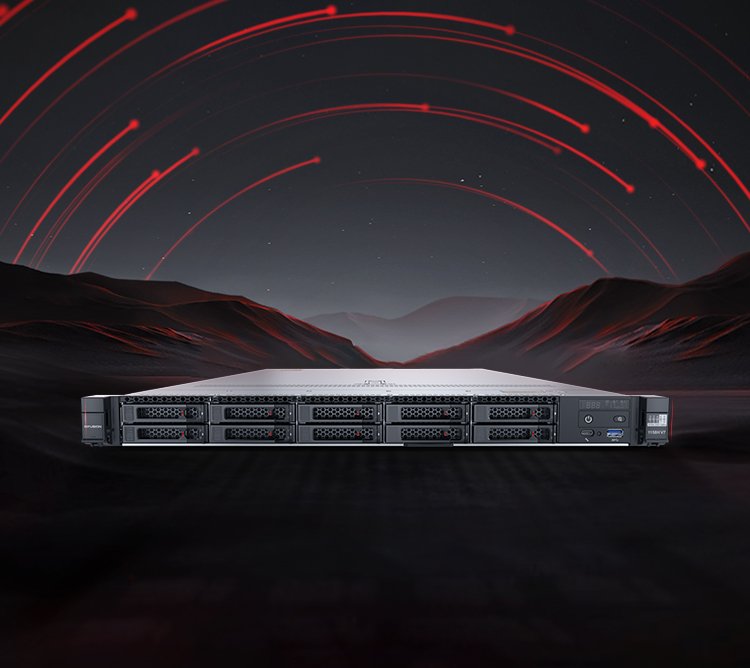

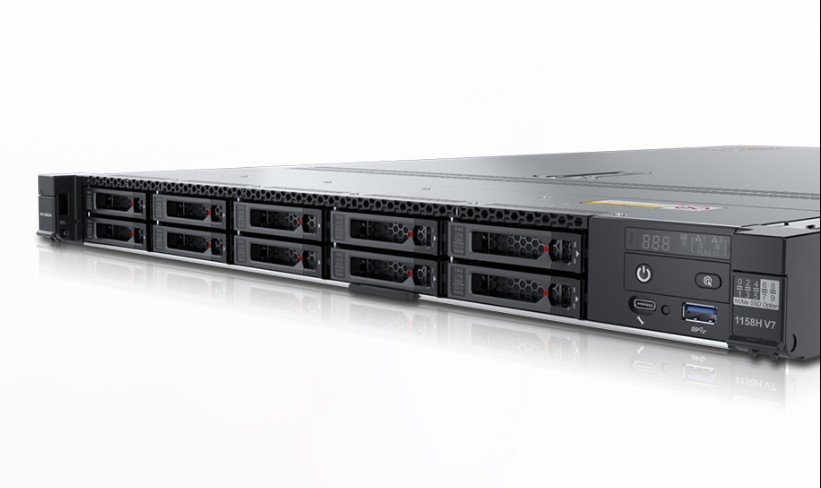

FusionServer 1158H V7 (1158H V7) is a new-generation 1U 1-socket rack server designed for the Internet, Internet Data Center (IDC), cloud computing, enterprise business, and telecom. The 1158H V7 is ideal for IT core services, virtualization, high-performance computing (HPC), and other complex workloads. The 1158H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

Category: Brand:
Form Factor

1U rack server

Processor

1 x 4th Gen AMD® EPYC™ 9004 Series processor (Genoa), up to 400 W TDP

Memory

24 x DDR5 DIMMs, up to 4800 MT/s

Local Storage

– 10 x 2.5″ drives (up to 4 x NVMe SSDs and 8 x SAS/SATA drives, total ≤ 10)
– 10 x 2.5″ drives (up to 10 x NVMe SSDs, 8 x SAS/SATA drives, total ≤ 10)
– 2 x M.2 SSDs (SATA/NVMe)

RAID

Optional RAID 0, 1, 10, 5, 50, 6, or 60 with cache supercapacitor protection; RAID level migration, drive roaming, self-diagnosis, and Web-based remote configuration

Network

Supports multiple network expansion capabilities; 2 x OCP 3.0 NICs, configurable on demand; hot swap and PCIe 5.0 supported

PCle Expansion

5 x PCIe expansion slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 3 x standard PCIe slots, supporting PCIe 5.0

Fan

8 x hot-swappable counter-rotating fans, N+1 redundancy

PSU

900 W Platinum/Titanium hot-swappable PSU, 1500 W/2000 W Platinum PSUs, 1+1 redundancy

Management

– The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
– The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity.
– Optional FusionDirector management software provides advanced management features such as five intelligent technologies, enabling intelligent, automated, visualized, and refined management throughout the lifecycle.

OS

xFusion FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler, etc.

Security

Power-on password, administrator password, TPM 2.0*, security panel, secure boot, and cover opening detection

Operating Temperature

5°C to 40°C (41°F to 104°F), compliant with ASHRAE Class A1/A2/A3

Certification

CE, UL, CCC, FCC, VCCI, RoHS, etc.

Installation Suite

L-shaped guide rails, retractable guide rails, and holding rails

Dimensions (H x W x D)

2.5″ drive chassis: 43.5 mm x 447 mm x 798 mm

FusionServer 1158H V7 (1158H V7) is a new-generation 1U 1-socket rack server designed for the Internet, Internet Data Center (IDC), cloud computing, enterprise business, and telecom. The 1158H V7 is ideal for IT core services, virtualization, high-performance computing (HPC), and other complex workloads. The 1158H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
