FusionServer 1288H V7

FusionServer 1288H V7

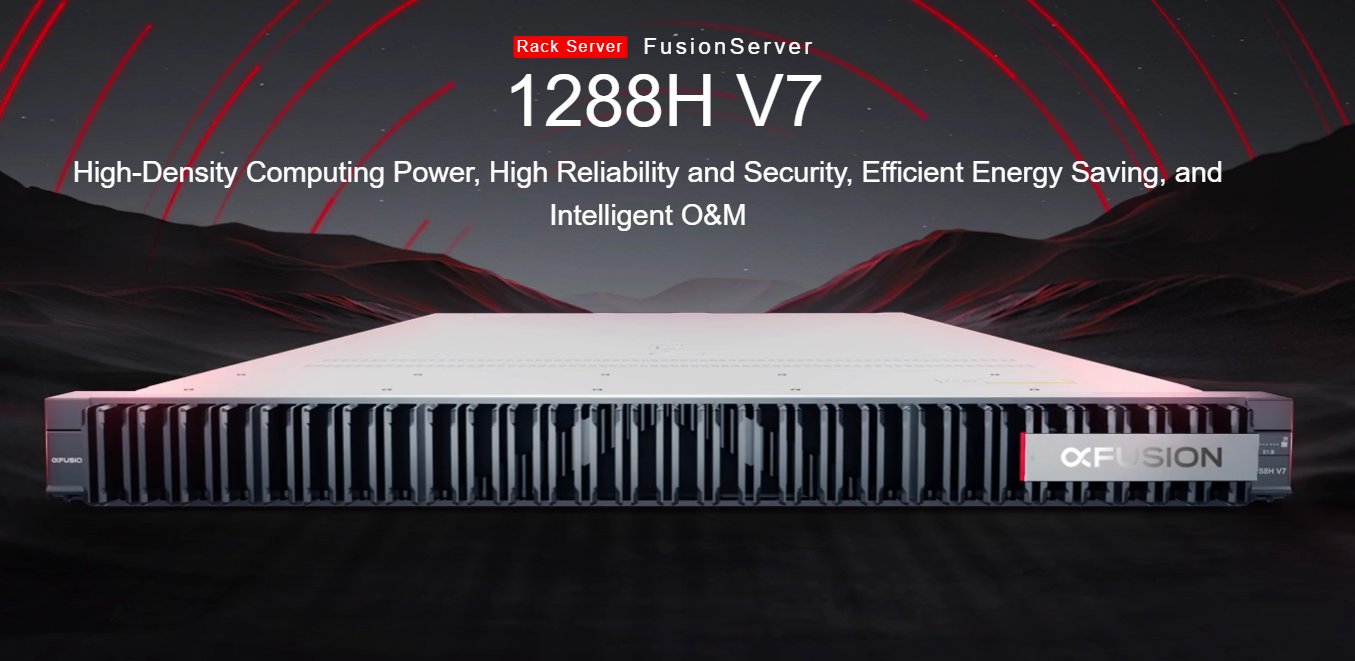

FusionServer 1288H V7 is a 1U rack server supporting 1 or 2 x 4th/5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor.
Category: Brand:
Form Factor

1U rack server

Processor

1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor

Chipset

Emmitsburg PCH

Memory

32 x DDR5 DIMMs, with up to 5600 MT/s speed

Local Storage

Supports hot-swappable drives in the following configurations:
– 4 x 3.5″ SAS/SATA drives/SSDs
– 8-12 x 2.5″ SAS/SATA drives/SSDs
– 2 x M.2 SSDs

RAID

RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Network

Provides expansion capability of multiple types of networks
Supports OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap and PCIe 5.0 are supported

PCle Expansion

Provides 5 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 3 x PCIe slots, and 1 slots support PCIe 5.0

Fan

Provides 8 x hot-swappable counter-rotating fan modules in N+1 redundancy

PSU

900 W/1200 W/1500 W/2000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy

Management

– The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
– The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
– It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management through the lifecycle.

OS

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler

Security

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection

Operating Temperature

5ºC to 45ºC (41ºF to 113ºF), compliant with ASHRAE Classes A1, A2, A3, and A4

Certification

CE, NRTL, CCC, FCC, VCCI, and RoHS

Installation Suite

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

Chassis with 3.5″ drives: 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.)
Chassis with 2.5″ drives: 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.)

FusionServer 1288H V7 is a 1U rack server supporting 1 or 2 x 4th/5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor. Built on the Emmitsburg PCH, it provides 32 x DDR5 DIMMs at up to 5600 MT/s, flexible hot-swappable drive configurations, 5 x PCIe slots with OCP 3.0 FlexIO support, 8 x N+1 redundant fan modules, and 1+1 redundant Platinum/Titanium PSUs — a compact, general-purpose 1U server for mainstream data center workloads.
