FusionServer 2158H V8

FusionServer 2158H V8

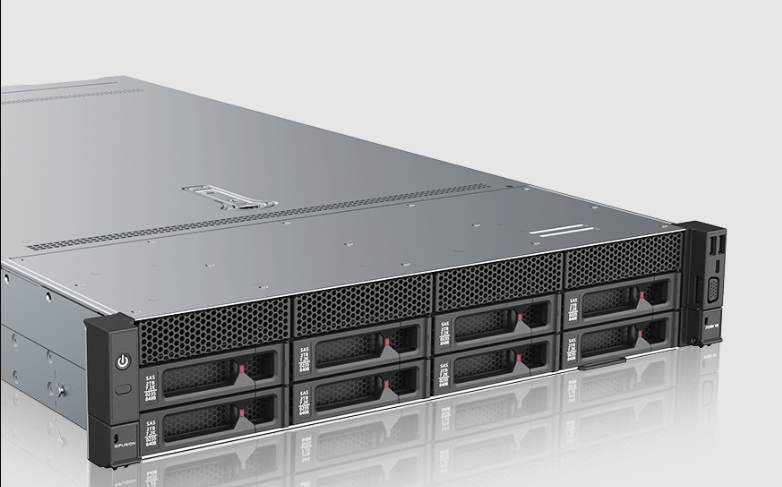

FusionServer 2158H V8 is a 2U single-socket rack server powered by a 4th Gen AMD EPYC™ 9004 (Genoa) or 5th-Gen AMD EPYC™ 9005 series (Turin) processor with up to 500 W TDP.The FusionServer 2158H V8 is a next-generation 2U1P rack server designed to meet the demands of virtualization, big data analytics, databases, cloud scenarios, and AI inference.With outstanding performance, strong scalability, proven reliability, and ease of management and deployment, the 2158H V8 is ideal for handling complex workloads in industries such as Internet and telecom.

Category: Brand:
Form Factor

2U rack server

Processor

1 x 4th Gen AMD EPYC™ 9004 (Genoa) or 5th-Gen AMD EPYC™ 9005 series (Turin) processor with up to 500 W TDP per processor

Local Storage

– 8 x 2.5″ SAS/SATA/NVMe drives
– 8 x 3.5″ SAS/SATA/NVMe drives
– 12 x 3.5″ SAS/SATA/NVMe drives
– 24 x 2.5″ drives (16 x NVMe drives + 8 x SAS/SATA drives)
– 2 x M.2 SSDs (SAS/SATA)

RAID

RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitor for cache data protection against power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Network

2 x OCP 3.0 NICs, which can be configured as required; support hot swap and PCIe 5.0

PCle Expansion

10 x PCIe expansion slots; support PCIe 5.0

GPU Card

4 x dual-width GPU cards and 1 x dual-width DPU card

Fan

Four 80 x 80 or six 60 x 60 hot-swappable counter-rotating fan modules in N+1 redundancy

PSU

– 2 x PSUs in 1+1 redundancy:
– 900 W/1500 W/2000 W Platinum AC PSUs
– 900 W/2000 W/3000 W Titanium AC PSUs
– 1200 W -48 V DC PSUs
– 1500 W 380 V high-voltage DC PSUs

Management

– The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
– The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
– It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.

OS

xFusion FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware vSphere, Red Hat Enterprise Linux, Oracle, and Ubuntu

Security

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection

Operating Temperature

5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1 to A4

Certification

CE, UL, CCC, FCC, VCCI, and RoHS

Installation Suite

L-shaped, adjustable, and holding rails

Dimensions (H x W x D)

86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)

The FusionServer 2158H V8 is a next-generation 2U1P rack server designed to meet the demands of virtualization, big data analytics, databases, cloud scenarios, and AI inference.With outstanding performance, strong scalability, proven reliability, and ease of management and deployment, the 2158H V8 is ideal for handling complex workloads in industries such as Internet and telecom.
