FusionServer 2258H V8

FusionServer 2258H V8

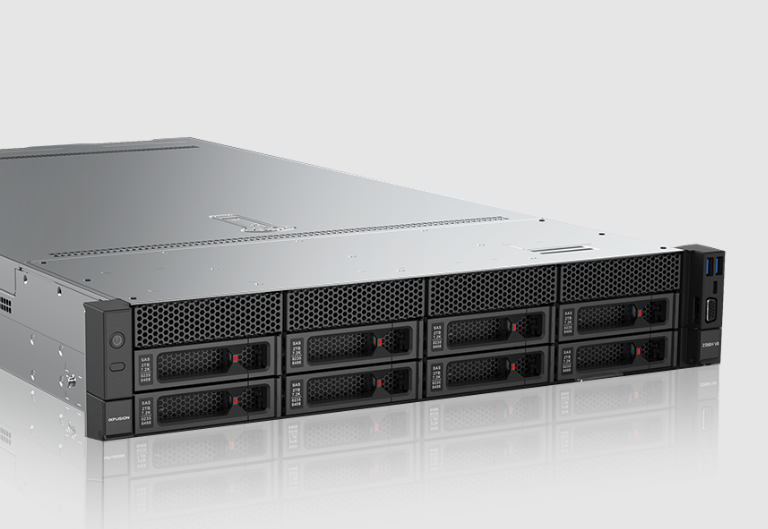

FusionServer 2258H V8 is a 2U dual-socket rack server powered by 2 x 5th-Gen AMD EPYC™ 9005 series (Turin) processors with up to 500 W TDP per processor.

The FusionServer 2258H V8 is a next-generation 2U2P rack server designed to meet the demands of High-Performance Computing (HPC), Internet Data Center (IDC), and cloud computing.

Featuring low energy consumption, exceptional scalability, proven reliability, and ease of management and deployment, the 2258H V8 is the perfect choice for IT core operations in Internet and telecom.

Category: Brand:
Form Factor

2U rack server

Processor

2 x 5th-Gen AMD EPYC™ 9005 series (Turin) processor with up to 500 W TDP per processor

Memory

24 x DDR5 DIMMs, delivering up to 6400 MT/s

Local Storage

– 8 x 2.5″ SAS/SATA/NVMe drives
– 16/24 x NVMe drives*
– 8 x 2.5″ NVMe drives, Support hard raid*
– 8 x 3.5″ SAS/SATA/NVMe drives
– 4 x rear-mounted 2.5″ NVMe drives
– 2 x M.2 SSDs (SAS/SATA)

RAID

RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitor for cache data protection against power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Network

2 x OCP 3.0 NICs, which can be configured as required; support hot swap and PCIe 5.0

PCle Expansion

10 x PCIe expansion slots; support PCIe 5.0

GPU Card

Supports 4 x dual-width GPUs

Fan

Four 80 x 80 hot-swappable counter-rotating fan modules in N+1 redundancy

Management

– The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
– The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
– It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.

OS

xFusion FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware vSphere, Red Hat Enterprise Linux, and Rocky Linux

Security

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection

Operating Temperature

5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1 to A4

Certification

CE, NRTL, CCC, FCC, VCCI, and RoHS

Installation Suite

L-shaped, adjustable, and holding rails

Dimensions (H x W x D)

86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)

The FusionServer 2258H V8 is a next-generation 2U2P rack server designed to meet the demands of High-Performance Computing (HPC), Internet Data Center (IDC), and cloud computing.

Featuring low energy consumption, exceptional scalability, proven reliability, and ease of management and deployment, the 2258H V8 is the perfect choice for IT core operations in Internet and telecom.
