GPULoom

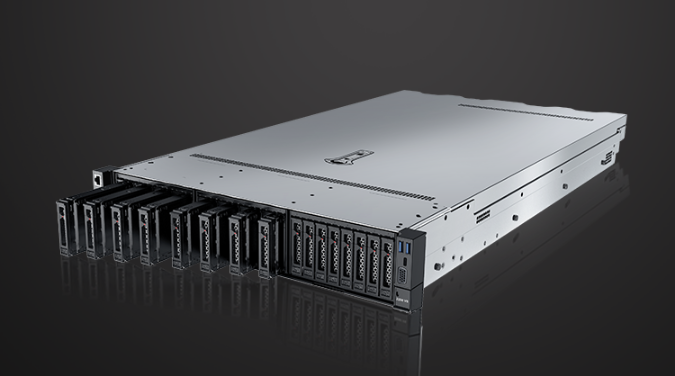

FusionServer 2288 V8

FusionServer 2288 V8

FusionServer 2288 V8 is a 2U dual-socket rack server powered by 2 x Intel® Xeon® 6 6700P/6500P/6700E Scalable processors with TDP 350W per processor.The FusionServer 2288 V8 is a next-generation 2U2P rack server tailored to meet the demands of AI inference, cloud computing, virtualization, High-Performance Computing (HPC), graphics processing, VDI, and big data analytics.

Offering low power consumption, unmatched scalability, solid reliability, and ease of management and deployment, the 2288 V8 is well suited to demanding workloads in industries such as Internet, telecom, government and enterprise, finance, and manufacturing.

Category: Brand:
Form Factor

2U Rack Server

Processor

2 x Intel® Xeon® 6 6700P/6500P/6700E Scalable processors with TDP 350W per processor

Memory

32 x memory slots available for DDR5 DIMMs at up to 6400 MT/s or MRDIMMs at up to 8000 MT/s

Local Storage

– Up to 20 x 3.5″ drives*
– Up to 33 x 2.5″ drives*
– Up to 36 x E3.S SSDs*
– Flash storage: 2 x M.2 SSDs, hardware RAID, and hot swap

RAID

RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Network

Multiple network expansion capabilities; 2 x FlexIO card slots dedicated for OCP 3.0 NICs, which can be configured as required; supporting hot swap and PCIe 5.0

PCle Expansion

– Rear: 10 x standard PCIe slots and 2 x OCP 3.0 slots
– Front: 3 x standard PCIe slots
– Supporting PCIe 5.0 and front cabling

GPU Card

4 x dual-width GPU cards*

Fan

4/6 x hot-swappable counter-rotating fans in N+1 redundancy

PSU

900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy

Management

– The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
– The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
– It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.

OS

Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler

Security

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection

Operating Temperature

5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4

Installation Suite

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)

FusionServer 2288 V8 is a 2U dual-socket rack server powered by 2 x Intel® Xeon® 6 6700P/6500P/6700E Scalable processors with TDP 350W per processor. It provides 32 DDR5/MRDIMM memory slots, flexible hot-swappable storage configurations (up to 36 x E3.S SSDs), 4 x dual-width GPU cards, PCIe 5.0 expansion front and rear, 2 x FlexIO card slots for OCP 3.0 NICs, and N+1 redundant fans and PSUs — a versatile workhorse for data center workloads.
The FusionServer 2288 V8 is a next-generation 2U2P rack server tailored to meet the demands of AI inference, cloud computing, virtualization, High-Performance Computing (HPC), graphics processing, VDI, and big data analytics.
Offering low power consumption, unmatched scalability, solid reliability, and ease of management and deployment, the 2288 V8 is well suited to demanding workloads in industries such as Internet, telecom, government and enterprise, finance, and manufacturing.
