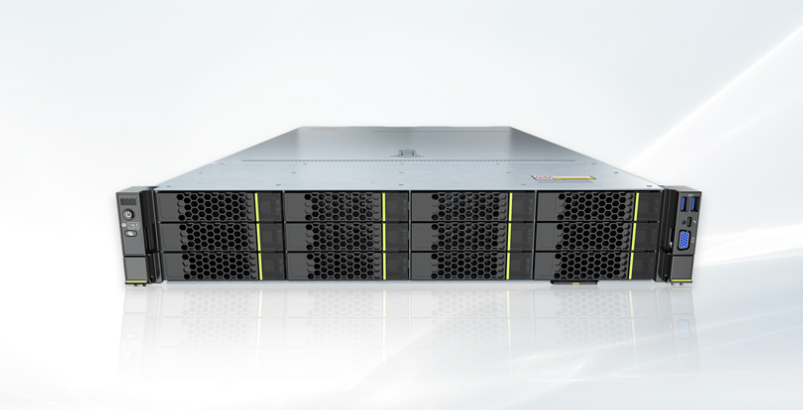

FusionServer 2288H V6

FusionServer 2288H V6

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations and can be widely used in cloud computing, virtualization, databases, and big data. The 2288H V6 is configured with two Intel® Xeon® Scalable processors, 16/32 DDR4 DIMMs, and 14 PCIe slots, providing large-capacity local storage resources. It incorporates patented technologies, such as DEMT and FDM, and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.

Category: Brand:
Form Factor

2U rack server

Processor

One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W

Chipset

Intel C621A

Memory

16/32 x DDR4 DIMMs, up to 3200 MT/s; 16 x Optane™ PMem 200 series, up to 3200 MT/s

Local Storage

– 8-31 x 2.5″ SAS/SATA/SSD drives
– 12-20 x 3.5″ SAS/SATA drives
– 4/8/16/24 x NVMe SSDs
– Supports a maximum of 45 x 2.5″ drives or 34 x full-NVMe SSDs
– Flash storage: 2 x M.2 SSDs

RAID

Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration.

Network

Provides expansion capability of multiple types of networks. Provides the OCP 3.0 network adapter. The two FlexIO card slots support two OCP 3.0 network adapters respectively, which can be configured as required. Hot-swappable function supported

PCle Expansion

Provides up to 14 PCIe 4.0 expansion slots for a variety of applications.

Heterogeneous Accelerator Cards

Supports 4 x 300 W FHFL dual-width GPU accelerator cards, 11 x HHHL single-width GPU accelerator cards, or 8 x FHFL single-width GPU accelerator cards.

Fan

Four hot-swappable counter-rotating fan modules in N+1 redundancy mode

PSU

– 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
– 1500 W AC Platinum PSUs: 1000 W (input: 100 V to 127 V AC); 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
– 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
– 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC)
– 3000 W AC Titanium PSUs: 2500 W (input: 200 V to 220 V AC); 2900 W (input: 220 V to 230 V AC); 3000 W (input: 230 V to 240 V AC)
– 2000 W AC Platinum PSUs: 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC); 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)

Management

– The BMC chip integrates one dedicated GE management port to provide comprehensive management functions such as fault diagnosis, automated O&M, and hardware security hardening.
– The BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; provides out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for smart and simplified management.
– (Optional) Configured with the FusionDirector management software to provide advanced management functions such as five intelligent technologies, realizing intelligent, automatic, visualized, and refined management throughout the lifecycle.

OS

Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, etc.

Security

Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection

Operating Temperature

5°C to 45°C (41°F to 113°F), compliant with ASHRAE Class A1/A2/A3/A4

Certification

CE, NRTL, CCC, FCC, VCCI, RoHS, etc.

Installation Suite

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

Chassis with 3.5″ drives: 86.1 mm x 447 mm x 790 mm (3.40 in. x 17.60 in. x 31.10 in.)
Chassis with 2.5″ drives: 86.1 mm x 447 mm x 790 mm (3.40 in. x 17.60 in. x 31.10 in.)

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations and can be widely used in cloud computing, virtualization, databases, and big data. The 2288H V6 is configured with two Intel® Xeon® Scalable processors, 16/32 DDR4 DIMMs, and 14 PCIe slots, providing large-capacity local storage resources. It incorporates patented technologies, such as DEMT and FDM, and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.
