| Form Factor | 4U rack server |
|---|---|
| Processor | 1 or 2 x 4th/5th Gen Intel® Xeon® Scalable processors, with up to 385 W TDP per processor |
| Chipset | Emmitsburg PCH |
| Memory | 32 x DDR5 DIMMs, with up to 5600 MT/s speed |
| Local Storage | – 4 x 2.5″ SAS/SATA drives/SSDs |
| RAID | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network | Expansion capability for multiple types of networks; OCP 3.0 NICs are supported. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap and PCIe 5.0 are supported |
| PCle Expansion | Up to 10 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 10 x PCIe expansion slots. PCIe 5.0 is supported |
| GPU Card | 8 x single-width GPU cards* |
| Fan | 6 or 8 x hot-swappable counter-rotating fans in N+1 redundancy |
| PSU | 900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Management | – The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. |
| OS | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler |
| Security | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection |
| Operating Temperature | 5ºC to 35ºC (41ºF to 95ºF), Class A1/A2 |
| Certification | CE, NRTL, CCC, FCC, VCCI, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | Chassis with 3.5″ drives: 175 mm x 447 mm x 798 mm (6.89 in. x 17.60 in. x 31.42 in.) |
Servers

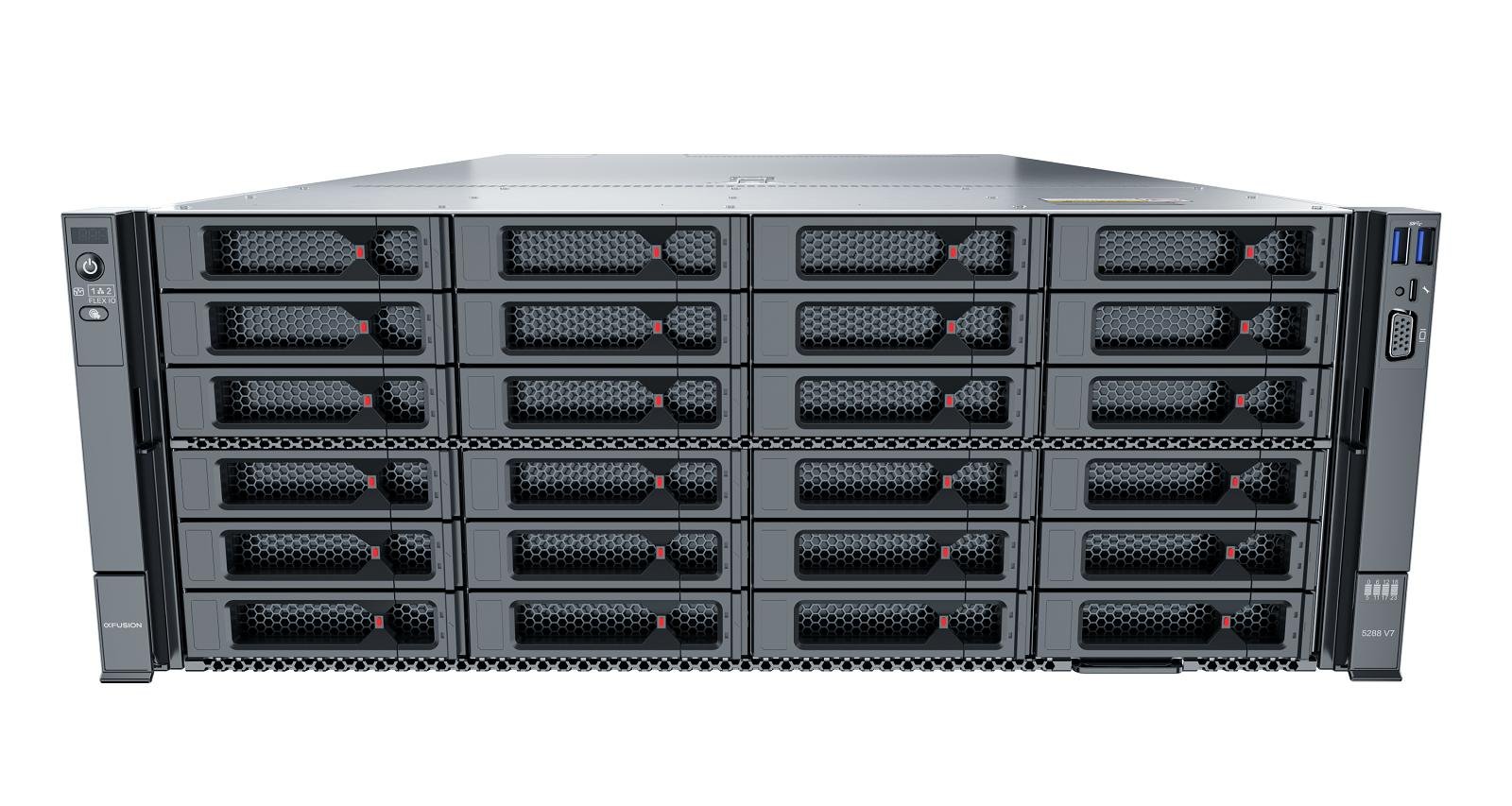

FusionServer 5288 V7
FusionServer 5288 V7 (5288 V7) is a new-generation 4U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.
5288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
FusionServer 5288 V7 is a 4U high-density storage rack server supporting 1 or 2 x 4th/5th Gen Intel® Xeon® Scalable processors with up to 385 W TDP per processor. Built on the Emmitsburg PCH, it provides 32 x DDR5 DIMMs at up to 5600 MT/s, up to 44 x 3.5″ SAS/SATA drives, 8 x single-width GPU cards*, 2 x FlexIO slots for OCP 3.0 NICs, and 1+1 redundant Platinum/Titanium PSUs — built for mass storage, backup, and archiving workloads.
FusionServer 5288 V7 (5288 V7) is a new-generation 4U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.
FusionServer 5288 V7 (5288 V7) is a new-generation 4U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.
5288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
