| Product SKU | AS5500G5-C |
|---|---|
| Processor | ARM multi-core CPU |
| Storage | SSD, SAS/NL-SAS HDD |
| Storage Controller | RAID 0/1/3/5/6/10/50/60, InRAID |
| Power Supply | AC: 100–240 V (power halved at 110 V); DC: 180–310 V |
| Security | Intelligent service assurance (InQoS), intelligent automatic cache partitioning (InAutoPartition), intelligent cache acceleration (InFlashCache) |
| Virtualization | Heterogeneous virtualization: supports more than 95% of models under unified management. RAID virtualization: block-level virtualization for balanced systems with no hotspot drives. Virtualization support: mainstream cloud technologies including containers and OpenStack |
| Cache | 8 TB |
| Controller Count | Multi-controller |
| Disk Enclosure | 2U12-bay / 2U25-bay |
| Front-end Ports | FC/iSCSI/NFS/CIFS/HTTP/FTP |
| Back-end Ports | 2 × SAS ports (onboard), or 6 × SAS ports (2 onboard + 1 × 4-port SAS expansion card) |
| Operating Temperature | At -60 m to +1,800 m: 0°C to 35°C; at 1,800 m to 3,000 m: reduce by 1°C for every 220 m of elevation gain |
| Storage Temperature | -40°C to 70°C (BBU excluded from the system); 0°C to 70°C recommended |
| Humidity | 10% to 90% RH, non-condensing |
Overview

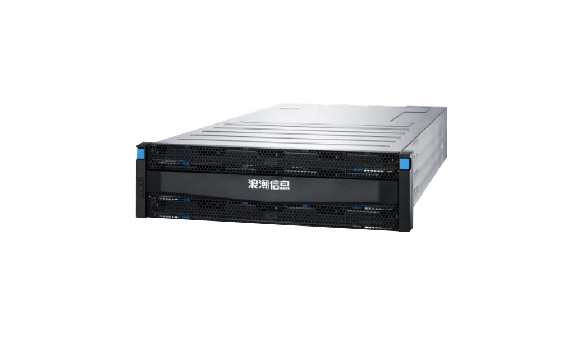

The Inspur AS5500G5-C is a unified SAN/NAS storage system. It is configured with aRM multi-core CPU.
Key Features
- Processor: ARM multi-core CPU
- Storage: SSD, SAS/NL-SAS HDD
- Storage Controller: RAID 0/1/3/5/6/10/50/60, InRAID
- Power Supply: AC: 100–240 V (power halved at 110 V); DC: 180–310 V
- Security: Intelligent service assurance (InQoS), intelligent automatic cache partitioning (InAutoPartition), intelligent cache acceleration (InFlashCache)
- Operating Temperature: At -60 m to +1,800 m: 0°C to 35°C; at 1,800 m to 3,000 m: reduce by 1°C for every 220 m of elevation gain
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
