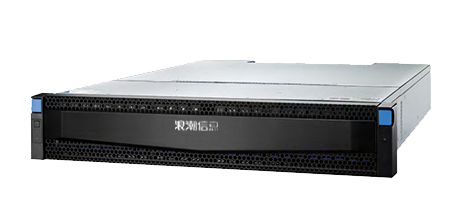

Inspur HF5000G5 Mid-Range Storage

The Inspur HF5000G5 is a mid-range enterprise storage system.

SKU: HF5000G5 Category: Storage Brand: Inspur

Technical Specifications
Overview

Product SKU	HF5000G5
Processor	Multi-core
Storage	– NVMe SSD, SAS SSD – SAS SSD 1000
Storage Controller	RAID 0/1/5/6/10, InRAID 5/6
Ports and Interfaces	– 6 to 48 – Frontend Port Type – 16Gb/32Gb FC, 1Gb/10Gb/25Gb/40Gb/100Gb Ethernet
Security	Intelligent quality of service (InQoS), Intelligent automatic cache partition (InAutoPartition)
Virtualization	– Heterogeneous virtualization: supports 95%+ of the models for uniform management. – RAID virtualization: block-level virtualization, system balancing, no hot spots. – Virtualization system supports mainstream virtualization technologies, such as IntelliSense plugins – (i.e.VAAI, VVOL, VASA, vCenter integration).
Cache	– 128GB/256GB/512GB – 128GB/160GB/256GB/512GB – 64GB/128GB
Controller Count	Multi-Controller
Disk Enclosure	2U25 2U25
Back-end Ports	– PCIe3.0、SAS3.0 – SAS3.0
Supported Protocols	FC, iSCSI, NFS, CIFS, FTP
Software Features	Intelligent Thin Provisioning (InThin), Intelligent virtualization RAID (InRAID), Intelligent data migration (InMigration), Intelligent online compression (InCompression), Intelligent tiering (InTier), Intelligent volume conversion (Intune), Intelligent heterogeneous virtualization (InVirtualization), Intelligent file service (InFileService), Intelligent multi-tenant (InMulti-tenant) Intelligent snapshot (InSnapShot), Intelligent cloning (InClone), Intelligent backup (InBackup), Intelligent disk mirroring (InVdiskMirror), Intelligent remote replication (InRemoteCopy), Intelligent active-active (InMetro), Intelligent cloud tiering (InCloudTier), Intelligent encryption (InEncryption), Intelligent data destruction (InErase)
Product Code	HF5000G5 – MN25 – HS25 – MS25

Overview

The Inspur HF5000G5 is a mid-range enterprise storage system. It is configured with multi-core.

Key Features

Ultra-high storage performance: With the new NVMe architecture, HF5000G5 reduces its latency by 50% compared with an SAS all-flash storage system.It supports online horizontal expansion and TB cache, with up to 16 controllers.A single controller is equipped with 2 data reduction engines, without taking up CPU resources. Compared with the previous hard compression, the performance improves by 30%, and the data reduction ratio can reach 5:1.
Excellent service continuity protection: Adopts industry-leading active-active storage architecture to ensure service continuity.With the fully modular redundant architecture, main components are free of SPOFs. Gateway-free active-active solutions are adopted to guarantee service continuity and high application availability.
Perfect cloud interconnection capability: Cloud tiering technology supports the interconnection of various clouds, such as AWS, Azure, Alibaba Cloud, and OpenStack.Features unique hybrid cloud storage capability, providing functions such as cloud cache, cloud disaster recovery, and cloud backup.
Intelligent O&M: Intelligent management software infinistor® supports unified management of all IEIT storage resources.Heterogeneous virtualization supports centralized management of other external storage resources.infinistor® builds a cross-platform disaster recovery solution with timing snapshot and multicopy replication, leading to enhanced data security.

Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
