| Product SKU | i24-A7-A0-R0-00 |
|---|---|
| Form Factor | – 447mm(W)*87mm(H)*896mm(D), without chassis lugs |
| Processor | 2*5th/4th Gen Intel ® Xeon ® Scalable Processors per node, TDP 350W, 4 UPI links |
| Chipset | Intel ® C740 |
| Memory | 16 DDR5 5600MHz RDIMM per node |
| Storage | – Config 1: 8*2.5 inches SATA/NVMe SSD (7mm) |
| Storage Controller | Support Raid controller cards with Raid levels 0/1,and support VROC |
| Network | 1*OCP3.0 card per node，can also support PCIe network card |
| I/O Expansion | – Air cooling: 1 PCIe 5.0 x16+1 PCIe 4.0 x16 slots per node |
| Ports and Interfaces | – Front: 2*USB2.0，1*VGA, 1*PWR button, 1*UID |
| Power Supply | 4*2200W Platinum/Titanium PSUs, support N+N redundancy |
| Cooling | – Air cooling: Four or five 8086 fans in the front of the chassis, N+1 redundancy |
| Security | TPM2.0 |
| Operating System | Windows Server2019/2022，Red Hat Enterprise Linux8.6/9，Debian9.x，CentOS8.5，VMware ESXi7.0/8.0，Ubuntu22.4 |
| Weight | – net weight：＜51kg (fully equipped); |
| Operating Temperature | – Air cooling: 5℃~40℃ |
| Node Model | NS5170-M7-A0-R0-00 (Air cooling) / NS5170-M7-C0-R0-00 (Liquid cooling) |
| Product Code | i24-M7-A0-R0-00 (Air cooling) / i24-M7-C0-R0-00 (Liquid cooling) |
Servers

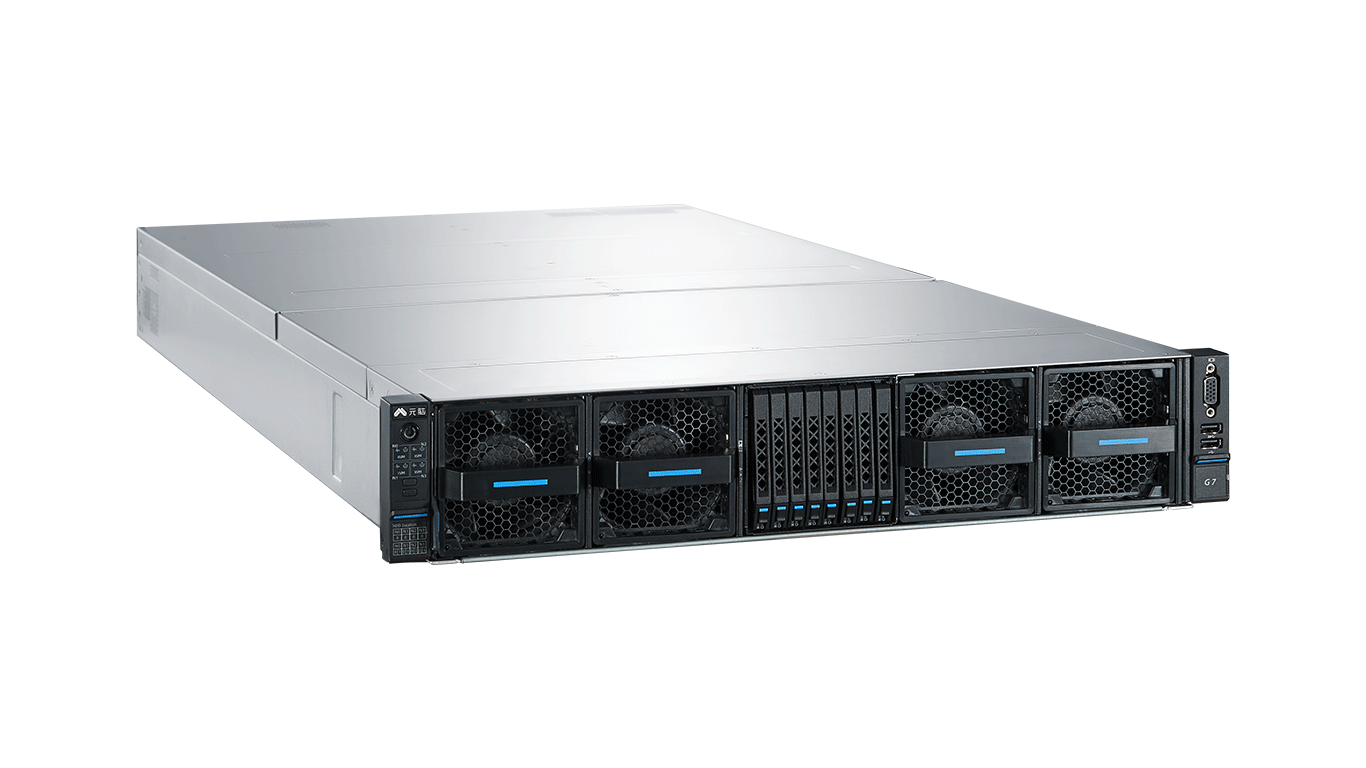

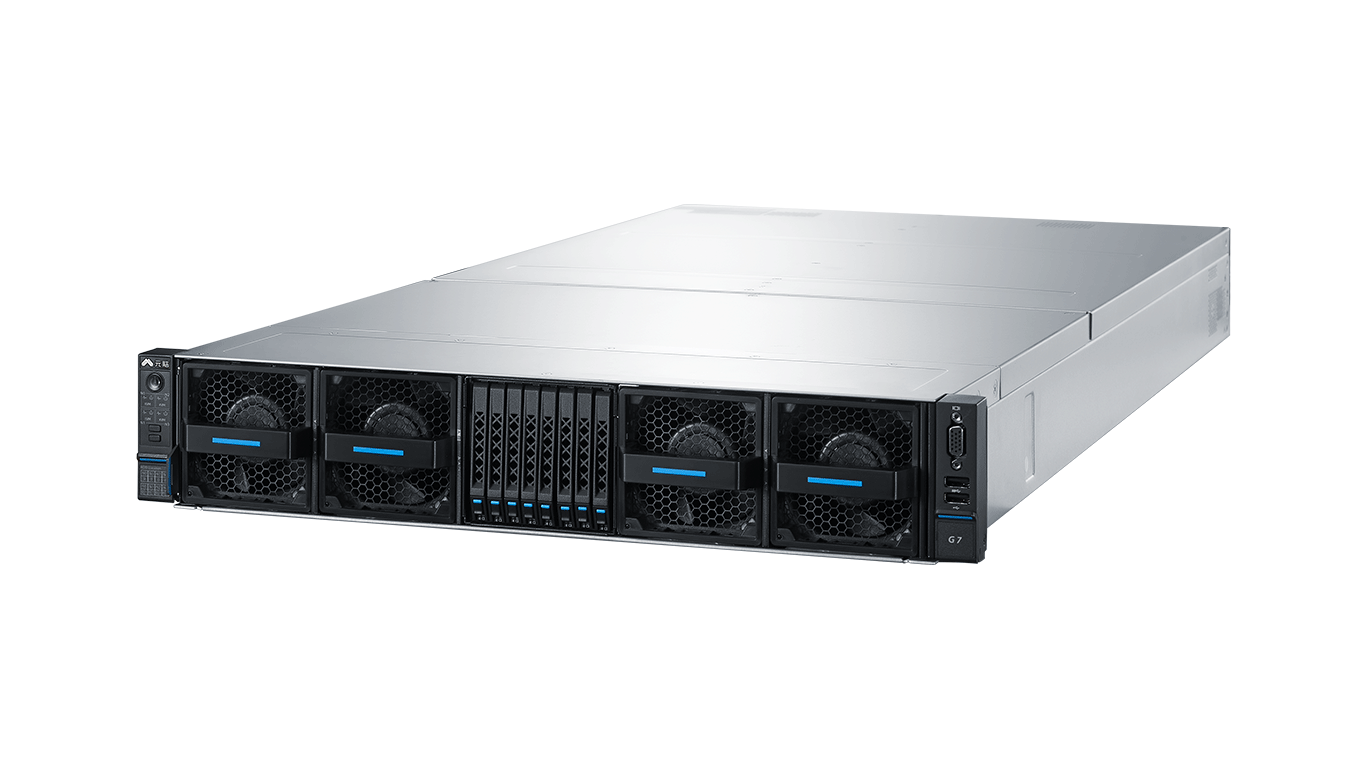

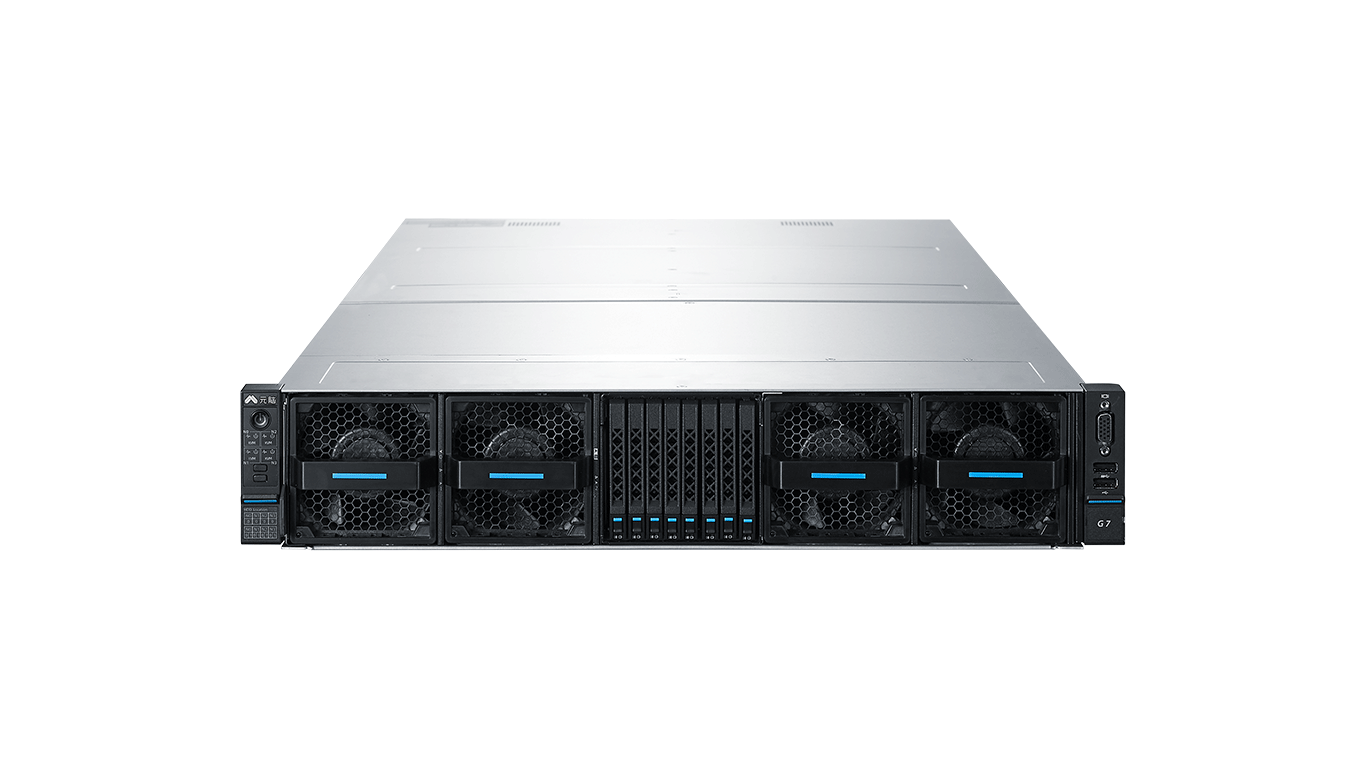

Inspur i24G7 i24-A7-A0-R0-00 High-Density Server
The i24G7 is latest 2U 4-node server which is optimized for data center and high-speed computing.
Overview
The i24G7 is latest 2U 4-node server which is optimized for data center and high-speed computing. i24G7 is powered by 8 5th/4th Gen Intel® Xeon® Scalable Processors with liquid cooling solution covering CPU, memory and VR module, meet low PUE requirements. i24G7 is optimized in terms of heat dissipation, power supply, monitoring and management to meet the requirements of customers for the ultimate performance experience and new generation of high-density energy-saving data centers.
Key Features
- Extreme Performance: Industry-leading CPU computing power, Powered by 8 5th/4th Gen Intel® Xeon® Scalable Processors in 2U spaceUp to 4TB DDR5 Memory and NDR InfiniBand, suppressing latency and breaking the obstacles of memory bandwidth
- High Efficiency Liquid Cooling: Reliable full cold-plate liquid cooling design for CPU+DIMM+VR, meet low PUE requirementsLess cooling devices deployment in data center, significantly optimizing datacenter TCO
- Intelligent Maintenance: Precise water leakage detection, leakage node can be located accurately and powered off automatically, effectively reducing risks3D dynamic management for cabinet environment monitoring temperature, humidity and leakage information in real time, achieving intelligent maintenance
- Flexible Deployment: Intelligent O&M hustle-free deployment，supporting integrated delivery of the rack-scale systems, greatly simplifying the deployment processThe air-liquid CDU and liquid-liquid CDU solutions, achieving all-in-one delivery of liquid-cooled data center
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
