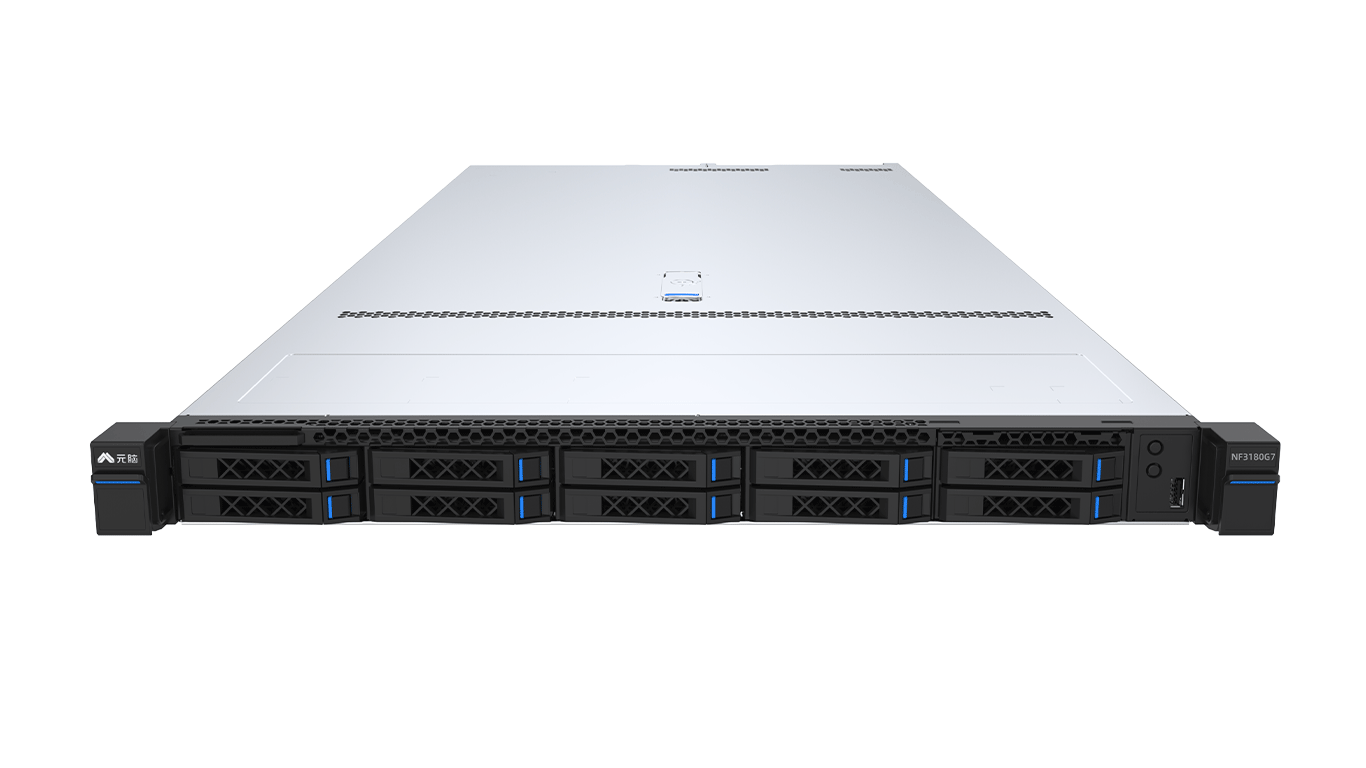

Inspur NF3180A6 Rack Server

Inspur NF3180A6 Rack Server

The Inspur NF3180A6 is a 1U rack server rack server.

SKU: NF3180A6 Category: Brand:
Product SKU

NF3180A6

Form Factor

1U rack server

Processor

– Supports 1 AMD ® Milan ® scalable processor
– Up to 64 cores and 128 threads with a maximum Turbo frequency of 3.7 GHz

Memory

– Up to 16 DIMMs, with 8 memory channels per processor
– RDIMMs, LRDIMMs and NVDIMMs supported

Storage

– Front panel:
– 32/16 × hot-swap E1.S SSD
– 4 × 3.5-inch hot-swap SAS/SATA/NVMe drive and 4 × 2.5-inch hot-swap SAS/SATA/NVMe drive
– 10 × 2.5-inch hot-swap SATA/SAS/NVMe drive
– Internal storage:
– Up to 1 × TF card, 2 × SATA M.2 drive, and 2 × PCIe x4 M.2 drive

Storage Controller

– Support standard RAID controller and SAS controller
– 1 × onboard RAID Mezz card slot

Network

– 1 × optional OCP NIC 3.0 module (1/10/25/40/100 Gbps)
– Standard 1/10/25/40/100 Gbps NIC cards

I/O Expansion

– Up to 3 × standard PCIe x16 4.0 slot (
– 1 × FHHL PCIe x16 slot + 2 × HHHL PCIe x16 slot or 2 × FHHL PCIe x16 slot)

Ports and Interfaces

2 × rear USB 3.0 port + 1 × front USB 3.0 port, 1 × front VGA port, 1 × rear VGA port, and 1 × rear BMC serial port (USB 3.0 port for 4 × LFF and 4 × SFF front drive configuration; USB 2.0 port for 10 × drive configuration; no front USB port for 32 × E1.S configuration; front VGA port is only available in 4 × LFF and 4 × SFF drive configuration)

Power Supply

Output power of 550 W, 800 W, 1300 W, 1600 W or above with 1+1 redundancy

Cooling

8 hot-swap 4056 fans with N+1 redundancy

System Management

Integrated with 1 independent 1000 Mbps network port, dedicated for IPMI remote management

Operating System

– Windows Server 2019
– SLES 12.5, SLES 15.2
– RHEL 8.3
– Ubuntu 18.04, Ubuntu 20.04
– CentOS 8.3
– Oracle Linux 7.9
– VMware ESXi 6.7 U3, VMware ESXi 7.0 U1

Dimensions

– With mounting ears:
– 32R SSD: 482 × 43.
– 05 × 871.8 mm (18.
– 98 × 1.
– 69 × 34.32 in.) (W × H × D)
– Other configuration: 482 × 43.
– 05 × 811.8 mm (18.
– 69 × 31.96 in.) (W × H × D)
– Without mounting ears:
– 32R SSD: 438 × 43.
– 05 × 840 mm (17.
– 24 × 1.
– 69 × 33.07 in.) (W × H × D)
– Other configuration: 438 × 43.
– 05 × 780 mm (17.
– 69 × 30.71 in.) (W × H × D)

Weight

– 4 × 2.5-inch drive configuration
– Net weight: approx. 21kg (46.30 lbs)
– Gross weight: 31.5 kg (69.45 lbs) (chassis + packaging box + rails + accessory box)
– 10 × 2.5-inch drive configuration
– Net weight: approx. 21 kg (46.30 lbs)
– Gross weight: 31 kg (69.45 lbs) (chassis + packaging box + rails + accessory box)

Operating Temperature

Operating: 5°C to 40°C (41°F to 104°F)

Humidity

Operating: 10% – 90% R.H.

Overview

The Inspur NF3180A6 is a 1U rack server rack server. It is configured with supports 1 AMD ® Milan ® scalable processor. Memory: Up to 16 DIMMs, with 8 memory channels per processor.

Key Features

  • Processor: – Supports 1 AMD ® Milan ® scalable processor
    – Up to 64 cores and 128 threads with a maximum Turbo frequency of 3.7 GHz
  • Memory: – Up to 16 DIMMs, with 8 memory channels per processor
    – RDIMMs, LRDIMMs and NVDIMMs supported
  • Storage: – Front panel:
    – 32/16 × hot-swap E1.S SSD
    – 4 × 3.5-inch hot-swap SAS/SATA/NVMe drive and 4 × 2.5-inch hot-swap SAS/SATA/NVMe drive
    – 10 × 2.5-inch hot-swap SATA/SAS/NVMe drive
    – Internal storage:
    – Up to 1 × TF card, 2 × SATA M.2 drive, and 2 × PCIe x4 M.2 drive
  • Storage Controller: – Support standard RAID controller and SAS controller
    – 1 × onboard RAID Mezz card slot
  • Network: – 1 × optional OCP NIC 3.0 module (1/10/25/40/100 Gbps)
    – Standard 1/10/25/40/100 Gbps NIC cards
  • I/O Expansion: – Up to 3 × standard PCIe x16 4.0 slot (
    – 1 × FHHL PCIe x16 slot + 2 × HHHL PCIe x16 slot or 2 × FHHL PCIe x16 slot)
  • Power Supply: Output power of 550 W, 800 W, 1300 W, 1600 W or above with 1+1 redundancy
  • Cooling: 8 hot-swap 4056 fans with N+1 redundancy

Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
