| Product SKU | NF3180-A7-A0-R0-00 |
|---|---|
| Form Factor | 1U rack server |
| Processor | 1 × AMD EPYC 9004 Series processor, up to 128 cores, up to 384 MB L3 cache, up to 400 W TDP |
| Memory | Up to 24 × DDR5 DIMMs, up to DDR5-4,800 MT/s, up to 6 TB memory capacity |
| Storage | Front: up to 4 × LFF SAS/SATA/NVMe + 4 × SFF SAS/SATA/NVMe; up to 10 × SFF SAS/SATA/NVMe |
| Storage Controller | Optional RAID/SAS controller on standard PCIe slots |
| Network | Supports 2 × OCP NIC 3.0 x8/x16 hot-swap NICs and standard 1 Gb/10 Gb/25 Gb/40 Gb/100 Gb NICs |
| I/O Expansion | Up to 3 × PCIe standard expansion cards; supports 2 × OCP 3.0 NICs |
| Ports and Interfaces | Front (4 × LFF + 4 × SFF): 1 × USB 3.0, 1 × VGA; front (10 × SFF): 1 × USB 2.0. Rear I/O: 1 × VGA, 1 × RJ45, 2 × USB 3.0, 1 × serial port (Micro USB) |
| Power Supply | 550 W/800 W/1,300 W/1,600 W/2,000 W power supplies with 1+1 redundancy and hot-swap; Platinum and Titanium power supplies available |
| Cooling | Air cooling with N+1 redundancy and hot-swap support |
| Security | Supports chassis intrusion detection, TPM 2.0 and TCM modules, and AMD SEV technology |
| Operating System | Windows Server 2022, SLES 15.4, RHEL 9.1, VMware ESXi 8, etc. |
| Dimensions | 438 mm × 43.05 mm × 800/850 mm |
| Weight | 20.33 kg at full configuration (please refer to the product technical white paper for details) |
| Operating Temperature | 10°C to 35°C (some configurations support 5°C to 45°C; please refer to the product technical white paper for details) |
Servers

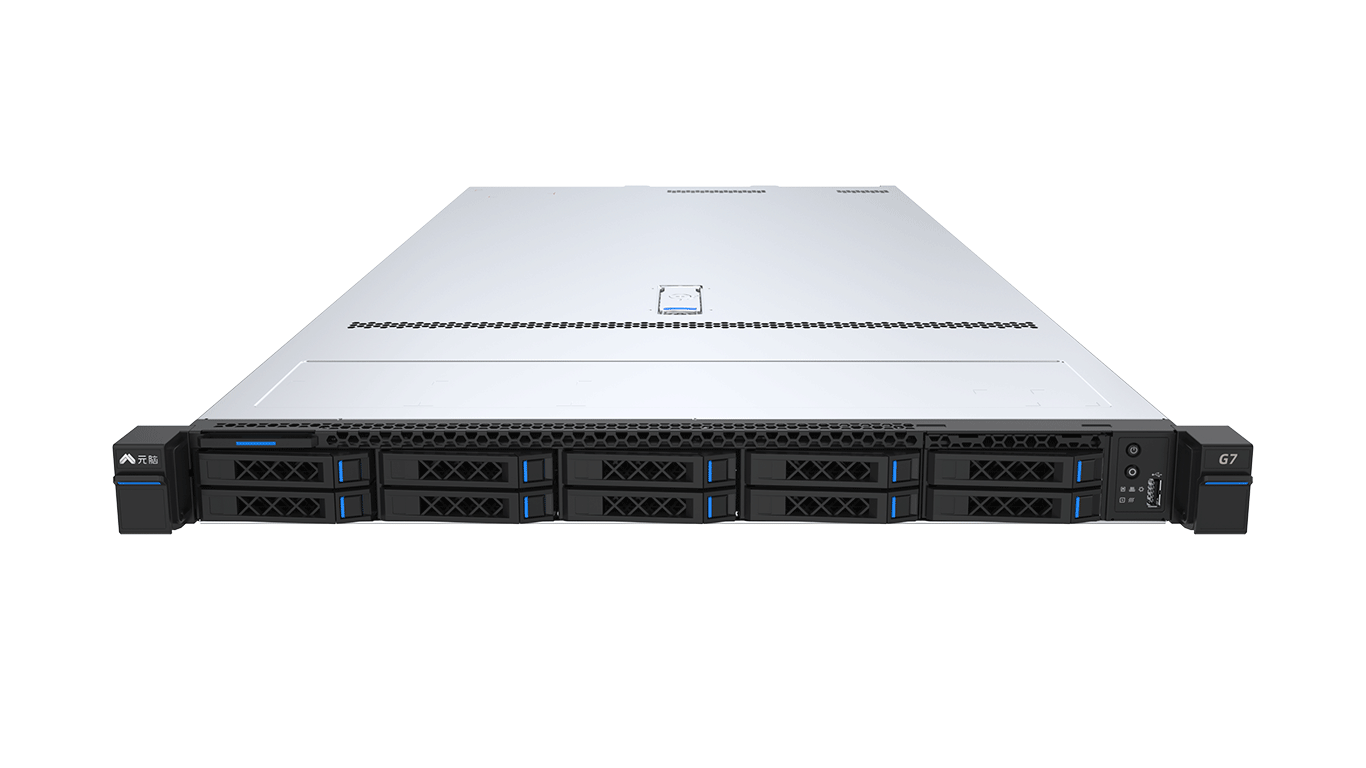

Inspur NF3180G7 NF3180-A7-A0-R0-00 Rack Server
The Inspur NF3180G7 NF3180-A7-A0-R0-00 is a 1U rack server rack server.
Overview
The Inspur NF3180G7 NF3180-A7-A0-R0-00 is a 1U rack server rack server. It is configured with 1 × AMD EPYC 9004 Series processor, up to 128 cores, up to 384 MB L3 cache, up to 400 W TDP. Memory: Up to 24 × DDR5 DIMMs, up to DDR5-4,800 MT/s, up to 6 TB memory capacity.
Key Features
- Processor: 1 × AMD EPYC 9004 Series processor, up to 128 cores, up to 384 MB L3 cache, up to 400 W TDP
- Memory: Up to 24 × DDR5 DIMMs, up to DDR5-4,800 MT/s, up to 6 TB memory capacity
- Storage: Front: up to 4 × LFF SAS/SATA/NVMe + 4 × SFF SAS/SATA/NVMe; up to 10 × SFF SAS/SATA/NVMe
- Storage Controller: Optional RAID/SAS controller on standard PCIe slots
- Network: Supports 2 × OCP NIC 3.0 x8/x16 hot-swap NICs and standard 1 Gb/10 Gb/25 Gb/40 Gb/100 Gb NICs
- I/O Expansion: Up to 3 × PCIe standard expansion cards; supports 2 × OCP 3.0 NICs
- Power Supply: 550 W/800 W/1,300 W/1,600 W/2,000 W power supplies with 1+1 redundancy and hot-swap; Platinum and Titanium power supplies available
- Cooling: Air cooling with N+1 redundancy and hot-swap support
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
