| Product SKU | NF5170-M7-A0-R0-00 |
|---|---|
| Form Factor | 1U rack server |
| Processor | – One or two 4th Gen Intel® Xeon® Scalable processors |
| Chipset | Intel Emmitsburg |
| Memory | – Up to 16 DDR5 DIMMs (4,800MT/s) |
| Storage | – Front: |
| Storage Controller | – RAID/SAS controller |
| Network | 1/10/25/40/100/200Gb PCIe NICs |
| I/O Expansion | Up to 4 PCIe 4.0 expansion slots, including 1 RAID mezz slot |
| Ports and Interfaces | Front: 1 × USB 2.0 port/LCD port, 1 × USB 3.0 port, and 1 × DB15 VGA port |
| Power Supply | 1+1 redundant CRPS PSUs with the output power of 550/800/1,300W |
| Cooling | 6 hot-swap dual-rotor fans with N+1 redundancy |
| System Management | Integrated with 1 independent 1,000Mbps network port, dedicated to IPMI remote management |
| Security | Two-factor authentication, TPM 2.0, security bezel, intrusion alert, BMC/BIOS chip-level redundancy, power capping, etc. |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc. |
| Dimensions | – 10 × 2.5-inch drive configuration: |
| Weight | Weight (with all drives installed): <18kg (For more information, see the corresponding white paper.) |
| Operating Temperature | 5°C to 45°C (For more information, see the corresponding white paper.) |
Servers

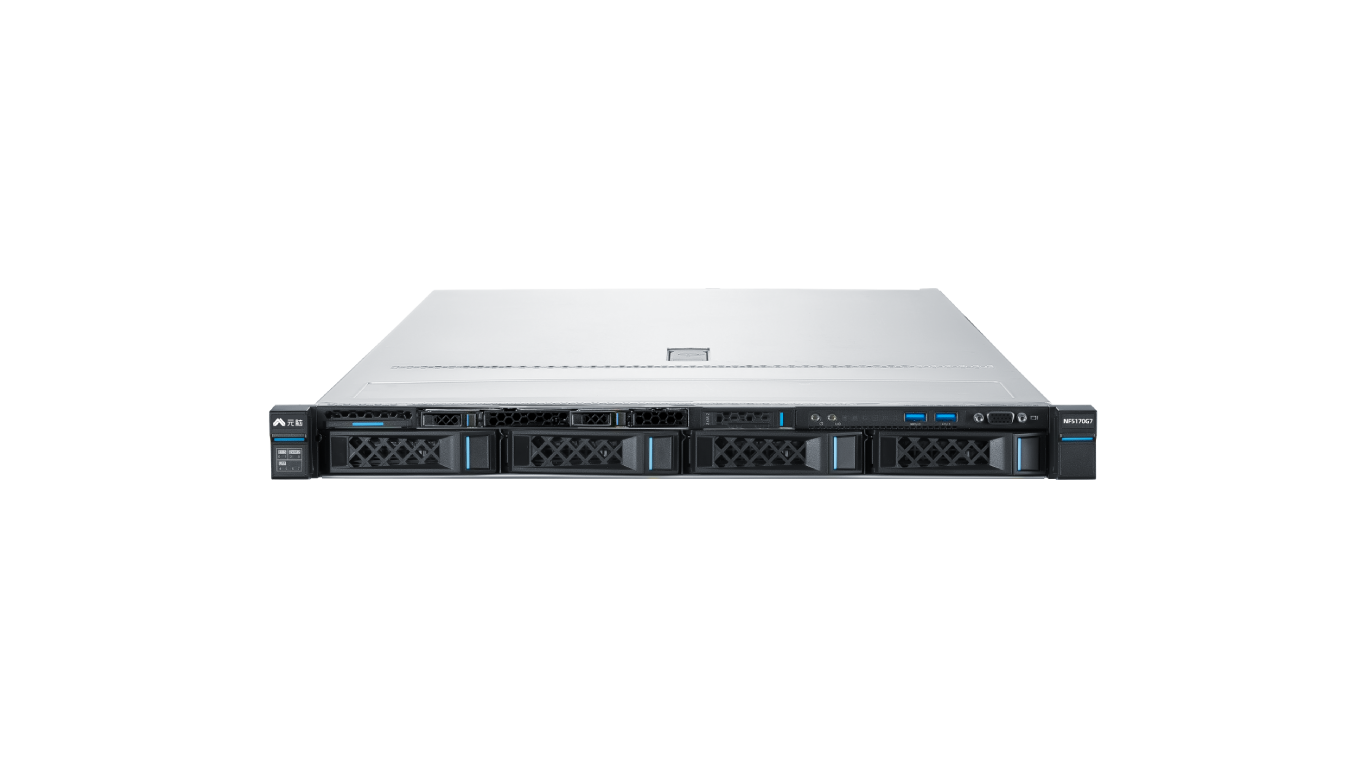

Inspur NF5170G7 NF5170-M7-A0-R0-00 Rack Server
Built on a streamlined design philosophy, the NF5170G7 series server is a cost-effective 1U 2-socket rack server that features the 4th Gen Intel® Xeon® Scalable processors.
Overview
Built on a streamlined design philosophy, the NF5170G7 series server is a cost-effective 1U 2-socket rack server that features the 4th Gen Intel® Xeon® Scalable processors. With efficient computing power and ultimate scalability, the server achieves an optimal balance between overall performance and power consumption, and meets the requirements of light-weight workloads, making it an ideal choice for high-density data centers and such mainstream computing scenarios as cloud computing and virtualization.
Key Features
- High computing scalability and balance between performance and power consumption: Equipped with the 4th Gen Intel® Xeon® Scalable processors, the server supports up to 32 cores per CPU, a TDP of up to 225W, a max base frequency of 3.7GHz, and 3 UPI links per CPU at 16GT/s per link, delivering improved processing performance.The server supports up to 4 PCIe 4.0 expansion slots (including 1 RAID mezz slot), meeting the expansion requirements of light-weight workloads.
- Streamlined design and flexible configuration: With a streamlined design and flexible configurations, the server supports 4 front 3.5-inch drives, 2 front M.2 SSDs and 2 front E1.S SSDs or 10 front 2.5-inch SAS/SATA/NVMe drives, providing an elastic storage space so that users can expand the capacity to the required value.
- Security, reliability, low carbon, and energy conservation: The intrusion alert feature improves the physical security. The optional security bezel with a latch prevents unauthorized users from installing or removing drives, thus protecting local data.The server adopts the chip-level redundancy design of core components such as the BIOS and BMC, ensuring that the system can start by switching to the standby chip. It also supports the online upgrade of the BMC without suspending services, thus guaranteeing service continuity.The fully-optimized cooling design, energy-efficient cooling fans, and power capping and staggered spin-up technologies help minimize the power consumption of the system.With the focus on environmental protection, key…
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
