| Product SKU | NF5180-A7-C0-R0-00 |
|---|---|
| Form Factor | 1U rack server |
| Processor | – Up to two 4th/5th Gen Intel® Xeon® Scalable processors |
| Chipset | Intel Emmitsburg |
| Memory | – Up to 32 DDR5 DIMMs (5,600 MT/s) |
| Storage | – General |
| Storage Controller | – RAID/SAS controller |
| Network | – 2 × optional hot-swap OCP 3.0 module |
| I/O Expansion | – Up to 6 PCIe expansion slots, including 1 mezz RAID and 2 hot-swappable OCP 3.0 |
| Ports and Interfaces | – Front: |
| Power Supply | Supports 550W/800W/1,300W/1,600W/2,000W CRPS standard PSUs with 1+1 redundancy |
| Cooling | 8 hot-swap dual-rotor fans with N+1 redundancy (none for immersive cooling models) |
| System Management | Integrated with 1 independent 1,000 Mbps network port, dedicated to IPMI remote management |
| Security | Two-factor authentication, TPM 2.0, security panel, intrusion alert, BIOS/BMC chipset-level redundancy, power capping, etc. |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc. |
| Dimensions | – 10 × 2.5-inch drive configuration (equipped with conventional heatsinks) |
| Weight | Full configuration: <31 kg (68.34 lbs) (For details, see the white paper) |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) (For details, see the white paper) |
Servers

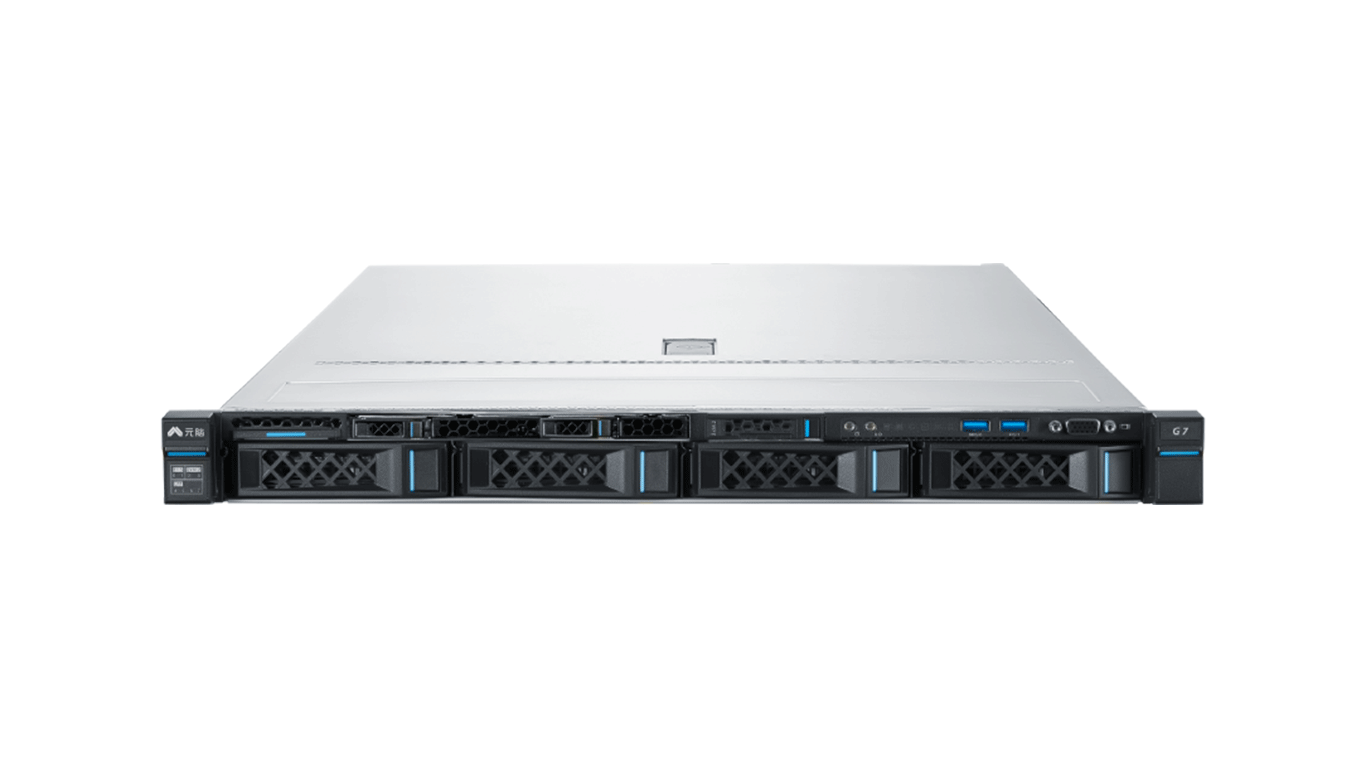

Inspur NF5180G7 NF5180-A7-C0-R0-00 Rack Server
The NF5180G7 series maximizes the performance, computing density, and scalability in a 1U space and is suitable for a variety of computing-intensive service scenarios such as virtualization.
Overview
The NF5180G7 series maximizes the performance, computing density, and scalability in a 1U space and is suitable for a variety of computing-intensive service scenarios such as virtualization. With rich storage matrices, the NF5180G7 meets the needs of scalability and network balance to the greatest extent. It also satisfies the low-PUE needs of more high-density data centers by integrating multi-dimensional cooling solutions such as air cooling, cold plate cooling, and immersion cooling in the 1U models.
Key Features
- Excellent performance and high efficiency: Built on the 4th/5th Gen Intel® Xeon® Scalable processors, the NF5180G7 series supports up to 64 cores and 128 threads per CPU with a TDP of up to 350 W and a max Turbo frequency of 4.2 GHz through 4 UPI links at 20 GT/s. Supports up to 32 DDR5 ECC DIMMs (5,600 MT/s, RDIMMs) to deliver high speeds and superior availability.
- Flexible configurations and outstanding scalability: The NF5180G7 series supports up to 12 2.5-inch SAS/SATA/NVMe drives or 32 E1.S SSDs at the front, and up to 2 2.5-inch SAS/SATA drives at the rear (refer to the specific configurations). Supports PCIe 5.0/4.0, up to 2 optional hot-swappable OCP 3.0, and provides 1 Gb, 10 Gb, 25 Gb, 40 Gb, 100 Gb, 200 Gb, and 400 Gb network interfaces. With Compute Express Link (CXL), an open-source and standard cache-coherent interconnect protocol, and E3.S storage medium, the NF5180G7 provides caching media in addition to traditional DIMMs to meet the core needs of large-capacity cache services.
- Security, reliability, and smart O&M: The front I/O design enables O&M personnel to operate in the cold aisle, which simplifies O&M operations, extends the service life of thermo-sensitive components such as optical modules and smart NICs, and improves data stability. The redundancy design of core components, such as the BIOS and BMC, ensures that the system can start by switching to the standby flash, ensure that the system can start by switching to the standby chip,and supports the online upgrade of the BMC without suspending services, thus guaranteeing service continuity.
- High efficiency, carbon emission reduction, and energy conservation: Supports cold plate cooling and immersive cooling, and provides comprehensive liquid-cooling solutions for data centers. With full-stack liquid-cooling capabilities, the NF5180G7 series can drop the PUE of data centers to below 1.1. By working with unique zonal intelligent control technology, the NF5180G7 series can adjust the fan speed intelligently based on the power consumption of components in different air ducts, eliminating temperature transmission delays and realizing energy-saving fan speed regulation and accurate air supply. With the focus on environmental protection, key components of the series meet the lead-free requirements (RoHS), and all packaging and packing materials are…
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
