| Product SKU | NF5260M6 |
|---|---|
| Form Factor | 2U rack server |
| Processor | 1 or 2 × 3rd Gen Intel Xeon Scalable processors: up to 40 cores, up to 3.6 GHz Turbo, 3 UPI links at up to 11.2 GT/s each, up to 270 W TDP |
| Chipset | Intel C621A |
| Memory | Up to 32 DIMMs. 8 memory channels per processor, 2 DIMMs per channel. Memory speed up to 3,200 MT/s; supports RDIMM and Intel Optane PMem 200. Memory protection includes ECC, memory mirroring and memory rank sparing |
| Storage | Front: 24 × 2.5-inch SATA/SAS/NVMe SSDs (up to 16 × NVMe drives per system), hot-swap; 12 × 2.5-inch/3.5-inch SATA/SAS/NVMe SSDs, hot-swap. Rear: 4 × 2.5-inch SATA/SAS/NVMe SSDs, hot-swap. Internal: 2 × optional SATA M.2 SSDs |
| Storage Controller | RAID controller and SAS controller; onboard PCH supports 14 × SATA; NVMe direct-to-CPU support |
| Network | 2 × optional OCP 3.0 modules at 1/10/25/40/100/200 Gb/s; supports standard 1 Gb/10 Gb/25 Gb/40 Gb/100 Gb/200 Gb NICs |
| I/O Expansion | Up to 6 × standard PCIe: 4 × PCIe 4.0 x16 half-height half-length and 2 × PCIe 4.0 x8 half-height half-length; or 4 × standard PCIe plus 2 × OCP 3.0 cards; 4 × PCIe 4.0 x16 full-height half-length |
| Ports and Interfaces | Front: 2 × USB 3.0, 1 × VGA. Rear: 2 × USB 3.0, 1 × RJ45, 1 × VGA |
| Power Supply | Single or dual 800 W/1,300 W/1,600 W/2,000 W output with 1+1 redundancy; PMBus support for Node Manager 4.0 |
| Cooling | 6 × 6056 fans with N+1 redundancy |
| System Management | Integrated 1 × independent 1,000 Mbps network port dedicated to IPMI remote management |
| Operating System | Microsoft Windows Server 2019, Red Hat 7.8/7.9/8.2/8.3, SUSE 12.5/15.2, CentOS 7.8/8.2, Debian 10.2, NeoKylin Linux Advanced Server V7 Update 6, Oracle Linux 7.9/8.3, VMware ESXi 6.7 U3/7.0, Ubuntu 18.04.05/20.04.1 |
| Dimensions | Chassis: 435 (W) × 87 (H) × 779.5 (D) mm. Packaging box: 651 (W) × 295 (H) × 1,031 (D) mm |
| Weight | 12 × 3.5-inch configuration (including 2 rear 2.5-inch drives): 30 kg net, 40 kg gross (including packaging + rails + accessory box). 24 × 2.5-inch configuration (including 2 rear 2.5-inch drives): 24 kg net, 34 kg gross (including packaging + rails + accessory box) |
| Operating Temperature | 5°C to 45°C (please refer to the technical white paper for details) |
Overview

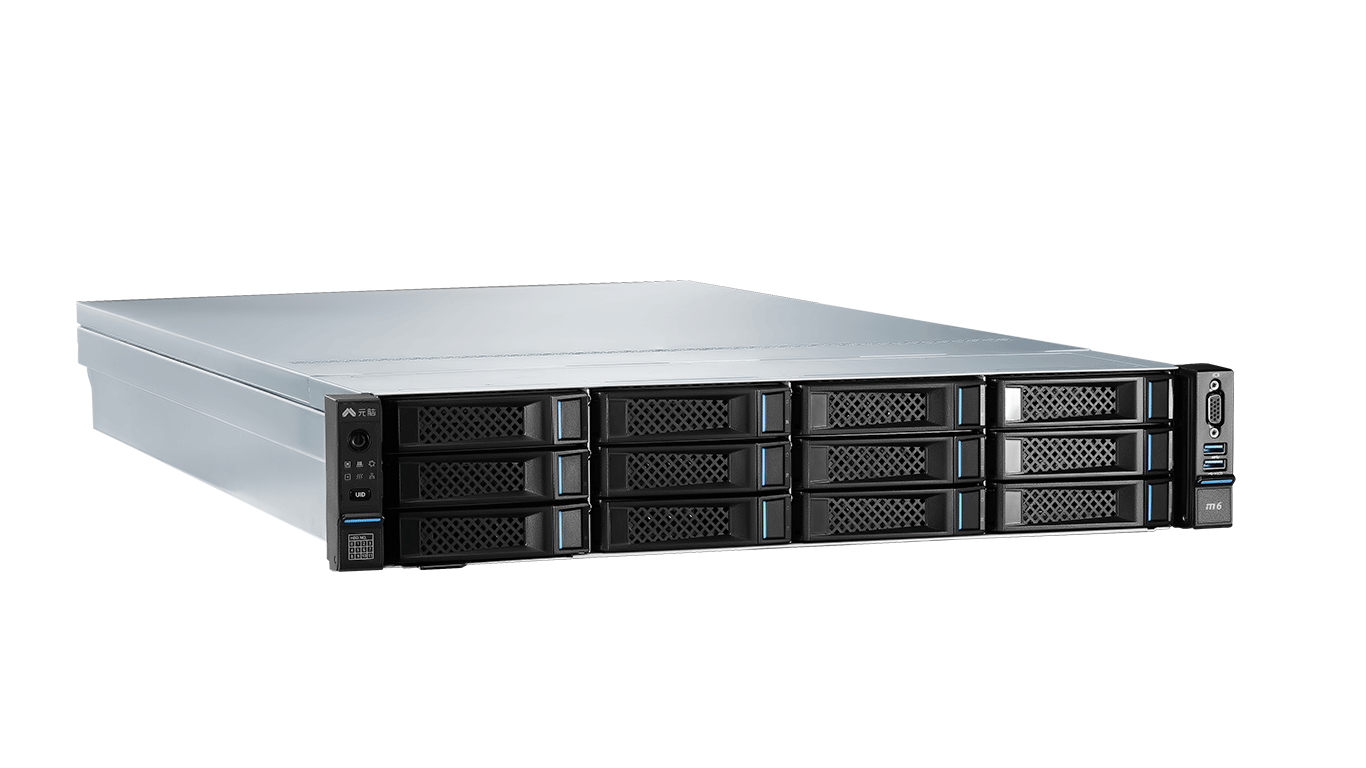

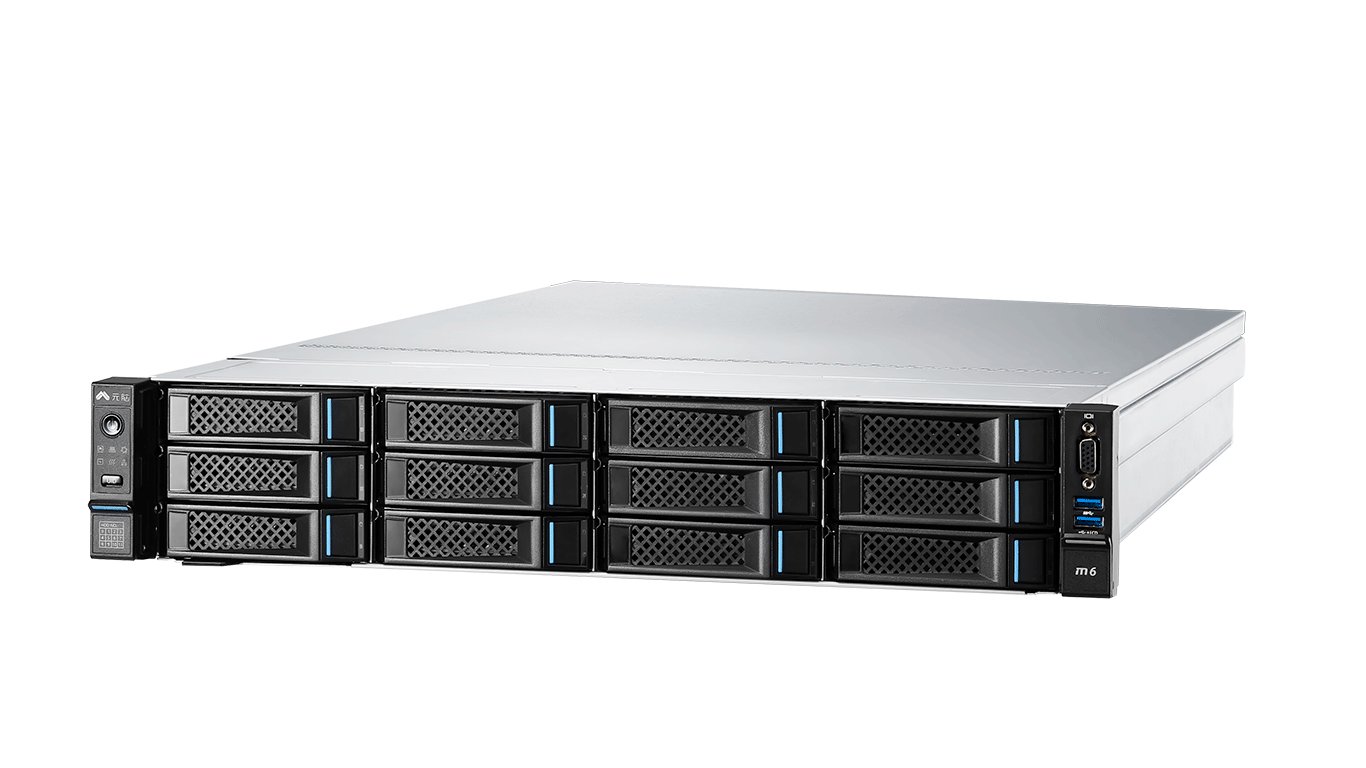

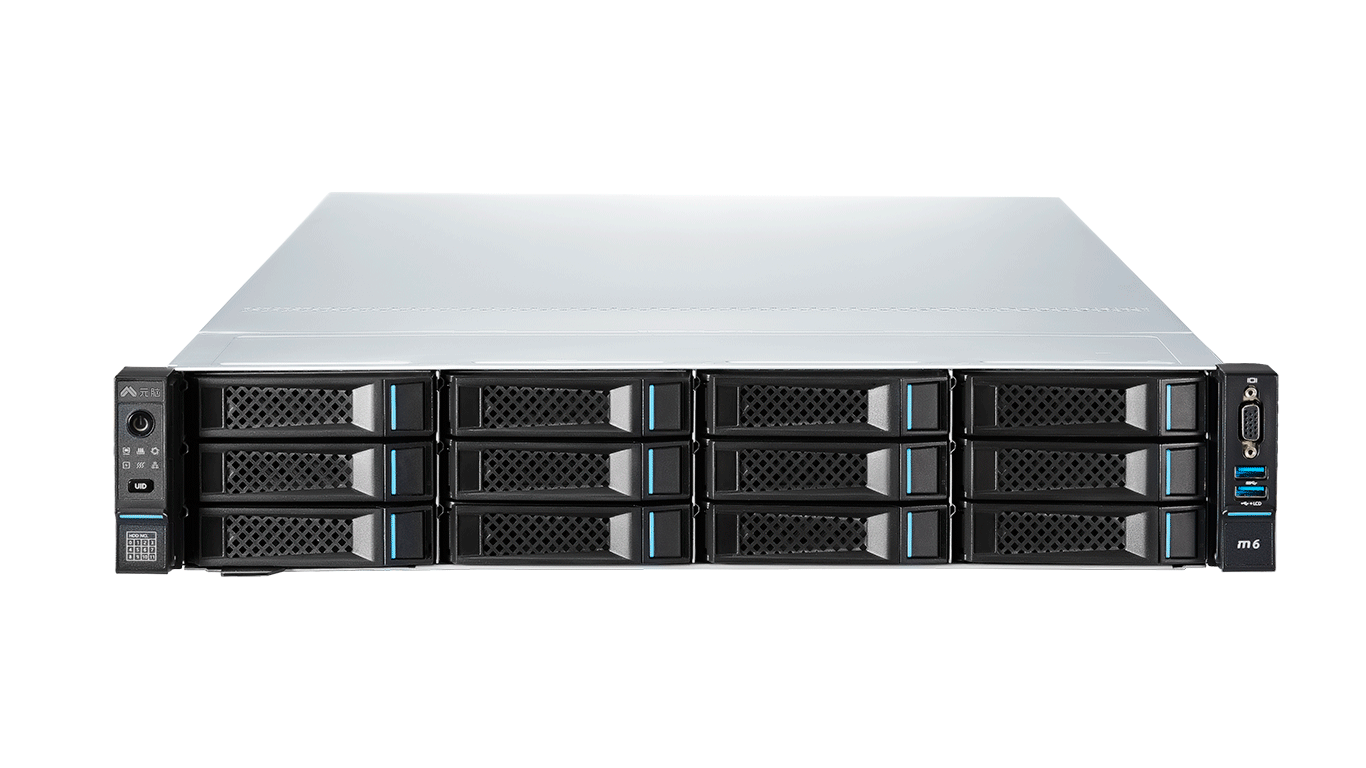

The Inspur NF5260M6 is a 2U rack server rack server. It is configured with 1 or 2 × 3rd Gen Intel Xeon Scalable processors: up to 40 cores, up to 3.6 GHz Turbo, 3 UPI links at up to 11.2 GT/s each, up to 270 W TDP. Memory: Up to 32 DIMMs. 8 memory channels per processor, 2 DIMMs per channel. Memory speed up to 3,200 MT/s; supports RDIMM and Intel Optane PMem 200. Memory protection includes ECC, memory mirroring and memory rank sparing.
Key Features
- Processor: 1 or 2 × 3rd Gen Intel Xeon Scalable processors: up to 40 cores, up to 3.6 GHz Turbo, 3 UPI links at up to 11.2 GT/s each, up to 270 W TDP
- Memory: Up to 32 DIMMs. 8 memory channels per processor, 2 DIMMs per channel. Memory speed up to 3,200 MT/s; supports RDIMM and Intel Optane PMem 200. Memory protection includes ECC, memory mirroring and memory rank sparing
- Storage: Front: 24 × 2.5-inch SATA/SAS/NVMe SSDs (up to 16 × NVMe drives per system), hot-swap; 12 × 2.5-inch/3.5-inch SATA/SAS/NVMe SSDs, hot-swap. Rear: 4 × 2.5-inch SATA/SAS/NVMe SSDs, hot-swap. Internal: 2 × optional SATA M.2 SSDs
- Storage Controller: RAID controller and SAS controller; onboard PCH supports 14 × SATA; NVMe direct-to-CPU support
- Network: 2 × optional OCP 3.0 modules at 1/10/25/40/100/200 Gb/s; supports standard 1 Gb/10 Gb/25 Gb/40 Gb/100 Gb/200 Gb NICs
- I/O Expansion: Up to 6 × standard PCIe: 4 × PCIe 4.0 x16 half-height half-length and 2 × PCIe 4.0 x8 half-height half-length; or 4 × standard PCIe plus 2 × OCP 3.0 cards; 4 × PCIe 4.0 x16 full-height half-length
- Power Supply: Single or dual 800 W/1,300 W/1,600 W/2,000 W output with 1+1 redundancy; PMBus support for Node Manager 4.0
- Cooling: 6 × 6056 fans with N+1 redundancy
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
