| Product SKU | NF5266M6 |
|---|---|
| Form Factor | 2U rackmount server |
| Processor | – 1 or 2 3rd Generation Intel ® Xeon ® Scalable processors |
| Memory | – 1. 16 x memory slots |
| Storage | – Front: |
| Network | – Up to 2 x OCP3.0, 1/10/25/40/100/200Gb/s |
| I/O Expansion | Up to 7×PCIe slots, including 1x OCP3.0 slot, up to 2 x OCP3.0 slots |
| Ports and Interfaces | 2 x rear USB3.0 + 1 x rear VGA + 1 x COM port |
| Power Supply | 1+1 redundant platinum power supplies High-voltage DC and titanium power supply |
| Cooling | N+1 redundancy and hot-pluggable |
| System Management | An independent 1000Mbps NIC dedicated to IPMI remote management |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc. |
| Dimensions | – 482mm(19 inches) x 87.5mm(3.4 inches) x 891.2 mm(35 inches) (with mounting ears) |
| Weight | 45kg (99.2 lbs) |
| Operating Temperature | 5°C-40°C. 41°F-104°F |
| Product Code | NF5266M6 |
Overview

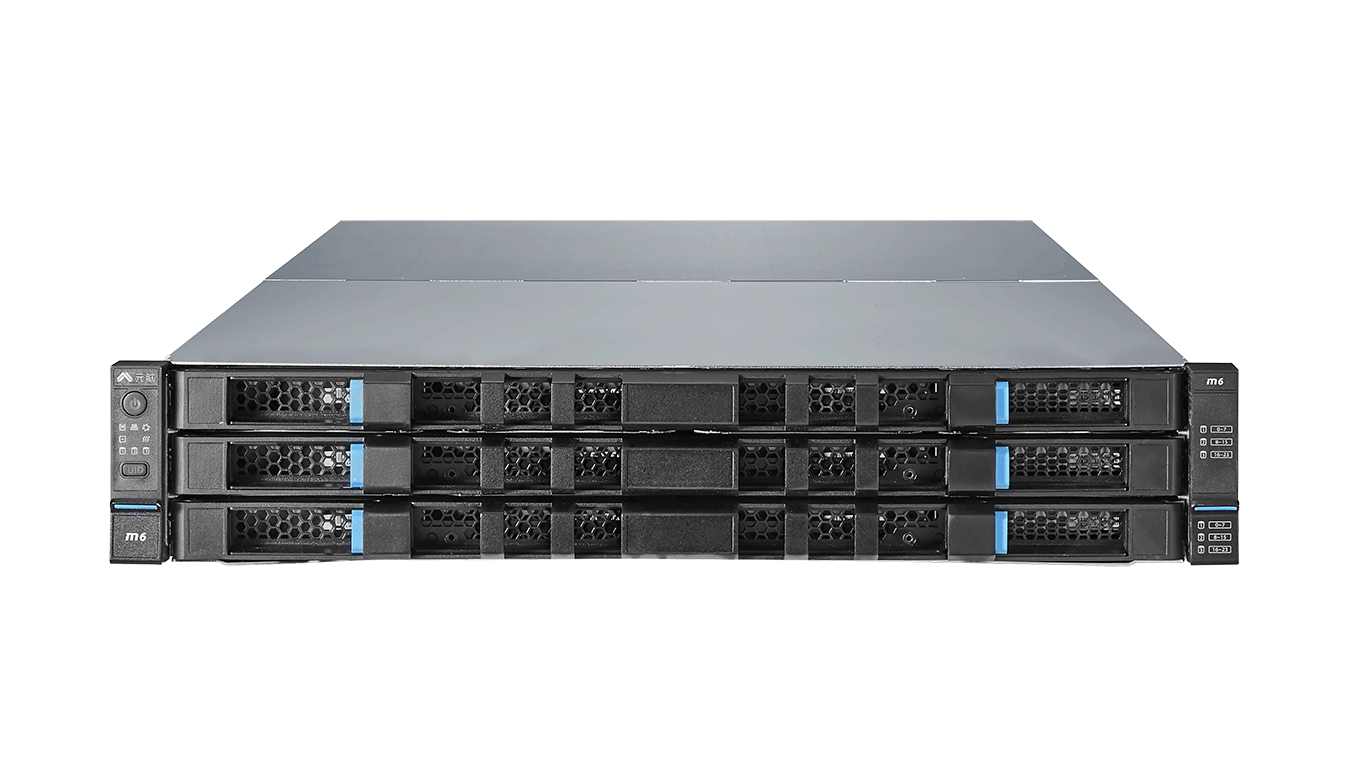

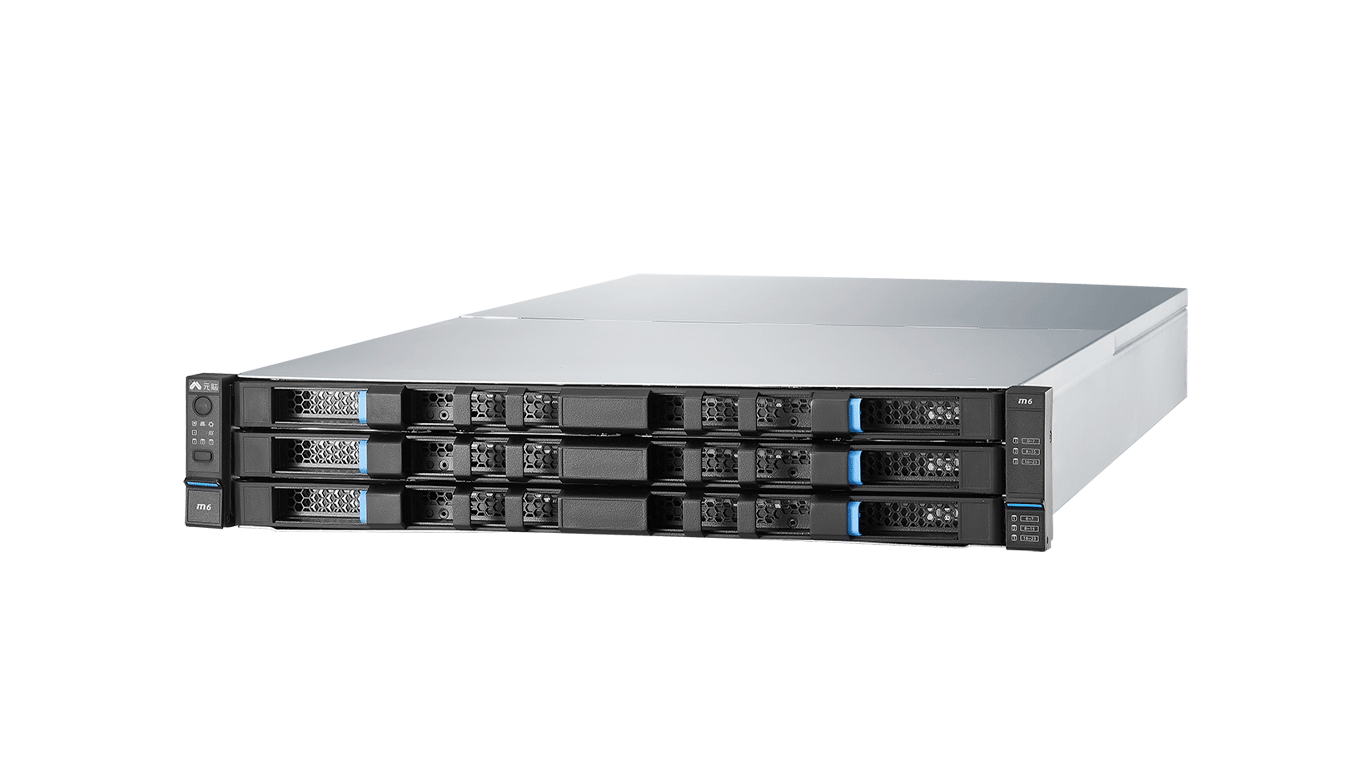

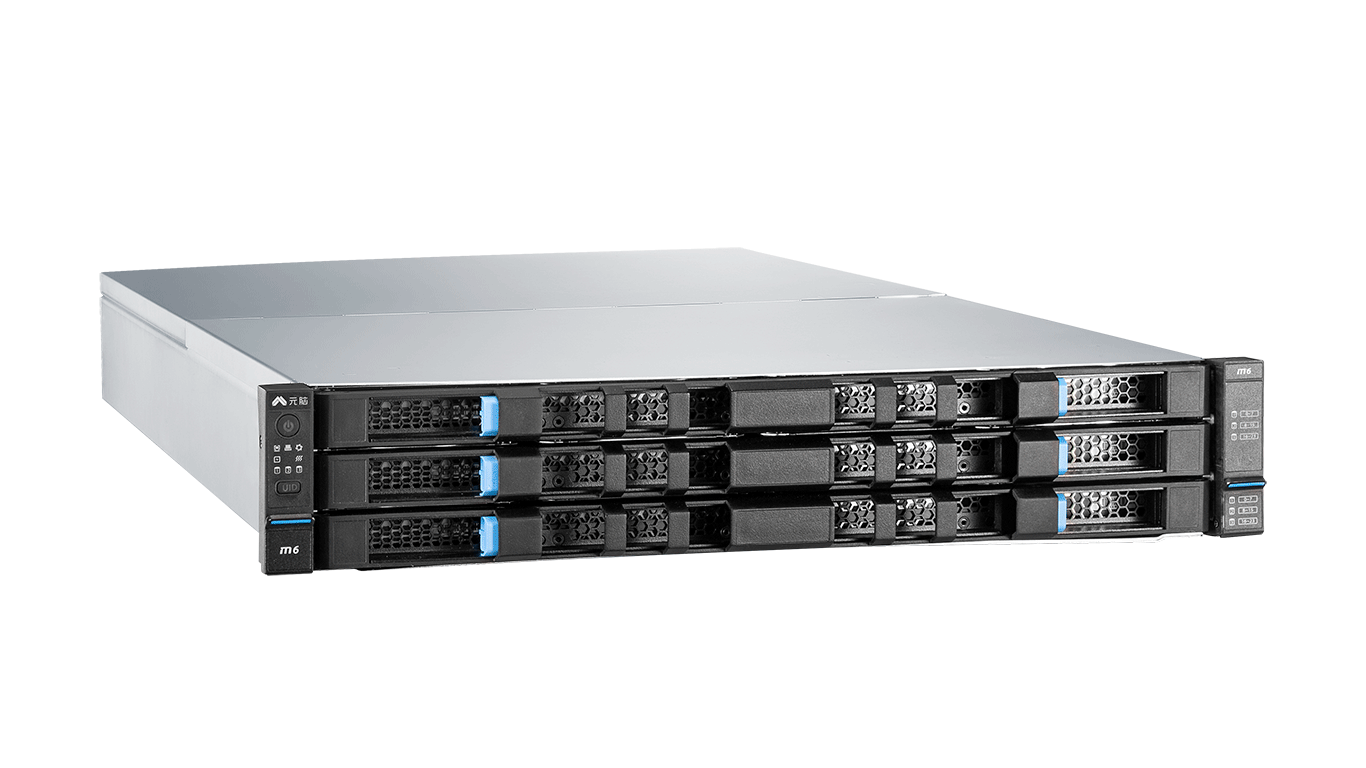

The Inspur NF5266M6 is a 2U rackmount server rack server. It is configured with 1 or 2 3rd Generation Intel ® Xeon ® Scalable processors. Memory: 1. 16 x memory slots.
Key Features
- Processor: – 1 or 2 3rd Generation Intel ® Xeon ® Scalable processors
– 3 UPIs and 11.2GT/s per link - Memory: – 1. 16 x memory slots
– 2. Each processor supports 8 x memory channels and each channel supports a maximum of 1 memory slot
– 3. Memory speed can reach 3200MT/s. Support RDIMM and BPS/NVDIMM
– 4. Memory protection mechanisms: ECC, memory mirroring, memory-level protection - Storage: – Front:
– up to 24 × 3.5-inch SAS/SATA HDDs (hot-plug)
– Rear:
– up to 8 x 2.5-inch SAS/SATA/NVMe/E1.S SSDs or 2 x 3.5-inch drives (hot-plug)
– Up to 2 x M.2 SSDs or 2 x E1.S SSDs storage modules
– Up to 2 x TF cards (1 x BIOS + 1 x BMC)
– (Max. drive support is determined by the specific configuration) - Network: – Up to 2 x OCP3.0, 1/10/25/40/100/200Gb/s
– 1/10/25/40/100/200Gb standard NICs - I/O Expansion: Up to 7×PCIe slots, including 1x OCP3.0 slot, up to 2 x OCP3.0 slots
- Power Supply: 1+1 redundant platinum power supplies High-voltage DC and titanium power supply
- Cooling: N+1 redundancy and hot-pluggable
- System Management: An independent 1000Mbps NIC dedicated to IPMI remote management
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
