| Product SKU | NF5270M6 |
|---|---|
| Form Factor | 2U rack server |
| Processor | – 1 or 2 Intel ® Xeon ® Ice Lake scalable processors: |
| Chipset | Intel C621A |
| Memory | – Up to 16 3200 MT/s DDR4 DIMMs |
| Storage | – Front Panel |
| Storage Controller | – SATA controller on the mainboard to support RAID Level 0/1/5/10. |
| Network | An optional OCP 3.0 module and dual-port 1G onboard NIC |
| I/O Expansion | Up to 5 standard PCIe cards and 1 Raid Mezz card |
| Ports and Interfaces | – Front: 1 × USB 2.0 port, 1 × USB 3.0 port, 1 × VGA port, and 1 × UID button with LED |
| Power Supply | 2 × 550 W/800 W/1300 W Platinum PSU (1+1 redundancy) |
| Cooling | 4 × hot-swap 8056 fan (N+1 redundancy) |
| System Management | Onboard BMC module that supports IPMI, SOL, KVM Over IP, and virtual media and provides a 1 Gb/s RJ45 management interface |
| Operating System | Windows Server, Red Hat, SUSE, etc. |
| Dimensions | 478.8 mm (w) × 87 mm (h) × 811.7 mm (d) |
| Weight | Less than 38 kg in full configuration. For more information, please see NF5270M6 White Paper. |
| Operating Temperature | 5°C-45°C |

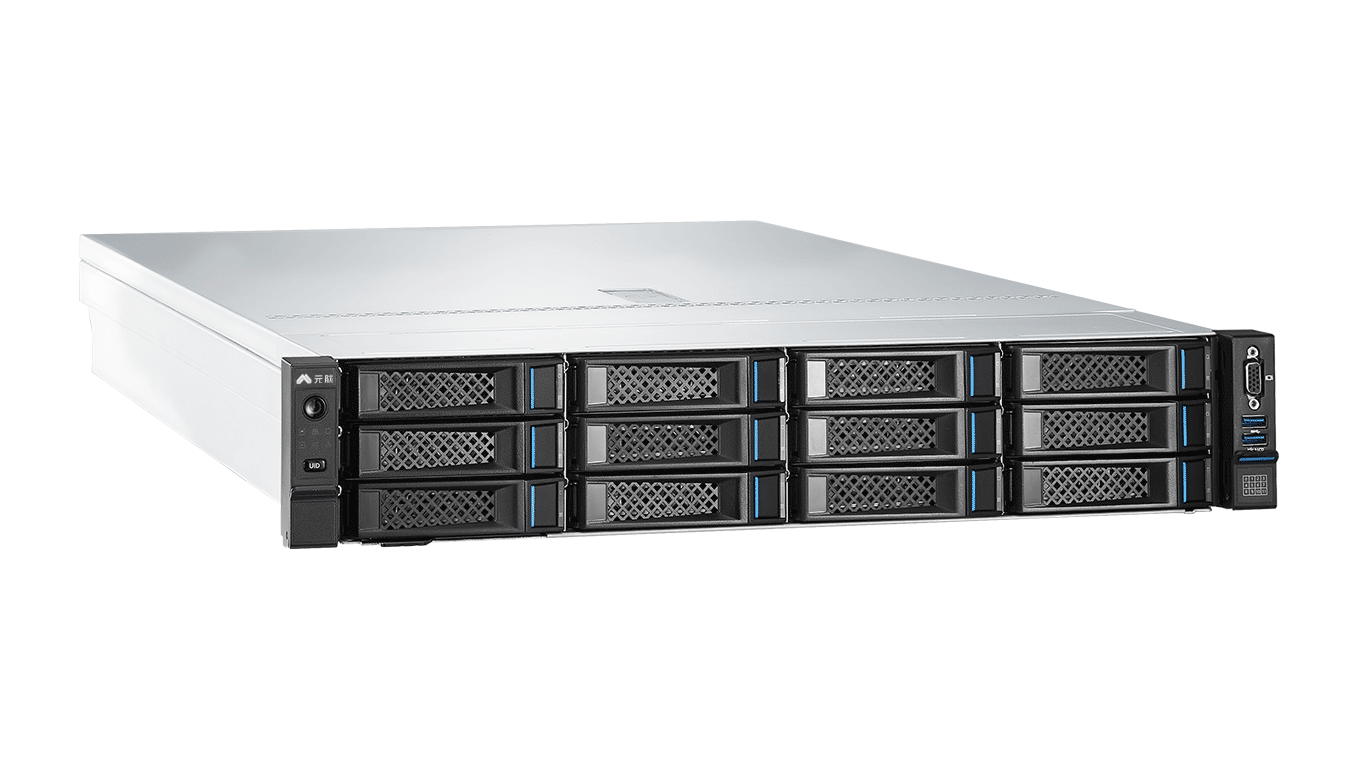

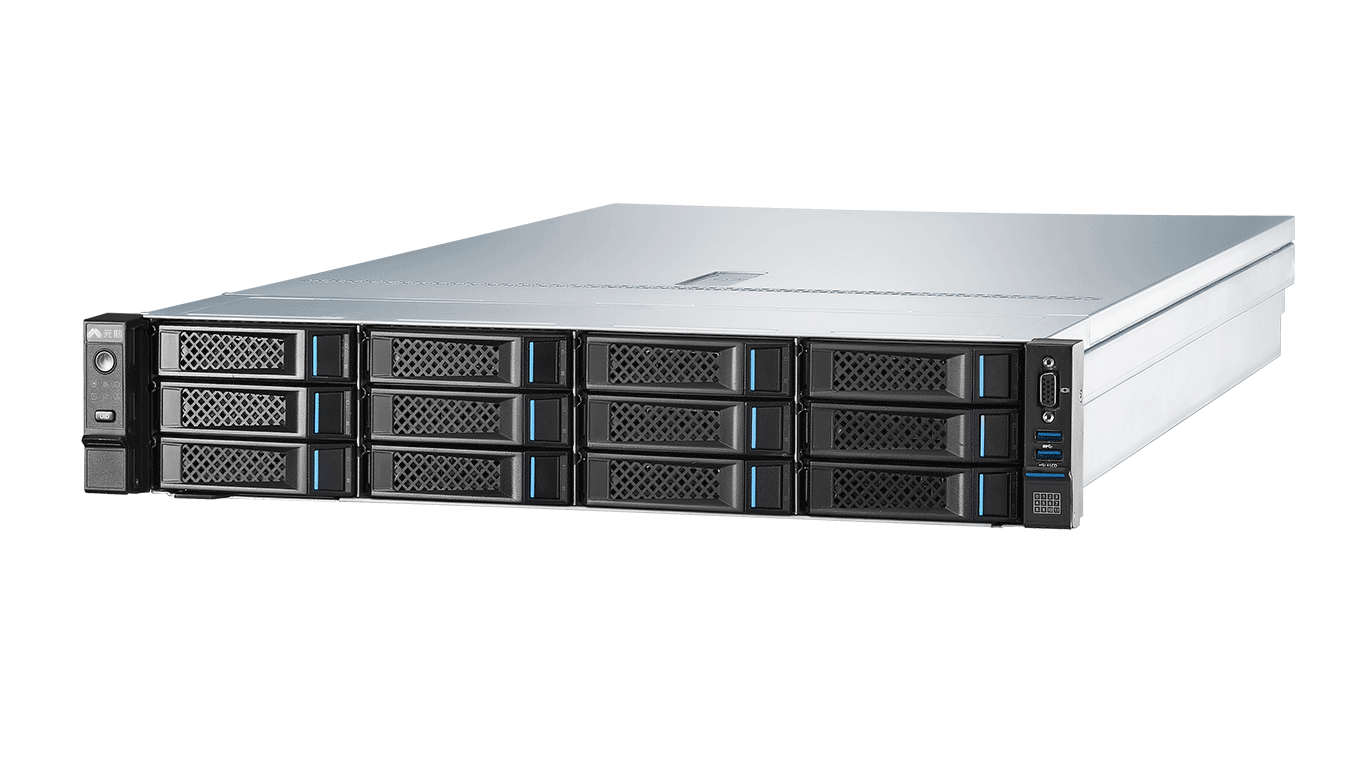

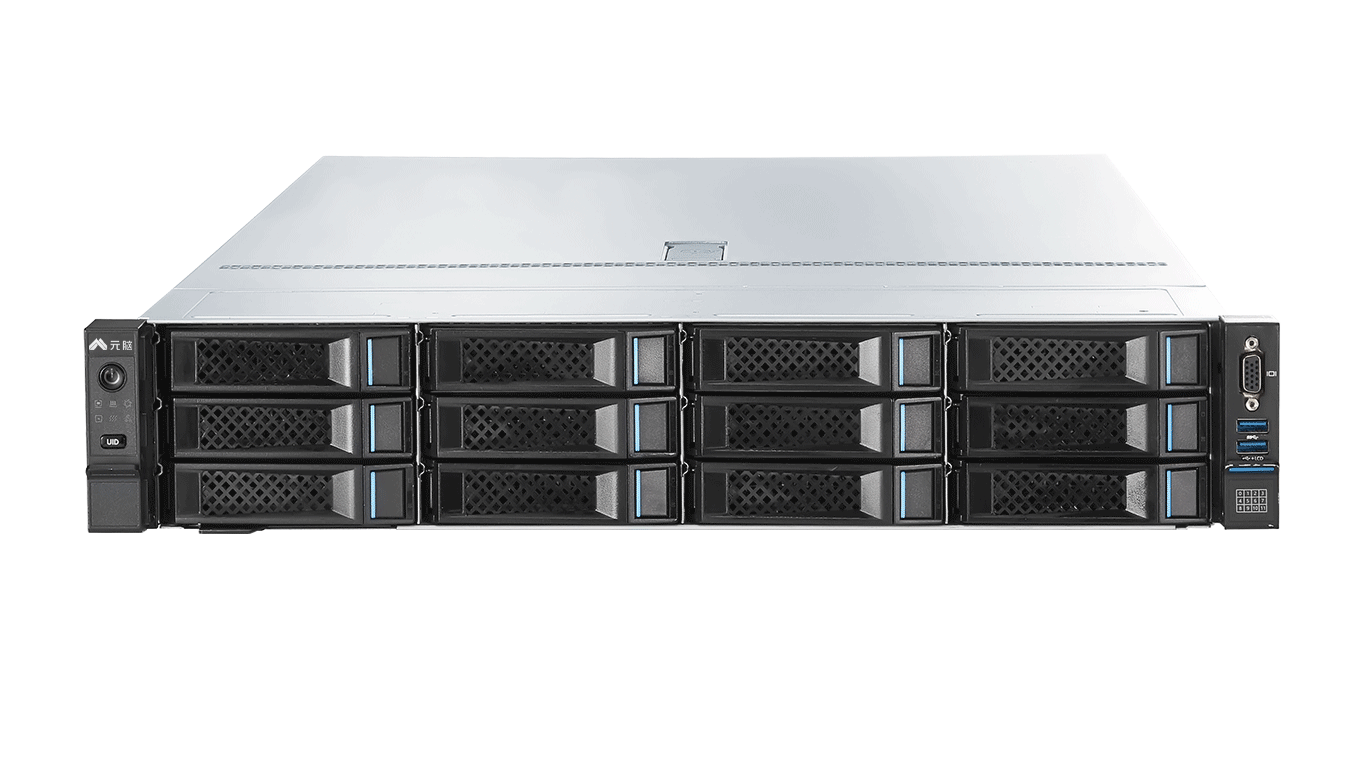

Overview
The Inspur NF5270M6 is a 2U rack server rack server. It is configured with 1 or 2 Intel ® Xeon ® Ice Lake scalable processors:. Memory: Up to 16 3200 MT/s DDR4 DIMMs.
Key Features
- Processor: – 1 or 2 Intel ® Xeon ® Ice Lake scalable processors:
– Up to 38 cores per processor (with a frequency of 3.1 GHz)
– Max. frequency 4.3 GHz (4 cores)
– 3 UPI links (up to 11.2 GT/s per link)
– Max. TDP 270 W - Memory: – Up to 16 3200 MT/s DDR4 DIMMs
– 8 DIMMs per CPU
– 16 DIMMs for two CPUs
– RDIMMs supported with a total capacity of up to 4 TB (64 GB per memory module)
– Optane® PMem memory modules (up to 512 GB per memory module) - Storage: – Front Panel
– 24 × 2.5″ hot-swap SATA/SAS/NVME (A maximum of 12 NVMe SSDs)
– 21 × 2.5″ hot-swap SATA/SAS + 4 × hot-swap SATA/SAS/NVMe SSD;
– 12 × 2.5″ hot-swap SATA/SAS SSD
– 12 × 3.5″ hot-swap SATA/SAS/NVMe SSD
– Rear Panel
– 4 × 2.5″ hot-swap SATA/SAS/NVMe SSD
– Rear Storage
– 2 optional SATA M.2 SSDs or 2 optional E1.S modules - Storage Controller: – SATA controller on the mainboard to support RAID Level 0/1/5/10.
– NVMe controller interface on the mainboard with optional Intel NVMe RAID key - Network: An optional OCP 3.0 module and dual-port 1G onboard NIC
- I/O Expansion: Up to 5 standard PCIe cards and 1 Raid Mezz card
- Power Supply: 2 × 550 W/800 W/1300 W Platinum PSU (1+1 redundancy)
- Cooling: 4 × hot-swap 8056 fan (N+1 redundancy)
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
