| Product SKU | NF5280A6 |
|---|---|
| Form Factor | 2U rack server |
| Processor | – 1. One or two AMD® EPYCTM ® Milan series processors |
| Memory | – 1 . Up to 32 DIMMs [a2] |
| Storage | – Front drive |
| Storage Controller | Standard PCle RAID card controller and SAS card controller |
| Network | – 1 optional OCP NIC 3.0 module (10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps, and 200 Gbps) |
| I/O Expansion | – Up to 8 PCIe slots |
| Ports and Interfaces | – 2 rear USB 3.0 ports + 1 front USB 3.0 port + 1 front USB 2.0 port |
| Power Supply | 550 W/800 W/1300 W/1600 W/2000 W CRPS standard PSUs with 1+1 redundancy |
| Cooling | 4 hot-swap fans with N+1 redundancy |
| System Management | Integrated with 1 independent 1000 Mbps network port, dedicated for IPMI remote management |
| Operating System | Microsoft Windows Sever, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc. |
| Dimensions | – With mounting ears: 478. |
| Weight | < 37.5 kg (82.67 lbs) (with all drives loaded) (For details, please refer to the white paper) |
| Operating Temperature | 5°C – 45°C (41°F – 113°F) (For details, please refer to the white paper) |
Overview

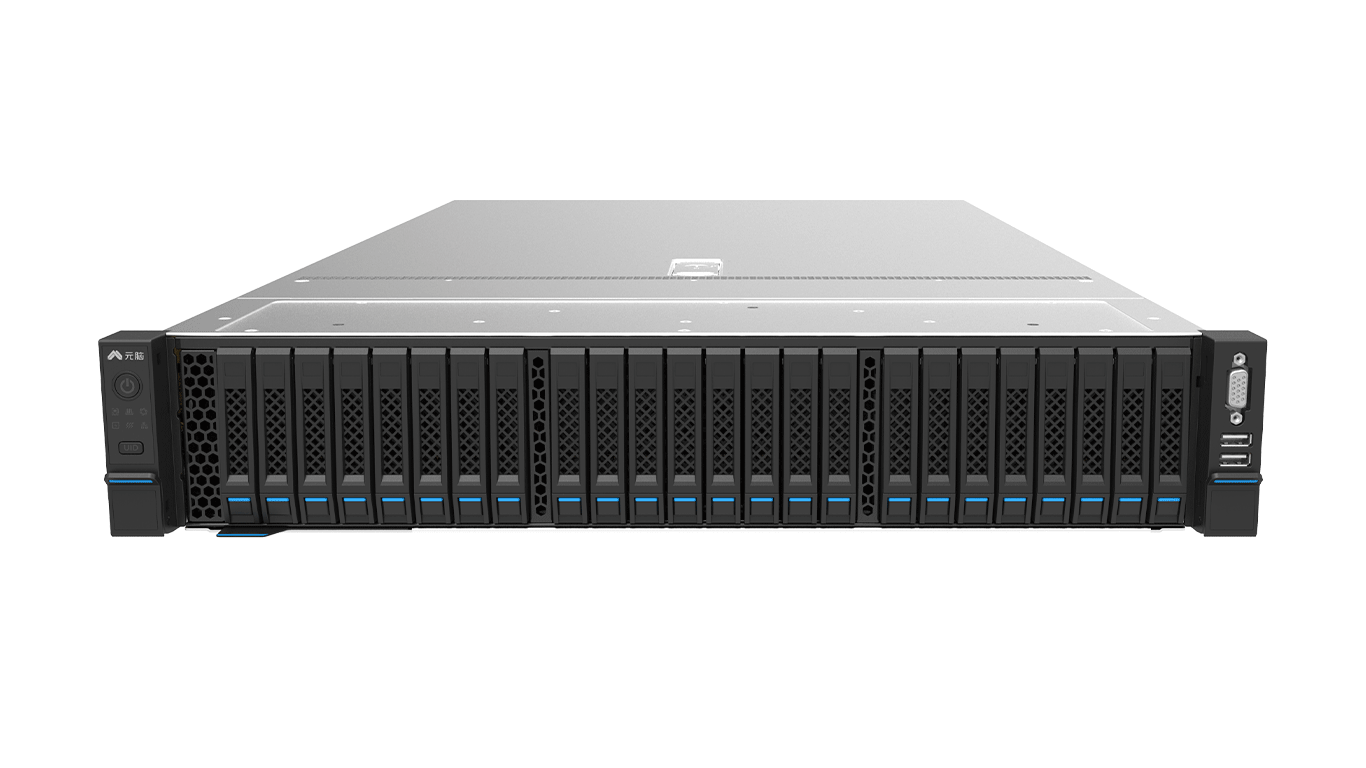

The Inspur NF5280A6 is a 2U rack server rack server. It is configured with 1. One or two AMD® EPYCTM ® Milan series processors. Memory: 1 . Up to 32 DIMMs [a2].
Key Features
- Processor: – 1. One or two AMD® EPYCTM ® Milan series processors
– 2. Up to 64 cores (Base frequency of 2.45 GH [JC(1] z)
– 3. Max. Turbo frequency at 3.7 GHz
– 4. 256 MB L3 cache per CPU and XGMI2 interconnect links at 18 GT/s
– 5. TDP up to 280 W - Memory: – 1 . Up to 32 DIMMs [a2]
– 2. 8 memory channels per processor, and up to 2 memory slots per channel
– 3. Up to 3200 MT/s (1DPC)
– 4. RDIMMs and LRDIMMs supported
– 5. ECC, memory mirroring and memory rank sparing - Storage: – Front drive
– 24 × 2.5″ hot-swap SATA/SAS/NVMe drive
– 12 × 2.5″ or 3.5″ hot-swap SATA/SAS/NVMe drive
– Rear drive
– 4 × 2.5″ hot-swap SATA/SAS/NVMe SSD drive
– 4 × 3.5″ (or 2.5″) SATA/SAS/NVMe SSD drive (hot-swap)
– Internal drive
– 2 optional SATA M.2 drives or 1 PCle M.2 drive + 1 SATA M.2 drive - Storage Controller: Standard PCle RAID card controller and SAS card controller
- Network: – 1 optional OCP NIC 3.0 module (10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps, and 200 Gbps)
– 2 optional onboard 1-Gbps electrical ports
– Standard PCIe form factor: 1 Gbps/10 Gbps/25 Gbps/40 Gbps/100 Gbps NIC - I/O Expansion: – Up to 8 PCIe slots
– Up to 2 double-width GPUs or 4 single-width GPUs
– 1 hot-swap OCP NIC 3.0 (x16) - Power Supply: 550 W/800 W/1300 W/1600 W/2000 W CRPS standard PSUs with 1+1 redundancy
- Cooling: 4 hot-swap fans with N+1 redundancy
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
