| Product SKU | NF5280-M7-A0-F0-00 |
|---|---|
| Form Factor | 2U rack server |
| Processor | – Up to one or two 4th/5th Gen Intel Xeon Scalable processors |
| Chipset | Intel Emmitsburg |
| Memory | – Up to 32 DDR5 DIMMs (5,600 MT/s) |
| Storage | General |
| Storage Controller | – RAID/SAS controller |
| Network | – 2 × optional hot-swappable OCP 3.0 |
| I/O Expansion | – Up to 16 PCIe expansion slots, including 1 RAID Mezz slot and 2 hot-swappable OCP 3.0 slots |
| Ports and Interfaces | – Front: 1 × USB 2.0 port, 1 × USB 3.0 port, 1 × DB15 VGA port, 1 × USB type-C port |
| Power Supply | Supports 800W/1,300W/1,600W/2,000W/2,700W CRPS standard PSUs with 1+1 redundancy |
| Cooling | 6 hot-swappable N+1 redundant dual-rotor fans |
| System Management | Integrated with 1 independent 1,000 Mbps network port, dedicated to IPMI remote management |
| Security | Two-factor authentication, TPM 2.0, security panel, intrusion alert, BMC/BIOS chip-level redundancy, power capping, etc. |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc. |
| Dimensions | – With mounting ears: 482.4mm × 87mm × 828.4mm |
| Weight | Full configuration: ≤33 kg (For details, please refer to the White Paper) |
| Operating Temperature | 5°C to 50°C (For details, please refer to the White Paper) |
Servers

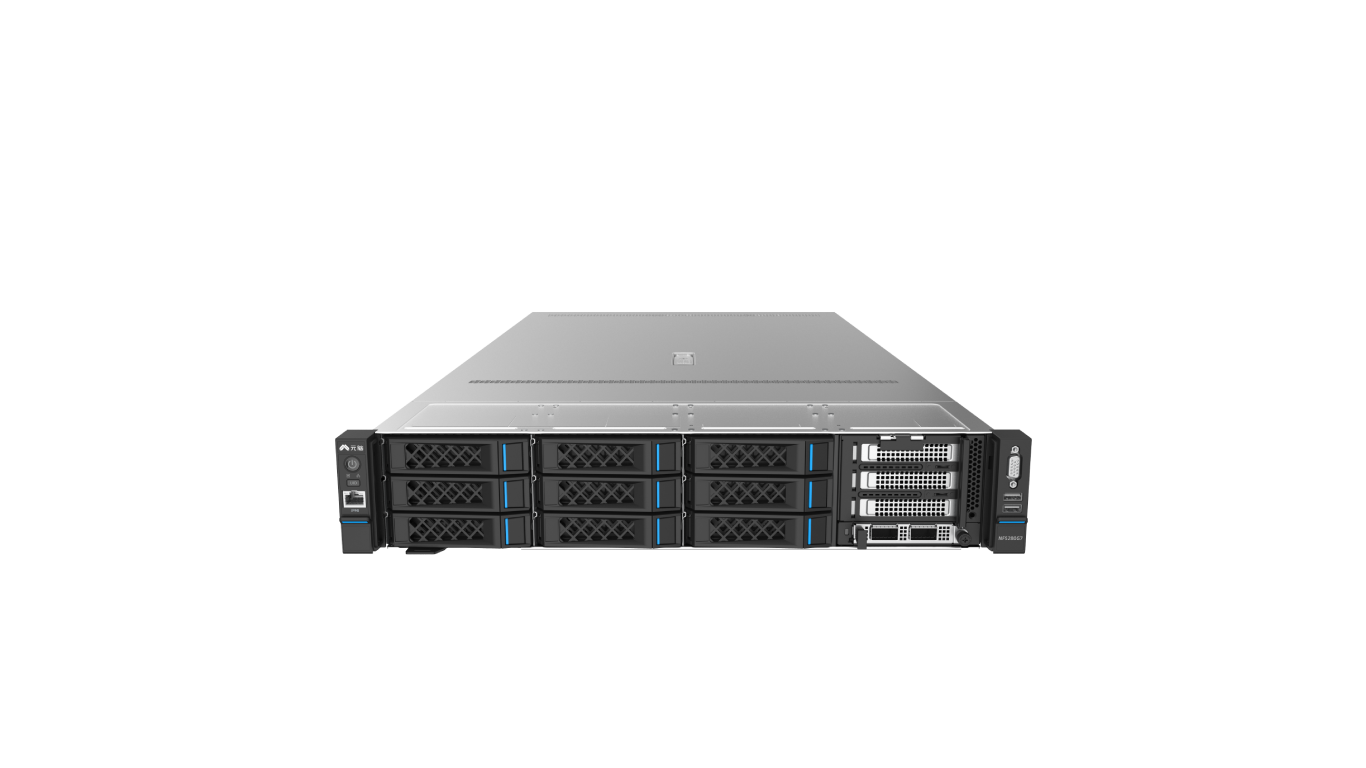

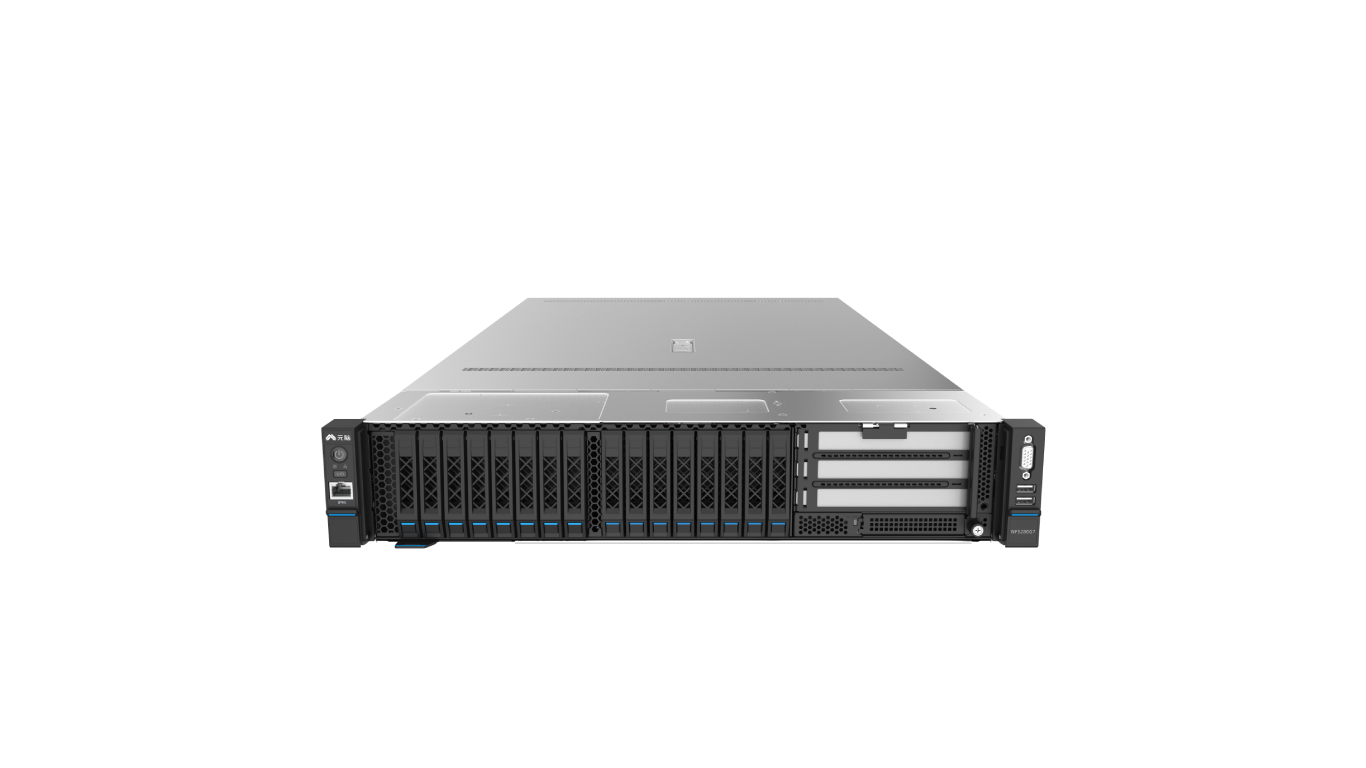

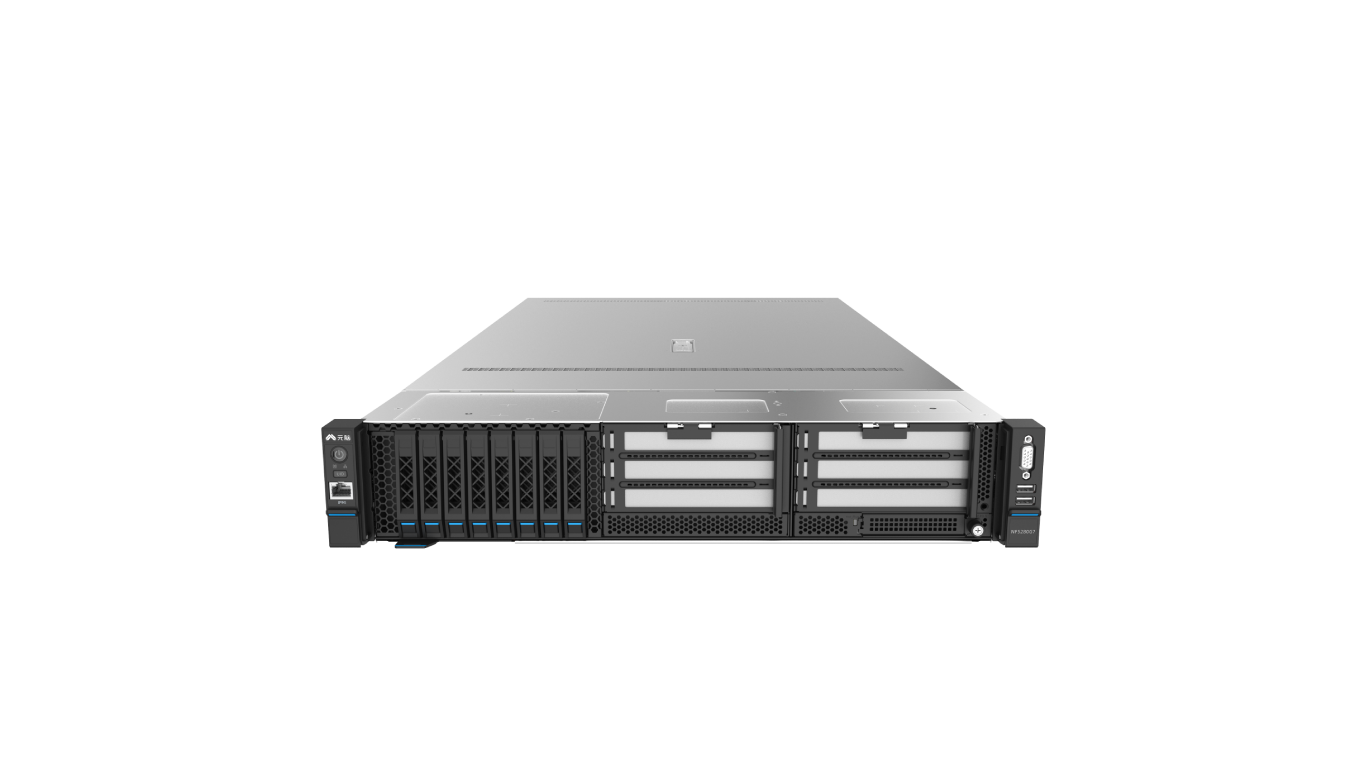

Inspur NF5280G7 NF5280-M7-A0-F0-00 Rack Server
Equipped with the 4th/5th Gen Intel Xeon Scalable processors, supports up to 64 cores and 128 threads per CPU with up to 350W TDP and a max turbo frequency of 4.2 GHz through 4 UPI links at 20 GT/s.
Overview
Equipped with the 4th/5th Gen Intel Xeon Scalable processors, supports up to 64 cores and 128 threads per CPU with up to 350W TDP and a max turbo frequency of 4.2 GHz through 4 UPI links at 20 GT/s. Supports up to 32 DDR5 ECC DIMMs (5,600 MT/s, RDIMMs) in delivering high speeds and superior availability.
Key Features
- Excellent Performance and Efficient Computing: Equipped with the 4th/5th Gen Intel Xeon Scalable processors, supports up to 60->64 cores and 120->128 threads per CPU with up to 350W TDP and a max Turbo frequency of 4.2 GHz through 4 UPI links at 20 GT/s.Supports up to 32 DDR5 ECC DIMMs (5,600 MT/s, RDIMMs) in delivering high speeds and superior availability.
- Break-thru Design and Full-scenario Adaptability: Offers ultimate computing, storage and network performance, and delivers flexible combination through modular design to support 45 × 2.5-inch drive or 20 × 3.5-inch drive and the optional rear M.2/E1.S SSD for diverse storage demands, and to support PCIe 5.0/4.0 for different scalability requirements, with up to 20 PCIe expansions.Supports up to 2 to 3 optional hot-swappable OCP 3.0 modules, and provides 1Gb, 10Gb, 25Gb, 40Gb, 100Gb, 200Gb, and 400Gb network interfaces.With Compute Express Link (CXL), an open-source and standard cache-coherent interconnect protocol, and E3.S storage medium, provides caching media apart from traditional DIMMs to meet the core needs of large-capacity cache…
- Flexible Architecture and Security & Intelligence: The front I/O design enables O&M engineer to operate in the cold aisle, which simplifies O&M procedures, prolongs the service lifecycle of thermo-sensitive components such as optical modules and smart NICs, and improves data stability.The redundancy design of core components, such as the BIOS and BMC, ensures that the system can start by switching to the standby chip, and supports the online upgrade of the BMC without suspending services, thus guaranteeing service continuity.Adhering to the intelligent O&M, the cloud-based O&M and the online diagnosis can greatly simplify the difficulty in data center O&M and lower the O&M cost.
- High Efficiency, Carbon Emission Reduction, and Low Power Consumption: Supports efficient heat dissipation schemes such as cold-plated cooling and EVAC, and provides the data centers with the comprehensive liquid-cooling solutions.By working with unique intelligent zone-oriented control technology, delivers energy-saving fan speed regulation and accurate air supply according to recent regional workload changes.With the focus on environmental protection, key server components meet the lead-free requirements (RoHS), and all packaging materials are recyclable.
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
