| Product SKU | NF5466-M7-C0-R0-00 |
|---|---|
| Form Factor | 4U rack server |
| Processor | – One or two 4th/5th Gen Intel® Xeon® Scalable processors |
| Chipset | Intel C741 |
| Memory | 32x DDR5 DIMM slots 5600 MT/s |
| Storage Controller | – RAID/SAS controller |
| Network | – Supports multiple types of network expansion, and 2x hot-swappable OCP 3.0 cards |
| I/O Expansion | Up to 13x PCIe slots, including 1 dedicated PCIe expansion slot for the RAID card and 2x OCP 3.0 slots |
| Ports and Interfaces | – Front: 1× USB 2.0 port |
| Power Supply | Supports 1,300W/1,600W/2,000W/2,700W CRPS power supplies with 1+1 redundancy |
| Cooling | Hot-swappable fans with N+1 redundancy |
| System Management | Integrated with 1 independent 1 Gb/s network port, dedicated to IPMI remote management |
| Security | Two-factor authentication, TPM 2.0, intrusion alert, BMC/BIOS redundancy, power capping, etc. |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc. |
| Dimensions | 447mm (W)x 174.5mm (H) x 837.3mm (D) |
| Weight | Weight (with all drives installed): 62 kg (For details, refer to the White Paper) |
| Operating Temperature | 5°C to 45°C (For details, refer to the White Paper) |
Servers

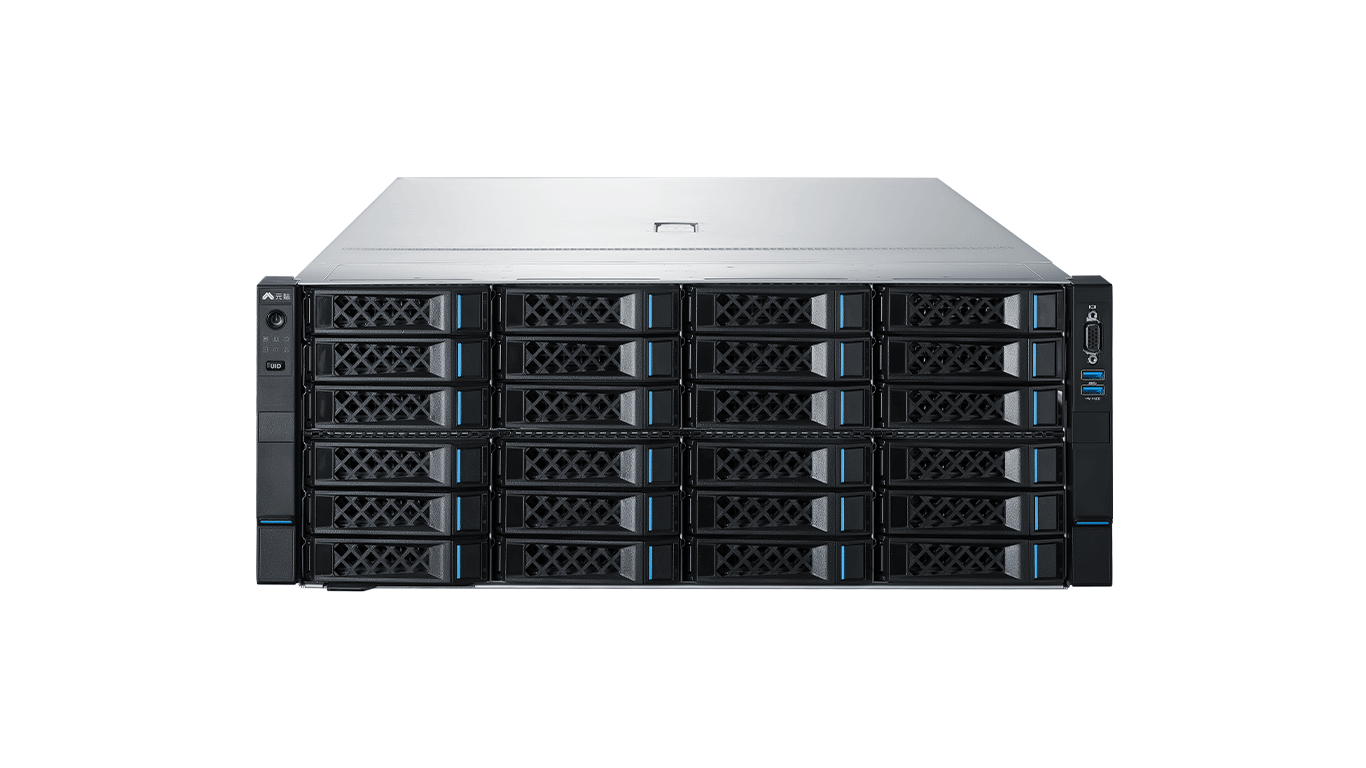

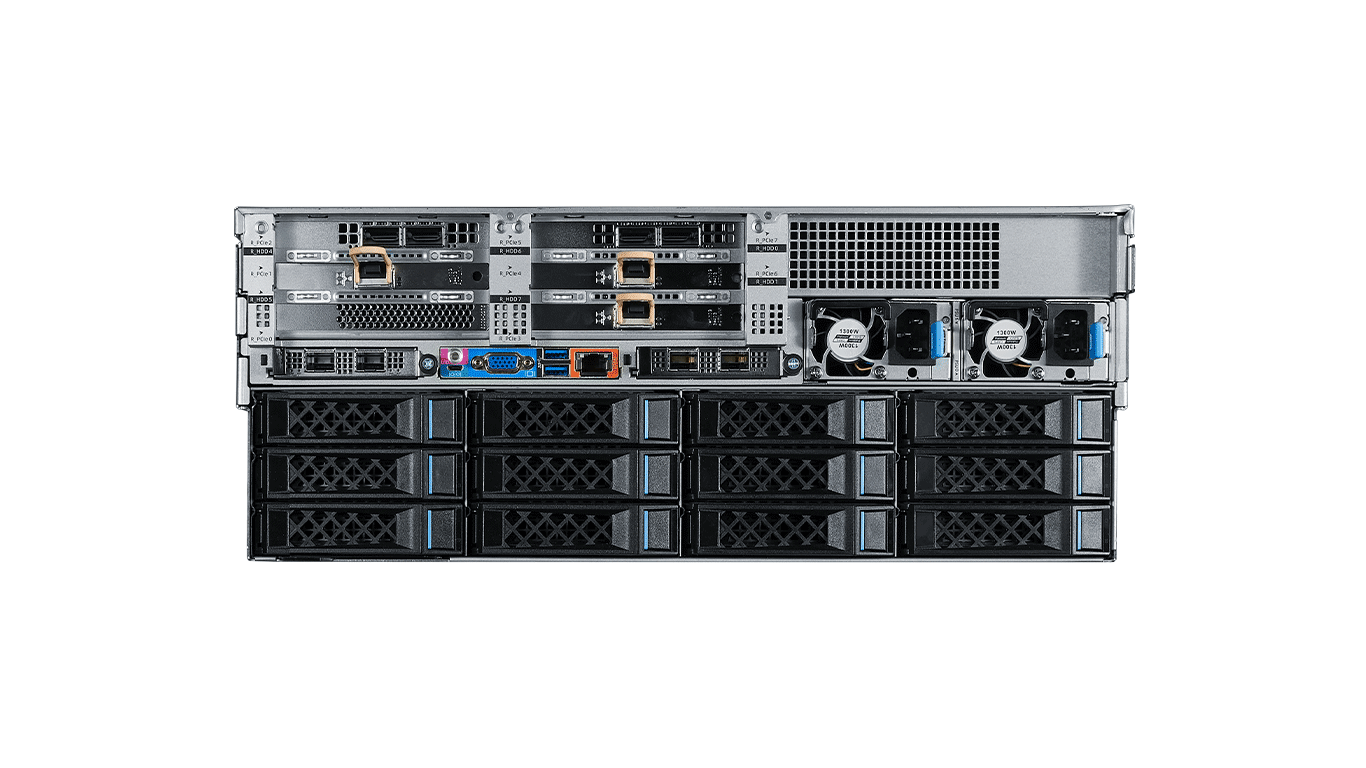

Inspur NF5466G7 NF5466-M7-C0-R0-00 Rack Server
The NF5466G7 is a 4U dual-socket storage-optimized server, featuring a large storage capacity, outstanding computing performance and extraordinary I/O scalability.
Overview
The NF5466G7 is a 4U dual-socket storage-optimized server, featuring a large storage capacity, outstanding computing performance and extraordinary I/O scalability. It is highly applicable to business scenarios such as warm/cold data storage,video storage, big data storage, and cloud storage pools.
Key Features
- High storage capacity: Supports up to 46 × 3.5-inch drive, providing a storage capacity of up to 1 PB to meet local data storage needs.
- Powerful computing performance: Featuring a complete series of new-generation processors,the server can provide up to a 60% increase in computing performance compared to its predecessor. In addition, it supports 2 dual-slot GPUs or 8 single-slot GPUs to meet the intensive workloads of intelligent video analytics (IVA) and realize efficient local data analysis and real-time AI applications
- Extraordinary I/O scalability: Supports up to 13 PCIe expansion cards to supercharge I/O scalability; supports various storage, network, and GPU modules that can be flexibly configured based on different application scenarios, meeting user’s business needs,eliminating I/O bottleneck, and boosting server performance.
- Energy-efficient and low-carbon design: Supports cold-plated liquid cooling and provides comprehensive liquid-cooling solutions for data centers.
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
