| Product SKU | NF5468A5 |
|---|---|
| Form Factor | 4U |
| Processor | 2 x 3rd Gen AMD EYPC processors interconnected via three xGMIs, with a TDP of 280 W |
| Memory | – 32 x DDR4 RDIMMs at a transmission rate of 3200 MHz |
| Storage | 24 x 2.5" or 12 x 3.5" SAS/SATA HDDs (up to 8 NVMe SSDs) and 2 M.2 SATA SSDs |
| Storage Controller | RAIDs 0, 1, 10, 5, 50, 6, and 60 in the optional configuration, as well as cache protection with the supercapacitor, RAID state transition and RAID configuration memory |
| GPU | 8 x GPUs supporting PCIe interfaces, with a TDP of 350 W |
| Power Supply | 2+2 redundant 1600 W/2000 W/2200 W/ 3000W 80 Plus Platinum PSUs |
| Cooling | System fans in N+1 redundancy. |
| Operating System | Mainstream operating systems such as Microsoft Windows Sever, Red Hat Enterprise Linux, Ubuntu Linux, and CentOS. |
| Weight | ≤70 kg |
| Operating Temperature | 5 – 35°C / 41°F – 95°F |
| Product Code | NF5468A5 |
Overview

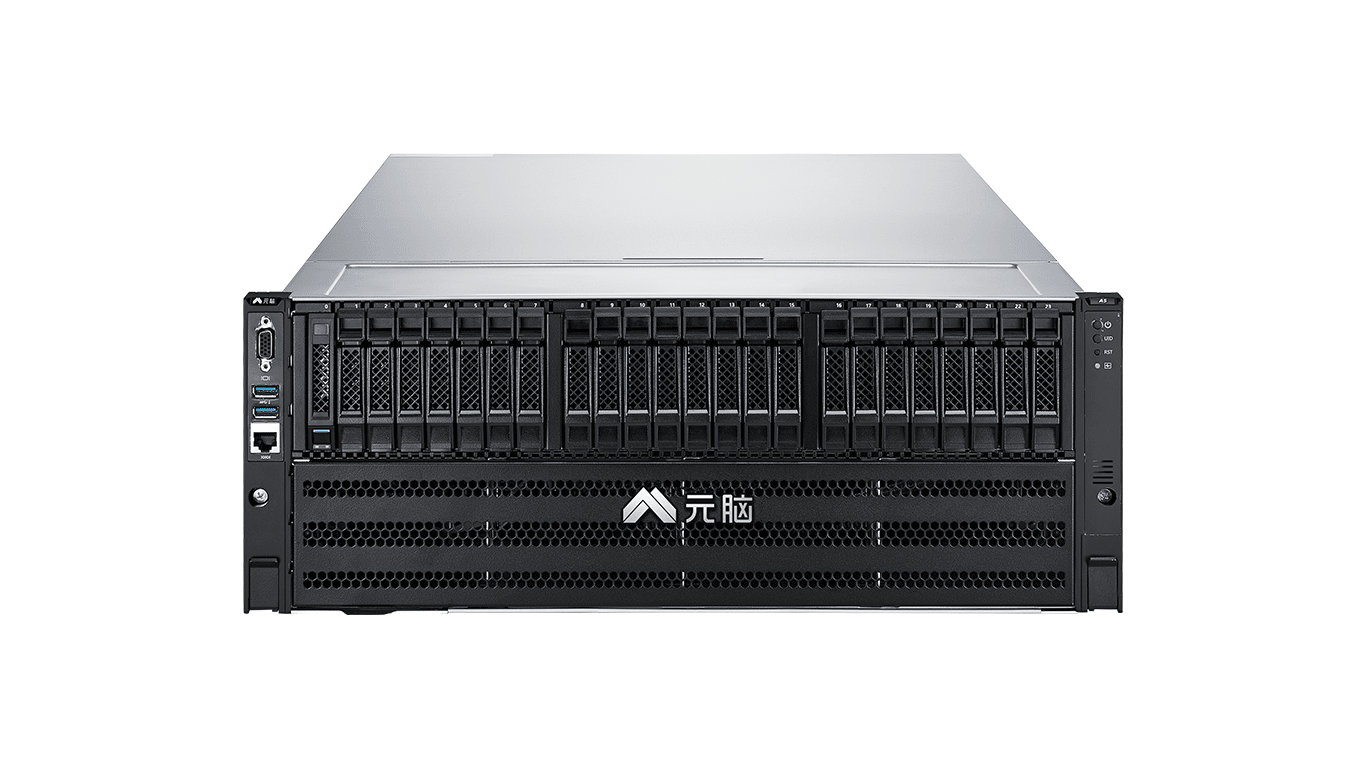

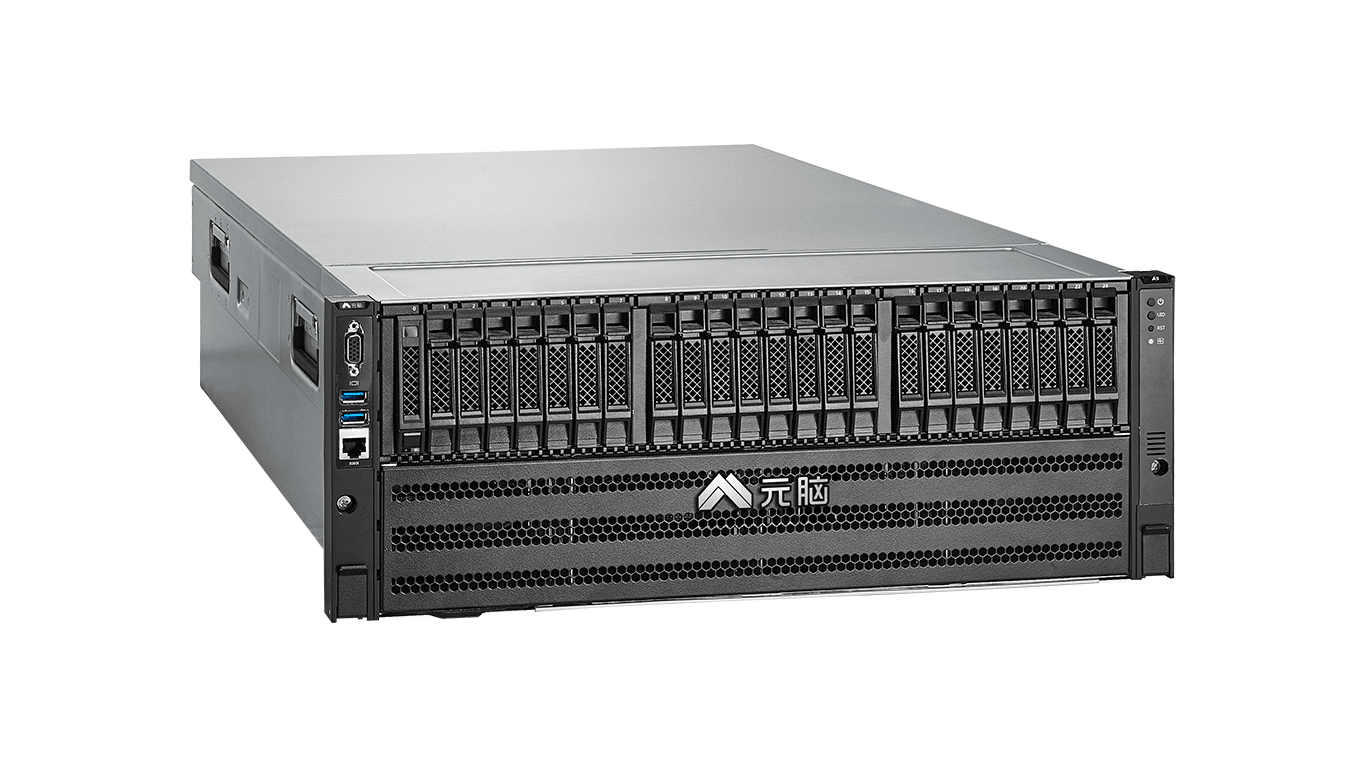

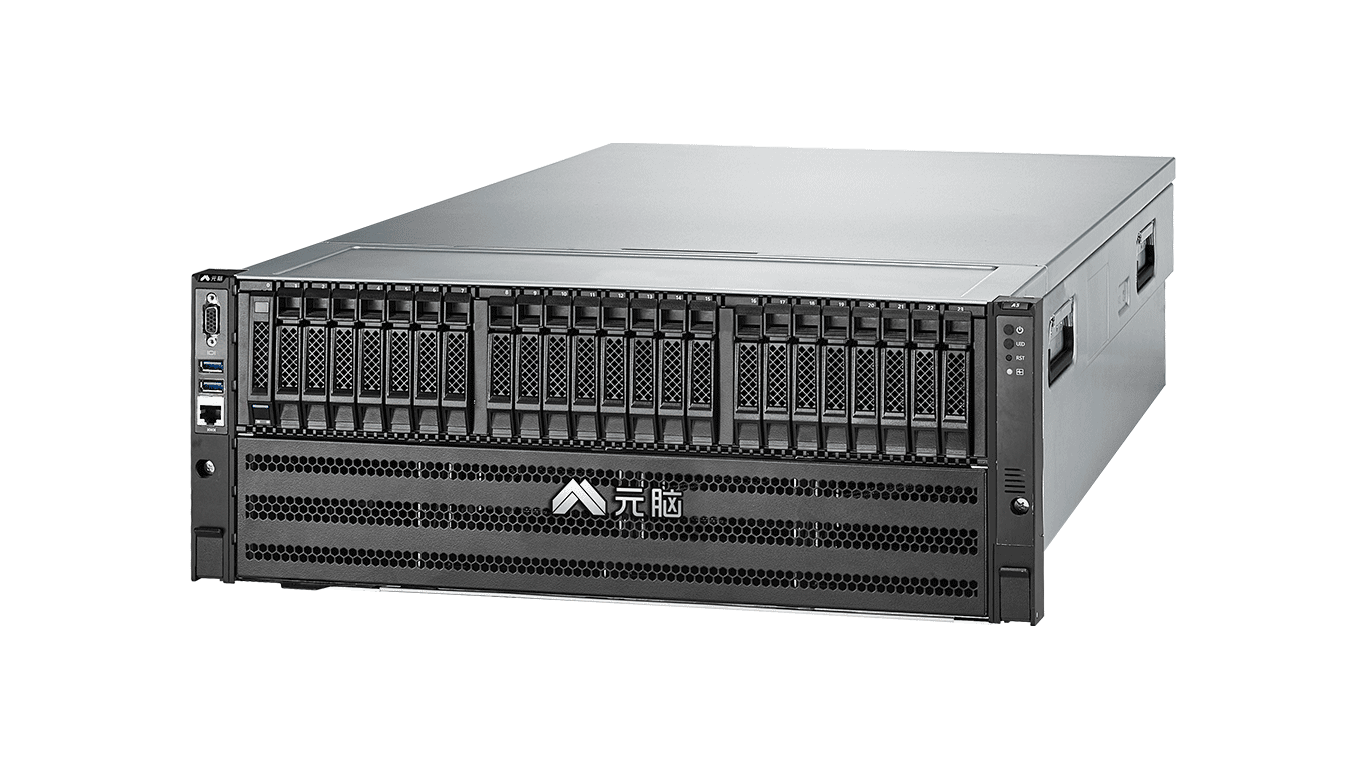

The Inspur NF5468A5 is a 4U GPU server. It is configured with 2 x 3rd Gen AMD EYPC processors interconnected via three xGMIs, with a TDP of 280 W. Memory: 32 x DDR4 RDIMMs at a transmission rate of 3200 MHz.
Key Features
- Processor: 2 x 3rd Gen AMD EYPC processors interconnected via three xGMIs, with a TDP of 280 W
- Memory: – 32 x DDR4 RDIMMs at a transmission rate of 3200 MHz
– Rear PCIe card
– 2 PCIe 4.0 x16 and 1 OCP NIC 3.0 - Storage: 24 x 2.5″ or 12 x 3.5″ SAS/SATA HDDs (up to 8 NVMe SSDs) and 2 M.2 SATA SSDs
- Storage Controller: RAIDs 0, 1, 10, 5, 50, 6, and 60 in the optional configuration, as well as cache protection with the supercapacitor, RAID state transition and RAID configuration memory
- GPU: 8 x GPUs supporting PCIe interfaces, with a TDP of 350 W
- Power Supply: 2+2 redundant 1600 W/2000 W/2200 W/ 3000W 80 Plus Platinum PSUs
- Cooling: System fans in N+1 redundancy.
- Operating System: Mainstream operating systems such as Microsoft Windows Sever, Red Hat Enterprise Linux, Ubuntu Linux, and CentOS.
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
