| Product SKU | NF5476-M7-A0-R0-00 |
|---|---|
| Form Factor | 4U rack server |
| Processor | – One or two 4th/5th Gen Intel® Xeon® Scalable processors |
| Chipset | Intel C741 |
| Memory | 32x DIMM slots that support up to DDR5 DIMMs (4800/5600 MT/s) |
| Storage Controller | – RAID/SAS controller |
| Network | – Supports multiple types of network expansion, and 2 hot-swappable OCP 3.0 cards |
| I/O Expansion | – Up to 7x PCIe slots, including 2 OCP 3.0 slots |
| Ports and Interfaces | – Front:1x USB 2.0 port, 1x USB 3.0 port, 1x DB15 VGA port, 1x USB type-C port |
| Power Supply | Supports 1,300W/1,600W/2,000W CRPS power supplies with 1+1/2+2 redundancy |
| Cooling | Hot-swappable fans with N+1 redundancy |
| System Management | Integrated with 1 independent 1,000 Mb/s network port, dedicated to IPMI remote management |
| Security | Two-factor authentication, TPM 2.0, intrusion alert, BMC/BIOS redundancy, power capping, etc. |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc. |
| Dimensions | 447mm (W)x 174.5mm (H) x 850mm (D) |
| Weight | 89 kg (with all drives installed) (For details, refer to the White Paper) |
| Operating Temperature | 5°C to 40°C (For details, refer to the White Paper) |

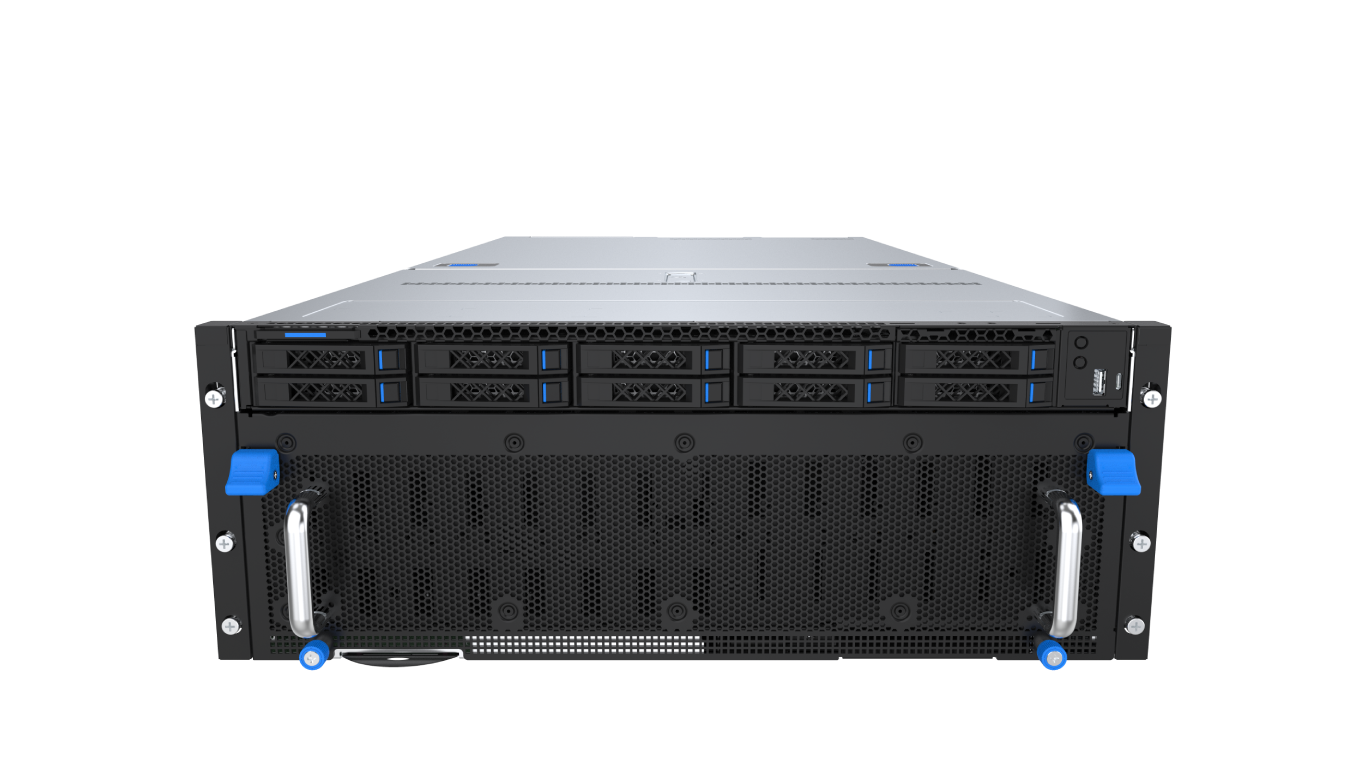

Inspur NF5476G7 NF5476-M7-A0-R0-00 Rack Server
The NF5476G7 is a 4U dual-socket high-density storage rack server powered by the 4th/5th Gen Intel Xeon Scalable processors.
Overview
The NF5476G7 is a 4U dual-socket high-density storage rack server powered by the 4th/5th Gen Intel Xeon Scalable processors. With its compact size, high capacity, flexible I/O, and green and energy-efficient design, the server offers excellent storage capabilities to cater to both existing and future service expansion requirements. Additionally, it supports 60 3.5-inch drives in a 4U space to help save server room space and reduce storage costs, making it an ideal choice for cloud storage, video storage, big data, archiving and other scenarios.
Key Features
- High storage capacity: The server leverages innovative solutions to maximize storage capacity and density. In a 4U space, it can accommodate 60 3.5-inch drive
- Flexible I/O configuration: Supports flexible front and rear I/O configurations. The former realizes an innovative cold and hot aisle design in the server room, helping decrease the average fault rate of thermo-sensitive components by over 90% and prolonging their service lifetime by over 300%
- Green and energy-efficient design: The power consumption management technology enables you to accurately monitor and control the power consumption of the system in real time, and can lower the overall power consumption by 70% in combination with the HDD hibernation technology (including user-defined deep sleep mode)
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
