| Product SKU | NF5476M5 |
|---|---|
| Form Factor | 4U rack server |
| Processor | 1 or 2 × Intel Xeon 3100/4100/4200/5100/5200/6100/6200/8100/8200 Scalable processors, up to 28 cores, up to 3.8 GHz (4-core), 2 UPI links at up to 10.4 GT/s each |
| Memory | Up to 12 DIMMs; 6 memory channels per processor. Memory speed up to 2,933 MT/s; supports RDIMM and LRDIMM. Memory protection includes ECC, memory mirroring and memory rank sparing |
| Storage | 60 × 3.5-inch SATA HDDs, 4 × U.2 NVMe/SATA SSDs, 2 × M.2 SSDs (usable for OS installation). Maximum drive count depends on the specific configuration. |
| I/O Expansion | Riser module 1: 2 × PCIe 3.0; riser module 2: 1 × PCIe 3.0; supports 1 × OCP NIC; 2 × internal PCIe 3.0 storage controller slots. PCIe expansion uses a modular tool-less design with screw retention also available |
| Ports and Interfaces | 1 × 1 Gb RJ45 management port (BMC); 1 × standard VGA port, 2 × USB 3.0 ports; 1 × serial port, 1 × power button; 1 × UID button (shared with BMC reset) |
| Cooling | Compute module: 3+1 redundant 4056 fans with hot-swap. Storage module: 3+1 redundant 8056 fans with hot-swap |
| System Management | Integrated 1 × independent 1 Gb network port for remote management |
| Operating System | Microsoft Windows Server 2016/2019, SUSE Linux Enterprise Server 12, Red Hat Enterprise Linux 7, CentOS 7, Ubuntu, etc. |
| Dimensions | 447 (W) × 174 (H) × 800 (D) mm |
| Weight | 89 kg gross weight with full drive population; please refer to the technical white paper for details |
| Operating Temperature | 5°C to 35°C |
Overview

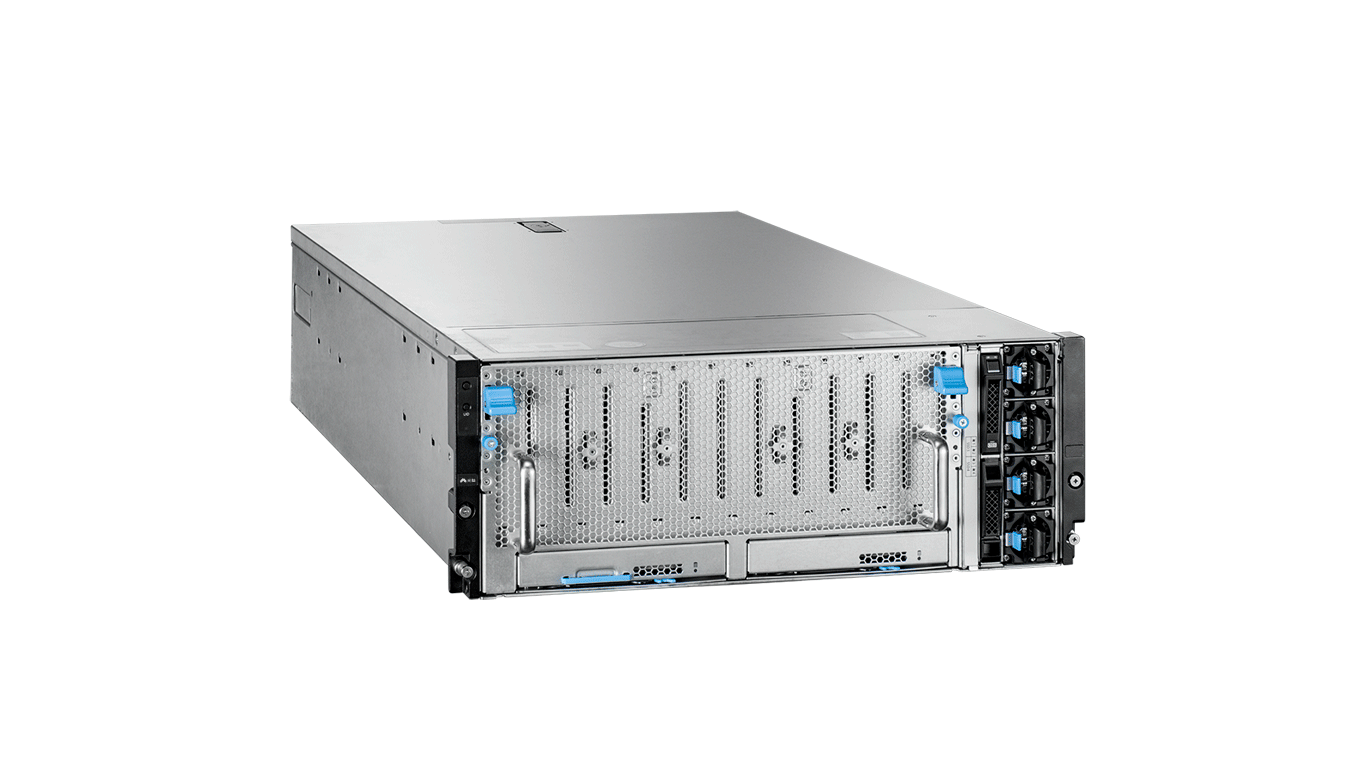

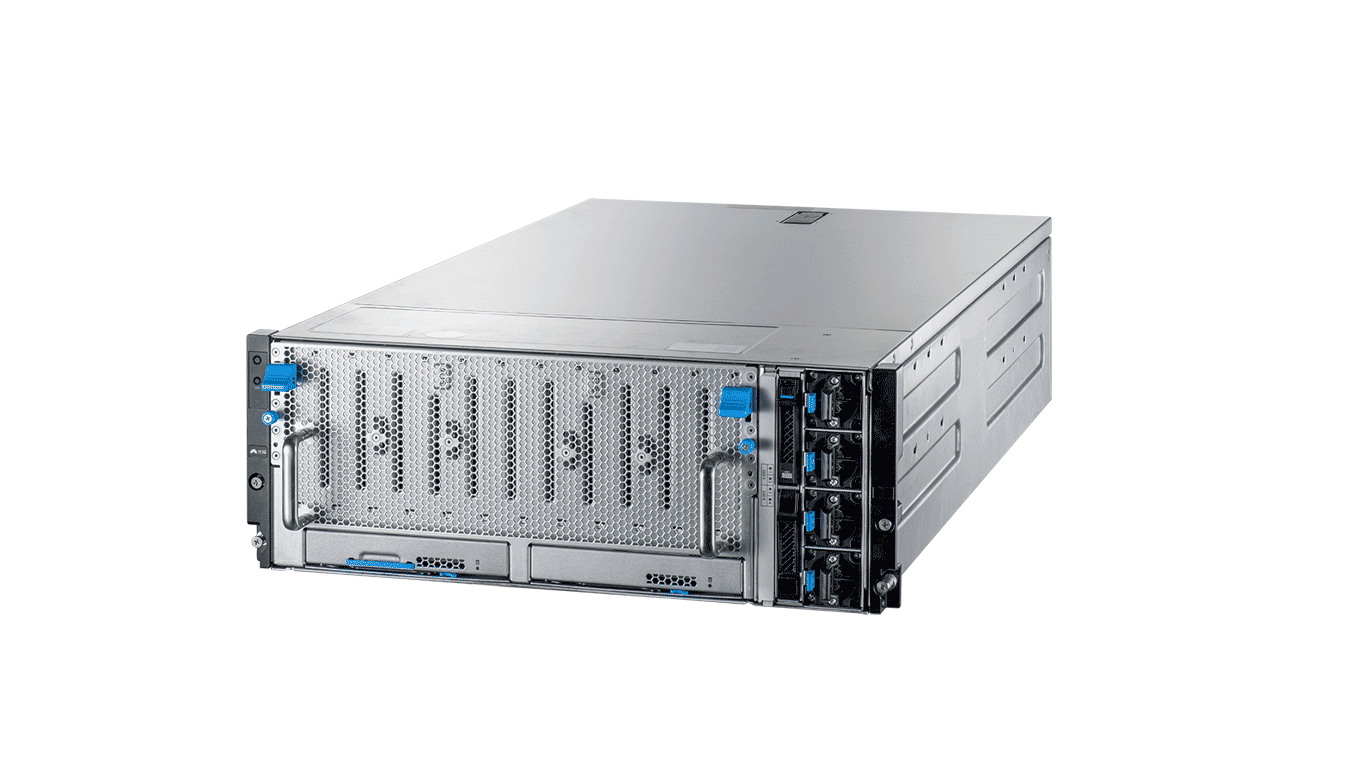

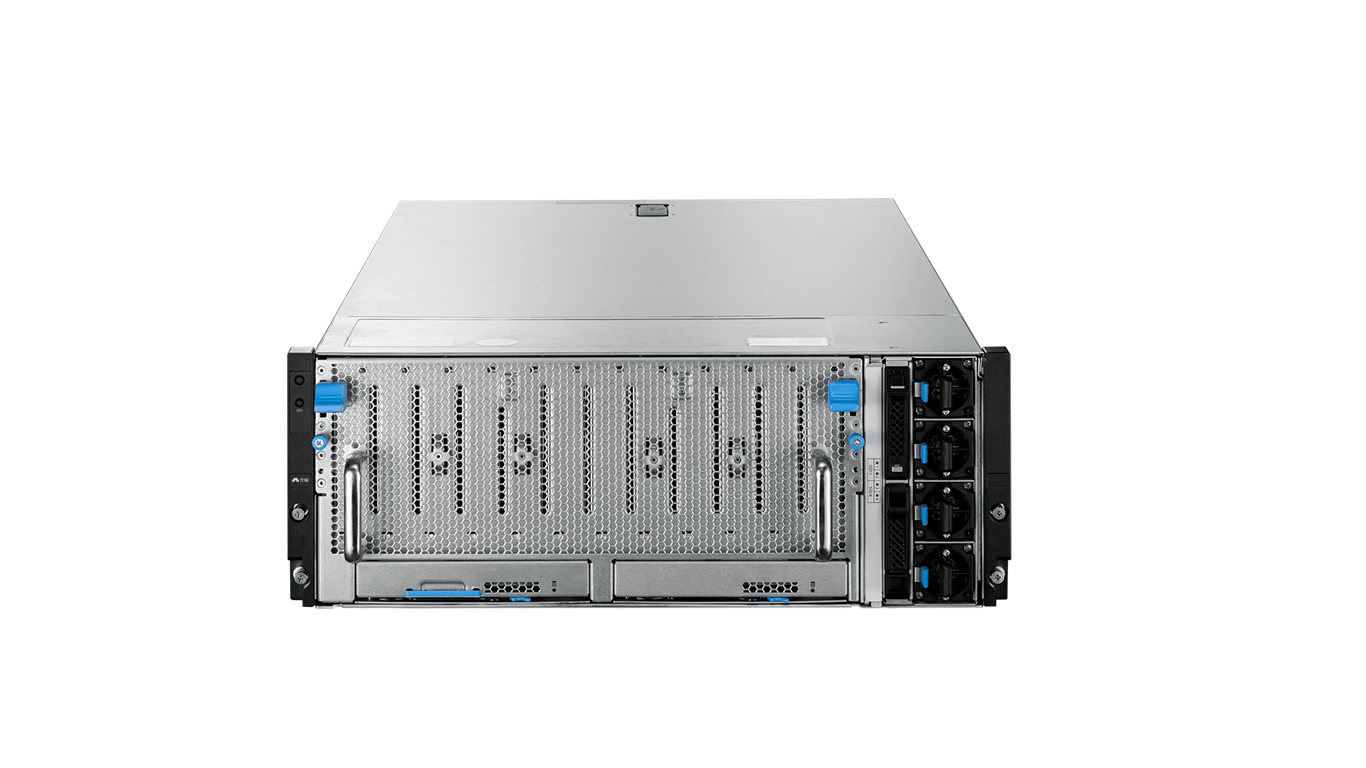

The Inspur NF5476M5 is a 4U rack server rack server. It is configured with 1 or 2 × Intel Xeon 3100/4100/4200/5100/5200/6100/6200/8100/8200 Scalable processors, up to 28 cores, up to 3.8 GHz (4-core), 2 UPI links at up to 10.4 GT/s each. Memory: Up to 12 DIMMs; 6 memory channels per processor. Memory speed up to 2,933 MT/s; supports RDIMM and LRDIMM. Memory protection includes ECC, memory mirroring and memory rank sparing.
Key Features
- Processor: 1 or 2 × Intel Xeon 3100/4100/4200/5100/5200/6100/6200/8100/8200 Scalable processors, up to 28 cores, up to 3.8 GHz (4-core), 2 UPI links at up to 10.4 GT/s each
- Memory: Up to 12 DIMMs; 6 memory channels per processor. Memory speed up to 2,933 MT/s; supports RDIMM and LRDIMM. Memory protection includes ECC, memory mirroring and memory rank sparing
- Storage: 60 × 3.5-inch SATA HDDs, 4 × U.2 NVMe/SATA SSDs, 2 × M.2 SSDs (usable for OS installation). Maximum drive count depends on the specific configuration.
- I/O Expansion: Riser module 1: 2 × PCIe 3.0; riser module 2: 1 × PCIe 3.0; supports 1 × OCP NIC; 2 × internal PCIe 3.0 storage controller slots. PCIe expansion uses a modular tool-less design with screw retention also available
- Cooling: Compute module: 3+1 redundant 4056 fans with hot-swap. Storage module: 3+1 redundant 8056 fans with hot-swap
- System Management: Integrated 1 × independent 1 Gb network port for remote management
- Operating System: Microsoft Windows Server 2016/2019, SUSE Linux Enterprise Server 12, Red Hat Enterprise Linux 7, CentOS 7, Ubuntu, etc.
- Dimensions: 447 (W) × 174 (H) × 800 (D) mm
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
