| Product SKU | NF8480M6 |
|---|---|
| Processor | 2 or 4 × 3rd Gen Intel Xeon Scalable processors |
| Memory | RDIMM, LRDIMM, PMem 200 series (Barlow Pass) |
| Storage | Front: up to 49 or 50 × 2.5-inch drives, with optional support for 24 × NVMe SSDs |
| Storage Controller | Optional RAID 0, 1, 10, 1E, 5, 50, 6, 60 etc., with cache supercapacitor protection, RAID level migration and RAID configuration memory; onboard SATA controller supporting RAID 0/1/5/10; integrated NVMe controller interface with optional Intel NVMe RAID Key |
| Network | 1 × OCP 3.0 x16 NIC, providing 1/10/25/100 Gb port configurations |
| I/O Expansion | Up to 18 × standard PCIe slots; optional support for 4 × double-width or 8 × single-width GPUs/graphics cards |
| Ports and Interfaces | 1 × front USB 3.0 port + 1 × front USB 2.0 port, 1 × internal USB 3.0 port, 2 × rear USB 3.0 ports |
| Power Supply | 4 × 550 W/800 W/1,300 W/1,600 W/2,000 W CRPS power supplies (Platinum) with N+N redundancy; Titanium grade optional |
| System Management | Onboard BMC management module supporting IPMI, SOL, KVM over IP and virtual media, providing 1 × 1 Gbps RJ45 management port dedicated to IPMI remote management; supports BMC flash chip redundancy |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, VMware ESXi, etc. |
| Dimensions | 435 mm (W) × 174.5 mm (H) × 841 mm (D) |
| Operating Temperature | 5°C to 45°C |
Overview

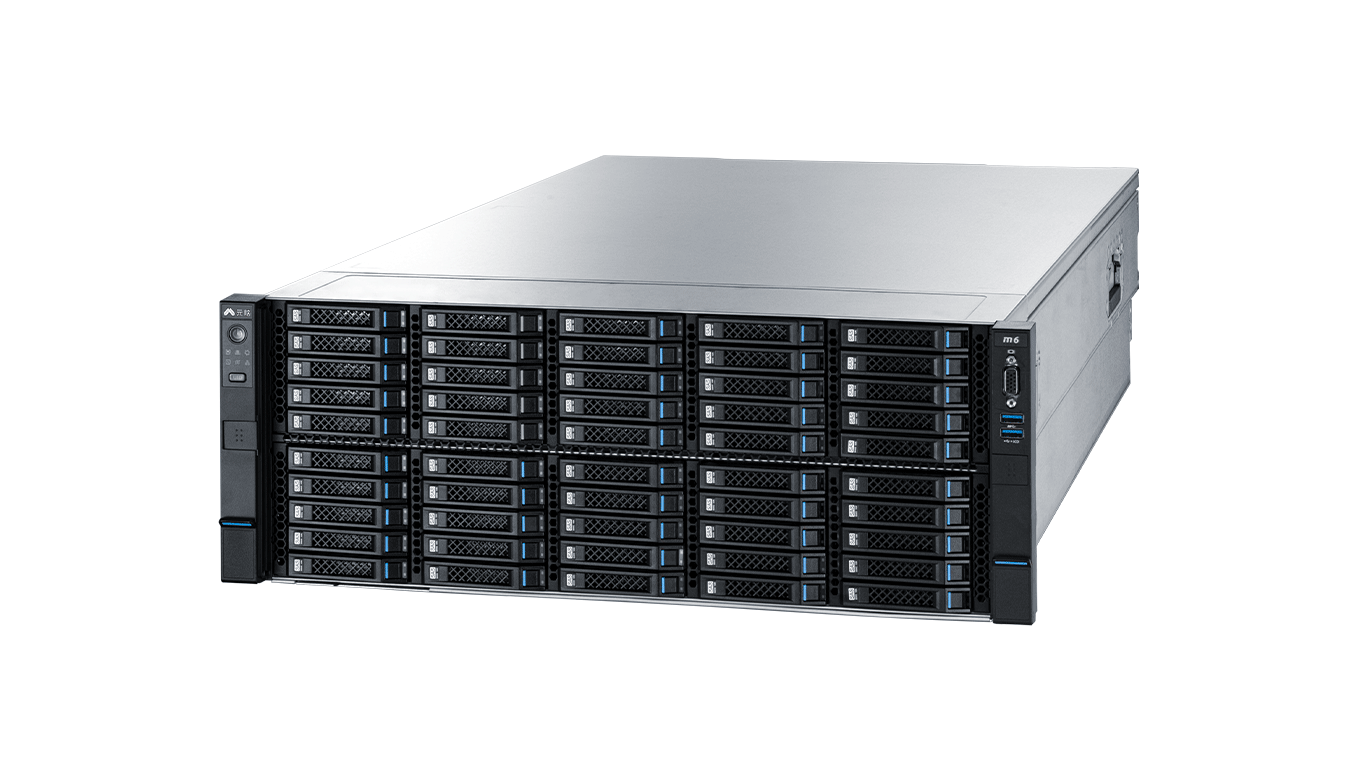

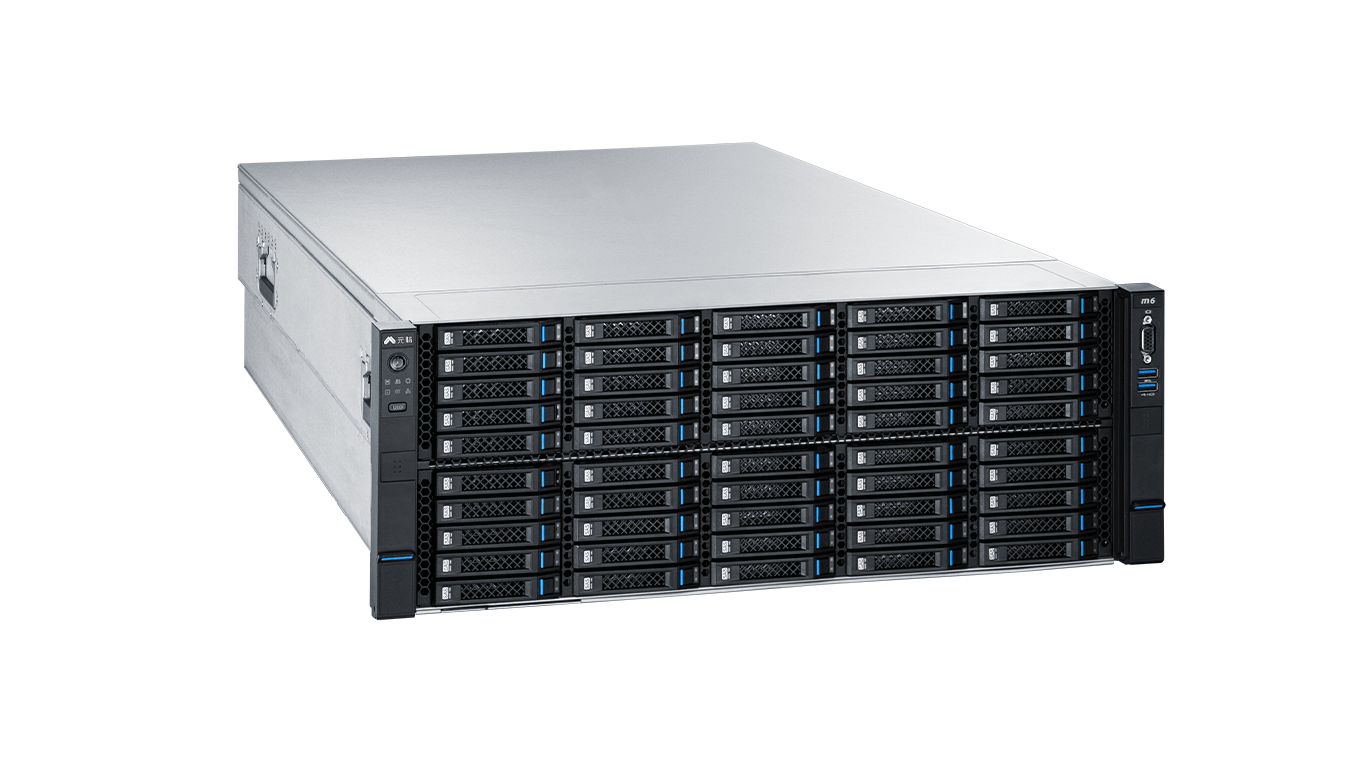

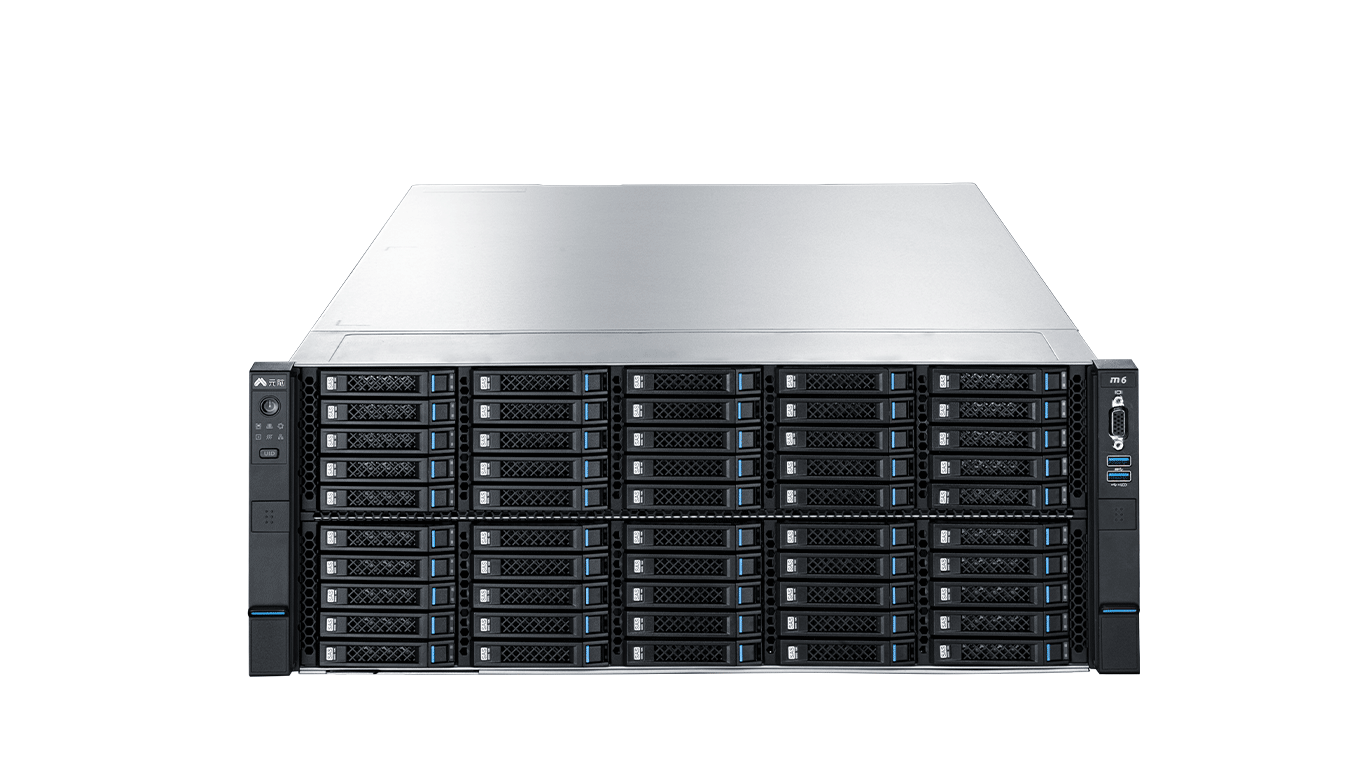

The Inspur NF8480M6 is a rack server. It is configured with 2 or 4 × 3rd Gen Intel Xeon Scalable processors. Memory: RDIMM, LRDIMM, PMem 200 series (Barlow Pass).
Key Features
- Processor: 2 or 4 × 3rd Gen Intel Xeon Scalable processors
- Memory: RDIMM, LRDIMM, PMem 200 series (Barlow Pass)
- Storage: Front: up to 49 or 50 × 2.5-inch drives, with optional support for 24 × NVMe SSDs
- Storage Controller: Optional RAID 0, 1, 10, 1E, 5, 50, 6, 60 etc., with cache supercapacitor protection, RAID level migration and RAID configuration memory; onboard SATA controller supporting RAID 0/1/5/10; integrated NVMe controller interface with optional Intel NVMe RAID Key
- Network: 1 × OCP 3.0 x16 NIC, providing 1/10/25/100 Gb port configurations
- I/O Expansion: Up to 18 × standard PCIe slots; optional support for 4 × double-width or 8 × single-width GPUs/graphics cards
- Power Supply: 4 × 550 W/800 W/1,300 W/1,600 W/2,000 W CRPS power supplies (Platinum) with N+N redundancy; Titanium grade optional
- System Management: Onboard BMC management module supporting IPMI, SOL, KVM over IP and virtual media, providing 1 × 1 Gbps RJ45 management port dedicated to IPMI remote management; supports BMC flash chip redundancy
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
