| Product SKU | NS8500G2 Dual-Port |
|---|---|
| Form Factor | 2.5-inch U.2 |
| Ports and Interfaces | PCIe 4.0 2 × 2 |
| Power Supply | 25 W |
| Operating System | CentOS, Ubuntu, Windows, VMware, Linux RHEL, Linux SLES, etc. |
| Supported Protocols | NVMe 1.4 |
| Dimensions | 100 × 70 × 15 mm |
| Weight | 130 g / 140 g / 140 g |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Certification | US: FCC, UL, CB, UNH-IOL. EU: CE, REACH, RoHS. Energy conservation and environmental certification |
| Software Features | TRIM, S.M.A.R.T., in-drive RAID protection, power-loss protection, online upgrade without service interruption, end-to-end data protection, hot-swap, die failure protection, atomic write, multi-level power management, firmware authentication |
| Sequential Read (128KB) | 3,500 MB/s / 3,500 MB/s / 3,500 MB/s / 3,500 MB/s / 3,500 MB/s / 3,500 MB/s |
| Sequential Write (128KB) | 1,300 MB/s / 1,300 MB/s / 2,500 MB/s / 2,500 MB/s / 2,500 MB/s / 2,500 MB/s |
| Random Read (4KB) | 720K / 720K / 740K / 740K / 750K / 750K |
| Random Write (4KB) | 60K / 60K / 100K / 100K / 100K / 100K |
| Read Latency (4KB) | 75 μs / 75 μs / 75 μs |
| Write Latency (4KB) | 16 μs / 16 μs / 16 μs |
| Endurance (DWPD) | 3.50 PB / 7.01 PB / 14.02 PB |
| MTBF | 2.6 million hours |
| UBER | 10^-17 |
| Data Retention | 3 months (40°C) |
| Supported Server Platforms | Meta Brain servers / Meta Brain storage |
Drives & SSD

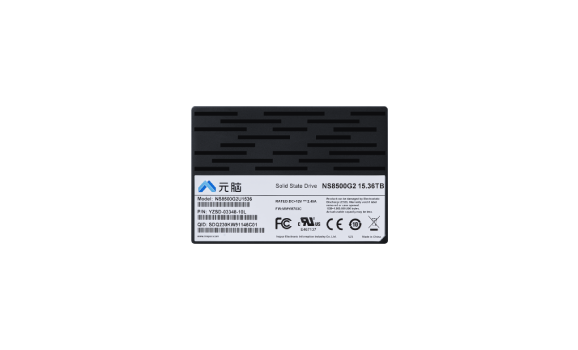

Inspur NS8500G2 Dual-Port Enterprise NVMe SSD
The Inspur NS8500G2 Dual-Port is a 2.5-inch U.2 enterprise NVMe SSD.
Overview
The Inspur NS8500G2 Dual-Port is a 2.5-inch U.2 enterprise NVMe SSD.
Key Features
- Power Supply: 25 W
- Operating System: CentOS, Ubuntu, Windows, VMware, Linux RHEL, Linux SLES, etc.
- Dimensions: 100 × 70 × 15 mm
- Weight: 130 g / 140 g / 140 g
- Operating Temperature: 0°C to 70°C
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
