| Product SKU | SC5212-M7-C0-R0-00 |
|---|---|
| Form Factor | 2U rack server |
| Processor | 1 or 2 × 4th/5th Gen Intel Xeon Scalable processors, up to 64 cores, up to 4.2 GHz Turbo, 4 UPI links at up to 20 GT/s each, up to 385 W TDP |
| Chipset | Intel Emmitsburg |
| Memory | Up to 32 × DDR5 5,600 MT/s DIMMs; 16 DIMMs per CPU and 32 DIMMs for 2 CPUs; RDIMM type supported |
| Storage | Front: 12 × 3.5-inch SAS/SATA/NVMe drives; 24 × 2.5-inch SAS/SATA/NVMe drives; 25 × 2.5-inch SAS/SATA drives (up to 4 × NVMe); 24 × E3.S SSDs |
| Storage Controller | RAID controller and SAS controller; onboard PCH supports 14 × SATA; Intel onboard NVMe controller, with optional Intel NVMe RAID Key |
| Network | 2 × optional hot-swap OCP 3.0 modules |
| I/O Expansion | Up to 16 × PCIe expansion slots, including 1 × RAID Mezz and 2 × hot-swap OCP 3.0; cold-plate liquid cooling configuration supports up to 9 × PCIe expansion slots including 2 × hot-swap OCP 3.0 |
| Ports and Interfaces | Front: 1 × USB 2.0 port, 1 × USB 3.0 port, 1 × DB15 VGA port, 1 × Type-C port |
| Power Supply | 800 W/1,300 W/1,600 W/2,000 W/2,700 W CRPS standard power supplies with 1+1 redundancy |
| Cooling | 6 × hot-swap N+1 redundant dual-rotor fans |
| System Management | Integrated 1 × independent 1,000 Mbps network port dedicated to IPMI remote management |
| Security | Supports two-factor authentication, TPM 2.0, security panel, intrusion alert, BMC/BIOS chip-level redundancy and power capping |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc. |
| Dimensions | With mounting ears: 482.4 mm (W) × 87 mm (H) × 828.4 mm (D). Without mounting ears: 435 mm (W) × 87 mm (H) × 800 mm (D) |
| Weight | ≤ 33 kg at full configuration (please refer to the technical white paper for details) |
| Operating Temperature | 5°C to 50°C (please refer to the technical white paper for details) |
Servers

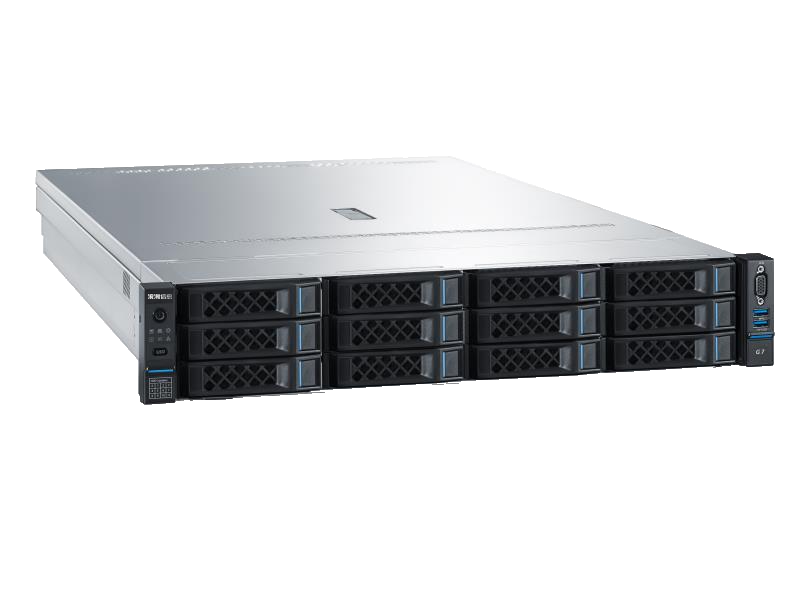

Inspur SC5212G7 SC5212-M7-C0-R0-00 2U Rack Server
The Inspur SC5212G7 SC5212-M7-C0-R0-00 is a 2U rack server.
Overview
The Inspur SC5212G7 SC5212-M7-C0-R0-00 is a 2U rack server. Form factor: 2U rack server. It is configured with 1 or 2 × 4th/5th Gen Intel Xeon Scalable processors, up to 64 cores, up to 4.2 GHz Turbo, 4 UPI links at up to 20 GT/s each, up to 385 W TDP. Memory: Up to 32 × DDR5 5,600 MT/s DIMMs; 16 DIMMs per CPU and 32 DIMMs for 2 CPUs; RDIMM type supported.
Key Features
- Processor: 1 or 2 × 4th/5th Gen Intel Xeon Scalable processors, up to 64 cores, up to 4.2 GHz Turbo, 4 UPI links at up to 20 GT/s each, up to 385 W TDP
- Memory: Up to 32 × DDR5 5,600 MT/s DIMMs; 16 DIMMs per CPU and 32 DIMMs for 2 CPUs; RDIMM type supported
- Storage: Front: 12 × 3.5-inch SAS/SATA/NVMe drives; 24 × 2.5-inch SAS/SATA/NVMe drives; 25 × 2.5-inch SAS/SATA drives (up to 4 × NVMe); 24 × E3.S SSDs
- Storage Controller: RAID controller and SAS controller; onboard PCH supports 14 × SATA; Intel onboard NVMe controller, with optional Intel NVMe RAID Key
- Network: 2 × optional hot-swap OCP 3.0 modules
- I/O Expansion: Up to 16 × PCIe expansion slots, including 1 × RAID Mezz and 2 × hot-swap OCP 3.0; cold-plate liquid cooling configuration supports up to 9 × PCIe expansion slots including 2 × hot-swap OCP 3.0
- Power Supply: 800 W/1,300 W/1,600 W/2,000 W/2,700 W CRPS standard power supplies with 1+1 redundancy
- Cooling: 6 × hot-swap N+1 redundant dual-rotor fans
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
