| Product SKU | TS860-M7-A0-R0-00 |
|---|---|
| Form Factor | 6U rack server |
| Processor | – 4/8 x 4th Gen Intel ® Xeon ® Scalable processors |
| Chipset | Intel C741 |
| Memory | – Up to 128 DDR5 RDIMMs with 4,800MT/s at 1DPC and 4,400MT/s at 2 DPC |
| Storage | – Front: |
| Storage Controller | 2 × SAS/RAID/Trimode cards |
| Network | Up to 4 hot-swap PCIe 5.0 x16 SFF OCP 3.0 cards; compatible with multi-host NIC in the OCP form; NCSI supported |
| I/O Expansion | 16 × FHHL PCIe 5.0 x16 cards/8 × FHHL PCIe 5.0 x16 cards + 4 × dual-width GPUs/8 × single-width GPUs |
| Ports and Interfaces | – Front: 1 × USB 2.0 port/LCD port, 1 × USB 3.0 port, and 1 × DB15 VGA port |
| Power Supply | – 4 × standard CRPS Platinum/Titanium PSU with the output power of 1,300W/1,600W/2,000W/2,700W; |
| Cooling | 8 hot-swap dual-rotor fans with N+1 redundancy |
| System Management | Supports IPMI, SNMP, Redfish, and mobile terminal access management provided by an external Bluetooth LCD display |
| Security | TPM 2.0, BMC/BIOS redundancy, dynamic power-capping, Intel PFR secure boot, and firmware tamper-proofing |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, etc. |
| Dimensions | – 482mm × 263.2mm × 870mm (with mounting ears) |
| Weight | Full configuration: ≤97kg (For details, refer to the White Paper.) |
| Operating Temperature | 5°C to 45°C (For details, refer to the White Paper.) |
Servers

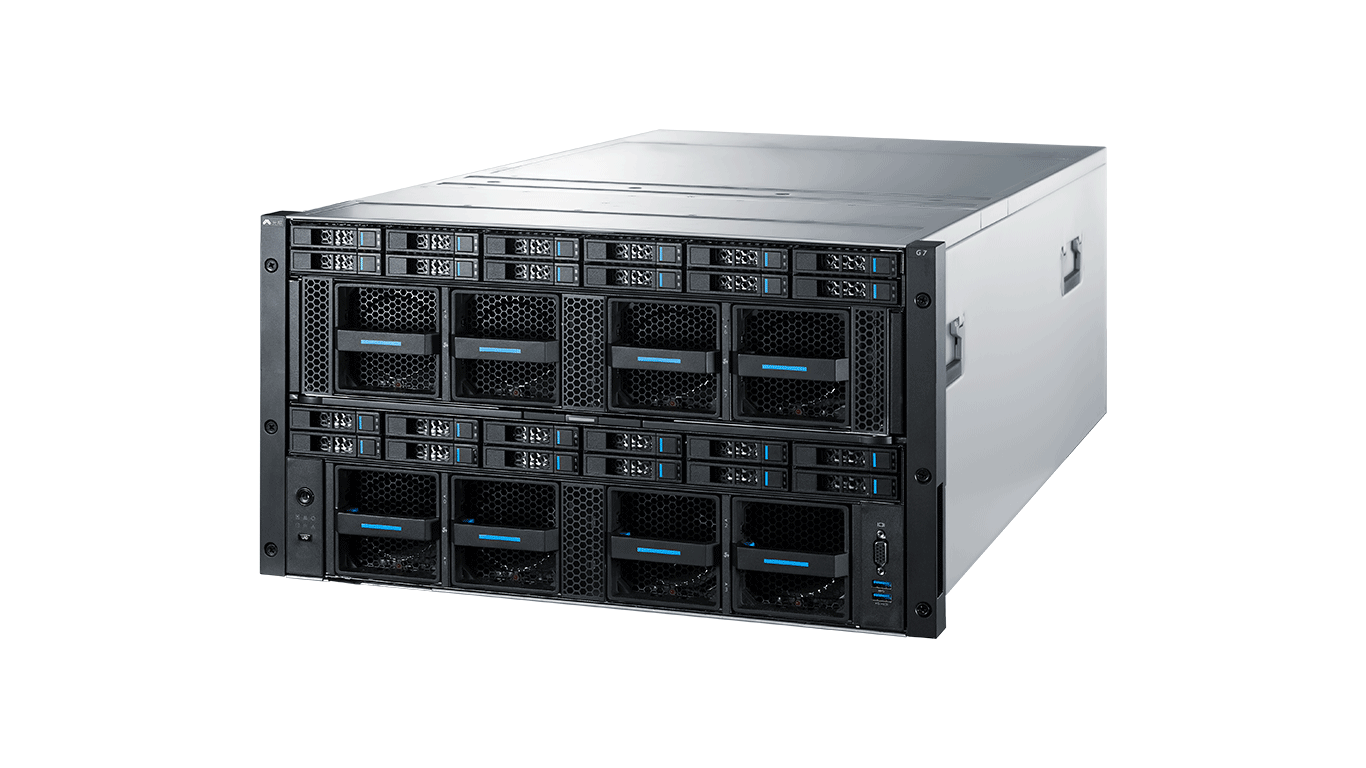

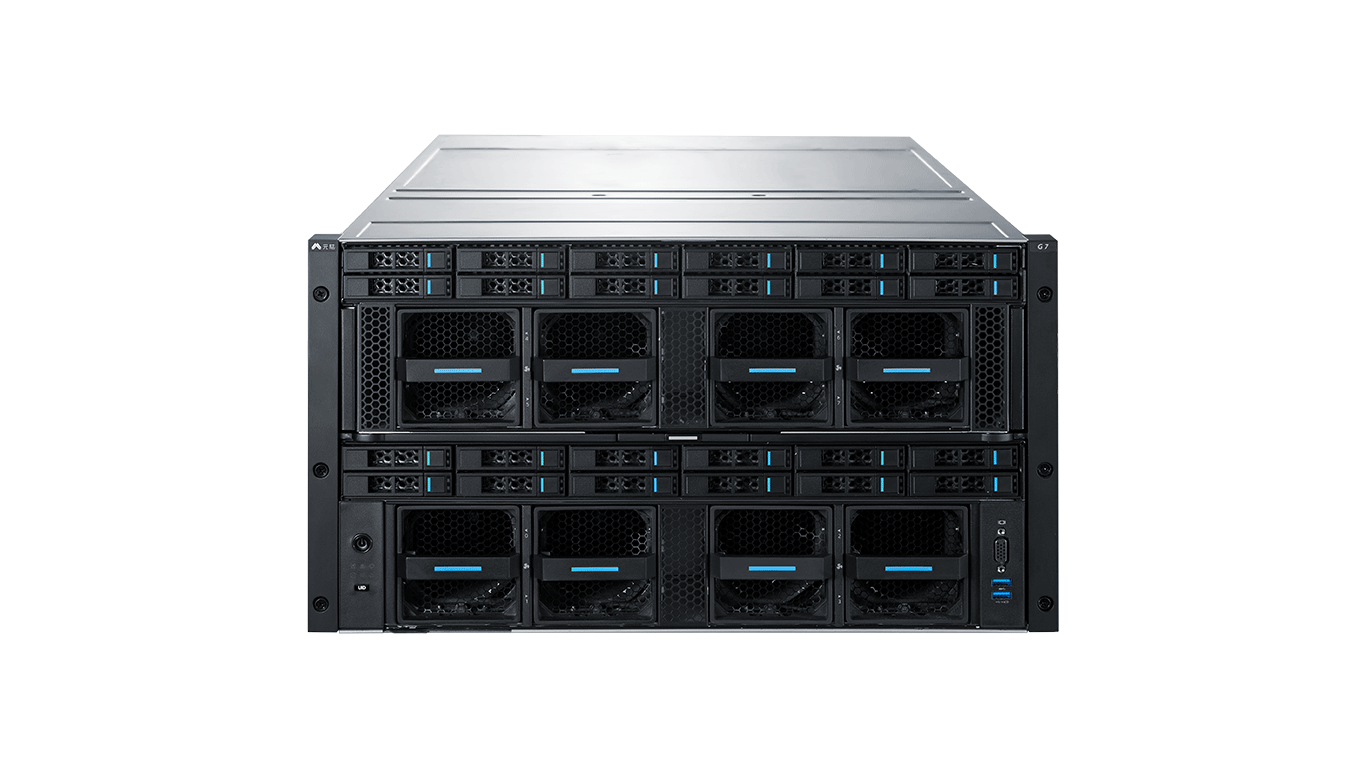

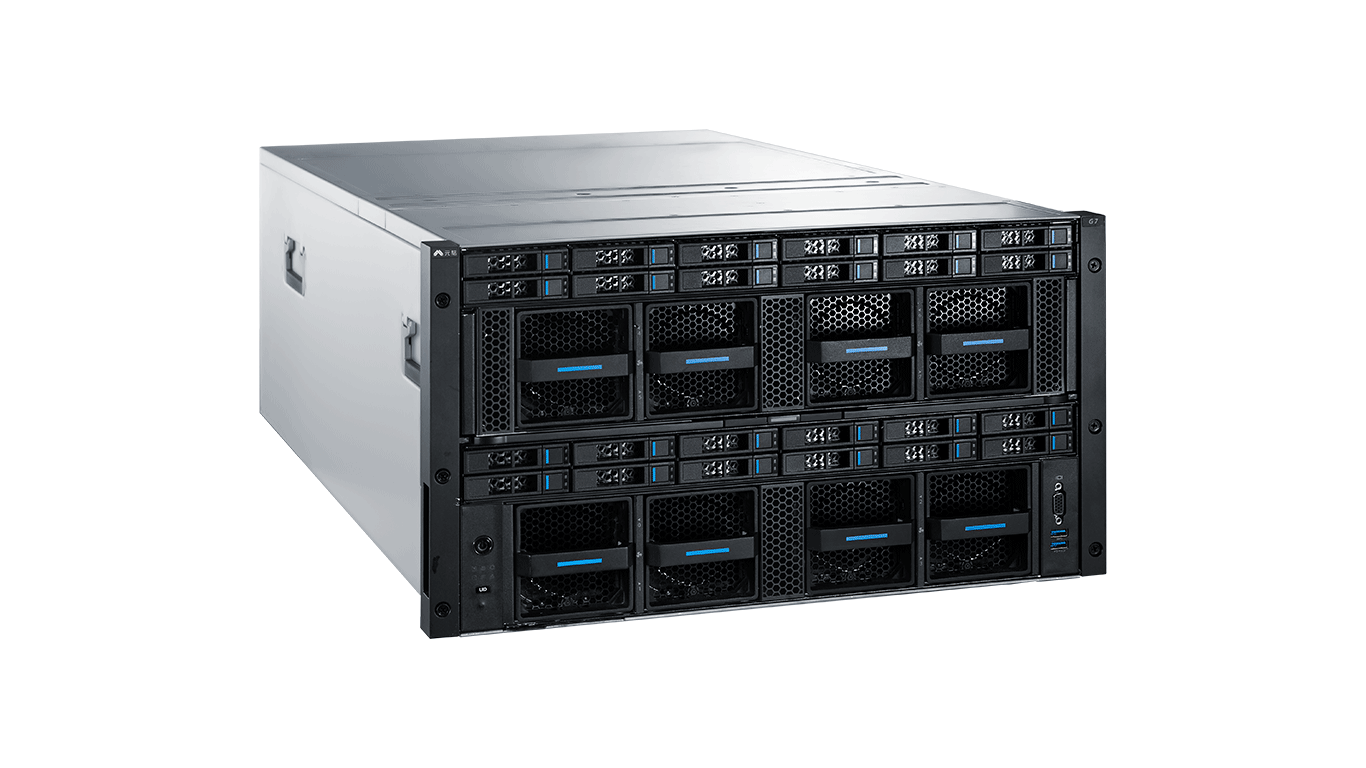

Inspur TS860G7 TS860-M7-A0-R0-00 6U Rack Server
The TS860G7 is an eight-socket server powered by the 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids).
Overview
The TS860G7 is an eight-socket server powered by the 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids). It provides ultra-high computing performance and comprehensive reliability for customers’ key business applications, making it suitable for scenarios such as large transaction databases, SAP HANA, ERP and virtualization.
Key Features
- Ultimate computing and exceptional performance: Built on the 4th Gen Intel® Xeon® Scalable processors, the TS860G7 supports up to 60 cores and 120 threads per CPU with up to 350W TDP and 4 groups of 16GT/s high-speed UPI links per CPU to provide ultra-high speed interconnection for 8 CPUs. This offers high-speed computing experience to customers. Supports 128 DDR5 RDIMMs/3DS RDIMMs, with 4,800MT/s at 1 DPC and 4,400MT/s at 2 DPC. This server is applicable to scenarios such as in-memory database applications and big data analysis that requires memory capacity. Supports heterogeneous computing, with up to 4 dual-width GPUs or 8 single-width GPUs. This server is applicable to scenarios such as machine learning, deep learning,…
- High stability, reliability, and security: Compared with the previous design, full-module design for the whole system helps increase by 50% RAS features and is ideal for critical business applications with high reliability requirements. Multiple power supply protection measures, the power supply with N+M redundancy, and dynamic power-capping technology ensure the uninterrupted running of the system when the power supply in the server room or the PSU is abnormal. PFR secure boot, firmware tamper-proofing, and BIOS/BMC dual-redundancy design ensure stable and secure system operation. The memory MRT technology and memory funnel mechanism optimize the memory performance while improving the reliability and fault tolerance capability…
- Ingenious design and easy maintenance: The server adopts the modular design to support pull-out maintenance for independent nodes. In addition, a variety of components such as the fan, power supply, OCP card support hot-swap maintenance. This achieves toolless unpacking for the whole system and simplifies the server maintenance. The system supports fast system status diagnostics, and a new load LED is added on the chassis front panel to display the system operation status. In addition, a Bluetooth LCD display can be configured for the system. The app displays fault code information and other information. You can view the server asset information, view and set the management IP address, and monitor the power consumption and…
- Low-carbon and efficient noise reduction: The system adopts new dual-rotor fan modules to optimize the fan aerofoil structure. This significantly improves the superimposed effect of wind pressure and the air volume of the fan module as well as reduces noise. In addition, the server works with the new-generation EVAC heatsink to provide high-efficient cooling solutions for customers. Our unique intelligent control technology for partitions in the entire system helps adjust the fan speed intelligently based on the power consumption of components in different air ducts. This eliminates temperature transmission delays, realizes energy-saving fan speed regulation and accurate air supply, and improves the cooling efficiency. This…
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
