| Product SKU | DM5000H |
|---|---|
| Form Factor | • DM5000H controller enclosure (7Y57, 7D7V): 2U rack mount. |
| Controller Memory | 64 GB RAM per system (32 GB per controller). 8 GB battery-backed NVRAM per system (4 GB per controller) mirrored between the controllers. |
| Drive Bays | • Up to 144 SFF hot-swap drive bays (1x 2U24 controller enclosure + up to 5x 2U24 SFF expansion enclosures). |
| Maximum Drives | 144 HDDs / SSDs |
| Maximum Raw Capacity | 2.3PB maximum raw capacity |
| Shelf Support | DM120S, DM240S, DM600S |
| Flash Cache | Up to 2TB onboard NVMe-based flash cache |
| Flash Pool | Up to 24TB |
| SAS Ports | 4x 12Gb / 6Gb SAS (maximum) |
| ONTAP Version | 9.4 and later |
| Protocols | FC, iSCSI, NFS, pNFS, CIFS/SMB, S3 |
| Controller Configuration | Dual active-active controller configuration (HA pair). Up to 6 HA pairs can be combined into a single SAN cluster, or up to 12 HA pairs can be combined into a single NAS cluster. |
| HA Pair/cluster Interconnect Ports | 4x 10 GbE SFP+ ports (DAC cables or SW fiber optics [LC]) (2 ports per controller). |
| RAID Levels | RAID-4, RAID-DP, RAID-TEC. |
| Controller Cache | 2 TB NVMe-based Flash Cache (1 TB per controller). |
| Drive Technology | 12 Gb SAS HDDs, 12 Gb NL SAS HDDs, 12 Gb SAS SSDs. |
| Drive Expansion Connectivity | • 2x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion ports on each of two controllers in the controller enclosure for the attachment of the expansion enclosures. |
| Drives | • 2U24 SFF drives: |
| Storage Capacity | Up to 1.917 PB (120x 16 TB LFF HDDs + 24x 1.8 TB SFF HDDs). |
| Storage Protocols | • NAS (File access): NFS and CIFS/SMB. |
| Host Connectivity | Base ports (per controller enclosure): |
| Host Operating Systems | Microsoft Windows Server 2012 R2, 2016, and 2019; Red Hat Enterprise Linux (RHEL) 6, 7, and 8; SUSE Linux Enterprise Server (SLES) 11, 12, and 15; VMware vSphere 6.0, 6.5, 6.7, and 7.0. |
| Performance | Up to 148 000 random read IOPS (8 KB blocks). |
| Configuration Maximums | • Maximum raw storage capacity: 1.24 PB |
| Cooling | Redundant cooling with two cooling modules (DM600S 4U60 LFF) or with the fans that are built into power supplies (DM5000H, DM240S 2U24 SFF, and DM120S 2U12 LFF). |
| Power Supply | Two redundant hot-swap 913 W (100 – 240 V) (DM5000H, DM240S 2U24 SFF, and DM120S SFF enclosures) or 2325 W (200 – 240 V) (DM600S 4U60 LFF enclosures) Platinum AC power supplies. |
| Management Ports | • 1x 1 GbE port (UTP, RJ-45) per controller for out-of-band management. |
| Management Interfaces | ThinkSystem Storage Manager web-based GUI; SSH CLI; Serial console CLI; SNMP, email, and syslog alerts; optional Lenovo XClarity. |
| Security Features | Secure Socket Layer (SSL), Secure Shell (SSH), user level security, role-based access control (RBAC), LDAP authentication. |
| Warranty and Support | 1-year or 3-year base warranty, customer-replaceable unit and onsite limited warranty with selectable service levels: 9×5 service coverage next business day (NBD) onsite response (Foundation) or 24×7 service coverage with 4-hour onsite response (Essential). Premier Support is also available. Software support is included in the Foundation or Essential Service for the duration of the warranty period. |
| Dimensions (H x W x D) | Controller enclosure: |
| Weight | • Controller enclosure (fully configured): 27.6 kg (60.8 lb) |
Storage
Lenovo ThinkSystem DM5000H Hybrid Flash Array

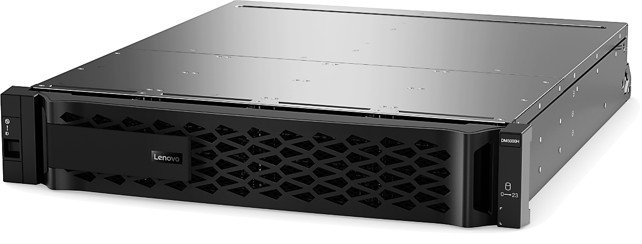

The Lenovo ThinkSystem DM5000H Hybrid Flash Array is a 2U rack mount storage system from Lenovo.
Overview
The Lenovo ThinkSystem DM5000H Hybrid Flash Array is a 2U rack mount storage system from Lenovo.
It provides 64 GB RAM per system of system cache per HA pair. It provides up to 144 SFF hot-swap drive bays per HA pair. Host connectivity is provided by NAS (File access): NFS and CIFS/SMB. Data protection uses RAID-4, RAID-DP, RAID-TEC.
Key Features
- Form factor: DM5000H controller enclosure (7Y57, 7D7V): 2U rack mount. / DM120S 2U12 LFF expansion enclosure (7Y59, 7D7X): 2U rack mount. / DM240S 2U24 SFF expansion enclosure (7Y58, 7D7Y): 2U rack mount. …
- Controller memory: 64 GB RAM per system (32 GB per controller). 8 GB battery-backed NVRAM per system (4 GB per controller) mirrored between the controllers

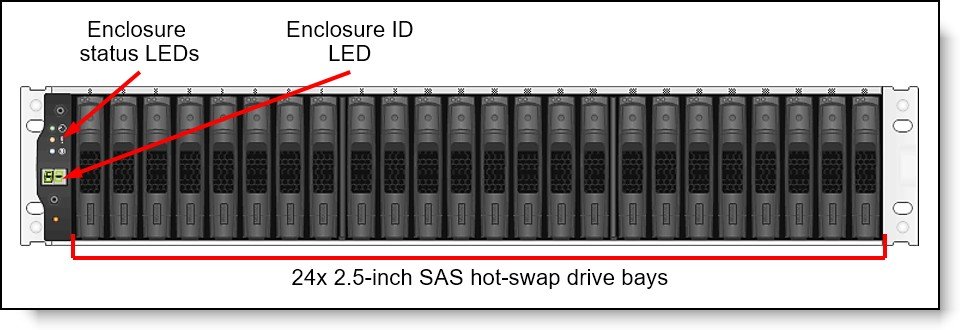

- Drive bays: Up to 144 SFF hot-swap drive bays (1x 2U24 controller enclosure + up to 5x 2U24 SFF expansion enclosures). / Up to 120 LFF and 24 SFF hot-swap drive bays (1x 2U24 controller enclosure + up to 2x 4U60 LFF or up to 9x 2U12 LFF expansion enclosures). …

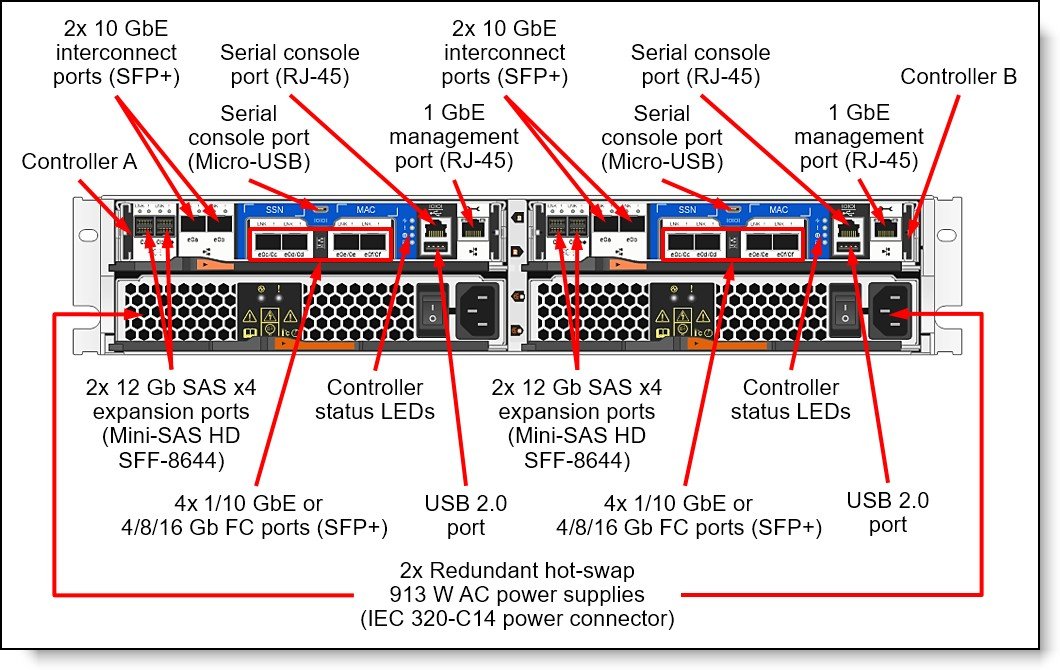

- Expansion support: 2x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion ports on each of two controllers in the controller enclosure for the attachment of the expansion enclosures. …
- RAID and data protection: RAID-4, RAID-DP, RAID-TEC.
- Host interfaces and protocols: NAS (File access): NFS and CIFS/SMB. / SAN (Block access): iSCSI and FC.
- Management: ThinkSystem Storage Manager web-based GUI; SSH CLI; Serial console CLI; SNMP, email, and syslog alerts; optional Lenovo XClarity. • 1x 1 GbE port (UTP, RJ-45) per controller for out-of-band management. / 2x Serial console ports (RJ-45 and Micro-USB) for system configuration.
- Security: Secure Socket Layer (SSL), Secure Shell (SSH), user level security, role-based access control (RBAC), LDAP authentication.
- Power and cooling: Redundant cooling with two cooling modules (DM600S 4U60 LFF) or with the fans that are built into power supplies (DM5000H, DM240S 2U24 SFF, and DM120S 2U12 LFF). Two redundant hot-swap 913 W (100 – 240 V) (DM5000H, DM240S 2U24 SFF, and DM120S SFF enclosures) or 2325 W (200 – 240 V) (DM600S 4U60 LFF …
- Physical: Controller enclosure: / Height: 85 mm (3.4 in.) / Width: 447 mm (17.6 in.) …
