| Product SKU | DM5200F |
|---|---|
| Form Factor | 2U rack mount |
| Controller Memory | 128GB per system (64GB per controller) |

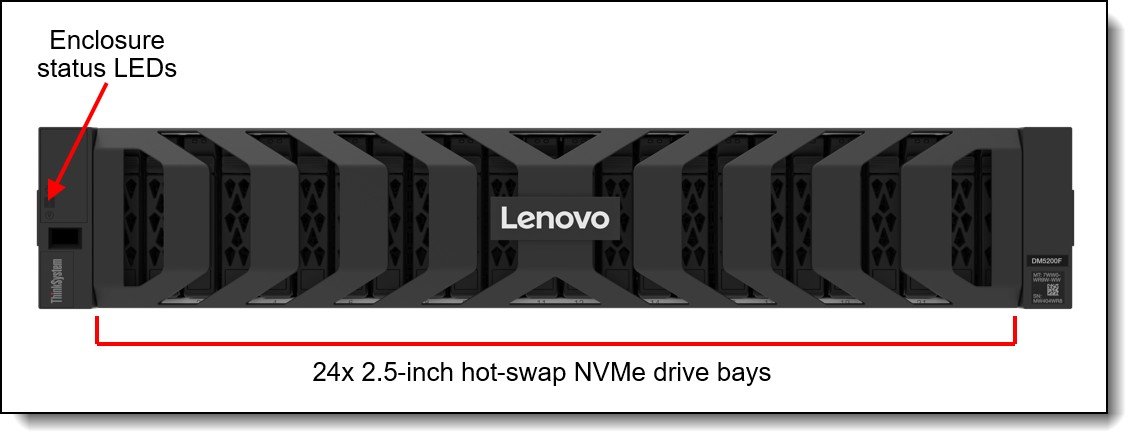

| Drive Bays | 24x 2.5" NVMe SSD bays |
| Maximum Drives | Up to 72 NVMe SSDs |
| Maximum Raw Capacity | Up to 1.1PB raw capacity |
| Shelf Support | DM242N 2U24 NVMe expansion enclosure |
| PCIe Expansion Slots | 8 expansion slots |
| System Memory (per HA pair) | 128 GB |
| System NVMEM (per HA pair) | 16 GB |
| Cluster Scaling Limit | 4 HA pairs |
| Drive Bays (per HA pair) | 24 |
| Maximum NVMe SSDs (per HA pair) | 72 |
| Drive Minimum (per HA pair) | 8 |
| Capacity Minimum (per HA pair) | No minimum |
| Direct Connected Expansions (per HA pair) | 2 |
| Switch Connected Expansions (per HA pair) | 2 |
| Cluster Connected Expansions (per HA pair) | 4x 100Gbe |
| Host/Storage HIC Options (per HA Pairs) | Select up to (6) Host/Storage HICs. Ordered in pairs |
| RAID Levels | RAID-4, RAID-DP, RAID-TEC |
| Supported NVMe SSD Capacities | 1.92 TB, 3.84 TB, 7.68 TB, and 15.36 TB NVMe SED SSDs |
| Storage Protocols | FC, iSCSI, NVMe/FC, NVMe/TCP, NFS, NFSv4/RDMA, SMB, S3 |
| Standard Software Features | RAID data protection, snapshots, volume copy (FlexClone), storage quality of service (QoS), thin provisioning, compression, deduplication, encryption, disk-based backup (SnapVault), application-aware backup (SnapCenter), quick data recovery (SnapRestore), clustering, clustering with data mirroring (MetroCluster IP), and synchronous and asynchronous replication (SnapMirror) |
| Optional Software Features | Object storage tiering (FabricPool). Tiering to other DM/DG systems require no additional licensing |
| Cooling | Redundant cooling with built-in power supply fans |
| Power Supply | Two redundant hot-swap 1600 W Titanium AC power supplies |

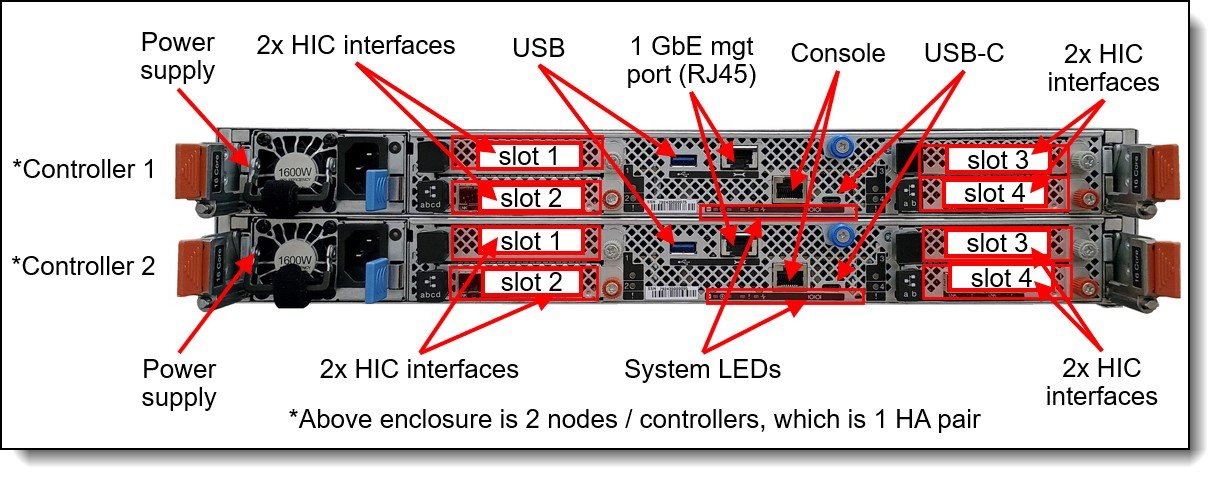

| Management Ports | 1x 1 GbE port (UTP, RJ-45) per controller for out-of-band management |
| Management Interfaces | ThinkSystem Storage Manager web-based GUI; SSH CLI; Serial console CLI; SNMP, email, and syslog alerts; optional Lenovo XClarity. |
| Security Features | Secure Socket Layer (SSL), Secure Shell (SSH), user level security, role-based access control (RBAC), LDAP authentication. |
| Warranty and Support | Three-, four-, or five-year customer-replaceable unit and onsite limited warranty with selectable service levels: 9×5 service coverage next business day (NBD) onsite response (Foundation) or 24×7 service coverage with 4-hour onsite response (Essential). Premier Support is also available. Software support is included in the Foundation or Essential Service for the duration of the warranty period. |
| Dimensions (H x W x D) | • Height: 87 mm (3.4 in.) |
| Weight | 25.3 kg (55.8 lb) |
Storage

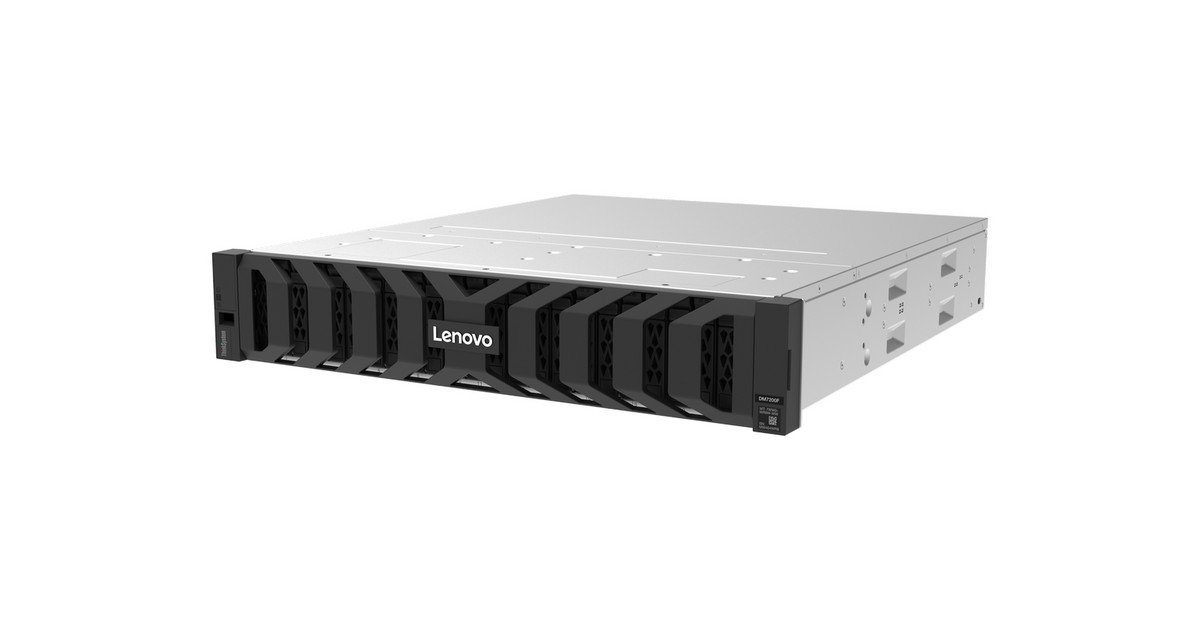

Lenovo ThinkSystem DM5200F All-Flash Array
The Lenovo ThinkSystem DM5200F All-Flash Array is a 2U rack mount storage system from Lenovo, supporting 24 per HA pair, scaling to 72.
Overview
The Lenovo ThinkSystem DM5200F All-Flash Array is a 2U rack mount storage system from Lenovo.
It provides 128 GB plus 16 gb NVMEM of system cache per HA pair. It provides 24 per HA pair, scaling to 72. Host connectivity is provided by FC, iSCSI, NVMe/FC, NVMe/TCP, NFS, NFSv4/RDMA, SMB, S3. Data protection uses RAID-4, RAID-DP, RAID-TEC.
Key Features
- Form factor: 2U rack mount
- Controller memory: 128 GB plus 16 gb NVMEM
- Drive bays: 24
- Maximum drives: 72
- Expansion support: 2
- RAID and data protection: RAID-4, RAID-DP, RAID-TEC RAID data protection, snapshots, volume copy (FlexClone), storage quality of service (QoS), thin provisioning, compression, deduplication, encryption, disk-based backup (SnapVault), application-aware backup (SnapCenter), quick data recovery (SnapRestore), clustering …
- Host interfaces and protocols: FC, iSCSI, NVMe/FC, NVMe/TCP, NFS, NFSv4/RDMA, SMB, S3
- Management: ThinkSystem Storage Manager web-based GUI; SSH CLI; Serial console CLI; SNMP, email, and syslog alerts; optional Lenovo XClarity. 1x 1 GbE port (UTP, RJ-45) per controller for out-of-band management / 2x Serial console ports (RJ-45 and Micro-USB) for system configuration
- Security: Secure Socket Layer (SSL), Secure Shell (SSH), user level security, role-based access control (RBAC), LDAP authentication.
- Power and cooling: Redundant cooling with built-in power supply fans Two redundant hot-swap 1600 W Titanium AC power supplies / 200 to 240
- Physical: Height: 87 mm (3.4 in.) / Width with flange: 483 mm (19 in.) / Width without flange: 447 mm (17.6 in.) …
Applications
- SAN and NAS consolidation for virtualized environments
- Backup, archive and disaster recovery
- Databases and business-critical application storage
- Analytics, VDI and mixed workload consolidation
Configuration, availability and lead time depend on the required quantity, chassis and CPU platform, and delivery destination. Send your requirement to receive a quotation.
