| Product SKU | DM5200H |
|---|---|
| Form Factor | 2U |
| Controller Memory | 128GB per system (64GB per controller) |
| Drive Bays | 24 drive bays |
| Maximum Drives | 480 HDDs / SSDs |
| Maximum Raw Capacity | Up to 11.5PB maximum raw capacity |
| Shelf Support | DM120S, DM240S, DM600S |
| PCIe Expansion Slots | Up to 8 expansion slots |
| SAN/NAS Cluster Limit | 4 HA pairs |
| System Memory (per HA pair) | 128 GB |
| System NVMEM (per HA pair) | 16 GB |
| Cluster Scaling Limit | 4 |

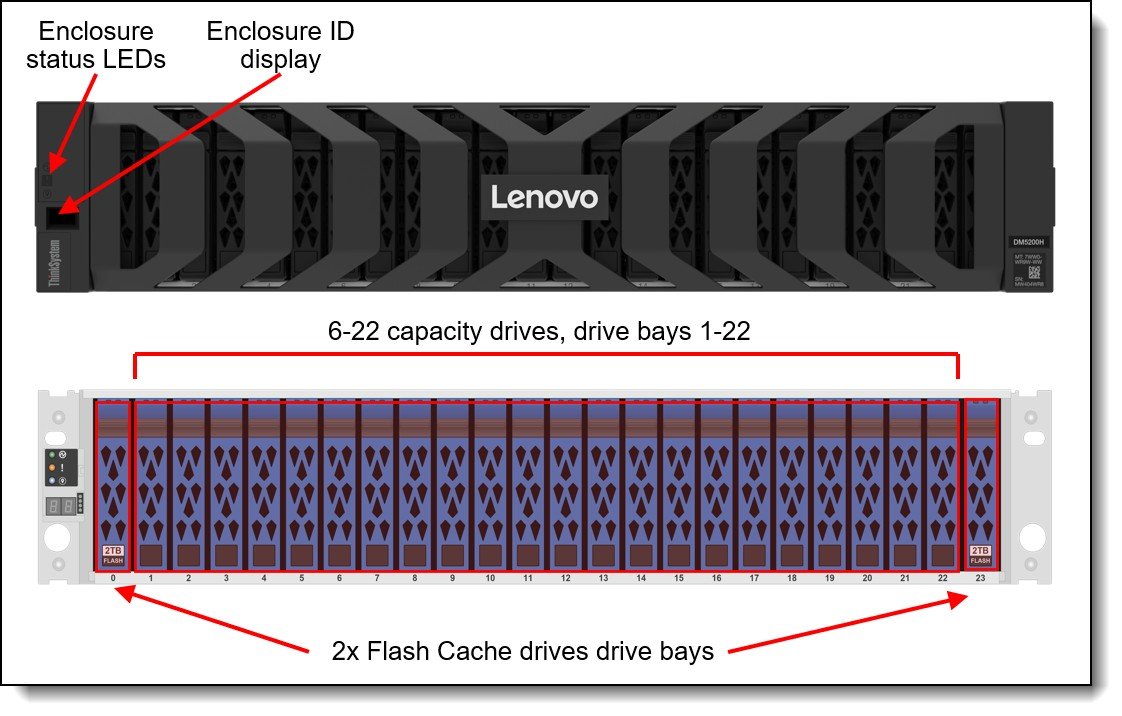

| Drive Bays (per HA pair) | 24 (2 for Flash Cache, 22 empty) |
| Drive Minimum (per HA pair) | 12 with DM120S and DM240S |
| Capacity Minimum (per HA pair) | 100 TB NLSAS or 50 TB Flash |
| Direct Connected Expansions (per HA pair) | 20x DM120S (7D7X) |
| Host/Storage HIC Options (per HA Pairs) | Select up to (6) Host/Storage HICs. Ordered in pairs |
| RAID Levels | RAID-4, RAID-DP, RAID-TEC |
| Supported SAS Drive Capacities | 3.84 TB, 7.68 TB, and 15.36 TB SAS SSDs or 4 TB, 10 TB, 24 TB NLSAS HDDs |
| Supported NVMe SSD Capacities | 1.92 TB, 3.84 TB, 7.68 TB, and 15.36 TB NVMe SED SSDs |
| Storage Protocols | FC, iSCSI, NVMe/FC, NVMe/TCP, NFS, NFSv4/RDMA, SMB, S3 |
| For Non-MetroCluster Only ONTAP 9.16.1 And Later | • Maximum flash pool cache size: 144TiB |
| Standard Software Features | RAID data protection, snapshots, volume copy (FlexClone), storage quality of service (QoS), thin provisioning, compression, deduplication, encryption, disk-based backup (SnapVault), application-aware backup (SnapCenter), quick data recovery (SnapRestore), clustering, clustering with data mirroring (MetroCluster IP), and synchronous and asynchronous replication (SnapMirror) |
| Optional Software Features | Object storage tiering (FabricPool). Tiering to other DM/DG systems require no additional licensing |
| Cooling | Redundant cooling with built-in power supply fans |
| Power Supply | Two redundant hot-swap 1600 W Titanium AC power supplies |

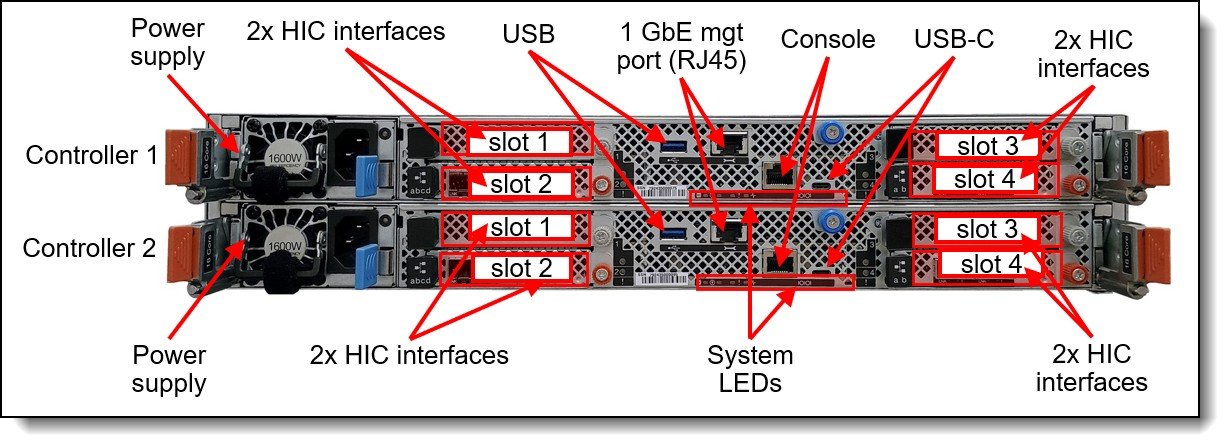

| Management Ports | 1x 1 GbE port (UTP, RJ-45) per controller for out-of-band management |
| Management Interfaces | ThinkSystem Storage Manager web-based GUI; SSH CLI; Serial console CLI; SNMP, email, and syslog alerts; optional Lenovo XClarity. |
| Security Features | Secure Socket Layer (SSL), Secure Shell (SSH), user level security, role-based access control (RBAC), LDAP authentication. |
| Warranty and Support | Three-, four-, or five-year customer-replaceable unit and onsite limited warranty with selectable service levels: 9×5 service coverage next business day (NBD) onsite response (Foundation) or 24×7 service coverage with 4-hour onsite response (Essential). Premier Support is also available. Software support is included in the Foundation or Essential Service for the duration of the warranty period. |
| Dimensions (H x W x D) | • Height: 87 mm (3.4 in.) |
| Weight | 24.6 kg (54.3 lb) |
Storage
Lenovo ThinkSystem DM5200H Hybrid Flash Array
The Lenovo ThinkSystem DM5200H Hybrid Flash Array is a 2U storage system from Lenovo, supporting 24 (2 for Flash Cache, 22 empty) per HA pair.
Overview

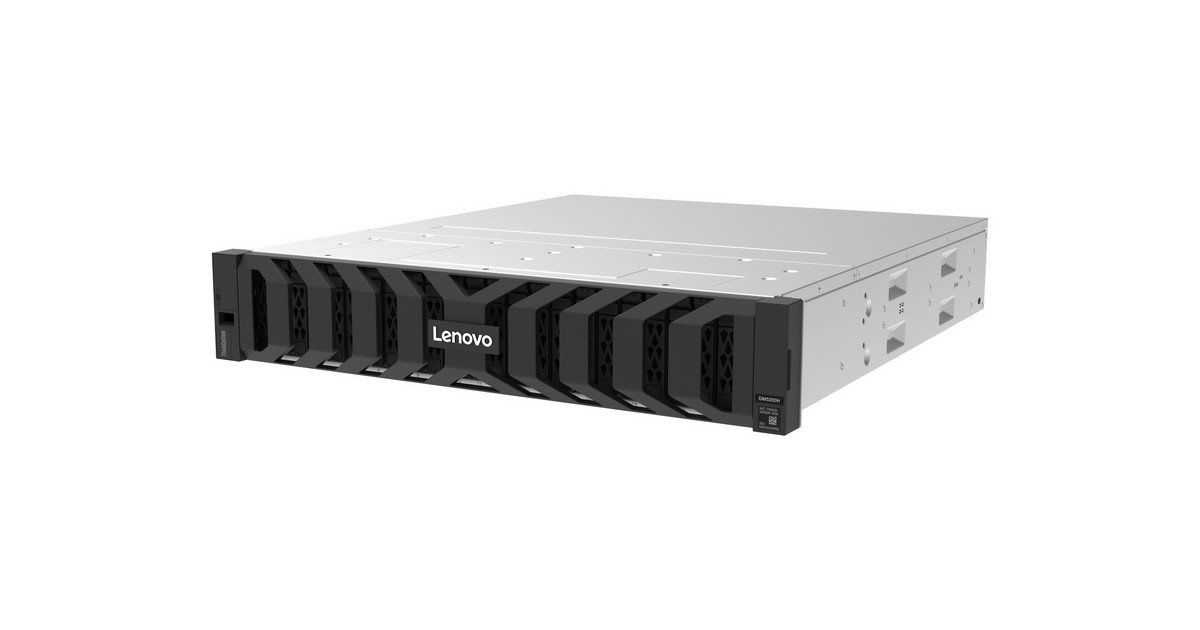

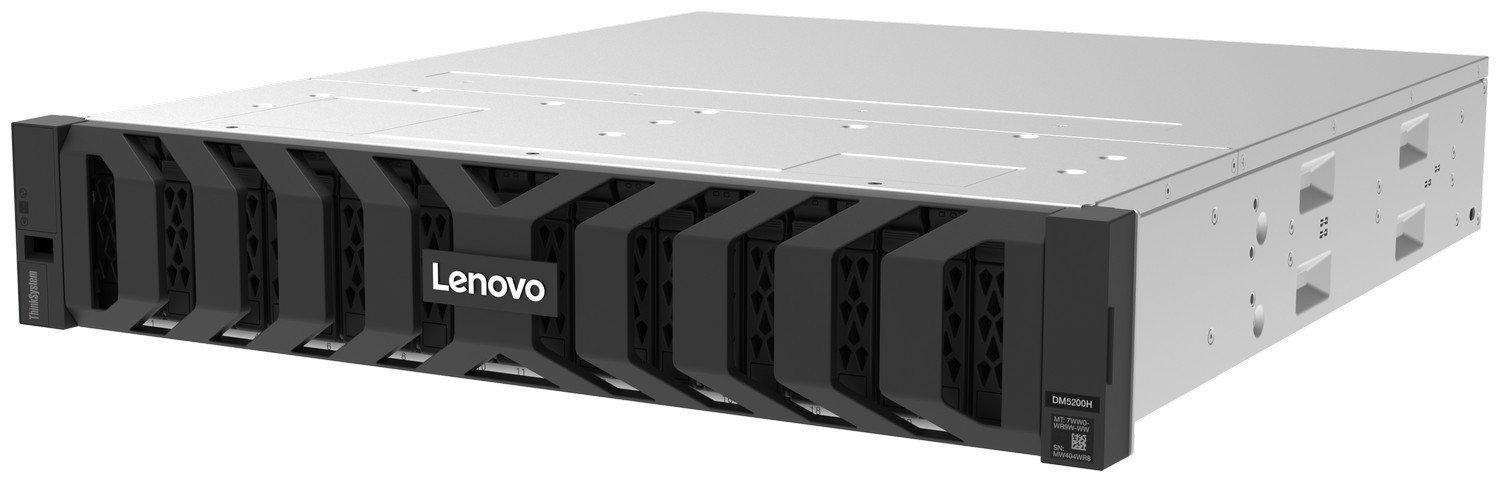

The Lenovo ThinkSystem DM5200H Hybrid Flash Array is a 2U storage system from Lenovo.
It provides 128 GB plus 16 gb NVMEM of system cache per HA pair. It provides 24 (2 for Flash Cache, 22 empty) per HA pair. Host connectivity is provided by FC, iSCSI, NVMe/FC, NVMe/TCP, NFS, NFSv4/RDMA, SMB, S3. Data protection uses RAID-4, RAID-DP, RAID-TEC.
Key Features
- Form factor: 2U
- Controller memory: 128 GB plus 16 gb NVMEM
- Drive bays: 24 (2 for Flash Cache, 22 empty)
- Expansion support: 20x DM120S (7D7X) / 5x DM240S (7D7Y) / 8x DM600S (7D7Z)
- RAID and data protection: RAID-4, RAID-DP, RAID-TEC RAID data protection, snapshots, volume copy (FlexClone), storage quality of service (QoS), thin provisioning, compression, deduplication, encryption, disk-based backup (SnapVault), application-aware backup (SnapCenter), quick data recovery (SnapRestore), clustering …
- Host interfaces and protocols: FC, iSCSI, NVMe/FC, NVMe/TCP, NFS, NFSv4/RDMA, SMB, S3
- Management: ThinkSystem Storage Manager web-based GUI; SSH CLI; Serial console CLI; SNMP, email, and syslog alerts; optional Lenovo XClarity. 1x 1 GbE port (UTP, RJ-45) per controller for out-of-band management / 2x Serial console ports (RJ-45 and Micro-USB) for system configuration
- Security: Secure Socket Layer (SSL), Secure Shell (SSH), user level security, role-based access control (RBAC), LDAP authentication.
- Power and cooling: Redundant cooling with built-in power supply fans Two redundant hot-swap 1600 W Titanium AC power supplies / 200 to 240
- Physical: Height: 87 mm (3.4 in.) / Width with flange: 483 mm (19 in.) / Width without flange: 447 mm (17.6 in.) …
Applications
- SAN and NAS consolidation for virtualized environments
- Backup, archive and disaster recovery
- Databases and business-critical application storage
- Analytics, VDI and mixed workload consolidation
Configuration, availability and lead time depend on the required quantity, chassis and CPU platform, and delivery destination. Send your requirement to receive a quotation.
