| Product SKU | SR250 V3 |
|---|---|
| Form Factor | 1U rack-mount |
| Processor | One Intel processor. Choose from: |
| GPU Support | Optional NVIDIA RTX A400 or NVIDIA RTX A1000 GPU |
| Memory | Four DIMM sockets supporting Lenovo TruDDR5 DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support ECC UDIMMs. |
| Drive Bays | Available configurations: |
| Expansion Slots | Two PCIe slots depending on the riser selected: |
| Chipset | Intel Raptor Lake PCH-S C266 |
| Maximum Memory | Up to 128 GB using 4x 32 GB UDIMMs. |
| Memory Protection | Error-correcting code (ECC) |
| Maximum Internal Storage | • 2.5-inch drives: |
| Storage Controller | • Software RAID (RAID level 0, 1, 5, and 10): Intel VROC SATA RAID |
| Network | Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC systems management. |

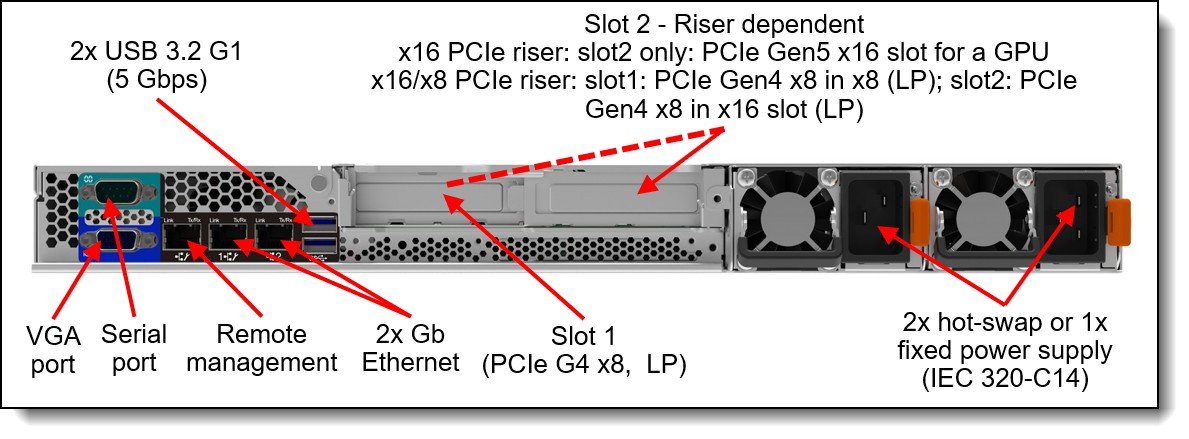

| Ports | • Front: |
| Cooling | Four non-hot-swap system fans |
| Power Supply | Model dependent choices: |
| System Management | Operator panel with status LEDs. XClarity Controller 2 (XCC2) embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC2 platinum to enable premium functions. |
| Security | Power-on password, administrator's password, Trusted Platform Module, supporting TPM 2.0. Optional lockable front bezel for physical security. |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. |
| Warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9×5 next business day (NBD). |
| Dimensions (H x W x D) | Width: 434.4 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 561 mm (22.1 in.). See Physical specifications for details. |
| Weight | Maximum configuration: 12.3 kg (27.1 lb) (3.5” config) or 11.44 kg (2.5” config). |
Servers
Lenovo ThinkSystem SR250 V3
The Lenovo ThinkSystem SR250 V3 is a 1U rack-mount server from Lenovo, powered by One Intel processor. Choose from, with Available configurations.
Overview
The Lenovo ThinkSystem SR250 V3 is a 1U rack-mount server from Lenovo, powered by One Intel processor. Choose from.
It supports Four DIMM sockets supporting Lenovo TruDDR5 DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support ECC UDIMMs. Maximum memory reaches up to 128 GB using 4x 32 GB UDIMMs. Storage is provided by Available configurations. Expansion is provided by Two PCIe slots depending on the riser selected. Networking is provided by Two integrated Gigabit Ethernet 1000BASE-T ports.
Key Features
- Processor: One Intel processor. Choose from: / Intel Xeon 6300 Series processors up to to 8 cores, with core speeds up to 3.6 GHz / Intel Xeon E-2400 Series processors (“Raptor Lake-E”) up to to 8 cores, with core speeds up to 3.5 GHz …
- Memory: Four DIMM sockets supporting Lenovo TruDDR5 DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support ECC UDIMMs.
- Maximum memory: Up to 128 GB using 4x 32 GB UDIMMs.
- Storage: Available configurations: / 10x 2.5-inch hot-swap SAS/SATA drive bays / 8x 2.5-inch hot-swap SATA only, or SAS/SATA drive bays …
- Maximum internal storage: 2.5-inch drives: / 76.8TB using 10x 7.68TB SATA 6Gb HS SSDs / 19.2TB using 8 x 2.4TB 10K 2.5-inch SAS HDDs …
- Expansion: Two PCIe slots depending on the riser selected: / Riser with two x8 slots: / Slot 1: PCIe G4 x8 (x8 slot, open-ended) 25W, half-length, low-profile …
- Networking: Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC systems management.
- Cooling and power: Four non-hot-swap system fans Model dependent choices: / One fixed 300W power supply, 80 PLUS Gold certified / Two hot-swap 800W redundant power supplies, 80 PLUS Platinum or Titanium certified, Energy Star and ErP Lot 9 compliant (Energy Star and ErP Lot 9 only with Intel Xeon processors)
- Management and security: Operator panel with status LEDs. XClarity Controller 2 (XCC2) embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC2 platinum to enable premium functions. Power-on …
- Physical: Width: 434.4 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 561 mm (22.1 in.). See Physical specifications for details. Maximum configuration: 12.3 kg (27.1 lb) (3.5” config) or 11.44 kg (2.5” config).
Applications
- Enterprise virtualization and private cloud
- Databases and business-critical applications
- AI inference and high-performance computing
- Software-defined storage and data analytics
Configuration, availability and lead time depend on the required quantity, chassis and CPU platform, and delivery destination. Send your requirement to receive a quotation.
