| Product SKU | SR630 V3 |
|---|---|
| Form Factor | 1U rack. |
| Processor | One or two 5th Gen Intel Xeon Scalable processors (formerly codenamed "Emerald Rapids"), or one or two 4th Gen Intel Xeon Scalable processors (formerly codenamed "Sapphire Rapids"). Supports processors up to 64 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 385 W. |
| GPU Support | Supports up to 3x single-wide GPUs |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9×4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 5600 MHz at 1 DPC and up to 4800 MHz at 2 DPC. |
| Drive Bays | Up to 4x 3.5-inch or 12x 2.5-inch or 16x EDSFF hot-swap drive bays: |
| Expansion Slots | Up to 5x slots, 3x at the rear and 2x at the front, plus 1 OCP 3.0 slot. |
| Chipset | Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream" |
| Persistent Memory | No support. Supports up to 16x Intel Optane Persistent Memory 300 Series modules (8 per processor) installed in the DIMM slots. Persistent memory (Pmem) is installed in combination with system memory DIMMs. |
| Maximum Memory | With RDIMMs: Up to 8TB by using 32x 256GB 3DS RDIMMs |
| Memory Protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9×4 RDIMMs, requires Platinum or Gold processors), and memory mirroring. |
| Maximum Internal Storage | • 2.5-inch drives: |
| Storage Controller | • 12x Onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID) |
| Network | Dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1, 10, 25 and 100 GbE network connectivity. One port can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support. |
| Ports | Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port. |
| Cooling | Up to 8x N+1 dual-rotor redundant hot-swap 40 mm fans, configuration dependent. One fan integrated in each power supply. For high-performance CPUs, the SR630 V3 also offers a closed-loop liquid-cooled heatsink design to more effectively remove heat from the processors. For customers with water infrastructure in their data center, the SR630 V3 also offers open-loop water cooling for efficient heat removal. |
| Power Supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W and 1800 W AC options, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. Also available is a 1100W power supply with a -48V DC input. |
| System Management | Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Models with 8x 2.5-inch front drive bays can optionally support an Integrated Diagnostics Panel. XClarity Controller 2 (XCC2) embedded management based on the ASPEED AST2600 baseboard management controller (BMC), XClarity One centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC Platinum to enable remote control functions and other features. |
| Security | Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). In China only, optional Nationz TPM 2.0. Optional lockable front security bezel. |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. |
| Warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9×5 next business day (NBD). |
| Dimensions (H x W x D) | Width: 440 mm (17.3 in.), height: 43 mm (1.7 in.), depth: 773 mm (30.4 in.). See Physical and electrical specifications for details. |
| Weight | Maximum weight: 20.8 kg (45.9 lb) |
Servers

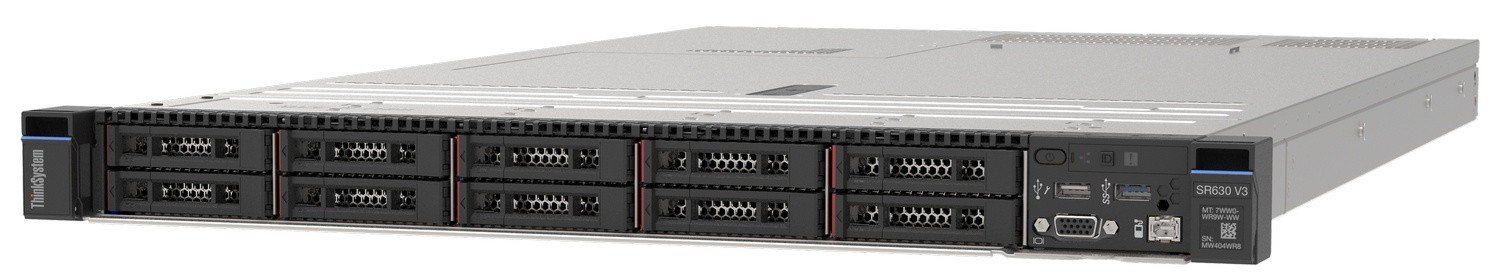

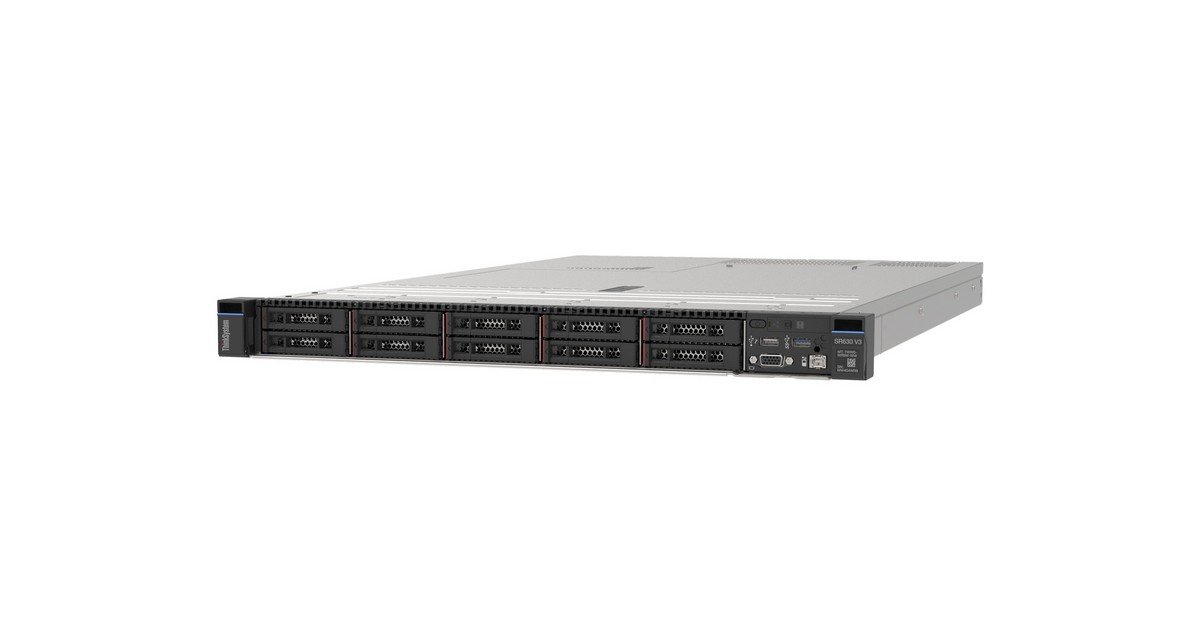

Lenovo ThinkSystem SR630 V3
The Lenovo ThinkSystem SR630 V3 is a 1U rack server from Lenovo, powered by 5th Gen Intel Xeon Scalable processors, with up to 4x 3.5-inch or 12x 2.5-inch or 16x EDSFF hot-swap drive bays.
Overview
The Lenovo ThinkSystem SR630 V3 is a 1U rack server from Lenovo, powered by 5th Gen Intel Xeon Scalable processors.
It supports 32 DIMM slots with two processors. Maximum memory reaches up to 8TB by using 32x 256GB 3DS RDIMMs. Storage is provided by up to 4x 3.5-inch or 12x 2.5-inch or 16x EDSFF hot-swap drive bays. Expansion is provided by up to 5x slots, 3x at the rear and 2x at the front, plus 1 OCP 3.0 slot. Networking is provided by Dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1, 10, 25 and 100 GbE.
Key Features
- Processor: One or two 5th Gen Intel Xeon Scalable processors (formerly codenamed “Emerald Rapids”), or one or two 4th Gen Intel Xeon Scalable processors (formerly codenamed “Sapphire Rapids”). Supports processors up to 64 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 385 W.
- Memory: 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9×4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 5600 MHz at 1 DPC and up to 4800 MHz at 2 DPC.
- Maximum memory: With RDIMMs: Up to 8TB by using 32x 256GB 3DS RDIMMs / With Persistent Memory: Up to 12TB by using 16x 256GB 3DS RDIMMs and 16x 512GB Pmem modules

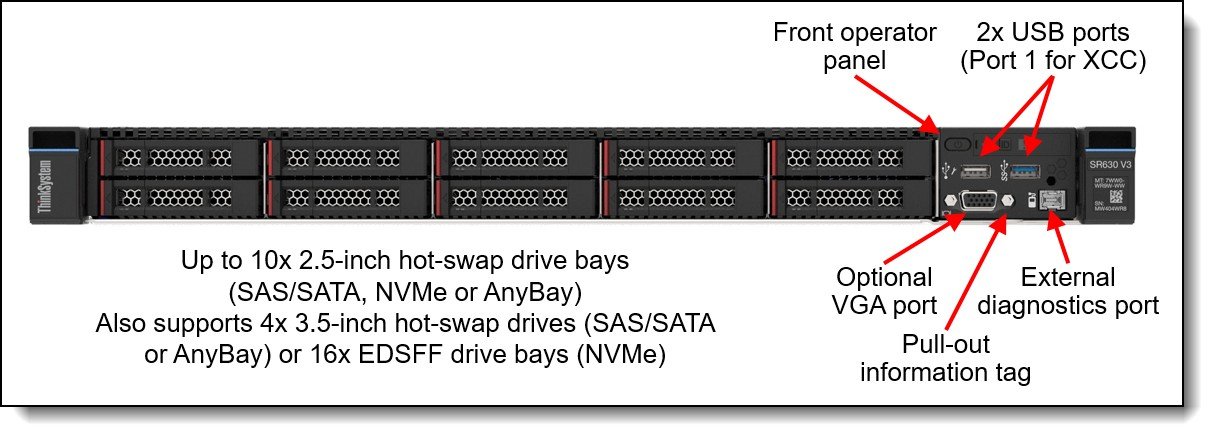

- Storage: Up to 4x 3.5-inch or 12x 2.5-inch or 16x EDSFF hot-swap drive bays: / Front bays can be one of the following: / 10x 2.5-inch hot-swap: All AnyBay …
- Maximum internal storage: 2.5-inch drives: / 368.64TB using 12x 30.72TB 2.5-inch SAS SSDs / 92.16TB using 12x 7.68TB 2.5-inch SATA SSDs …

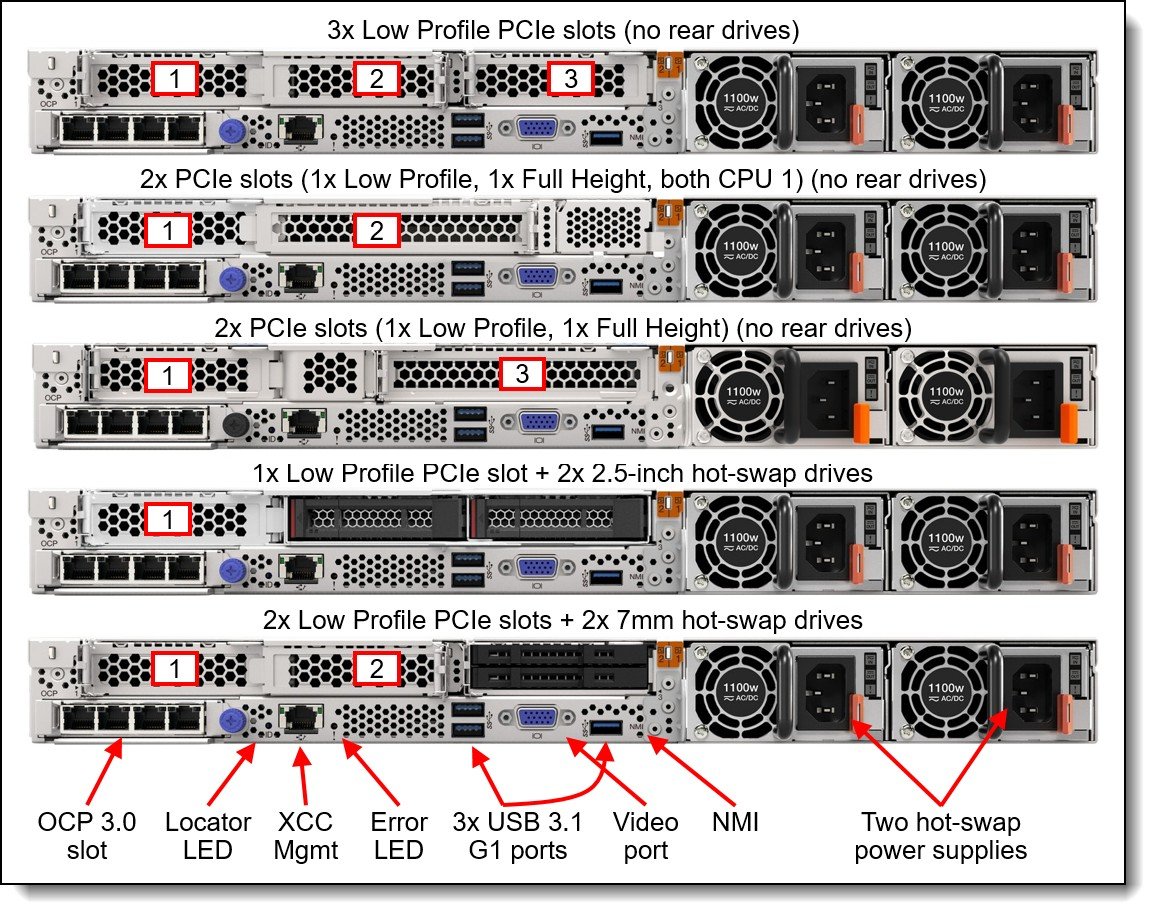

- Expansion: Up to 5x slots, 3x at the rear and 2x at the front, plus 1 OCP 3.0 slot. / Rear: Up to 3x PCIe slots (2x PCIe 5.0, 1x PCIe 4.0), all with rear access, plus a slot dedicated to the OCP adapter. Slot availability is based on riser selection and rear drive bay selection. Slot 3 requires two processors. …
- GPU support: Supports up to 3x single-wide GPUs
- Networking: Dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1, 10, 25 and 100 GbE network connectivity. One port can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support.
- Cooling and power: Up to 8x N+1 dual-rotor redundant hot-swap 40 mm fans, configuration dependent. One fan integrated in each power supply. For high-performance CPUs, the SR630 V3 also offers a closed-loop liquid-cooled heatsink design to more effectively remove heat from the processors. For customers with water …
- Management and security: Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Models with 8x 2.5-inch front drive bays can optionally support an Integrated Diagnostics Panel. XClarity Controller 2 (XCC2) embedded management based on the ASPEED AST2600 baseboard management controller …
- Physical: Width: 440 mm (17.3 in.), height: 43 mm (1.7 in.), depth: 773 mm (30.4 in.). See Physical and electrical specifications for details. Maximum weight: 20.8 kg (45.9 lb)
Applications
- Enterprise virtualization and private cloud
- Databases and business-critical applications
- AI inference and high-performance computing
- Software-defined storage and data analytics
Configuration, availability and lead time depend on the required quantity, chassis and CPU platform, and delivery destination. Send your requirement to receive a quotation.
