| Product SKU | ST650 V3 |
|---|---|
| Form Factor | Tower or 4U Rack |
| Processor | One or two 5th Gen or 4th Gen Intel Xeon Scalable processors (formerly codenamed "Emerald Rapids" and "Sapphire Rapids" respectively). Supports processors up to 32 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 250 W. |
| Chipset | Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream" |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9×4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 4800 MHz at 1 DPC and up to 4400 MHz at 2 DPC. |
| Persistent Memory | No support |
| Maximum Memory | Up to 4TB by using 32x 128GB 3DS RDIMMs |
| Memory Protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9×4 RDIMMs, requires Platinum or Gold processors), and memory mirroring. |
| Drive Bays | 2.5-inch drive bays: |
| Maximum Internal Storage | • 2.5-inch drives: |
| Storage Controller | • 8x onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID) |
| Optical Drive And Tape Drive Bays | Two half-height 5.25-inch media bays, available in most configurations. Supports two of LTO tape drive, RDX drive, or slim DVD-RW optical drive. |

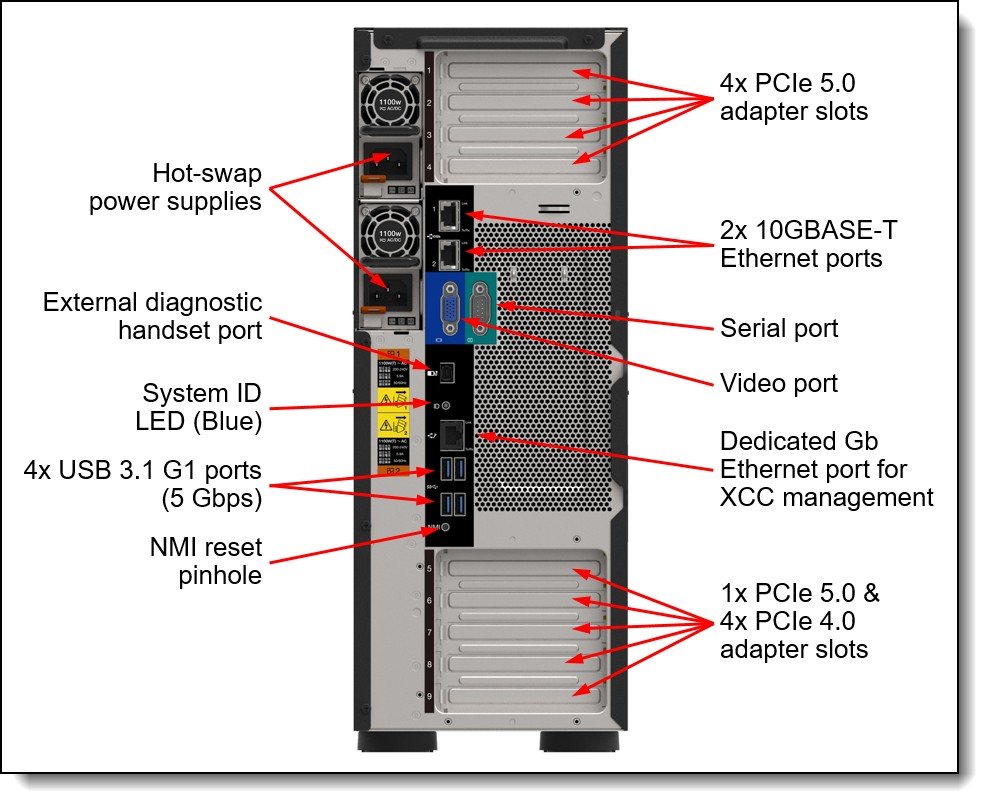

| Network | Two onboard 10GBASE-T Ethernet RJ45 ports based on a Broadcom BCM57416 controller. Additional dedicated Gigabit port for remote management via the XClarity Controller (XCC) management processor. |

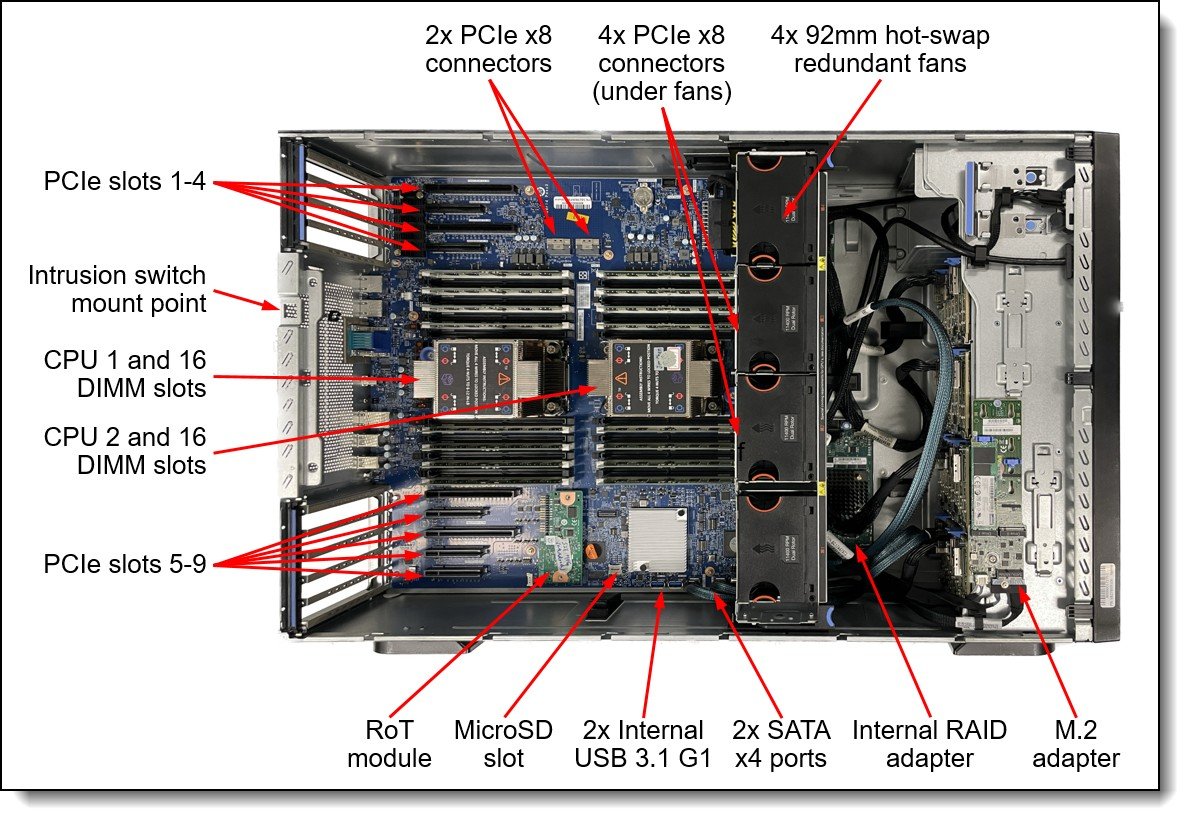

| Expansion Slots | 9x PCIe slots: 5x PCIe 5.0 and 4x PCIe 4.0 slots. All nine slots are mounted on the system board. Slots 1-8 are full height, full length (FHFL); slot 9 is full height, half length (FHHL). Slots 4-8 require CPU 2 installed. |
| GPU Support | Supports up to 8x single-wide GPUs or up to 4x double-wide GPUs |

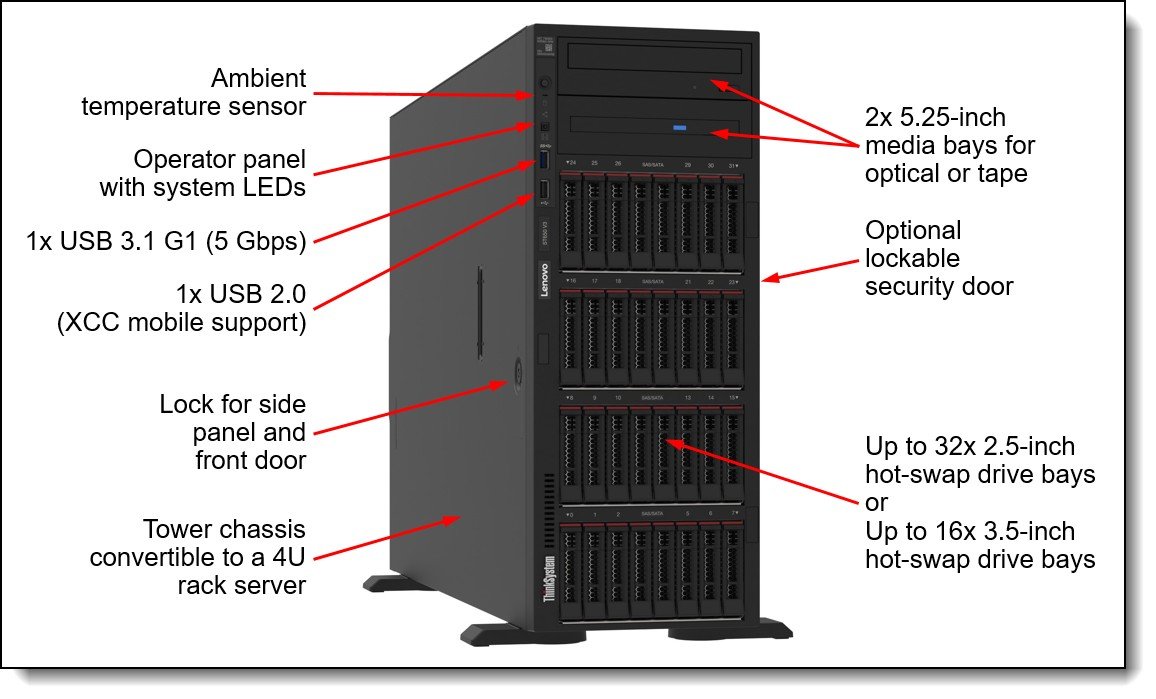

| Ports | Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management) |
| Cooling | Up to 4x single-rotor or dual-rotor hot swap 92 mm fans, configuration dependent. Fans are N+1 redundant. One additional fan integrated in each power supply. |
| Power Supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W, 1800 W and 2600 W AC options, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. |
| System Management | Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. XClarity Controller 2 (XCC2) embedded management controller , XClarity One centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Platinum to enable remote control and other functions. |
| Security | Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). In China only, optional Nationz TPM 2.0. Optional lockable front security door and optional chassis intrusion switch. |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. |
| Warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9×5 next business day (NBD). |
| Dimensions (H x W x D) | Width: 175 mm (6.9 in.), height: 462 mm (18.2 in.), depth: 734 mm (28.9 in.). See Physical and electrical specifications for details. |
| Weight | 39.1 kg (86.2 lb) maximum |
Servers

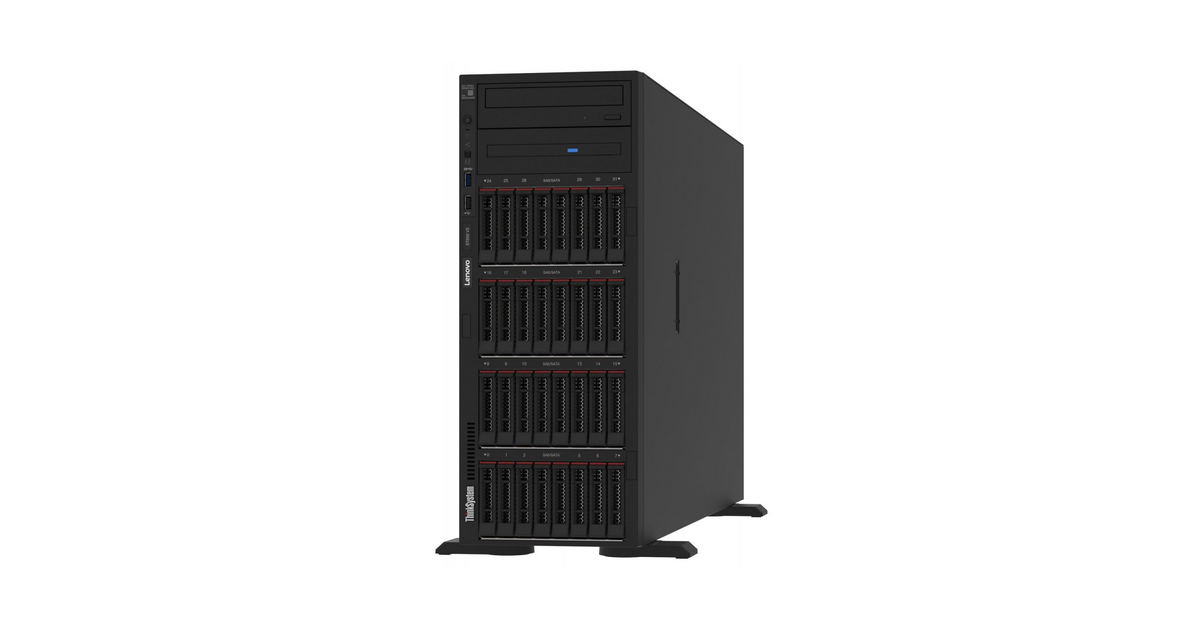

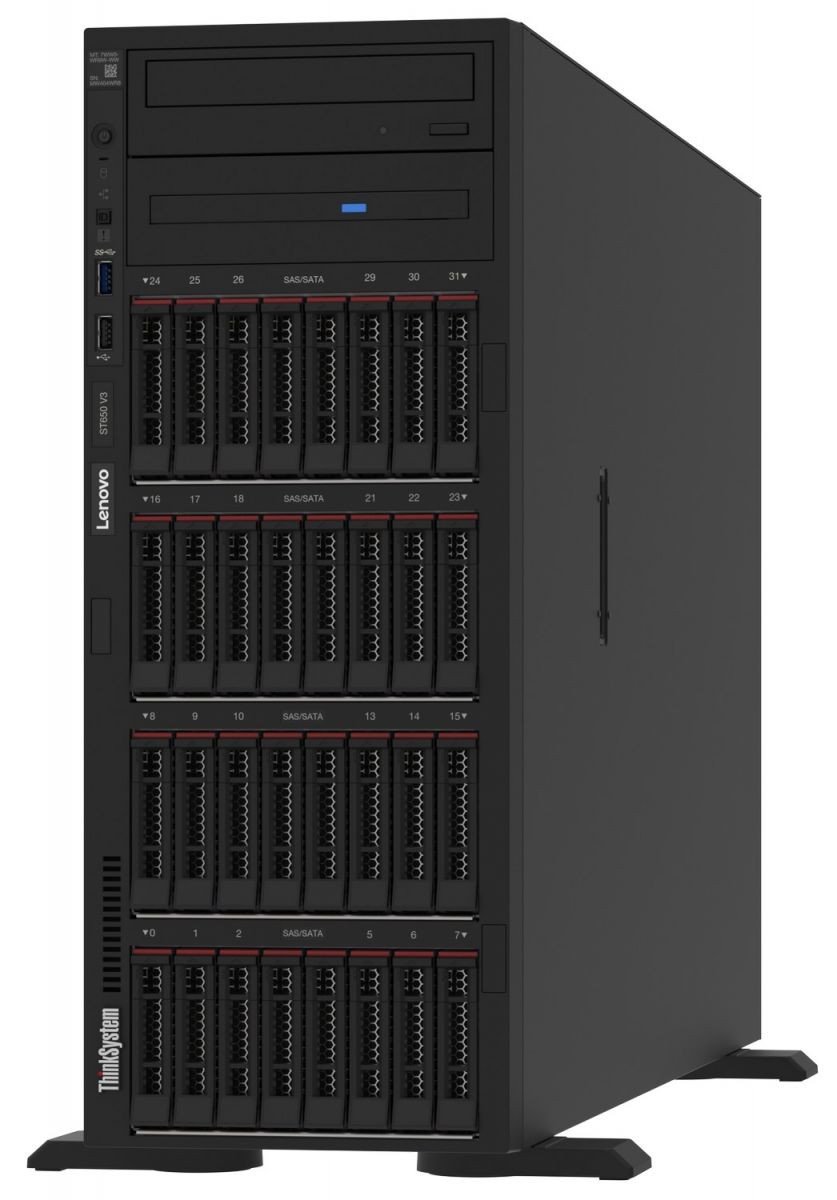

Lenovo ThinkSystem ST650 V3
The Lenovo ThinkSystem ST650 V3 is a Tower or 4U Rack server from Lenovo, powered by 5th Gen or 4th Gen Intel Xeon Scalable processors, with 2.5-inch drive bays.
Overview
The Lenovo ThinkSystem ST650 V3 is a Tower or 4U Rack server from Lenovo, powered by 5th Gen or 4th Gen Intel Xeon Scalable processors.
It supports 32 DIMM slots with two processors. Maximum memory reaches up to 4TB by using 32x 128GB 3DS RDIMMs. Storage is provided by 2.5-inch drive bays. Expansion is provided by 9x PCIe slots: 5x PCIe 5.0 and 4x PCIe 4.0 slots. All nine slots are mounted on the system board. Slots 1-8 are full height, full. Networking is provided by Two onboard 10GBASE-T Ethernet RJ45 ports based on a Broadcom BCM57416 controller. Additional dedicated Gigabit port for remote management.
Key Features
- Processor: One or two 5th Gen or 4th Gen Intel Xeon Scalable processors (formerly codenamed “Emerald Rapids” and “Sapphire Rapids” respectively). Supports processors up to 32 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 250 W.
- Memory: 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9×4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 4800 MHz at 1 DPC and up to 4400 MHz at 2 DPC.
- Maximum memory: Up to 4TB by using 32x 128GB 3DS RDIMMs
- Storage: 2.5-inch drive bays: / Up to 32x 2.5-inch hot-swap bays (24x NVMe) plus 2x 5.25-inch media bays / 3.5-inch drive bays: …
- Maximum internal storage: 2.5-inch drives: / 983.04TB using 32x 30.72TB 2.5-inch SAS/SATA SSDs / 368.64TB using 24x 15.36TB 2.5-inch NVMe SSDs …
- Expansion: 9x PCIe slots: 5x PCIe 5.0 and 4x PCIe 4.0 slots. All nine slots are mounted on the system board. Slots 1-8 are full height, full length (FHFL); slot 9 is full height, half length (FHHL). Slots 4-8 require CPU 2 installed. / Slot 1: PCIe 5.0 x16 (CPU 1) / Slot 2: PCIe 5.0 x8 (x8 physical slot) (CPU 1) …
- GPU support: Supports up to 8x single-wide GPUs or up to 4x double-wide GPUs
- Networking: Two onboard 10GBASE-T Ethernet RJ45 ports based on a Broadcom BCM57416 controller. Additional dedicated Gigabit port for remote management via the XClarity Controller (XCC) management processor.
- Cooling and power: Up to 4x single-rotor or dual-rotor hot swap 92 mm fans, configuration dependent. Fans are N+1 redundant. One additional fan integrated in each power supply. Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W, 1800 W and 2600 W AC …
- Management and security: Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. XClarity Controller 2 (XCC2) embedded management controller , XClarity One centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management …
- Physical: Width: 175 mm (6.9 in.), height: 462 mm (18.2 in.), depth: 734 mm (28.9 in.). See Physical and electrical specifications for details. 39.1 kg (86.2 lb) maximum
Applications
- Small and medium business and branch office workloads
- Retail, edge and remote-site deployments
- File, print and collaboration servers
- Light virtualization, backup and disaster recovery
Configuration, availability and lead time depend on the required quantity, chassis and CPU platform, and delivery destination. Send your requirement to receive a quotation.
