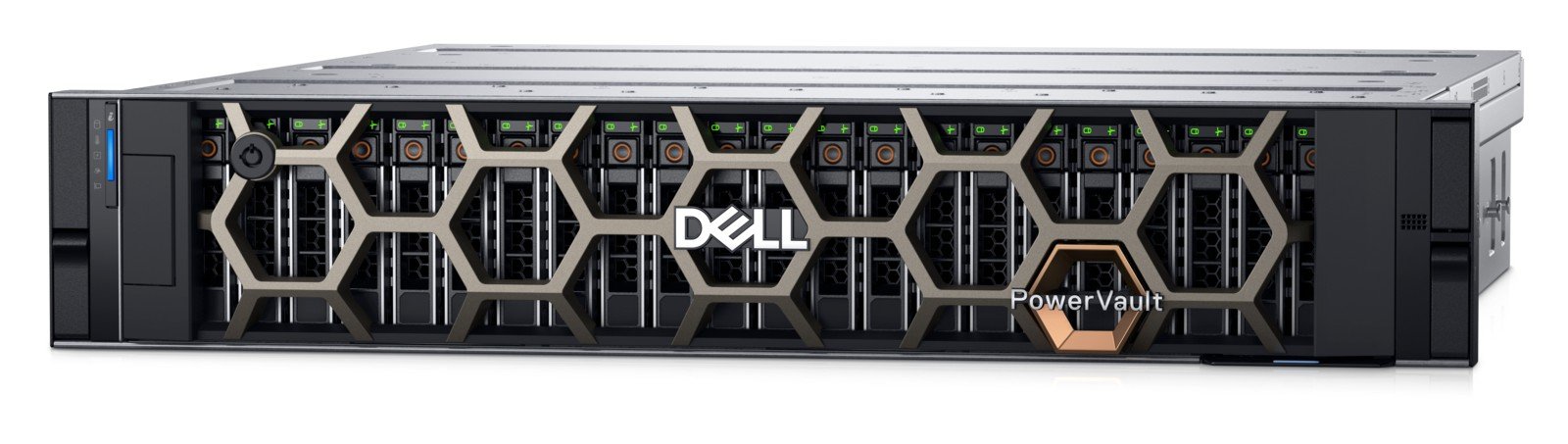

PowerVault MD2424 2U JBOD Enclosure

The Dell PowerVault MD2424 is a 2U JBOD enclosure for PowerEdge direct-attached storage, with 24 x 2.5-inch drive bays (14G/15G/16G servers). It connects over autosensing 12 Gb/24 Gb SAS and expands to 96 drives per server.

Category: Storage Brand: Dell Technologies

Technical Specifications
Overview

Device Type	2U JBOD enclosure for PowerEdge direct-attached storage (DAS)
Rack Size	2U
Drive Bays	24 x 2.5-inch drive bays (14G/15G/16G servers)
Host Interface	12 Gb/24 Gb SAS (autosensing)
I/O and Ports	2 x 4-lane 24 Gbps SAS host connection per EMM (4 x 4-lane 24 Gbps SAS on the MD2460) 1 x USB-C debug port per EMM
Expansion Protocol	24 Gb SAS-4
Maximum Drive Count (14G/15G Servers)	Up to 96 with HBA355e up to 96 with H840 PERC
Maximum Drive Count (16G Servers)	Up to 96 with HBA355e
Maximum Enclosures (14G/15G Servers)	4 with HBA355e 4 with H840 PERC
Maximum Enclosures (16G Servers)	4 with HBA355e
PERC Support	Yes (PERC support for 16G servers is post-launch)
Maximum Capacity	230.40 TB (2.4 TB 10K) 737.28 TB (7.68 TB SSD)
Storage Media	10K SAS / FIPS 2.5-inch drives: 2.4 TB, 1.2 TB, 600 GB (FIPS: 2.4 TB, 1.2 TB) SAS SSD / FIPS 2.5-inch (mixed use): 1.6 TB, 800 GB (FIPS: 3.84 TB, 1.92 TB, 960 GB) SAS SSD / FIPS 2.5-inch (read intensive): 7.68 TB, 3.84 TB, 1.92 TB (FIPS: 7.68 TB, 3.84 TB, 1.92 TB)
Supported Configurations	All-flash or hybrid flash; 10K HDD only. 24 Gb SAS-4 is supported internally as well as for 24 Gb SSDs.
Management	2 hot-add EMM (Enclosure Management Modules) per enclosure, providing redundant enclosure management with iDRAC or SHMCLI
Supported PowerEdge Servers	PowerEdge 14G and 15G servers, plus R760, R660, R7625, R6625, R7615 and R6615 servers; additional new generation servers become available post-launch
Base System Height	86.8 mm (3.4 in.)
Base System Width	444.0 mm (17.5 in.)
Base System Depth	497 mm (19.5 in.)
Weight	21.76 kg (49 lb) with drives 16.0 kg (35.27 lb) without drives
Wattage	800 W
Voltage	100-127/200-240 VAC; 240 VDC (China only)
Frequency	50/60 Hz
Environmental Operating Conditions	Operating temperature: 0 °C to 40 °C (32 °F to 104 °F); ASHRAE A3 operation 5 °C to 40 °C (41 °F to 104 °F) non-operating temperature: -40 °C to +65 °C (-40 °F to +149 °F) operating humidity: 8% to 85%, non-condensing non-operating humidity: 10% to 95%, non-condensing maximum operating temperature gradient: 20 °C per hour
Services and Warranty	Dell ProSupport Enterprise Suite and Dell ProDeploy Enterprise Suite, with optional ProSupport Plus for proactive and preventative services. OEM-ready from bezel to BIOS to packaging.

PowerVault MD2424 2U JBOD Enclosure Overview

The Dell PowerVault MD2424 is a 2U JBOD enclosure purpose-built for PowerEdge direct-attached storage. Directly attaching PowerVault MD enclosures to previous and new PowerEdge generations simplifies server capacity expansion and ensures applications get high-speed access to their data without compromise. It is the performance-optimised option, adding 24 x 2.5-inch drive bays in 2U for 10K HDD and SAS SSD mixes.

Enclosure and Drives

Rack size: 2U
Drive bays: 24 x 2.5-inch drive bays (14G/15G/16G servers)
Maximum drive count on 14G/15G PowerEdge servers: Up to 96 with HBA355e; up to 96 with H840 PERC
Maximum drive count on 16G PowerEdge servers: Up to 96 with HBA355e
Maximum enclosures on 14G/15G PowerEdge servers: 4 with HBA355e; 4 with H840 PERC
Maximum enclosures on 16G PowerEdge servers: 4 with HBA355e
Maximum capacity: 230.40 TB (2.4 TB 10K); 737.28 TB (7.68 TB SSD)
Supported configurations: All-flash or hybrid flash; 10K HDD only. 24 Gb SAS-4 is supported internally as well as for 24 Gb SSDs.

Connectivity

Host interface (autosensing): 12 Gb/24 Gb SAS
I/O and ports: 2 x 4-lane 24 Gbps SAS host connection per EMM (4 x 4-lane 24 Gbps SAS on the MD2460), plus 1 x USB-C debug port per EMM
Expansion protocol: 24 Gb SAS-4
PERC support: yes (PERC support for 16G servers is post-launch)
Management: 2 hot-add EMM (Enclosure Management Modules) per enclosure, providing redundant enclosure management with iDRAC or SHMCLI
Supported PowerEdge servers: PowerEdge 14G and 15G servers, plus R760, R660, R7625, R6625, R7615 and R6615 servers; additional new generation servers become available post-launch

Storage Media

10K SAS / FIPS 2.5-inch drives: 2.4 TB, 1.2 TB, 600 GB (FIPS: 2.4 TB, 1.2 TB); SAS SSD / FIPS 2.5-inch (mixed use): 1.6 TB, 800 GB (FIPS: 3.84 TB, 1.92 TB, 960 GB); SAS SSD / FIPS 2.5-inch (read intensive): 7.68 TB, 3.84 TB, 1.92 TB (FIPS: 7.68 TB, 3.84 TB, 1.92 TB)

Physical Specifications

Base system height: 86.8 mm (3.4 in.)
Base system width: 444.0 mm (17.5 in.)
Base system depth: 497 mm (19.5 in.)
Weight: 21.76 kg (49 lb) with drives; 16.0 kg (35.27 lb) without drives

Power and Environment

Wattage: 800 W
Voltage: 100-127/200-240 VAC; 240 VDC (China only)
Frequency: 50/60 Hz
Environmental operating conditions: Operating temperature: 0 °C to 40 °C (32 °F to 104 °F); ASHRAE A3 operation 5 °C to 40 °C (41 °F to 104 °F); non-operating temperature: -40 °C to +65 °C (-40 °F to +149 °F); operating humidity: 8% to 85%, non-condensing; non-operating humidity: 10% to 95%, non-condensing; maximum operating temperature gradient: 20 °C per hour

Services

Dell ProSupport Enterprise Suite and Dell ProDeploy Enterprise Suite, with optional ProSupport Plus for proactive and preventative services. OEM-ready from bezel to BIOS to packaging.

Configuration, availability and lead time depend on the required model, drive mix, protocols and delivery destination. Send your requirement to receive a quotation.
