| Device Type | 5U expansion enclosure for PowerVault ME5 storage arrays |
|---|---|
| Rack Size | 5U |
| Drive Bays | 84 x 3.5-inch drive bays |
| Expansion Protocol | 12 Gb SAS |
| Compatibility | Supported behind any ME5 base array. Up to 3 x 5U expansion enclosures per 2U base array, or 3 x 5U expansion enclosures per 5U base array. |
| Storage Media | NL-SAS 7.2K 3.5-inch: 4 TB, 8 TB, 8 TB FIPS, 12 TB, 16 TB, 16 TB FIPS, 20 TB, 24 TB |
| Expansion Height | 22.23 cm (8.75 in.) |
| Expansion Width | 48.30 cm (19.01 in.) |
| Expansion Depth | 97.47 cm (38.31 in.) |
| Weight | 130.00 kg (287.00 lb) maximum configuration |
| Power / Wattage | 2,200 W |
| Heat Dissipation | 7,507 BTU BTU |
| AC Voltage | 200-240 VAC |
| Frequency | 50/60 Hz |
| Amperage | 11.07-9.23 A (x2) |
| Environmental Operating Conditions | Operating temperature: 5 °C to 35 °C (41 °F to 95 °F), derated by 1 °C per 300 mm above 900 m |
| Services and Warranty | Dell ProSupport Enterprise Suite and Dell ProDeploy Enterprise Suite, with optional ProSupport Plus for proactive and preventative services. Dell Power Sizer for system sizing, and OEM-ready customization from bezel to BIOS to packaging. |

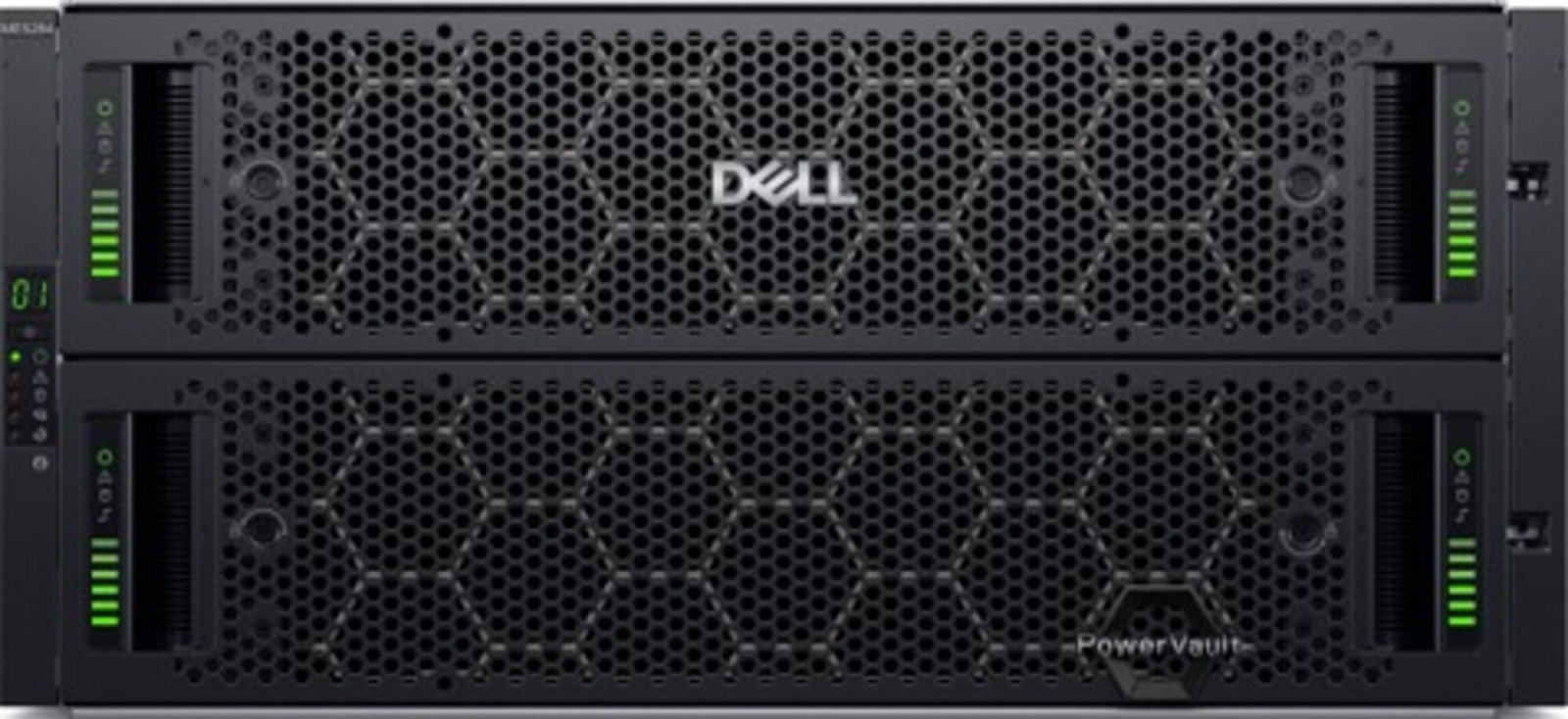

PowerVault ME584 5U Expansion Enclosure
The Dell PowerVault ME584 is a 5U expansion enclosure for PowerVault ME5 arrays, with 84 x 3.5-inch drive bays on a 12 Gb SAS expansion protocol. Supported behind any ME5 base array. Up to 3 x 5U expansion enclosures per 2U base array, or 3 x 5U expansion enclosures per 5U base array.
PowerVault ME584 5U Expansion Enclosure Overview
The Dell PowerVault ME584 adds 84 x 3.5-inch drive bays to a PowerVault ME5 storage system over a 12 Gb SAS expansion protocol. Capacity is added without replacing controllers: the enclosure appears to the array as additional drive bays, and drives can be mixed with the existing tiers of the base system. Supported behind any ME5 base array. Up to 3 x 5U expansion enclosures per 2U base array, or 3 x 5U expansion enclosures per 5U base array.
Enclosure Specifications
- Rack size: 5U
- Drive bays: 84 x 3.5-inch drive bays
- Expansion protocol: 12 Gb SAS
- Compatibility: Supported behind any ME5 base array. Up to 3 x 5U expansion enclosures per 2U base array, or 3 x 5U expansion enclosures per 5U base array.
Storage Media
- NL-SAS 7.2K 3.5-inch: 4 TB, 8 TB, 8 TB FIPS, 12 TB, 16 TB, 16 TB FIPS, 20 TB, 24 TB; SAS 10K 2.5-inch: 1.2 TB, 2.4 TB, 2.4 TB FIPS; SSD: 1.6 TB mixed use, 1.92 TB read intensive, 3.84 TB read intensive, 3.2 TB FIPS mixed use, 7.68 TB read intensive; SAS and NL-SAS drives of different types, transfer rates and rotational speeds can be mixed in the same system
Physical Specifications
- Height: 22.23 cm (8.75 in.)
- Width: 48.30 cm (19.01 in.)
- Depth: 97.47 cm (38.31 in.)
- Weight: 130.00 kg (287.00 lb) maximum configuration; 64.00 kg (141.00 lb) without drives
Power and Environment
- Power supply: 2,200 W
- Heat dissipation: 7,507 BTU BTU
- AC voltage: 200-240 VAC
- Frequency: 50/60 Hz
- Amperage: 11.07-9.23 A (x2)
- Environmental operating conditions: Operating temperature: 5 °C to 35 °C (41 °F to 95 °F), derated by 1 °C per 300 mm above 900 m; non-operating temperature: -40 °C to 70 °C (-40 °F to 158 °F), with a maximum change of 20 °C per hour; operating humidity: -12 °C minimum dew point, 8% to 85% maximum, non-condensing; non-operating humidity: 21 °C maximum dew point, 5% to 100% maximum, non-condensing
Services
Dell ProSupport Enterprise Suite and Dell ProDeploy Enterprise Suite, with optional ProSupport Plus for proactive and preventative services. Dell Power Sizer for system sizing, and OEM-ready customization from bezel to BIOS to packaging.
Configuration, availability and lead time depend on the required model, drive mix, protocols and delivery destination. Send your requirement to receive a quotation.
