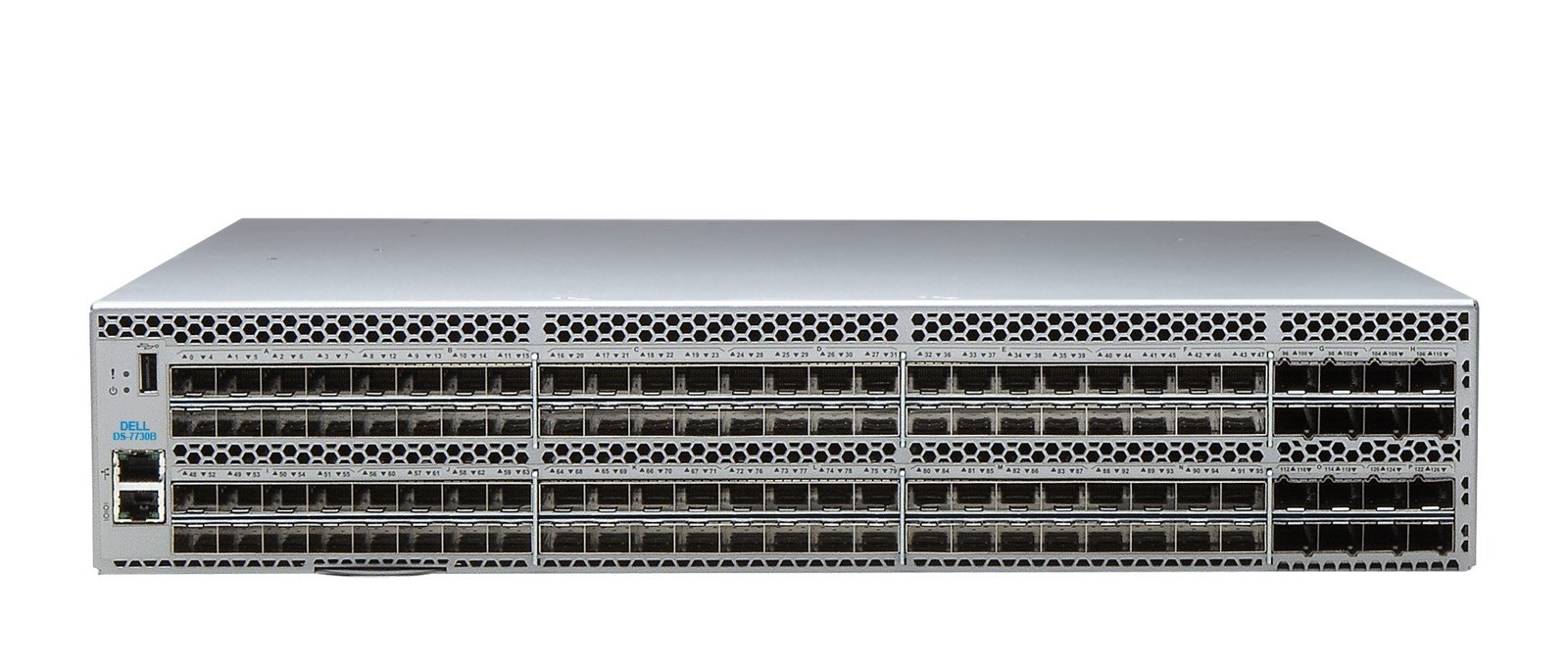

Connectrix DS-7730B 64G FC SAN Switch

Overview

The Connectrix DS-7730B is a 64 Gb/s, 2U high-density Fibre Channel SAN switch that lets dense rackmount environments connect more devices and build larger fabrics. With 128 x 64G ports and 16 SFP-DD transceivers, organisations can create high-scale fabrics in less space, expanding from 48 to 128 ports with Ports on Demand. A 50% latency reduction against the previous generation and no oversubscription enable maximum performance from NVMe storage and high-transaction workloads.

Port Configuration

• Form factor: 2U, installable in a standard 19-inch EIA rack
• Fibre Channel ports: DS-7730B: minimum of 48 ports and maximum of 128 ports. Ports are enabled in increments of 24 ports up to 128 via Ports on Demand (PoD) licences; E_Ports, F_Ports, D_Ports and EX_Ports
• Ports on Demand: 48 ports enabled base, scalable to 128 via 24-port SFP+ PODs and a 32-port SFP-DD POD in any order or combination
• Detail: The DS-7730B utilises 96 x 64G SFP+ ports and 16 x 2x64G double-density optical transceiver (SFP-DD) ports. Each of the 16 SFP-DD transceivers provides 2 ports, making 32 ports available for device or ISL connectivity, for a total of 128 ports in a 2U design. The base configuration comes with 48 ports enabled; to scale to 128 ports, additional 24-port SFP+ PODs and a 32-port SFP-DD POD can be installed in any order and combination

Performance

• Fibre Channel line speeds: 8.5 Gb/s, 10.53 Gb/s, 14.025 Gb/s, 28.05 Gb/s
  and 57.8 Gb/s line speed, full duplex; auto-sensing of 8, 10, 16, 32 and 64G port speeds (10G
  optionally programmable to fixed-port speed)
• Aggregate bandwidth: 8.192 Tb/s
• ISL trunking: frame-based trunking with up to eight SFP+ ports per ISL trunk
  and up to 512 Gb/s per ISL trunk; exchange-based load balancing across ISLs with Dynamic Path
  Selection (DPS) included in Fabric OS
• Port-to-port latency: 460 ns for locally switched ports (including FEC)
• Frame buffers: 24K per switching ASIC
• Maximum frame size: 2,112-byte payload
• Classes of service: Class 2, Class 3 and Class F (inter-switch frames)
• Port types: D_Port (ClearLink diagnostic port), E_Port, EX_Port, F_Port and
  M_Port with optional port-type control; Access Gateway mode supports F_Port and NPIV-enabled
  N_Port
• Media types: 64Gb/s: hot-pluggable SFP+, LC connector, 64Gb/s SWL
  32Gb/s: hot-pluggable SFP+, LC connector, 32Gb/s SWL, LWL 10 km, ELWL 25 km
  10Gb/s: hot-pluggable SFP+, LC connector, 10Gb/s SWL, LWL 10 km
  2x64G FC SFP-DD SN connectors: SWL
• Data traffic types: fabric switches supporting unicast
• Scalability: full-fabric architecture with a maximum of 239 switches;
  certified maximum of 4K active nodes, 56 switches and 19 hops in Fabric OS (FOS) fabrics
• USB: one standard USB port for firmware download, SupportSave and
  configuration upload or download

Fabric Services

BB Credit Recovery; Advanced Zoning (Default Zoning, Port/WWN Zoning, Peer Zoning); Congestion Signaling; Dynamic Path Selection (DPS); Extended Fabrics; Fabric Performance Impact Notification (FPIN); Fabric Vision; FDMI; FICON CUP; Flow Vision; F_Port Trunking; FSPF; Integrated Routing; ISL Trunking; Management Server; Name Server; NPIV; NTP v3; Port Decommission/Fencing; QoS; Registered State Change Notification (RSCN); Slow Drain Device Quarantine (SDDQ); Target-Driven Zoning; Traffic Optimizer; Virtual Fabrics (Logical Switch, Logical Fabric); VMID+ and AppServer

Some fabric services do not apply or are unavailable in Access Gateway mode.

Security

DH-CHAP (between switches and end devices); FCAP switch authentication; HTTPS; IP filtering; LDAP with IPv6; OpenLDAP; Port Binding; RADIUS; TACACS+; user-defined Role-Based Access Control (RBAC); Secure Boot; Secure Copy (SCP); Secure Syslog; SFTP; SSH v2; SSL; Switch Binding; Trusted Switch; Trusted FOS Certificates (TruFOS); root access removed

Management

• Management software: Advanced Web Tools; Brocade SANnav Management Portal and
  SANnav Global View; command-line interface (CLI); EZSwitchSetup; HTTP/HTTPS; RESTful API; SNMP
  v1/v3 (FE MIB, FC Management MIB); SSH
• Management access: the DS-7730B provides a 10/100/1000Mb/s Ethernet (RJ-45)
  port, a serial console port and a USB port; the DS-7720B provides 10/100/1000Mb/s Ethernet
  (RJ-45) and a serial console port (mini-USB); the DS-7710B provides 1000Mb/s Ethernet (RJ-45),
  in-band over Fibre Channel, an RJ45 serial console port and one USB port
• Diagnostics: Active Support Connectivity (ASC) and Brocade Support Link (BSL) on the DS-7730B and DS-7720B; built-in flow generator; ClearLink optics and cable diagnostics including electrical/optical loopback and link traffic/latency/distance; Fabric Performance Impact Monitoring (FPI) on the DS-7730B and DS-7720B; flow mirroring; Forward Error Correction (FEC); frame viewer; IO Insight for SCSI and NVMe monitoring; Monitoring and Alerting Policy Suite (MAPS); non-disruptive daemon restart; optics health monitoring; POST and embedded online/offline diagnostics including environmental monitoring, FCping and Pathinfo; power monitoring; RAStrace logging; Rolling Reboot Detection (RRD); Syslog/Audit Log; VM Insight

Features and Licensing

• Includes optional features such as Fabric Vision, Extended Fabric, ISL Trunking and Integrated Routing at no additional charge
• SAN extension: Integrated optional 10G Fibre Channel for DWDM MAN connectivity. Fibre Channel in-flight compression and encryption are not supported on this switch, and supported distances are limited and dependent on FC speed
• Mainframe: the DS-7720B is certified for mainframe environments and includes FICON CUP at no additional charge

Physical Specifications

• Enclosure: Front-to-rear airflow with non-port-side exhaust, or rear-to-front airflow with non-port-side intake, both with power from the back
• Dimensions: Width 440.00 mm (17.32 in.), height 86.70 mm (3.41 in.), depth 609.60 mm (24.00 in.)
• Weight: 18.92 kg (41.71 lb) with two power supply FRUs and three fan FRUs, without transceivers

Power and Heat Dissipation

• Power supply: Dual, hot-swappable, redundant power supplies with integral cooling fans and status LEDs, 80 Plus Gold
• AC input: 100 to 240 VAC nominal, 90 to 264 VAC range; maximum input current 12 A at 100V or 5 A at 240V
• Power consumption: 969W with all 128 ports operating at 64G (96 ports populated with 64G SWL transceivers and 16 SFP-DD SWL transceivers each providing two 64G ports); 364W for an empty chassis with no transceivers
• Heat dissipation: 128 ports at 3,195 Btu/hr
• Input line frequency: 47-63 Hz

Environmental Specifications

• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating temperature: -25°C to 70°C (-13°F to 158°F)
• Humidity: 8% to 90% (non-condensing) operating and non-operating
• Altitude: operating up to 3,000 m (9,842 ft); storage up to 12 km (39,370 ft)
• Shock: Operating up to 20G, 6 ms half-sine; non-operating half-sine 33G, 11 ms, 3/G axis
• Vibration: Operating: 0.5 Grms sine, 0.4 Grms random, 5 Hz to 500 Hz. Non-operating: 2.0 Grms sine, 1.1 Grms random, 5 Hz to 500 Hz

Services and Warranty

Dell Technologies Services cover the full lifecycle of a SAN build-out: Consulting Services for design and planning, ProDeploy Enterprise Suite for deployment through planning, configuration and complex integrations, Residency and Managed Services for ongoing operations, and ProSupport Enterprise Suite for expert support backed by proactive and predictive AI tools.

Ordering

Configuration, availability and lead time depend on the required model, port count, optics and delivery destination. Send your requirement to receive a quotation.
