| Product SKU | DB610S |
|---|---|
| Maximum Ports | 24 ports |
| Optics | 16/32Gbps SWL and LWL hot-pluggable SFP transceivers |
| Port Types | E_Port, F_Port, M_Port, D_Port and EX_Port support |
| Form Factor | Standalone or 1U rack mount |
| Ports | 24x SFP+ physical ports. The number of ports that are activated is model dependent and can be upgraded with additional licenses |
| Media Types | • 32 Gb FC SFP+ transceivers: short wavelength (SWL), long wavelength (LWL) |
| Port Speeds | • 32 Gb FC SFP+ transceivers: 32/16/8 Gbps auto-sensing |
| FC Port Types | • Full Fabric mode: F_Port, M_Port (Mirror Port), E_Port, D_Port (Diagnostic Port) |
| Data Traffic Types | Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only) |
| Classes Of Service | Class 2, Class 3, Class F (inter-switch frames) |
| Standard Features | Full Fabric mode, Access Gateway, Advanced Zoning, Fabric Services, Adaptive Networking, Advanced Diagnostic Tools |
| Optional Features | Enterprise Bundle (ISL Trunking, Fabric Vision, Extended Fabric) |
| Performance | Non-blocking architecture with wire-speed forwarding of traffic: |
| Scalability | • Maximum number of switches in the fabric: 239 |
| Cooling | Four fixed fans with N+1 cooling redundancy. Non-port to port side airflow |
| Power Supply | One fixed 150 W AC (100 – 240 V) power supply (IEC 320-C14 connector) |

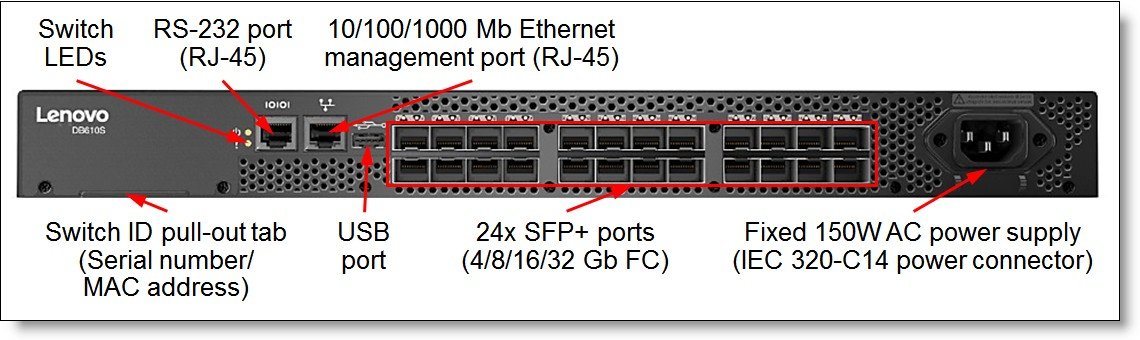

| Management Ports | One 10/100/1000 Mb Ethernet port (UTP, RJ-45); one RS-232 port (RJ-45); one USB port (for additional firmware/log/configuration files storage) |
| Management Interfaces | EZSwitch Setup; Web-based GUI (Web Tools); Command Line Interface (CLI); SMI-S; SNMP; REST API. Optional Brocade SANnav Management Portal and SANnav Global View, or Brocade Network Advisor |
| Security Features | Secure Socket Layer (SSL); Secure Shell (SSH); Secure Copy (SCP); Secure FTP (SFTP); user level security, Role-based Access Control (RBAC); LDAP, RADIUS, and TACACS+ authentication; access control lists (ACLs) |
| Hardware Warranty | • Machine type 6559: One-year limited warranty, customer-replaceable unit with 9×5 next business day parts delivered |
| Firmware Entitlement | • Machine type 6559: One-year (Models HC4, HC5, HC6, and HC7) or three-year (Models HC1, HC2, and HC3) firmware entitlement and support license is included. Optional one- and two-year firmware support extension licenses are available from Lenovo for Models HC1, HC2, and HC3. Firmware entitlement extension licenses for Models HC4, HC5, HC6, and HC7 is included in the warranty service upgrades for Models HC4, HC5, HC6, and HC7. |
| Dimensions (H x W x D) | Height: 43 mm (1.7 in.); width: 429 mm (16.9 in.); depth: 307 mm (12.1 in.) |
| Weight | Empty: 4.2 kg (9.3 lb); Fully configured: 5.8 kg (12.7 lb) |
Networking

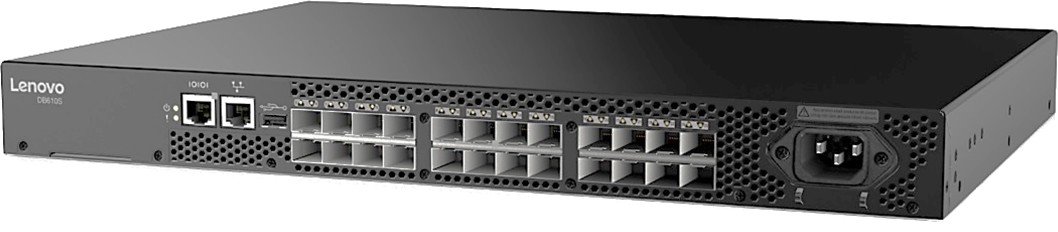

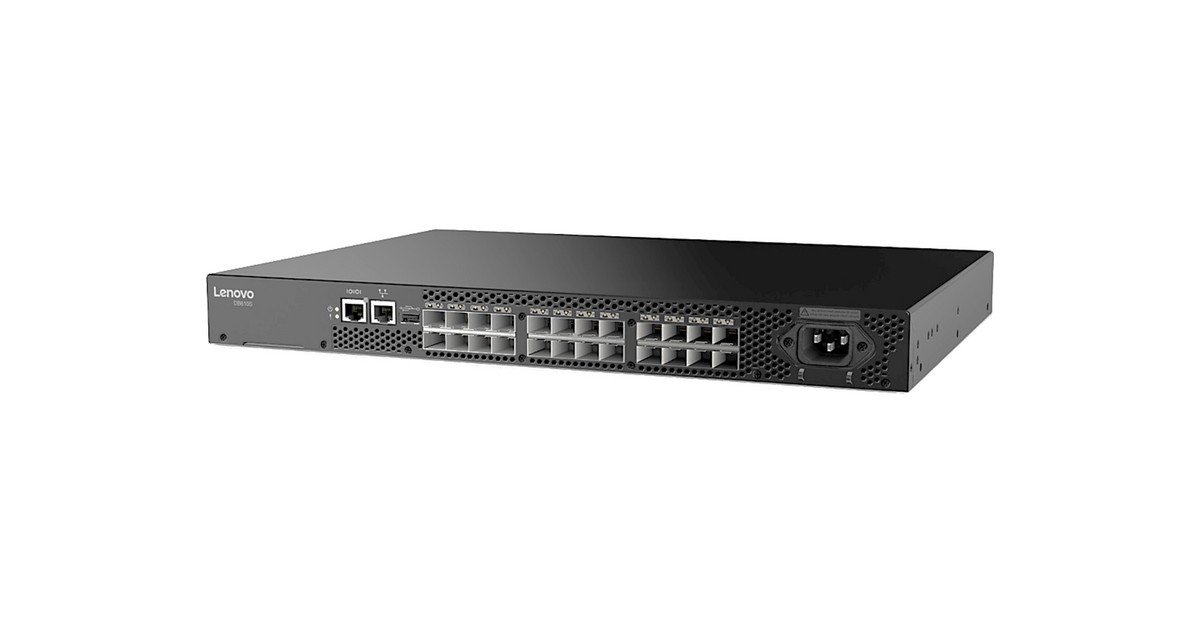

Lenovo ThinkSystem DB610S FC SAN Switch
The Lenovo ThinkSystem DB610S FC SAN Switch is a Standalone or 1U rack mount storage network switch from Lenovo, supporting 24x SFP+ physical ports. The number of ports that are.
Overview
The Lenovo ThinkSystem DB610S FC SAN Switch is a Standalone or 1U rack mount storage network switch from Lenovo supporting 24x SFP+ physical ports. The number of ports that are activated is model dependent and can be upgraded with additional licenses.
It provides Full Fabric mode: F_Port, M_Port (Mirror Port), E_Port, D_Port (Diagnostic Port).
Key Features
- Form factor: Standalone or 1U rack mount
- Ports and port types: 24x SFP+ physical ports. The number of ports that are activated is model dependent and can be upgraded with additional licenses • Full Fabric mode: F_Port, M_Port (Mirror Port), E_Port, D_Port (Diagnostic Port) / Access Gateway mode: F_Port and NPIV-enabled N_Port
- Management and software: One 10/100/1000 Mb Ethernet port (UTP, RJ-45); one RS-232 port (RJ-45); one USB port (for additional firmware/log/configuration files storage)
- Power and cooling: Four fixed fans with N+1 cooling redundancy. Non-port to port side airflow One fixed 150 W AC (100 – 240 V) power supply (IEC 320-C14 connector)
- Physical: Height: 43 mm (1.7 in.); width: 429 mm (16.9 in.); depth: 307 mm (12.1 in.) Empty: 4.2 kg (9.3 lb); Fully configured: 5.8 kg (12.7 lb)
Applications
- Fibre Channel SAN fabric expansion
- NVMe over Fibre Channel and all-flash storage networking
- Data center consolidation and fabric modernization
- Mission-critical storage networking with high availability
