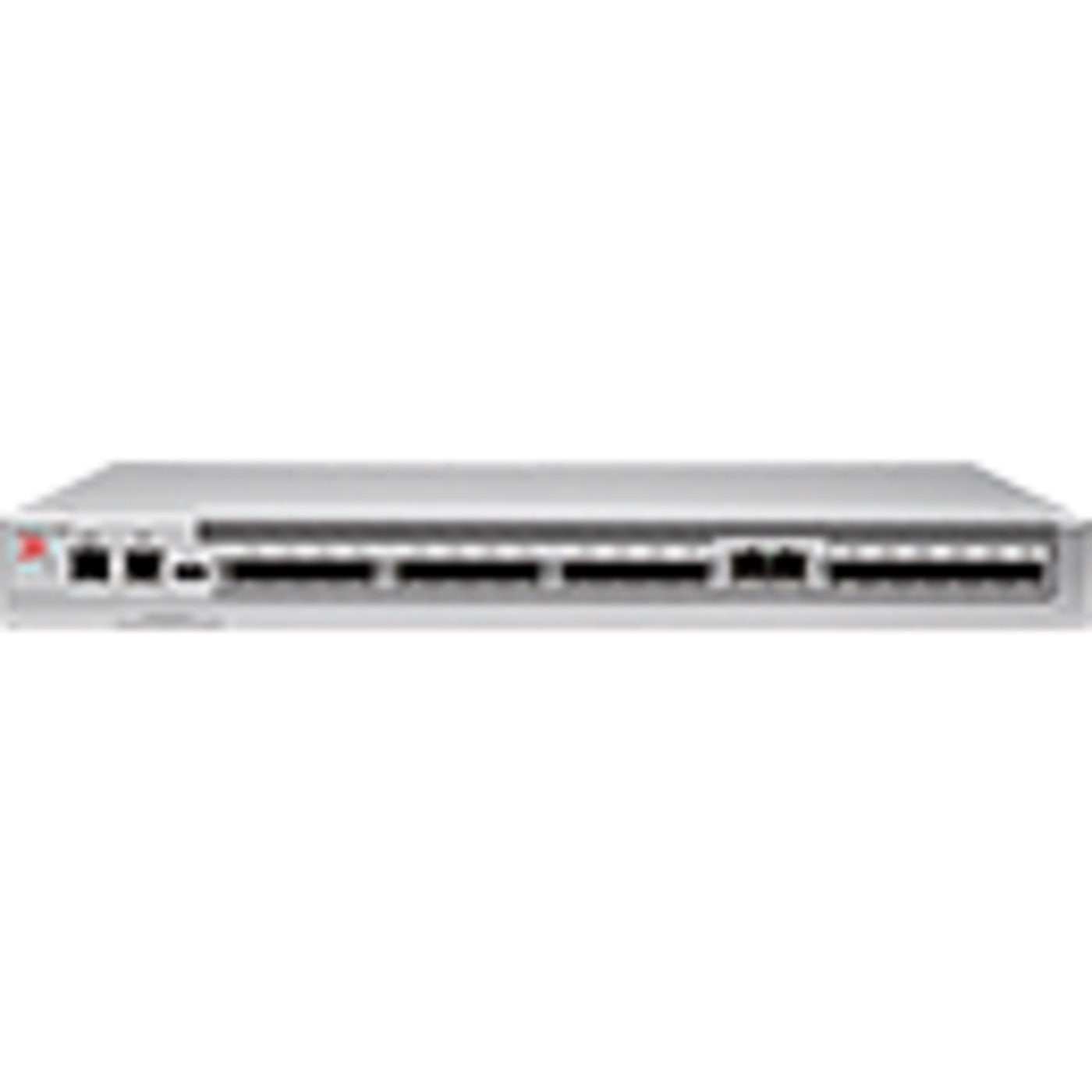

Connectrix MP-7810B SAN Extension Switch

Overview

The Connectrix MP-7810B is an entry-level 1U multi-protocol SAN extension switch that combines Fibre Channel switching and routing with hardware-assisted IP Extension and Fibre Channel over IP (FCIP) traffic forwarding over IP wide area networks. It provides 12 x 32Gb/s Fibre Channel ports and 6 x 1/10GbE SFP+ ports, with a maximum WAN bandwidth of 2.5 Gbps, making it the lower-cost option in the Connectrix B-Series extension portfolio for smaller replication and backup links.

Port Configuration

• Form factor: 1U, 19-inch EIA-compliant
• Fibre Channel ports: 12 x 32Gb/s Fibre Channel ports
• Ethernet ports: 6 x 1/10GbE SFP+ ports
• Port types: F_Port, E_Port, EX_Port, FCR E_Port, D_Port (diagnostic), M_Port
  (mirror) and self-discovery based on switch type (U_Port); VE_Port for FCIP and IP traffic
• Scalability: refer to the Dell Support Matrix for the supported fabric
  configurations
• USB: one USB port for system log file downloads or firmware upgrades

Performance

• Fibre Channel performance: Auto-sensing of 4, 8, 16 and 32 Gb/s port speeds
• Fibre Channel aggregate bandwidth: 8.5 Gb/s, 14.025 Gb/s and 28.05 Gb/s line speed, full duplex, with auto-sensing of 8, 16 and 32 Gb/s port speeds
• FCIP performance: Maximum WAN bandwidth of 2.5 Gbps
• ISL trunking: Included with the -EP model and available through an upgrade licence
• Fabric latency: Non-blocking shared memory, 900 ns with no contention, cut-through switching at 32 Gb/s
• Maximum MTU size: Jumbo frames from 1,280 bytes to 9,216 bytes
• Classes of service: Class 2, Class 3 and Class F (inter-switch frames)
• Data traffic types: Fibre Channel, FCIP and IP extension
• Media types: Fibre Channel hot-pluggable Small Form-factor Pluggable (SFP) and SFP+ short wavelength (SWL) and long wavelength (LWL) transceivers, where the available wavelength options vary for 8, 16 and 32 Gb/s SFPs
  Ethernet: Brocade hot-pluggable SFP and SFP+ short-reach (SRWL), long-reach (LRWL) and copper SFP/SFP+ transceivers
  All transceivers are PC/UPC compatible

Fabric Services

Simple Name Server (SNS); Registered State Change Notification (RSCN); NTP; RADIUS; RCS (Reliable Commit Service); Dynamic Path Selection (DPS); exchange-based, device-based and port-based routing; lossless; Advanced Zoning; Web Tools; Trunking; Extended Fabrics; Fabric Vision; SDDQ

Management and Security

• Management software: Serial port (9600, 8, 1, no parity, no flow); command-line interface (CLI) over SSHv2 or Telnet; Web Tools over HTTP/HTTPS; SNMP v1/v3 (FE MIB, FC Management MIB); SMI-S; RADIUS; LDAP
• Management access: 10/100/1000 Ethernet (RJ-45); serial port (RJ-45) and one USB port
• Security: AES-GCM-256 encryption on FC ISLs (E_Port); DH-CHAP between switches and end devices; FCAP switch authentication; FIPS 140-2 L2-compliant; HTTPS; IP filtering; LDAP with IPv6; OpenLDAP; port binding; RADIUS; TACACS+; role-based access control (RBAC); Secure Copy (SCP); Secure RPC; SFTP; SSHv2; SSL; Switch Binding; Trusted Switch
• Diagnostics: POST and embedded online/offline diagnostics including D_Port, WAN Test Tool, FCIP ping, FCIP traceroute, FCping, Pathinfo (FC trace route), SupportSave, RAS Log, Syslog, MAPS, SDDQ, Flow Vision and Ftrace
• Licensing: Optional extension features can be enabled on the base configuration by upgrade licence: WAN-side throughput from 1 Gb/s to 2.5 Gb/s; 10 GbE port speed on the Ethernet ports; an additional 8 Fibre Channel ports including 16 Gb/s SFPs; and advanced software features including Fabric Vision, Extension Trunking, Fibre Channel Trunking and Integrated Routing

Physical Specifications

• Enclosure: Back-to-front airflow with non-port-side air intake and power; 1 RU, 19 in., EIA-compliant
• Height x width x depth: Width 44.0 cm (17.32 in.), height 4.4 cm (1.73 in.), depth 45.7 cm (17.74 in.)
• Weight: 7.98 kg (17.6 lb) empty; 8.35 kg (18.4 lb) fully loaded
• Heat dissipation and airflow: The Dell specification sheet leaves the heat dissipation cell for this model blank. Its power specification gives 100 VAC: 1.29 A, 130W, 444 BTU/hr, 135 VA and 200 VAC: 0.65 A, 132W, 449 BTU/hr, 146 VA at maximum configuration. Airflow is a maximum of 45.0 CFM with a nominal 22.4 CFM

Power Specifications

• Power supply: Dual, hot-swappable, redundant AC power supplies with integrated system cooling fans
• Input voltage: 100 VAC to 240 VAC nominal, 90 VAC to 264 VAC range; input line frequency 50/60 Hz nominal, 47 Hz to 63 Hz range
• Inrush current: 50 A peak at 240 VAC for less than 10 ms to 150 ms, with less than 3.5 A peak beyond 150 ms
• Power: Maximum configuration 130W at 100 VAC and 132W at 200 VAC, with an inrush current as above. Power inlet C14, requiring a C13 plug

Environmental Specifications

Operating 0°C to 40°C (32°F to 104°F), non-operating -25°C to 70°C (-13°F to 158°F); operating humidity 10% to 85% at 40°C, non-operating 10% to 90%; operating altitude 0 to 3,000 m (9,842 ft), storage 0 to 12 km (39,370 ft); operating shock 10G, 10 ms half-sine wave, non-operating 33G, 11 ms half-sine wave, 3G axis; operating vibration 0.25g sine and 0.4 grms random (5-500 Hz), non-operating 5 Hz at 0.5 grms, 10-500 Hz at 1.0 grms sine and 3-500 Hz at 1.12 grms random

Regulatory Compliance

EMC: 2014/30/EU, AS/NZS CISPR 55032 (Class A), CISPR 32, CNS 13438, EN 300 386, EN 55032/55024 (CE Mark, Class A), EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B (Class A), GB 9254, ICES-003, KN 32, KN 35, TCVN 7189, VCCI-32. Safety: 2014/35/EU, CNS 14336-1, EN/UL 60825, EN/UL/CSA/IEC 60950-1, GB 4943.1. Environmental: EU RoHS 2011/65/EU, EU WEEE 2012/19/EU, EU battery directive 2006/66/EC, Vietnam circular 30/2011/TT-BCT, EU REACH 1907/2006, US Conflict Minerals Section 1502 of the Dodd-Frank Act, EU packaging directive 94/62/EC and China SJ/T 11364 and SJ/T 11363 marking requirements

Services and Warranty

Dell Technologies Services cover the full lifecycle of a SAN build-out: Consulting Services for design and planning, ProDeploy Enterprise Suite for deployment through planning, configuration and complex integrations, Residency and Managed Services for ongoing operations, and ProSupport Enterprise Suite for expert support backed by proactive and predictive AI tools.

Ordering

Configuration, availability and lead time depend on the required model, port count, optics and delivery destination. Send your requirement to receive a quotation.
