| Form Factor | 1U rack server |
|---|---|
| Processor | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
| Chipset | Intel C621A |
| Memory | 32 x DDR4 DIMMs, up to 3200 MT/s; 16 x Optane™ PMem 200 series, up to 3200 MT/s |
| Local Storage | – 8 to 12 x 2.5″ SAS/SATA/SSD drives |
| RAID | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network | Provides expansion capability of multiple types of networks. Provides the OCP 3.0 network adapter. The two FlexIO card slots support two OCP 3.0 network adapters respectively, which can be configured as required. Supports the hot swap function. |
| PCle Expansion | Provides six PCIe slots, including one PCIe slot dedicated for RAID controller card, two FlexIO card slots dedicated for OCP 3.0 network adapters, and three PCIe 4.0 slots for standard PCIe cards. |
| Fan | Seven hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| PSU | – Two hot-swappable PSUs in 1+1 redundancy mode. Supported options: |
| Management | – The BMC chip integrates one dedicated Gigabit Ethernet (GE) management port to provide comprehensive management functions such as fault diagnosis, automated O&M, and hardware security hardening. |
| OS | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, etc. |
| Security | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and cover opening detection |
| Operating Temperature | 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1 to A4 |
| Certification | CE, NRTL, FCC, CCC, VCCI, RoHS, etc. |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | Chassis with 3.5″ drives: 43.5 mm x 447 mm x 790 mm (1.71 in. x 17.60 in. x 31.10 in.) |

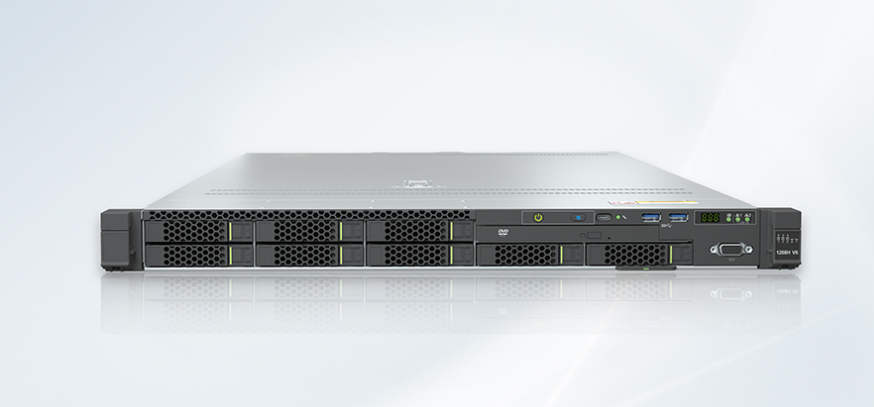

FusionServer 1288H V6
The FusionServer 1288H V6 is a 1U 2-socket rack server. It improves space utilization for data centers and is ideal for high-density deployment scenarios for workloads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing. The 1288H V6 is configured with two Intel®Xeon®Scalable processors and provides up to 32 DDR4 DIMMs, and 4 x 3.5-inch or 10 x 2.5-inch local storage resources (configurable with 4 or 10 NVMe SSDs). It incorporates patented technologies, such as Dynamic Energy Management Technology (DEMT) and Fault Diagnosis & Management (FDM), and integrates FusionDirector software for entire-lifecycle management, helping customers drive down operating expense (OPEX) and improve return on investment (ROI).
