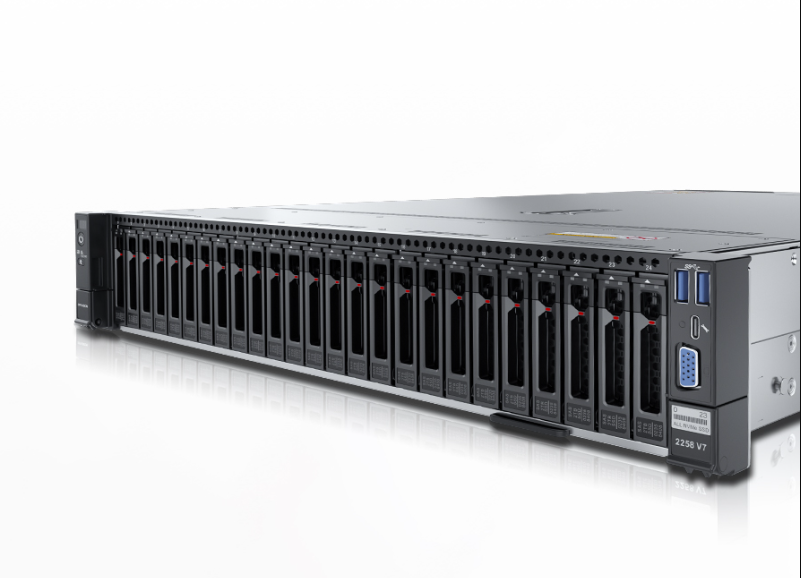

FusionServer 2258 V7

FusionServer 2258 V7

FusionServer 2258 V7 (2258 V7) is a new-generation 2U 2-socket rack server designed for SDS, VDI, CDN, virtualization, big data, DB, cloud scenarios, AI inference, small enterprises, OA, and web applications, meeting requirements of enterprise or telecom service applications and other complex workloads. The 2258 V7 features robust performance, solid scalability and reliability, easy deployment, and simplified management.

Category: Brand:
Form Factor

2U rack server

Processor

1/2 x 4th Gen AMD EPYC™ 9004 Series (Genoa) processors, TDP up to 400 W per processor

Memory

12/24 x DDR5 DIMMs, up to 4800 MT/s

Local Storage

– Flash storage: dual M.2 SSDs (SATA/NVMe)
– 8 x 2.5″ SAS/SATA drives
– 12-16 x 3.5″ SAS/SATA drives
– 24 x NVMe SSDs
– 12 x 2.5″ drives (including 8 x NVMe drives)
– 16 x 2.5″ drives (including 12 x NVMe drives)

RAID

Optional RAID 0, 1, 10, 5, 50, 6, or 60 with cache supercapacitor protection; RAID level migration, drive roaming, self-diagnosis, and Web-based remote configuration

Network

Supports multiple network expansion capabilities; 1 x OCP 3.0 NIC, configurable on demand; hot swap and PCIe 5.0 supported

PCle Expansion

1 x FlexIO slot dedicated for OCP 3.0; supports 6 x full-height standard PCIe slots, plus 2 x full-height or 4 x half-height standard PCIe slots

GPU Card

Supports 2 x dual-width GPU accelerator cards or 8 x single-width GPU accelerator cards

Fan

4 x hot-swappable counter-rotating fans, N+1 redundancy

PSU

900 W/2000 W Platinum/Titanium hot-swappable power supplies, 1500 W Platinum PSU, 3000 W Titanium PSU, supporting 1+1 redundancy

Management

– The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
– The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity.
– Optional FusionDirector management software provides advanced management features such as five intelligent technologies, enabling intelligent, automated, visualized, and refined management throughout the lifecycle.

OS

xFusion FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware vSphere, Red Hat Enterprise Linux, Oracle, Ubuntu, etc.

Security

Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection

Operating Temperature

5°C to 45°C (41°F to 113°F), compliant with ASHRAE Class A1/A2/A3/A4

Certification

CE, UL, CCC, FCC, VCCI, RoHS, etc.

Installation Suite

L-shaped guide rails, retractable guide rails, and holding rails

Dimensions (H x W x D)

Chassis with 3.5″ drives: 86.1 mm x 447 mm x 798 mm
Chassis with 2.5″ drives: 86.1 mm x 447 mm x 798 mm

FusionServer 2258 V7 (2258 V7) is a new-generation 2U 2-socket rack server designed for SDS, VDI, CDN, virtualization, big data, DB, cloud scenarios, AI inference, small enterprises, OA, and web applications, meeting requirements of enterprise or telecom service applications and other complex workloads. The 2258 V7 features robust performance, solid scalability and reliability, easy deployment, and simplified management.
