| Form Factor | 2U Rack Server |
|---|---|
| Processor | 2 or 4 x 3rd Gen Intel® Xeon® Scalable processors (5300/6300/8300 series), TDP up to 250 W |
| Memory | 48 DDR4 DIMM slots, up to 3200 MT/s; up to 24 Intel® Optane™ PMem modules (200 series), 2666 MT/s |
| Local Storage | – 8 x 2.5″ front SAS/SATA/NVMe drives |
| RAID | RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| PCle Expansion | Up to 11 PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC |
| Heterogeneous Accelerator Cards | 2 dual-slot FHFL or 4 single-slot HHHL GPU heterogeneous accelerator cards |
| Fan | 6 hot-swappable fan modules in N+1 redundancy mode |
| PSU | – 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: |
| Management | – BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. |
| OS | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi |
| Security | Power-on password, administrator password, TCM/TPM 2.0, security front panel, and out-of-box intrusion alarm, etc. |
| Operating Temperature | 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4 |
| Certification | CE, NRTL, FCC, CCC, and RoHS, etc. |
| Installation Suite | Adjustable guide rails, holding rails, and cable management arms (CMAs) |
| Dimensions (H x W x D) | Chassis: 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |

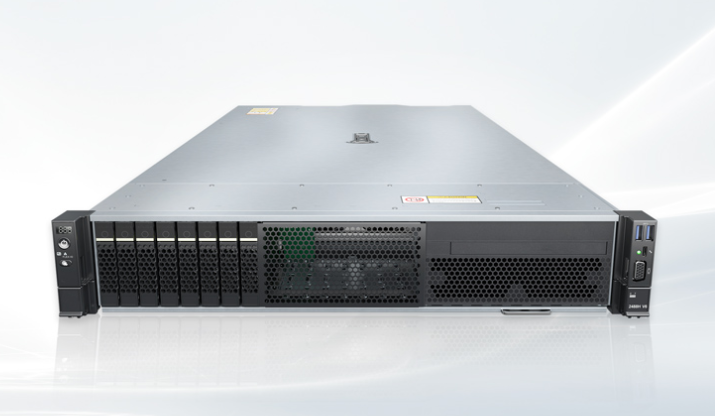

FusionServer 2488H V6
FusionServer 2488H V6 is the lastest 2U, 4-socket (4S) rack server, ideal for computing-intensive scenarios such as cloud computing, virtualization, high-performance computing (HPC), database, and SAP HANA. In virtualization scenarios, the OPEX of one FusionServer 2488H V6 is lower than that of two 2U, 2S rack servers. The 2488H V6 houses four 3rd Gen Intel® Xeon® Scalable processors in a 2U space, and supports 48 DDR4 DIMMs, 11 PCIe slots, and up to 25 x 2.5” drives for local storage. It incorporates patented technologies, such as Dynamic Energy Management Technology (DEMT) and Fault Diagnosis & Management (FDM), and can be configured with FusionDirector software for entire-lifecycle management, helping drive down OPEX and improve ROI.
