| Form Factor | 2U rack server |
|---|---|
| Processor | 2 or 4 x 4th Gen Intel® Xeon® Scalable processors with TDP up to 350 W per processor |
| Chipset | Emmitsburg PCH |
| Memory | 64 x DDR5 DIMMs |
| Local Storage | – 8 x front 2.5″ SAS/SATA drives |
| RAID | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network | Multiple network expansion capabilities; 1 x OCP 3.0 NIC, supporting hot swap |
| PCle Expansion | Up to 10 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 9 x standard PCIe slots |
| Fan | 6 x hot-swappable counter-rotating fans in N+1 redundancy |
| PSU | 900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Management | – The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. |
| OS | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler |
| Security | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection |
| Operating Temperature | 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4 |
| Certification | CE, NRTL, CCC, FCC, VCCI, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | Chassis with 2.5″ drives: 86.1 mm x 447 mm x 898 mm (3.39 in. x 17.60 in. x 35.35 in.) |

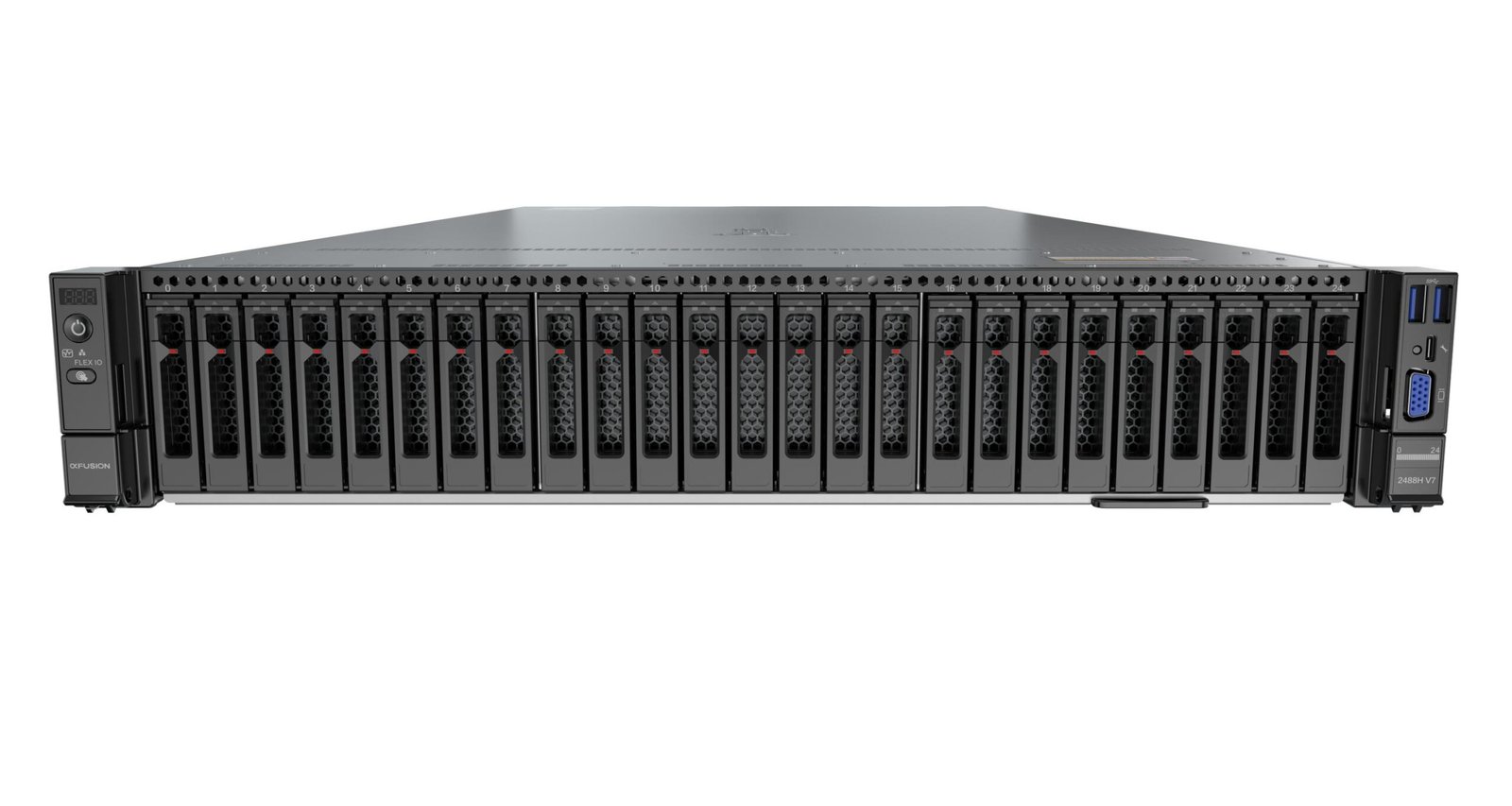

FusionServer 2488H V7
FusionServer 2488H V7 (2488H V7) is a 2U 4-socket mission critical rack server designed for the Internet Data Center (IDC), cloud computing, enterprise business, and telecom service applications.
It is also ideal for various applications, such as databases, virtualization, and in-memory computing.
2488H V7 features high-performance computing, large-capacity storage, low power consumption, high reliability, easy management and deployment, and high virtualization application density.
