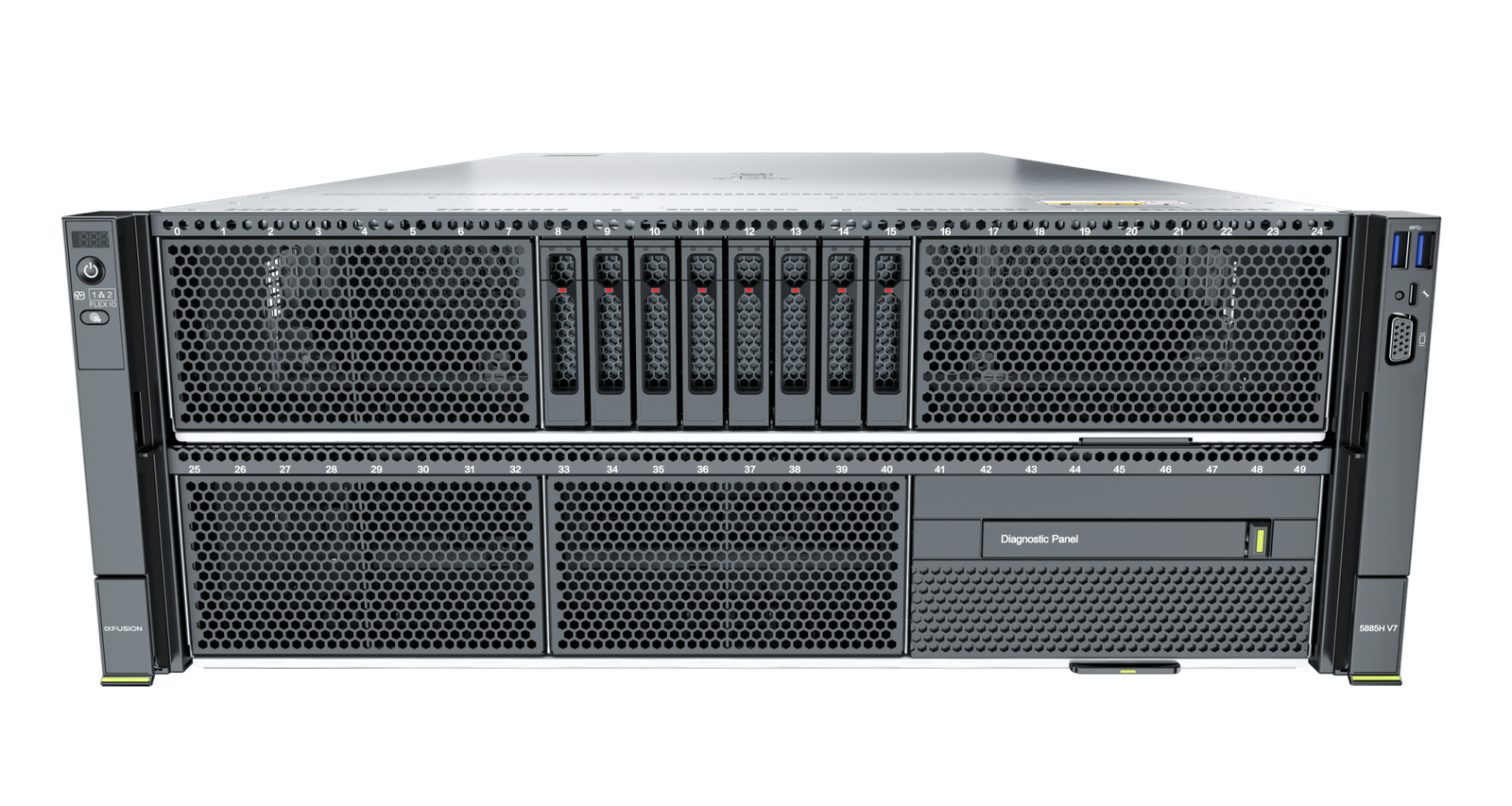

FusionServer 5885H V7

FusionServer 5885H V7

FusionServer 5885H V7 is a 4U rack server supporting 2 or 4 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor.
Category: Brand:
Form Factor

4U rack server

Processor

2 or 4 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor

Chipset

Emmitsburg PCH

Memory

64 x DDR5 DIMMs

Local Storage

– 8, 24, 25, or 50 x front 2.5″ SAS/SATA drives
– 4 x front 2.5″ SAS/SATA drives and 8 x NVMe SSDs
– 24 x front NVMe SSDs
– 25 x front 2.5″ SAS/SATA drives and 24 x front NVMe SSDs
– 36 x front E1.S SSDs
– Up to 52 x 2.5″ drives
– Flash storage: 2 x M.2 SSDs, supporting hardware RAID

RAID

RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Network

Multiple network expansion capabilities; 1 x OCP 3.0 NIC, supporting hot swap

PCle Expansion

Up to 22 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 21 x standard PCIe slots

GPU Card

4 x dual-width GPU cards; 14 x single-width GPU cards

Fan

6 or 8 x hot-swappable fan modules in N+1 redundancy

PSU

900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 2+2 redundancy

Management

– The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
– The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
– It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.

OS

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler

Security

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection

Operating Temperature

5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4

Certification

CE, NRTL, CCC, FCC, VCCI, and RoHS

Installation Suite

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

Chassis with 2.5″ drives: 175 mm x 447 mm x 898 mm (6.89 in. x 17.60 in. x 35.35 in.)

FusionServer 5885H V7 is a 4U rack server supporting 2 or 4 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor. Built on the Emmitsburg PCH, it provides 64 x DDR5 DIMMs, highly flexible hot-swappable storage (up to 52 x 2.5″ drives or 36 x E1.S SSDs), up to 22 x PCIe slots, 4 x dual-width or 14 x single-width GPU cards, and 2+2 redundant Platinum/Titanium PSUs — a high-density 4U platform for compute- and storage-intensive workloads.
