| Product SKU | i24M6 |
|---|---|
| Processor | 2 × Intel Xeon Scalable processors (Whitley platform, Ice Lake); up to 270 W TDP CPU (with configuration restrictions) |
| Chipset | C621A/627A |
| Memory | 16 × DDR4 DIMMs, up to 3,200 MHz; supports 8 × Intel Optane Data Center Persistent Memory (Optane PMem) modules; memory capacity per node expands up to 4.5 TB |
| Storage Controller | Onboard SATA controller; INSPUR SAS 3008 (IT/IMR) supporting RAID 0/1/10/1E/5; LSI 9361-8i supporting RAID 0/1/1E/5/6/10/50, with optional 1 GB/2 GB cache and optional supercapacitor |
| Network | Supports OCP standard cards or PHY cards, plus PCIe plug-in cards |
| I/O Expansion | 3 × PCIe expansion: horizontal, low-profile half-length cards supported via riser. Slots 1 and 2 provide 2 × PCIe x16 (Gen4) via 2 risers. Motherboard integrates 1 × OCP 3.0 standard card or PHY card slot |
| Ports and Interfaces | Expands through SUV to 1 × USB 3.0 port, 2 × USB 2.0 ports, 1 × VGA port, 1 × serial port |
| Power Supply | 2 × 2,000 W 80 Plus Platinum power supplies with 1+1 redundancy (1+1 redundancy is conditional, please confirm against the specific configuration). 100–240 V AC or 192–300 V DC (refer to the input rating on the system nameplate) |
| Cooling | 4 × hot-swap 80 mm system cooling fans in the middle of the chassis |
| Operating System | Windows, Red Hat, SUSE, CentOS, Oracle Linux, etc. |
| Dimensions | 2.5-inch drive bay chassis: 446 (W) × 87.5 (H) × 805 (D) mm. 3.5-inch drive bay chassis: 446 (W) × 87.5 (H) × 845 (D) mm |
| Weight | Net weight at full configuration: 40.5 kg for 2.5-inch drive models, 42.9 kg for 3.5-inch drive models |
| Operating Temperature | 5°C to 35°C |
Overview

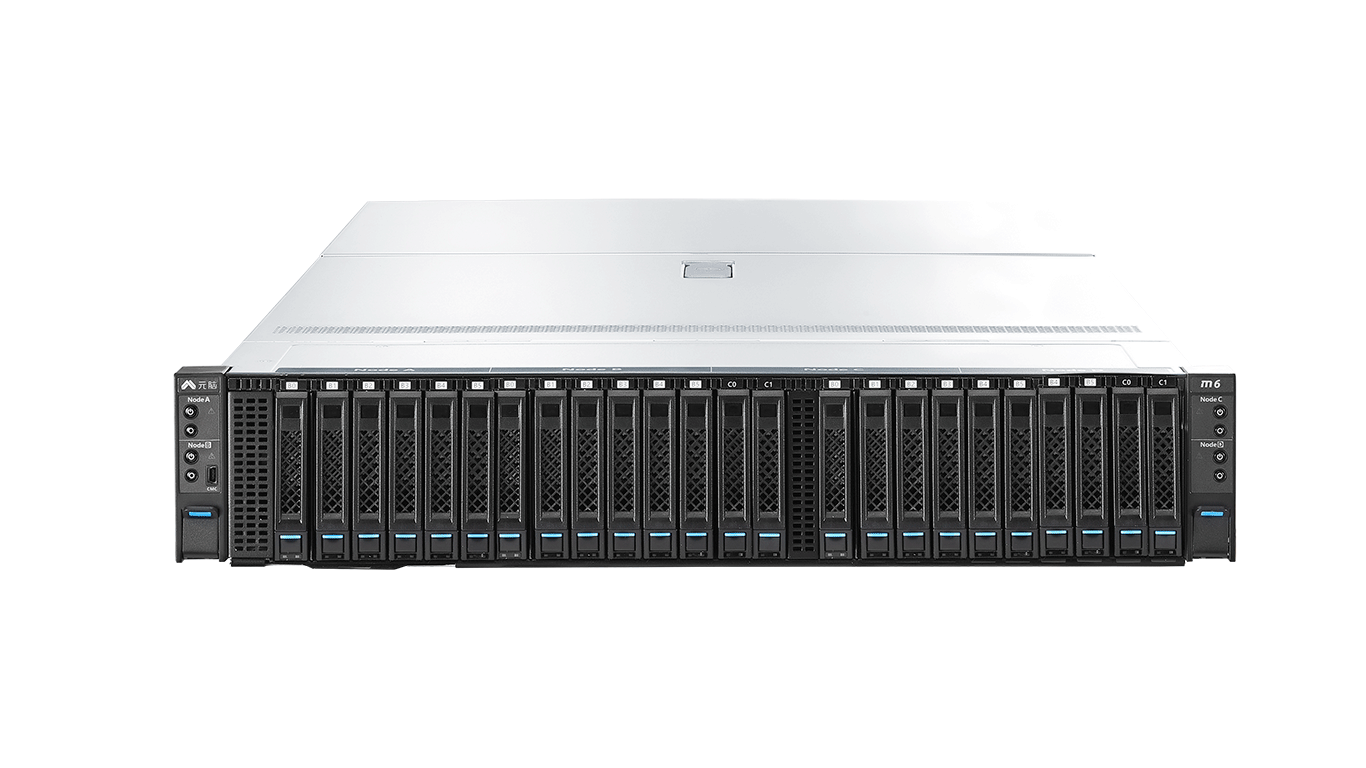

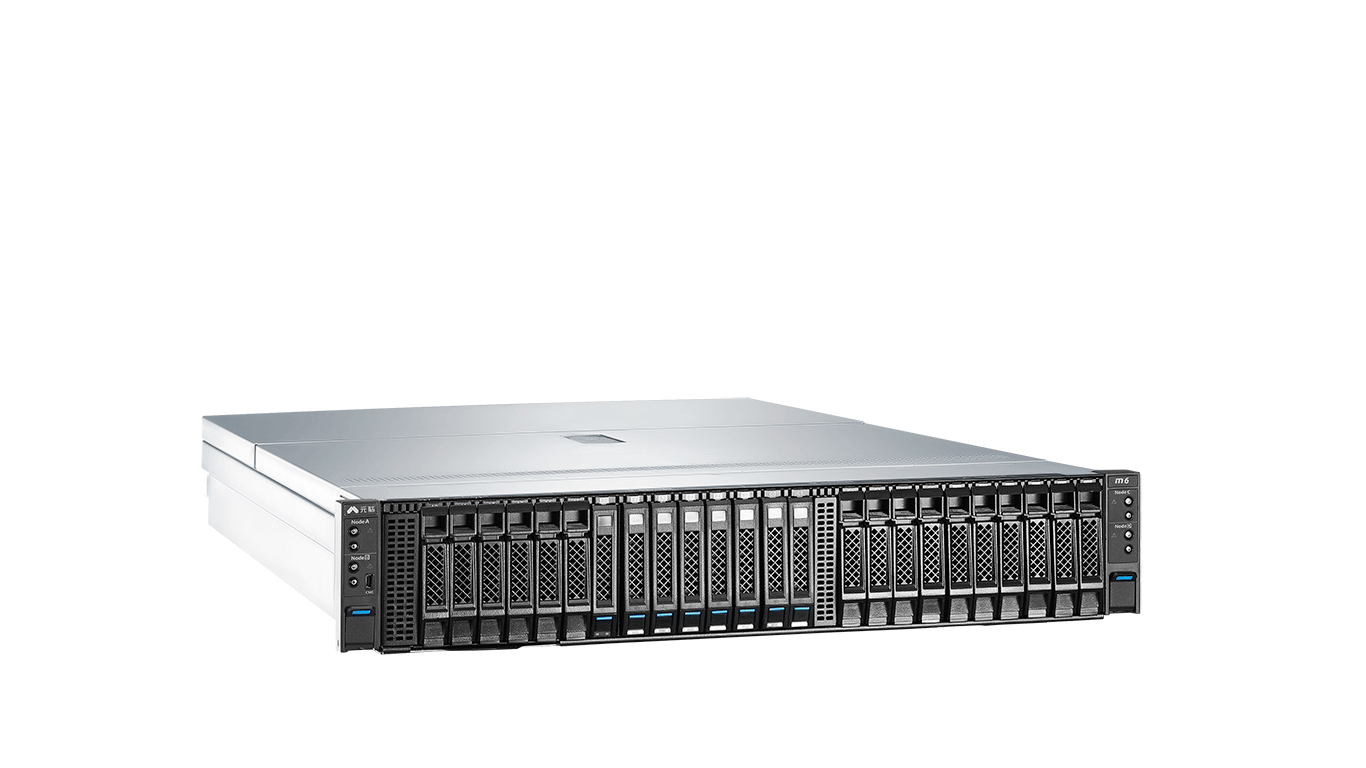

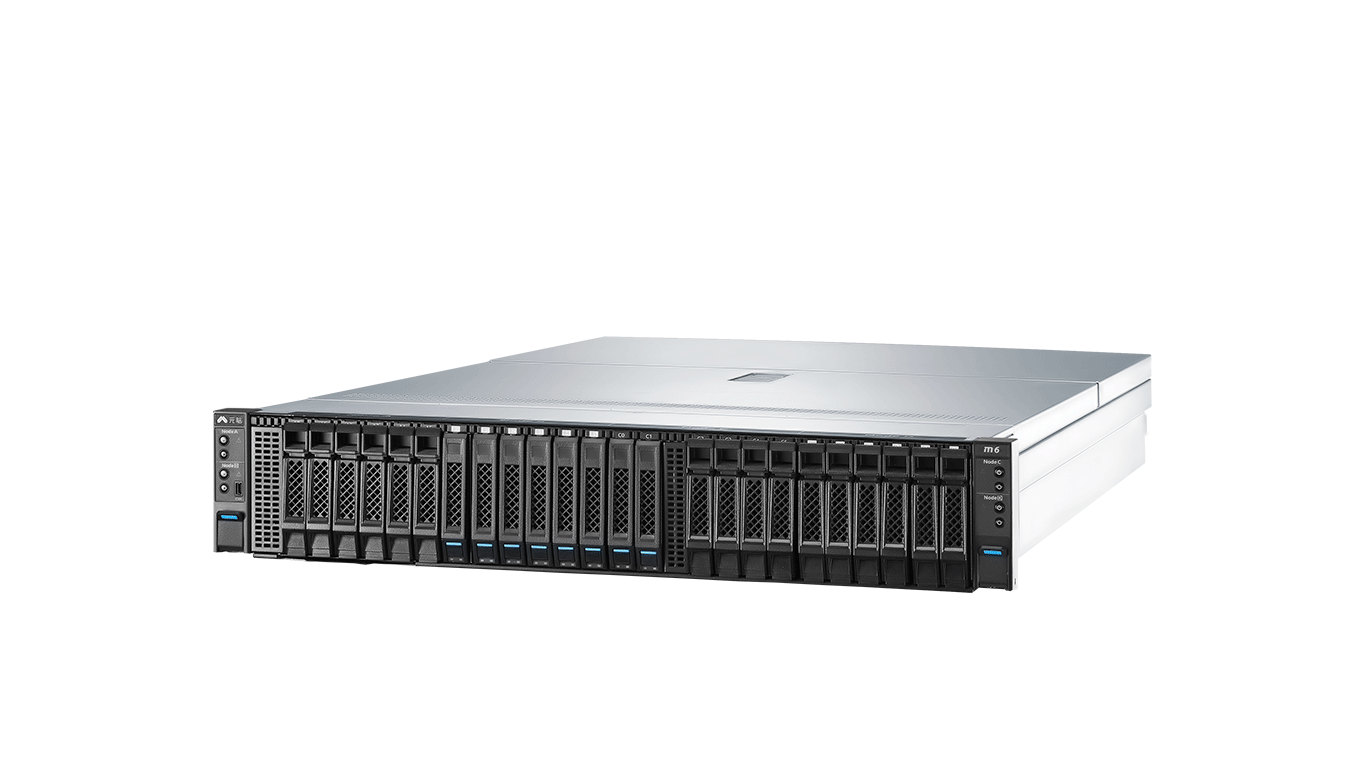

The Inspur i24M6 is a high-density server. It is configured with 2 × Intel Xeon Scalable processors (Whitley platform, Ice Lake); up to 270 W TDP CPU (with configuration restrictions). Memory: 16 × DDR4 DIMMs, up to 3,200 MHz; supports 8 × Intel Optane Data Center Persistent Memory (Optane PMem) modules; memory capacity per node expands up to 4.5 TB.
Key Features
- Processor: 2 × Intel Xeon Scalable processors (Whitley platform, Ice Lake); up to 270 W TDP CPU (with configuration restrictions)
- Memory: 16 × DDR4 DIMMs, up to 3,200 MHz; supports 8 × Intel Optane Data Center Persistent Memory (Optane PMem) modules; memory capacity per node expands up to 4.5 TB
- Storage Controller: Onboard SATA controller; INSPUR SAS 3008 (IT/IMR) supporting RAID 0/1/10/1E/5; LSI 9361-8i supporting RAID 0/1/1E/5/6/10/50, with optional 1 GB/2 GB cache and optional supercapacitor
- Network: Supports OCP standard cards or PHY cards, plus PCIe plug-in cards
- I/O Expansion: 3 × PCIe expansion: horizontal, low-profile half-length cards supported via riser. Slots 1 and 2 provide 2 × PCIe x16 (Gen4) via 2 risers. Motherboard integrates 1 × OCP 3.0 standard card or PHY card slot
- Power Supply: 2 × 2,000 W 80 Plus Platinum power supplies with 1+1 redundancy (1+1 redundancy is conditional, please confirm against the specific configuration). 100–240 V AC or 192–300 V DC (refer to the input rating on the system nameplate)
- Cooling: 4 × hot-swap 80 mm system cooling fans in the middle of the chassis
- Operating System: Windows, Red Hat, SUSE, CentOS, Oracle Linux, etc.
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
