| Product SKU | NF5466M6 |
|---|---|
| Form Factor | 4U rack server |
| Processor | 1 or 2 × Intel Xeon 4300/5300/6300/8300 Scalable processors: up to 40 cores, 3 UPI links at up to 11.2 GT/s each, up to 270 W TDP |
| Memory | 32 × memory slots. 8 memory channels per processor, 2 DIMMs per channel. Memory speed up to 3,200 MT/s; supports RDIMM and BPS/NVDIMM. Memory protection includes ECC, memory mirroring and memory rank sparing |
| Storage | Front: 24 × 3.5-inch SATA/SAS drives, hot-swap. Rear: 16 × 3.5-inch SATA/SAS drives, hot-swap; 4 × 2.5-inch SATA/SAS/NVMe SSDs, hot-swap; 2 × M.2 SSDs or 2 × E1.S SSD modules. Internal: 6 × 3.5-inch SATA/SAS drives in the middle bay; up to 2 × TF cards; up to 16 × U.2 drives |
| Network | 1 × optional OCP 3.0 module at 1/10/25/40/100/200 Gb/s; supports standard 1 Gb/10 Gb/25 Gb/40 Gb/100 Gb/200 Gb NICs |
| I/O Expansion | Up to 13 × PCIe slots, PCIe 4.0 supported |
| Ports and Interfaces | 2 × rear USB 3.0 + 1 × front USB 3.0 + 1 × front USB 2.0; 1 × front VGA; 1 × rear VGA; 1 × COM port |
| Cooling | Hot-swap N+1 redundant 8056 fans |
| System Management | Integrated 1 × independent 1,000 Mbps network port dedicated to IPMI remote management |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc. |
| Dimensions | With mounting ears: 482 mm (W) × 174.5 mm (H) × 842.5 mm (D). Without mounting ears: 447 mm (W) × 174.5 mm (H) × 837.3 mm (D) |
| Weight | 62 kg (please refer to the technical white paper for details) |
| Operating Temperature | 5°C to 45°C (please refer to the technical white paper for details) |
Overview

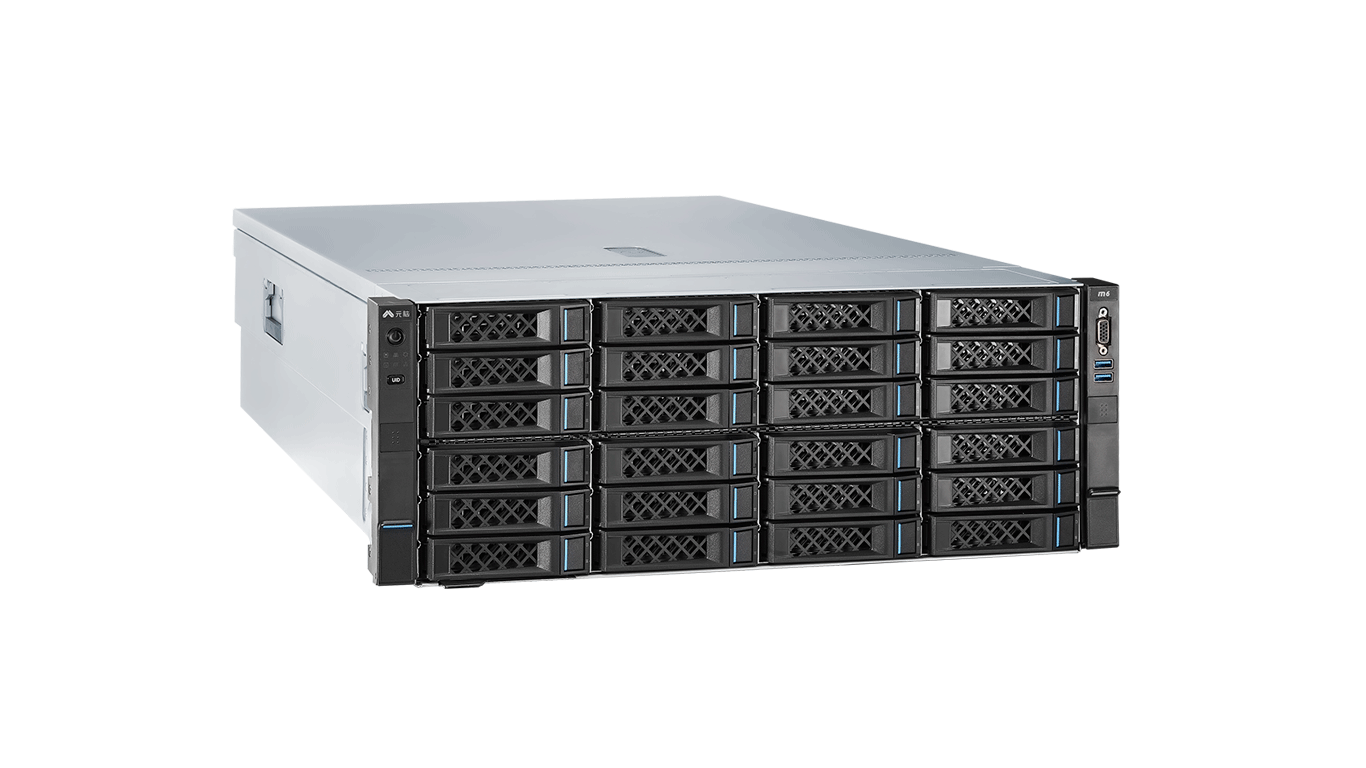

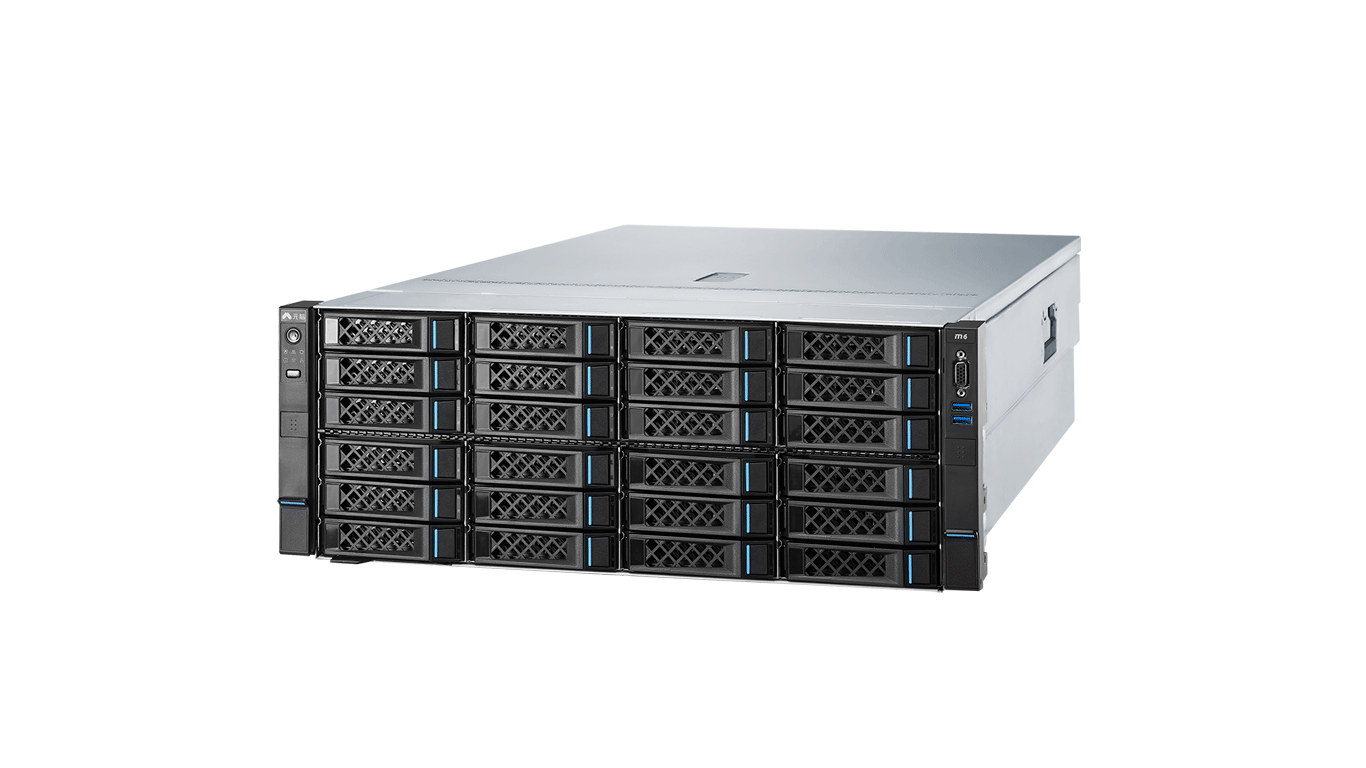

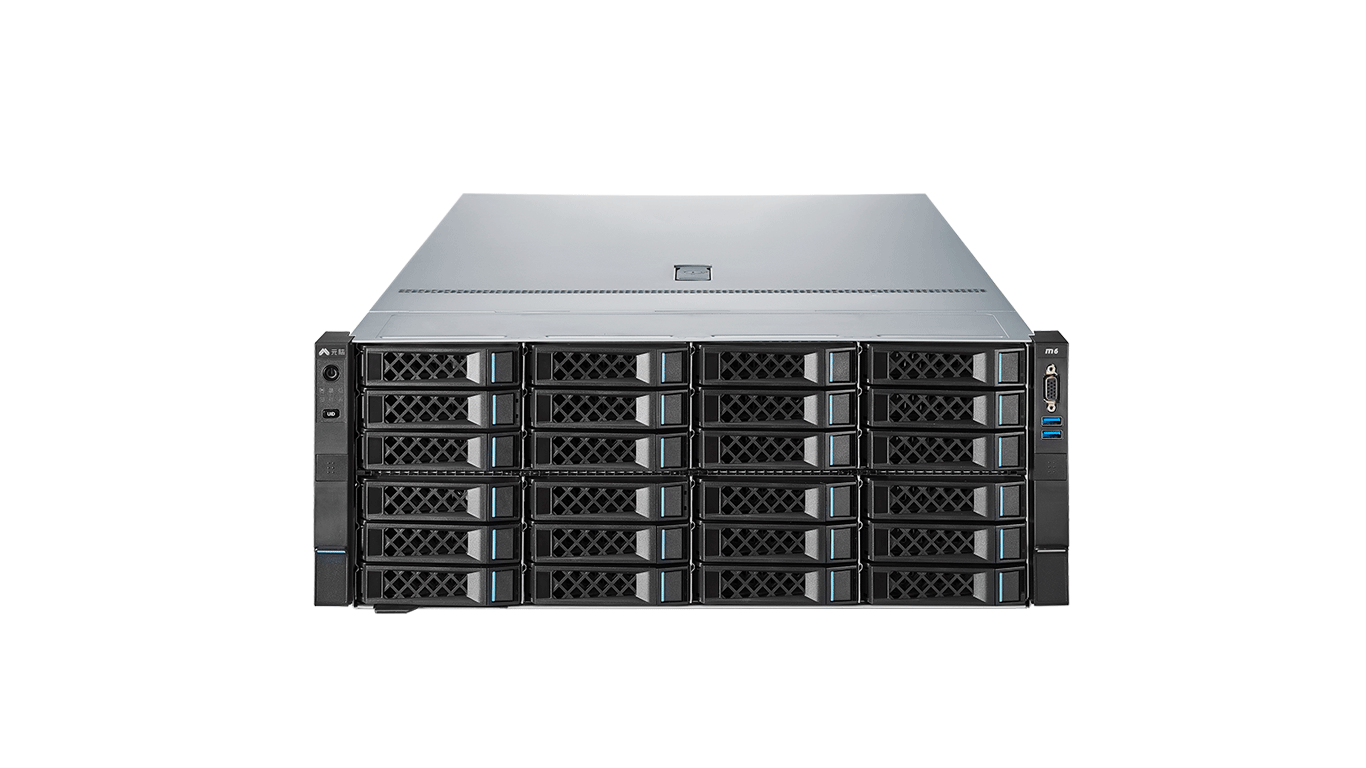

The Inspur NF5466M6 is a 4U rack server rack server. It is configured with 1 or 2 × Intel Xeon 4300/5300/6300/8300 Scalable processors: up to 40 cores, 3 UPI links at up to 11.2 GT/s each, up to 270 W TDP. Memory: 32 × memory slots. 8 memory channels per processor, 2 DIMMs per channel. Memory speed up to 3,200 MT/s; supports RDIMM and BPS/NVDIMM. Memory protection includes ECC, memory mirroring and memory rank sparing.
Key Features
- Processor: 1 or 2 × Intel Xeon 4300/5300/6300/8300 Scalable processors: up to 40 cores, 3 UPI links at up to 11.2 GT/s each, up to 270 W TDP
- Memory: 32 × memory slots. 8 memory channels per processor, 2 DIMMs per channel. Memory speed up to 3,200 MT/s; supports RDIMM and BPS/NVDIMM. Memory protection includes ECC, memory mirroring and memory rank sparing
- Storage: Front: 24 × 3.5-inch SATA/SAS drives, hot-swap. Rear: 16 × 3.5-inch SATA/SAS drives, hot-swap; 4 × 2.5-inch SATA/SAS/NVMe SSDs, hot-swap; 2 × M.2 SSDs or 2 × E1.S SSD modules. Internal: 6 × 3.5-inch SATA/SAS drives in the middle bay; up to 2 × TF cards; up to 16 × U.2 drives
- Network: 1 × optional OCP 3.0 module at 1/10/25/40/100/200 Gb/s; supports standard 1 Gb/10 Gb/25 Gb/40 Gb/100 Gb/200 Gb NICs
- I/O Expansion: Up to 13 × PCIe slots, PCIe 4.0 supported
- Cooling: Hot-swap N+1 redundant 8056 fans
- System Management: Integrated 1 × independent 1,000 Mbps network port dedicated to IPMI remote management
- Operating System: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc.
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
