| Product SKU | NF5688M6 |
|---|---|
| Form Factor | 6U |
| Processor | 2* 3 rd Intel ® Xeon ® IceLake scalable processors, TDP 270W, support 3 UPI interconnections |
| Chipset | Intel ® C621A Series Chipset |
| Memory | 32* DDR4 RDIMM/LRDIMM, up to 3200MT/s |
| Storage | 8* 2.5’’ NVMe SSD or 16* 2.5’’ SATA/SAS SSD |
| Storage Controller | Support RAID0/1/10/5/50/6/60 (option), support Cache super capacitor protection, provide RAID state migration, RAID configuration memory |
| Network | 1 PCIe 4.0 x16 OCP 3.0 network card (option), support 10G/25G/100G |
| GPU | 1* NVIDIA HGX™ Ampere GPU |
| I/O Expansion | 10* PCIe 4.0 x16 slots，2* PCIe 4.0 x16 slots (PCIe 4.0 x8 rate) |
| Power Supply | 6* 3000W 80Plus platinum power supply, support 3+3 redundancy |
| Cooling | N+1 redundant hot-swappable fans |
| System Management | Built-in BMC remote management module, support Redfish/IPMI/SOL/KVM, etc. |
| Operating System | Red Hat Enterprise 7.8 64bit, CentOS 7.8, Ubuntu 18.04 or higher version |
| Dimensions | 447mm * 263.9mm * 850mm |
| Weight | ≤88kg |
| Operating Temperature | 10℃~35℃/50℉~95℉ |
| Product Code | NF5688M6 |
Overview

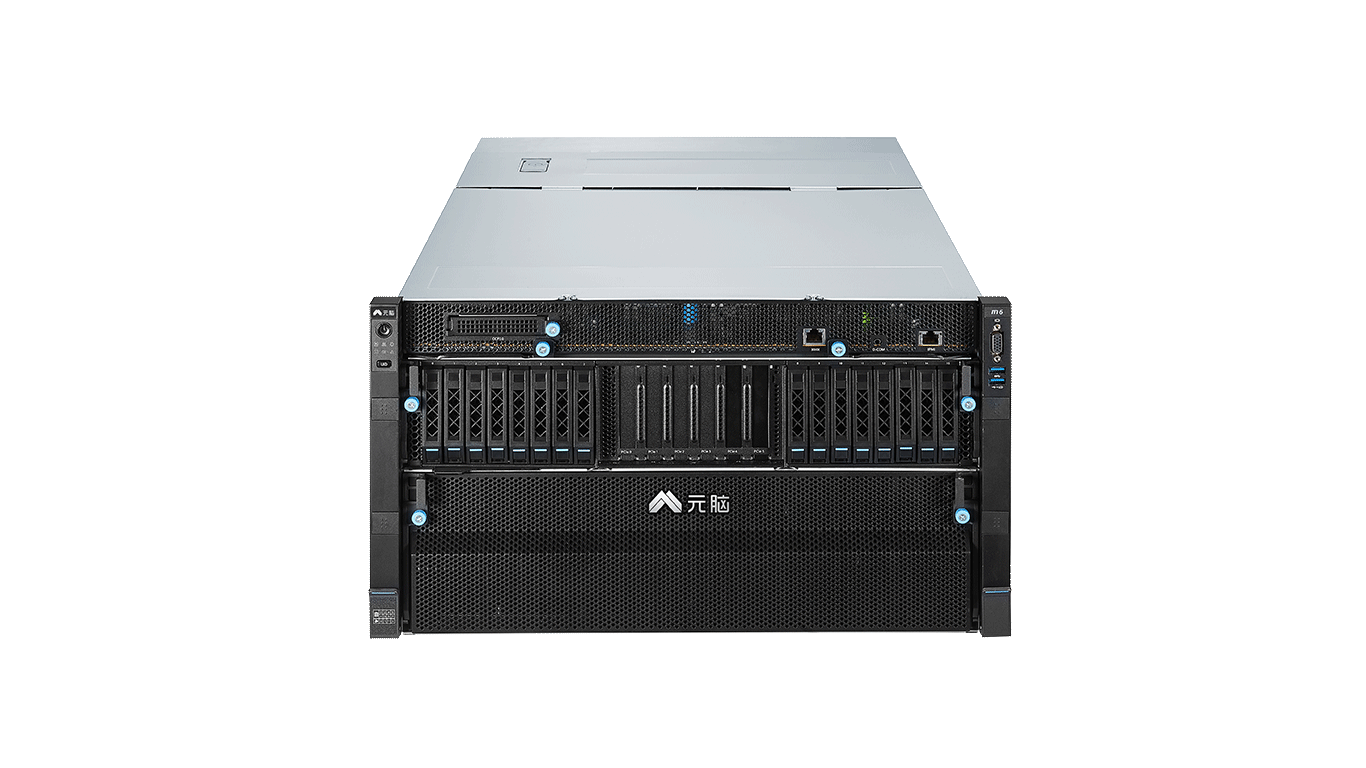

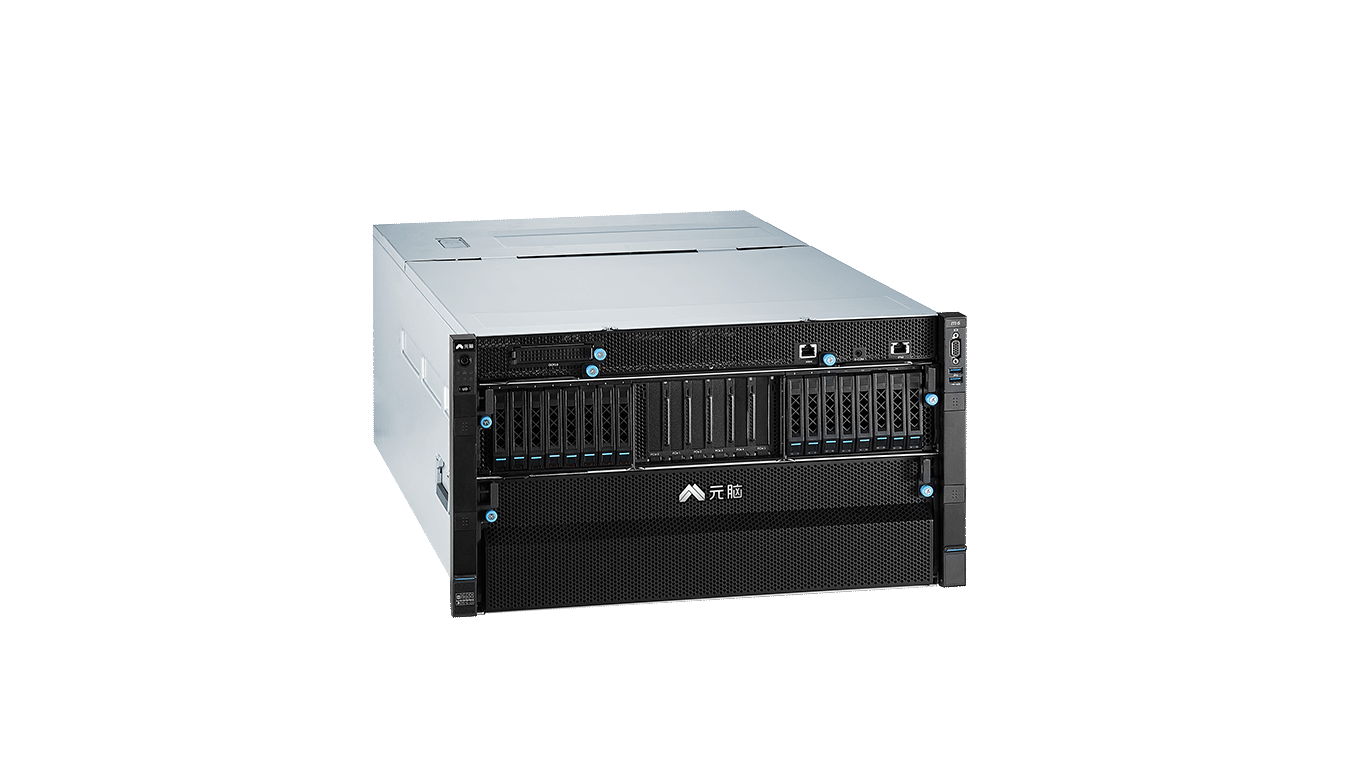

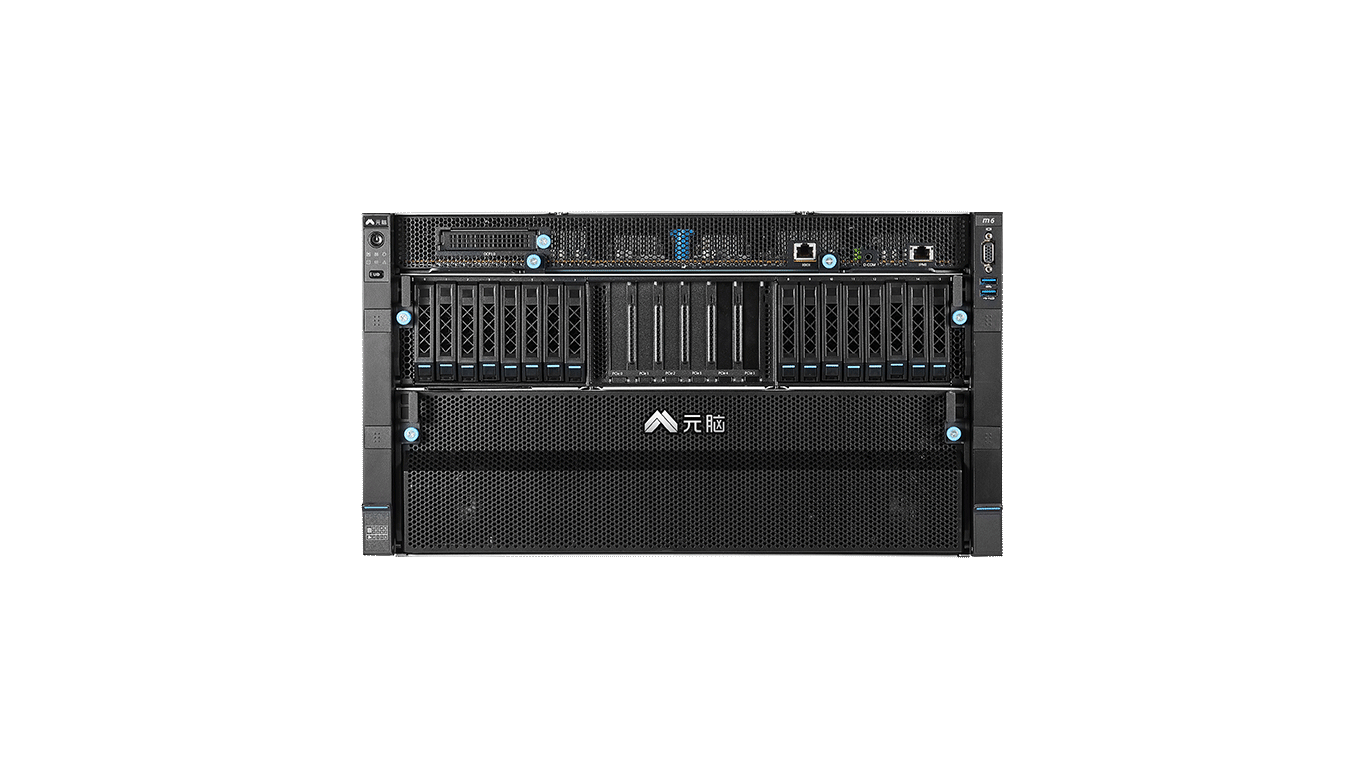

The Inspur NF5688M6 is a 6U GPU server. It is configured with 2* 3 rd Intel ® Xeon ® IceLake scalable processors, TDP 270W, support 3 UPI interconnections. Memory: 32* DDR4 RDIMM/LRDIMM, up to 3200MT/s.
Key Features
- Processor: 2* 3 rd Intel ® Xeon ® IceLake scalable processors, TDP 270W, support 3 UPI interconnections
- Memory: 32* DDR4 RDIMM/LRDIMM, up to 3200MT/s
- Storage: 8* 2.5’’ NVMe SSD or 16* 2.5’’ SATA/SAS SSD
On-board 2* SATA M.2 - Storage Controller: Support RAID0/1/10/5/50/6/60 (option), support Cache super capacitor protection, provide RAID state migration, RAID configuration memory
- Network: 1 PCIe 4.0 x16 OCP 3.0 network card (option), support 10G/25G/100G
- I/O Expansion: 10* PCIe 4.0 x16 slots，2* PCIe 4.0 x16 slots (PCIe 4.0 x8 rate)
- GPU: 1* NVIDIA HGX™ Ampere GPU
- Power Supply: 6* 3000W 80Plus platinum power supply, support 3+3 redundancy
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
