| Product SKU | NF8260M6 |
|---|---|
| Processor | 2 or 4 × 3rd Gen Intel Xeon Scalable processors |
| Memory | DDR4 Registered, LRDIMM, RDIMM, PMem 200 series (Barlow Pass) |
| Storage | Front: up to 24 or 25 × 2.5-inch drives, with optional support for 24 × NVMe SSDs |
| Storage Controller | Optional RAID 0, 1, 10, 1E, 5, 50, 6, 60 etc.; onboard SATA controller supporting RAID 0/1/5/10; integrated NVMe controller interface with optional Intel NVMe RAID Key |
| Network | 1 × OCP 3.0 x16 NIC, providing 1/10/25/100 Gb port configurations |
| I/O Expansion | Up to 12 × standard PCIe slots |
| Ports and Interfaces | 2 × rear USB 3.0 ports; 1 × front USB 3.0 port + 1 × front USB 2.0 port; 1 × internal USB 3.0 port |
| Power Supply | Up to 2 × 800 W/1,300 W/1,600 W/2,000 W CRPS standard power supplies (Platinum) with 1+1 redundancy; Titanium grade available |
| System Management | Onboard BMC management module providing 1 × 1 Gbps RJ45 management port dedicated to IPMI remote management; supports BMC flash chip redundancy |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, VMware ESXi, etc. |
| Dimensions | 435 mm (W) × 87 mm (H) × 841 mm (D) |
| Operating Temperature | 5°C to 45°C |
Overview

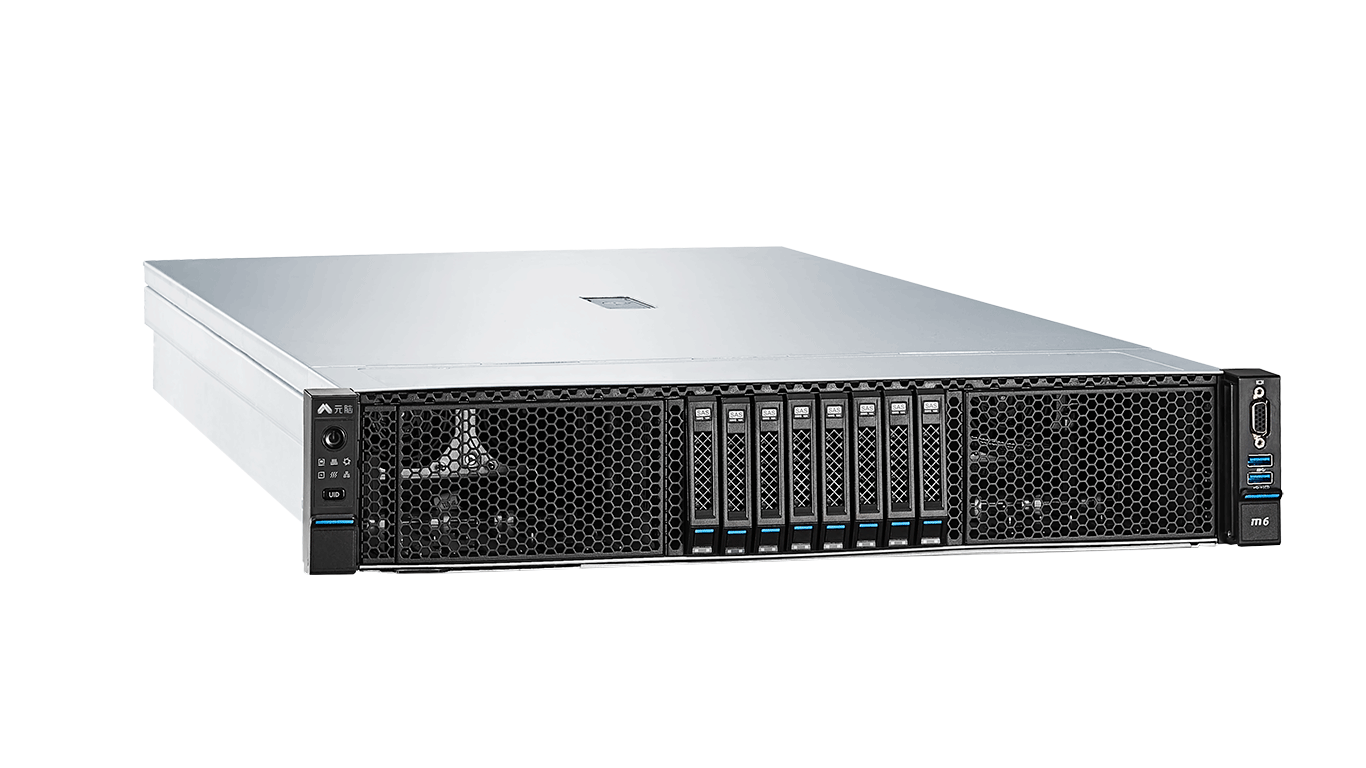

The Inspur NF8260M6 is a rack server. It is configured with 2 or 4 × 3rd Gen Intel Xeon Scalable processors. Memory: DDR4 Registered, LRDIMM, RDIMM, PMem 200 series (Barlow Pass).
Key Features
- Processor: 2 or 4 × 3rd Gen Intel Xeon Scalable processors
- Memory: DDR4 Registered, LRDIMM, RDIMM, PMem 200 series (Barlow Pass)
- Storage: Front: up to 24 or 25 × 2.5-inch drives, with optional support for 24 × NVMe SSDs
- Storage Controller: Optional RAID 0, 1, 10, 1E, 5, 50, 6, 60 etc.; onboard SATA controller supporting RAID 0/1/5/10; integrated NVMe controller interface with optional Intel NVMe RAID Key
- Network: 1 × OCP 3.0 x16 NIC, providing 1/10/25/100 Gb port configurations
- I/O Expansion: Up to 12 × standard PCIe slots
- Power Supply: Up to 2 × 800 W/1,300 W/1,600 W/2,000 W CRPS standard power supplies (Platinum) with 1+1 redundancy; Titanium grade available
- System Management: Onboard BMC management module providing 1 × 1 Gbps RJ45 management port dedicated to IPMI remote management; supports BMC flash chip redundancy
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
