| Product SKU | NP5570M5 |
|---|---|
| Form Factor | Tower: 220 mm (W) × 435 mm (H) × 610 mm (D) |
| Processor | 2 × Intel Xeon processors, Skylake/Cascade Lake series |
| Chipset | Intel C621 server chipset |
| Memory | 16 × memory slots, up to DDR4-2933; supports advanced memory error correction, memory mirroring and memory sparing |
| Storage | Up to 16 × 2.5-inch SAS HDDs or SATA SSDs, or 4 × 3.5-inch SATA HDDs |
| Storage Controller | Integrated 6 Gb SATA disk controller |
| I/O Expansion | 6 × PCIe 3.0 slots |
| Ports and Interfaces | Front: 2 × USB 3.0 ports. Rear: 2 × USB 3.0 ports, 1 × standard VGA port, 2 × RJ45 network ports, 1 × dedicated management port, 1 × serial port. Internal: 2 × USB 3.0 ports |
| Power Supply | Single or dual 500 W output with 1+1 redundancy; 1,250 W power supply also supported |
| System Management | Integrated system management chip supporting IPMI 2.0, KVM over IP and virtual media |
| Operating System | RHEL 6.9 64-bit, RHEL 7 series 64-bit, CentOS 6.9 64-bit, CentOS 7 series 64-bit, Windows 8.1 64-bit, Windows 10 64-bit, Windows 2012 R2 64-bit, Windows 2016 64-bit, Windows 2019 64-bit, SUSE 12.3 64-bit |
| Operating Temperature | 5°C to 35°C |
| Certification | China Energy Conservation Product Certification; China Compulsory Product Certification; China Environmental Labeling Product Certification |

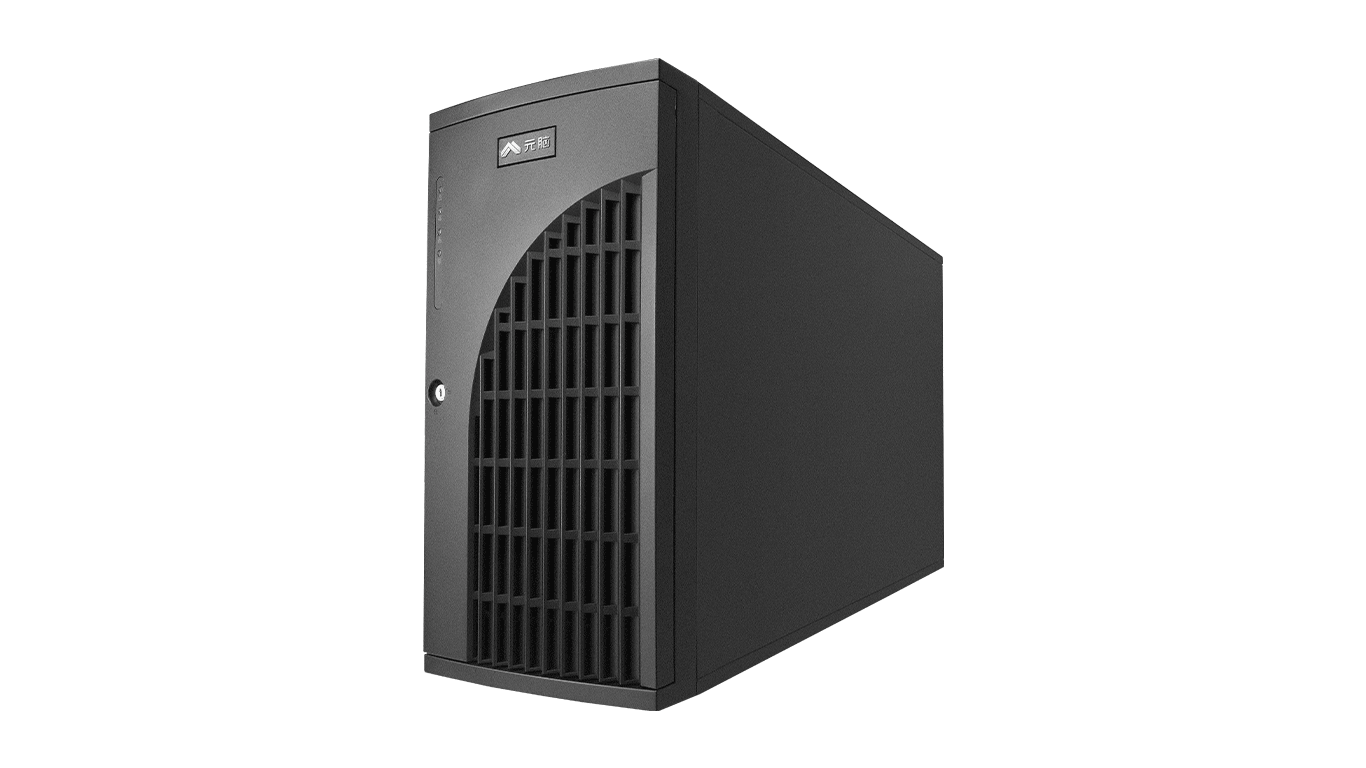

Overview
The Inspur NP5570M5 is a tower server. Form factor: Tower: 220 mm (W) × 435 mm (H) × 610 mm (D). It is configured with 2 × Intel Xeon processors, Skylake/Cascade Lake series. Memory: 16 × memory slots, up to DDR4-2933; supports advanced memory error correction, memory mirroring and memory sparing.
Key Features
- Processor: 2 × Intel Xeon processors, Skylake/Cascade Lake series
- Memory: 16 × memory slots, up to DDR4-2933; supports advanced memory error correction, memory mirroring and memory sparing
- Storage: Up to 16 × 2.5-inch SAS HDDs or SATA SSDs, or 4 × 3.5-inch SATA HDDs
- Storage Controller: Integrated 6 Gb SATA disk controller
- I/O Expansion: 6 × PCIe 3.0 slots
- Power Supply: Single or dual 500 W output with 1+1 redundancy; 1,250 W power supply also supported
- System Management: Integrated system management chip supporting IPMI 2.0, KVM over IP and virtual media
- Operating System: RHEL 6.9 64-bit, RHEL 7 series 64-bit, CentOS 6.9 64-bit, CentOS 7 series 64-bit, Windows 8.1 64-bit, Windows 10 64-bit, Windows 2012 R2 64-bit, Windows 2016 64-bit, Windows 2019 64-bit, SUSE 12.3 64-bit
Configuration, availability and lead time depend on the required quantity, system pairing and delivery destination. Send your requirement to receive a quotation.
